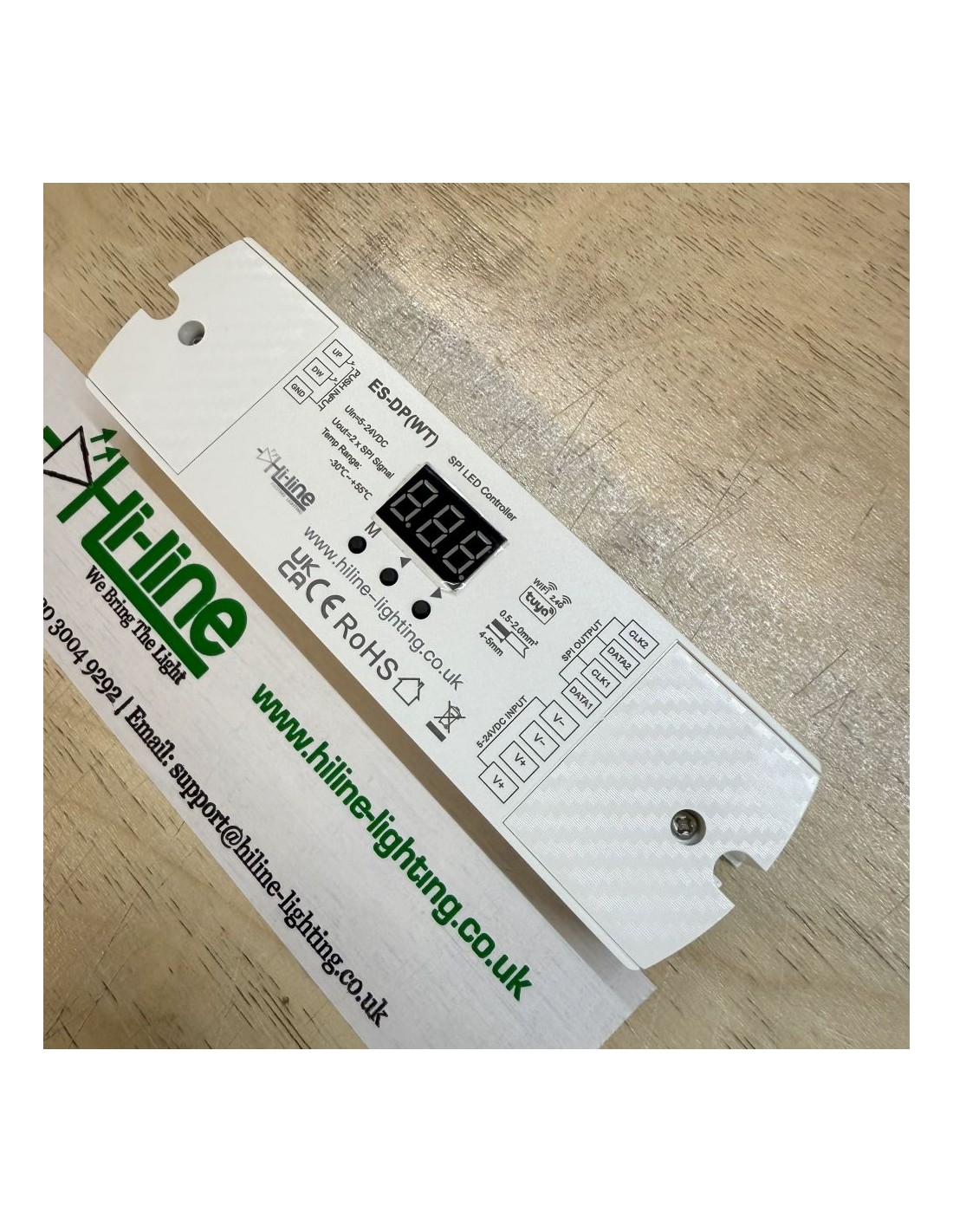

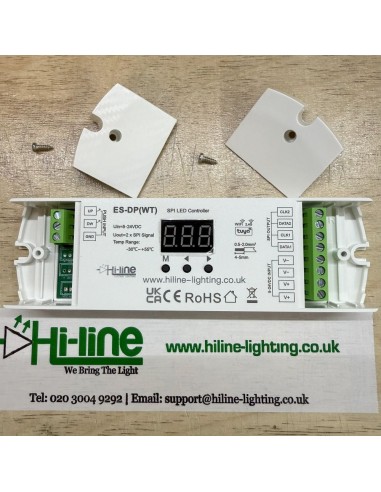

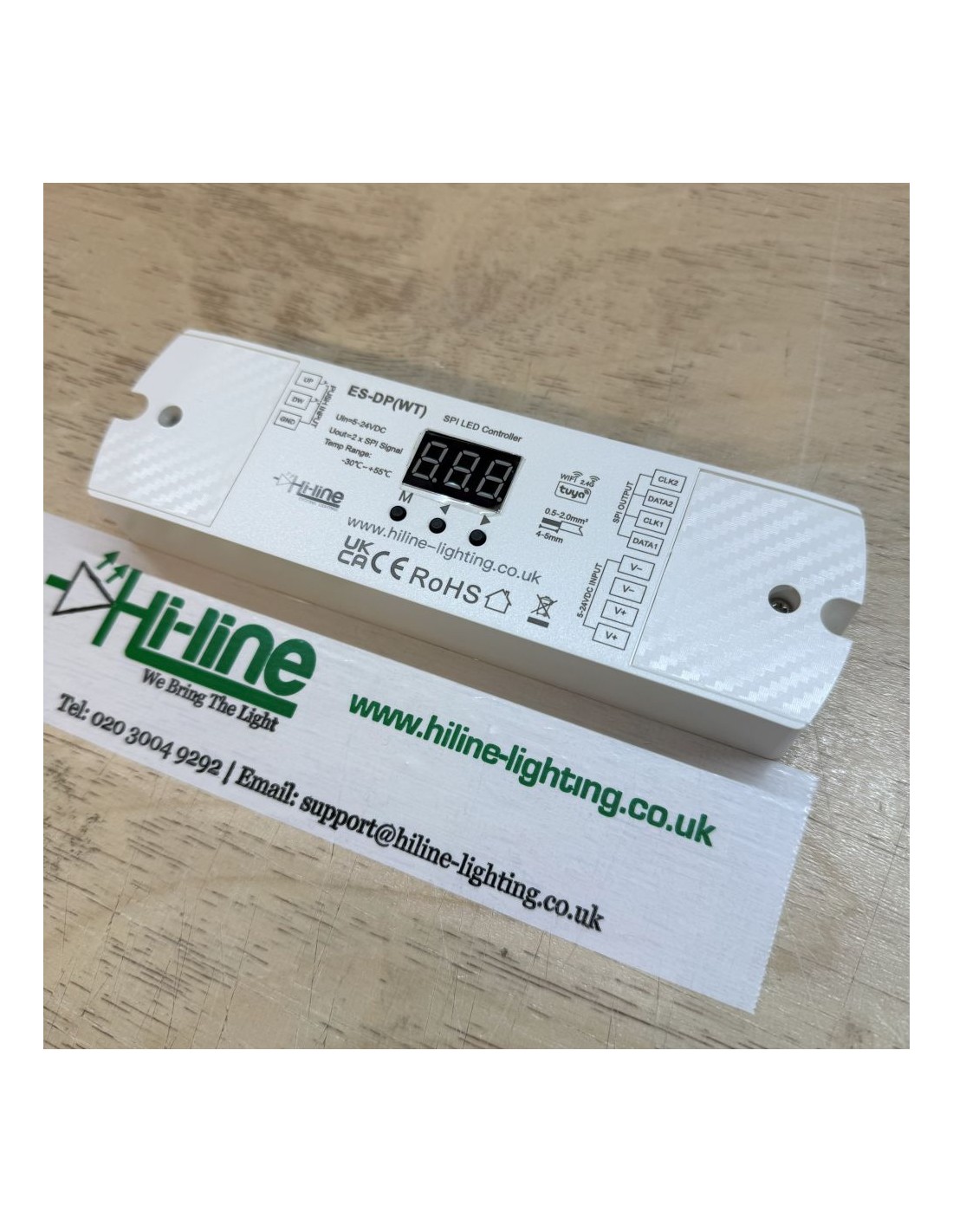

The ES-DP(WT) is a versatile dual push button SPI LED controller designed for White and RGB pixel-addressable LED strips. It combines simple manual control with smart wireless features, making it suitable for stair and step lighting as well as a wide range of architectural and decorative projects.

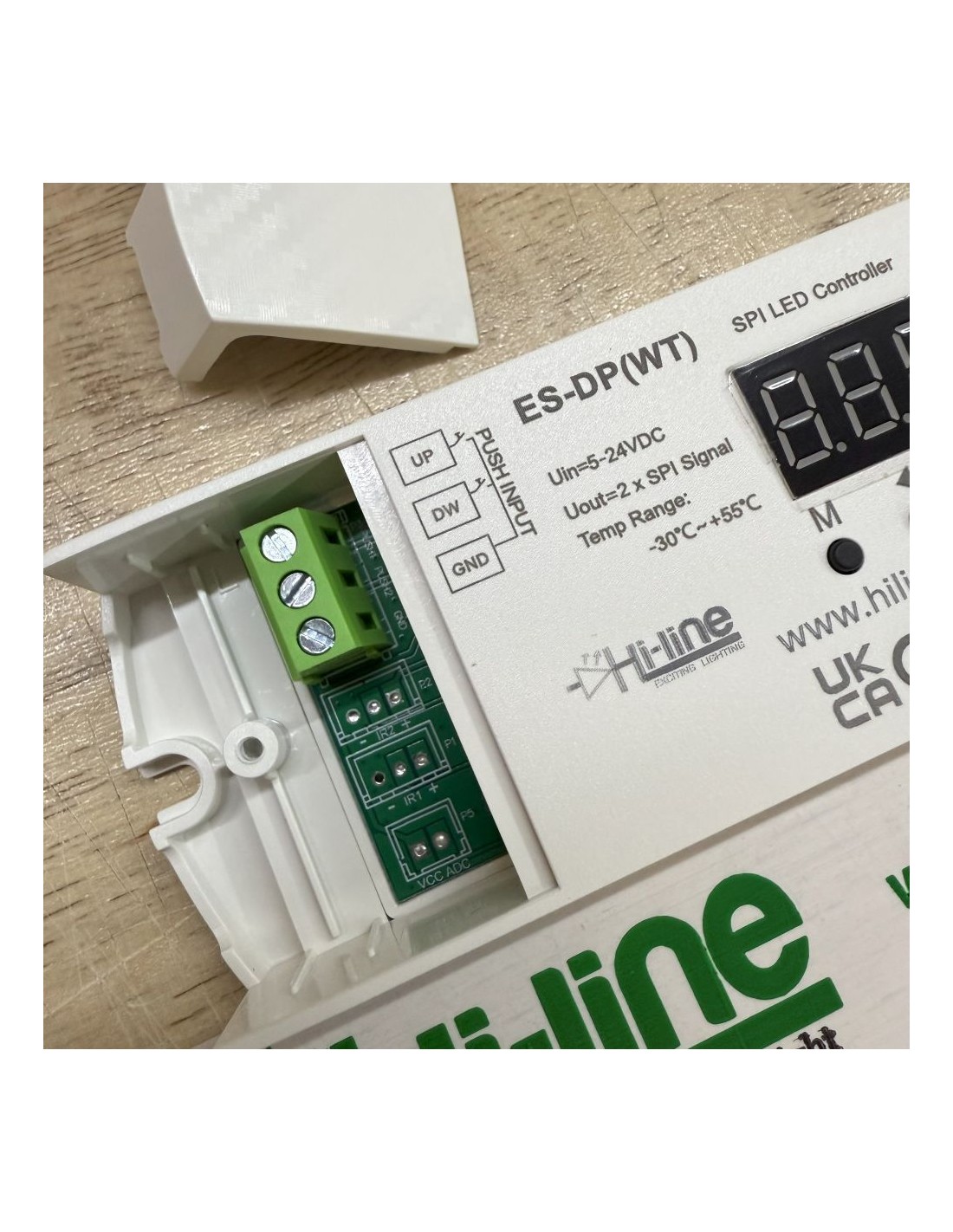

This controller can be used with either one or two push switches. A single switch setup allows sequential step effects by programming time delays per controller, while a dual switch setup enables traditional up/down stair control. Beyond stairs, it is equally effective for coving, shop displays, signage, and decorative installations where pixel effects are required.
Smart control is supported via Wi-Fi through the Tuya Smart APP, optional 2.4G RF remote, and voice assistants such as Amazon Alexa and Google Assistant. The APP includes 44 pre-set dynamic effects, over 10 custom scenarios, music rhythm modes, and functions such as colour fill, segment painting, and eraser control.
Up to 960 pixels can be controlled per unit, with adjustable brightness, speed, and multiple lighting modes including colour flow, white flow, colour step, and white step. Multiple controllers can be linked together to create seamless sequential or synchronous effects.
Looking for Related Products or Accessories? Check the Related Products tab at the top of this page to discover compatible items such as remotes, wall panels, and connectors.
For the detailed user manual and technical data, please click the Attachments tab to download the PDF.
Technical Specifications
Input Voltage: 5–24V DC
Max Current: 15A

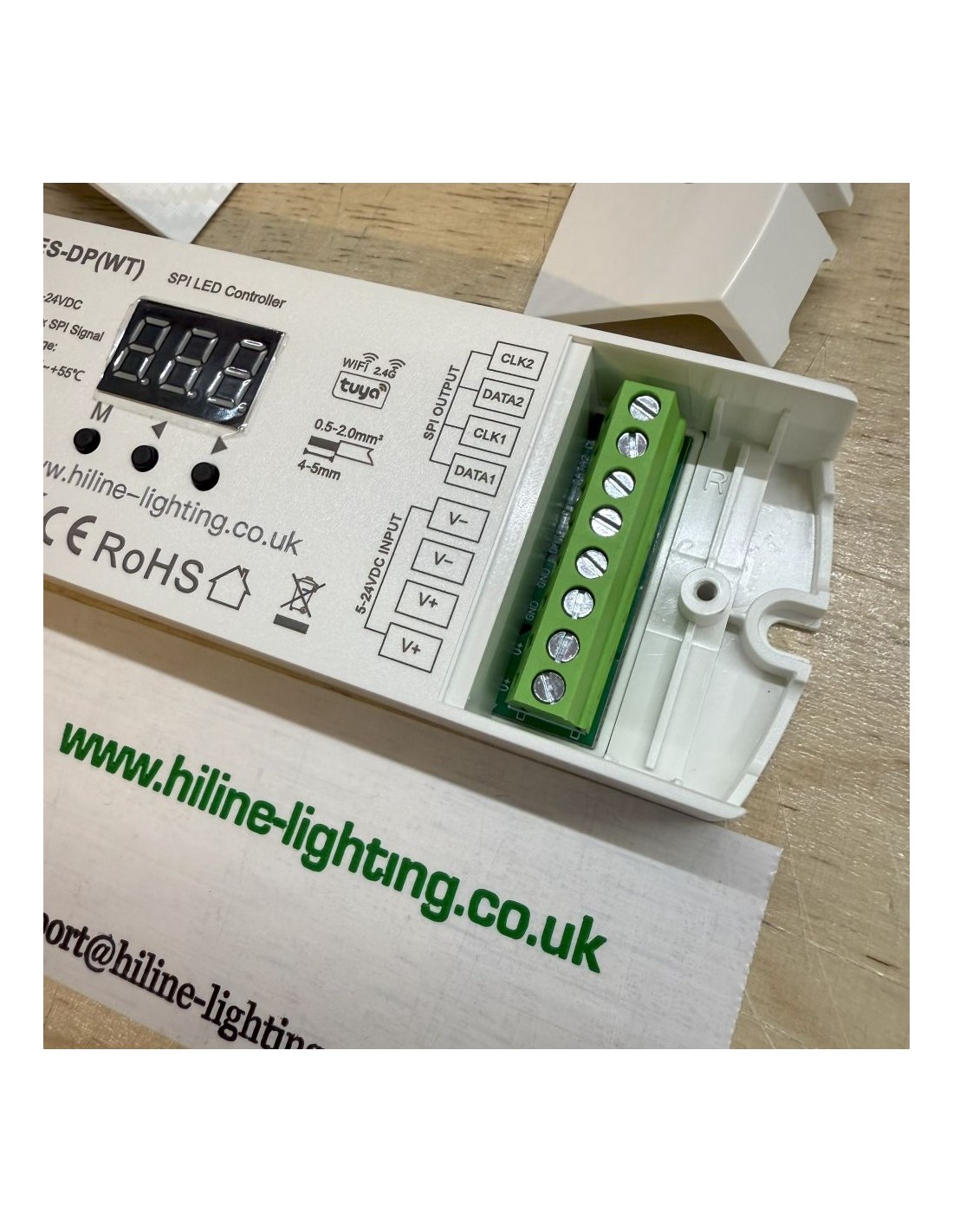

Output Signal: 2 × SPI (TTL, DATA + CLK)
Max Pixel Support: 960 pixels
Control Inputs: Dual push button, Wi-Fi (Tuya APP), optional RF 2.4G remote
Lighting Modes: Colour flow, White flow, Colour step, White step
APP Functions: 44 pre-set + 10+ custom effects, segment colour painting, 3 music rhythm modes
Voice Control: Amazon Alexa, Google Assistant
Operating Temperature: –30°C to +55°C
Case Temperature (Max): +65°C
IP Rating: IP20
Dimensions: 175 × 54 × 27 mm
Weight: 0.127 kg
Certifications: UKCA, CE, RoHS
Warranty: 3 years standard (optional 5 years)
