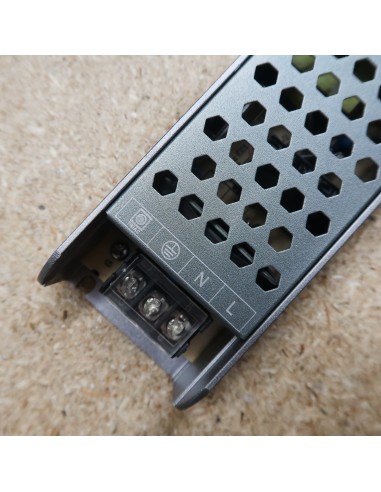

Dimmable LED Driver 24V 0-10V 60w 24v
Dimmable LED Driver 240V 50Hz secondary 24V DC

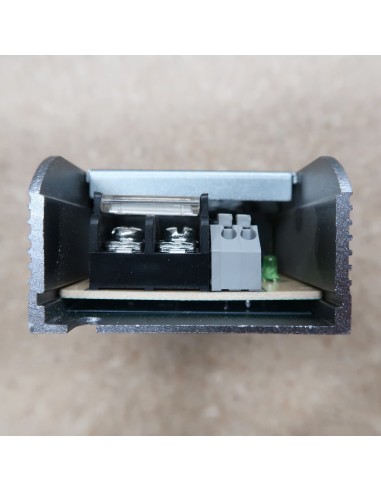

Dimmable 60W LED Driver 24V Hybrid Series (Triac or  0/1-10V)
low profile thin non ip rated dimmable driver
Dimmable 60W LED Driver 24V Hybrid Series (Triac or  0/1-10V)
Dimmable HL-10VT60W-24V-IP20
Dimmable 60W LED Driver 24V Hybrid Series (Triac or  0/1-10V)
Dimmable LED Driver | 24V | 60W | Hybrid Series...
Dimmable 60W LED Driver
Dimmable LED Driver 24V 0-10V 60w 24v
Dimmable LED Driver 240V 50Hz secondary 24V DC
Dimmable 60W LED Driver 24V Hybrid Series (Triac or  0/1-10V)
low profile thin non ip rated dimmable driver
Dimmable 60W LED Driver 24V Hybrid Series (Triac or  0/1-10V)
Dimmable HL-10VT60W-24V-IP20

Dimmable LED Driver | 24V | 60W | Hybrid Series (Triac or 0/1-10V)

Key Features:

  • Hybrid Dimmable LED Driver IP20
  • Works with Triac dimmer switches 0-10V or potentiometer
  • Voltage: 24V DC Output
  • 60 Watt / 24V DC
  • Warranty: 3 Year Warranty
HL-10VT60W-24V-IP20
51 Items In stock
Next working day delivery
£27.65
33.18
with VAT)
VAT excluded



IP20 non waterproof Hybrid dimmable 60 Watt 24V LED driver operates perfectly with leading edge phase cut dimmers (referred also as Triac dimmers) and can be used to dimming 24 Volts LED strips, controlled by standard wall dimmer switch powered by 240V AC or 0/1-10 Volts dimming systems.

It can operate with load ranging from 5% to 100% and the dimming range will be from less then 3% to 100%.

Note: This is an economy series driver. If you prefer lower in-rush current and higher power factor products, then consider our premium series drivers instead. Installers should be aware of in-rush current and the type of MCB required in such cases.

To learn more about In-rush current, visit out support page HERE


It is suggested to load this driver with at least 3 Watt (maximum 60W) and use standard leading edge (Triac) dimmer with wattage that can handle LED strip load requirements.

It is recommended to calculate for an additional 20% overhead.

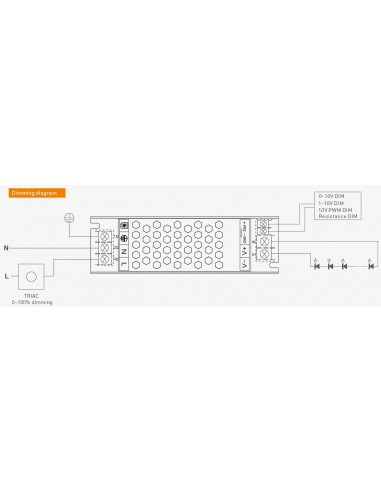

This dimmable driver can only operate with leading edge wall dimmer switches, 0/1-10V dimming systems or potentiometer.

The hybrid models work perfectly with any leading-edge dimmers.

If you have a dimmer switch in mind and are unsure about compatibility, please email us for assistance.

We also tested this dimmable driver with Lutron smart home products and it is compatible.

Input Voltage: 170~264V AC – (Dimmable)

Output Voltage: 24V DC (60W)

Loading range: 5% to 100%.

Dimming range: 3% to 100%.

Efficiency: >92%

IP Rating: IP20

Dimensions: (LxWxH): 146x50x30mm

Weight: 250g

3 Years Warranty


IMPORTANT NOTICE!

This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.

Brand
Hi-Line
Mains Dimming
Leading Edge Dimmers
Power
60 W
IP Rating
IP20 (Non-waterproof)
Type
Hybrid Dimmable (Mains or 0/1-10V)
Voltage
24V DC
Voltage Type
Constant Voltage
Warranty
3 Years
