Ideal for light boxes 3.5-10cm depth
12V 0.72W 7000K (200 modules)
Beam angle 170°
25 Item Items
Same Day Dispatch
Warning: Last items in stock!
Availability date: 13/10/17
|LED Chip||SMD 2835|
|Colour Temperature (CCT)||7000K|
|Colour rendering (CRI in ra)||80|
|Best for lightbox/letter Depth||3.5-10cm|
|Module Power Consumption||0.72 Watt|
|Module Luminous Flux / Efficacy||55lm (76.39 Lm/W)|

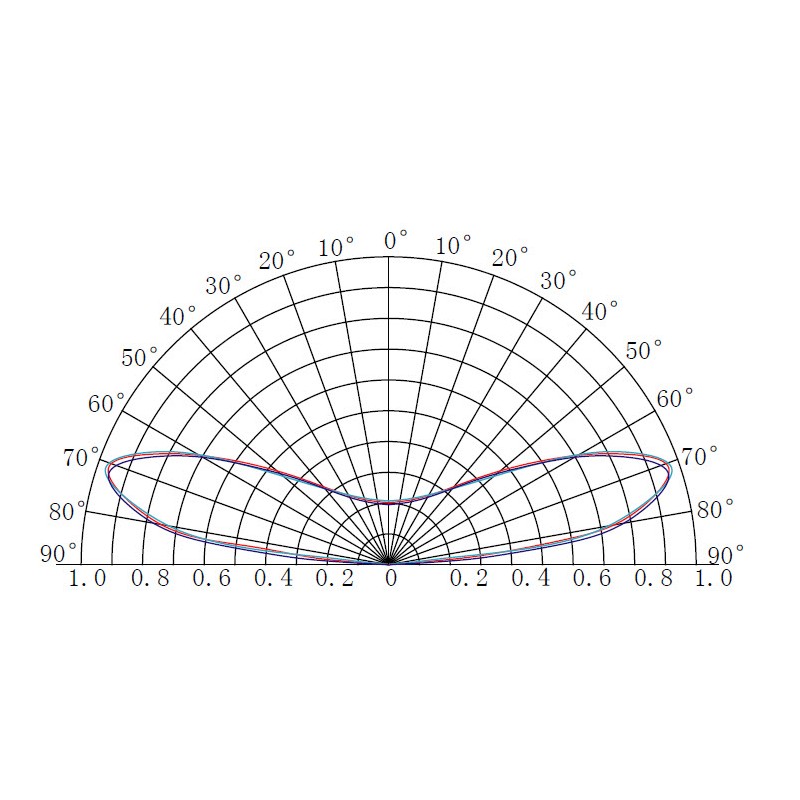

|LED Module Beam Angle||170°|
|Module built-in driving method||Constant Voltage|
|LED Module Controllability||Constant Voltage driver|
|Max. No. of Modules in series||38 modules|

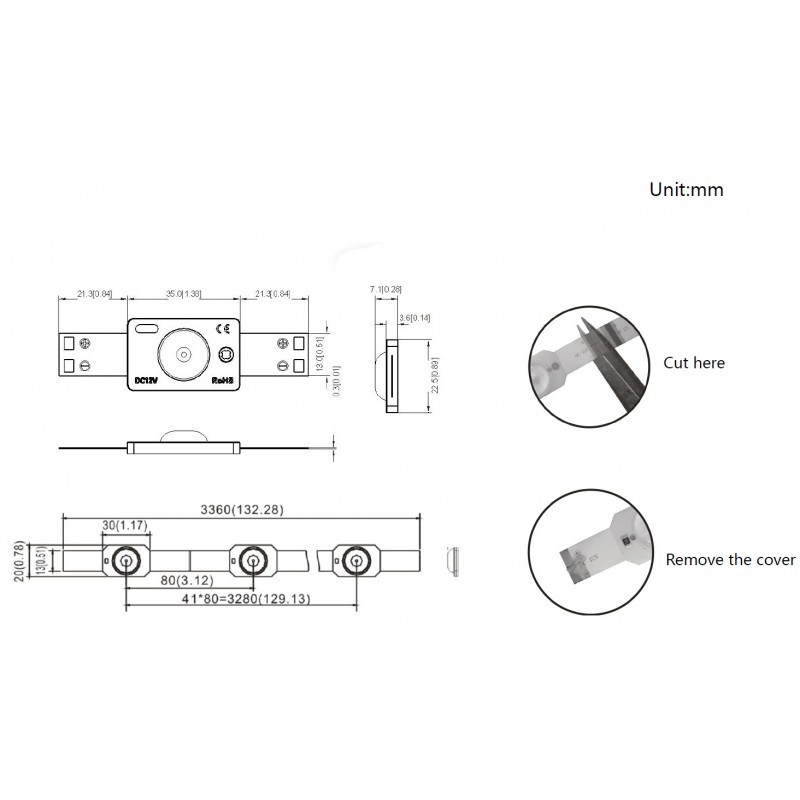

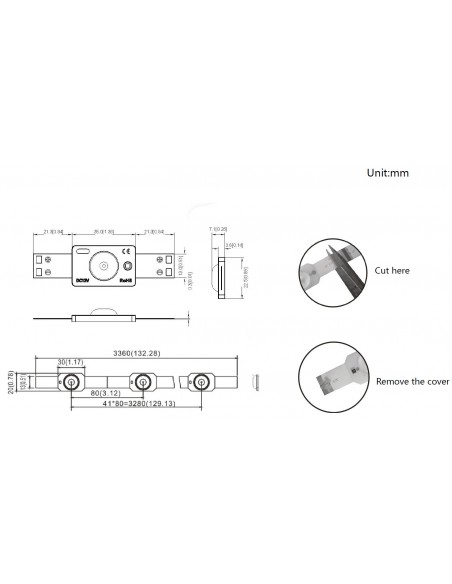

|Module Dimension (mm)||35*22.5*7.09|
|Modules in pack qty||200|
This unique chain LED lighting system can only be used on single sided light boxes (led backlight) and will be best performing for 3.5-10cm depth light boxes with slim profiles.

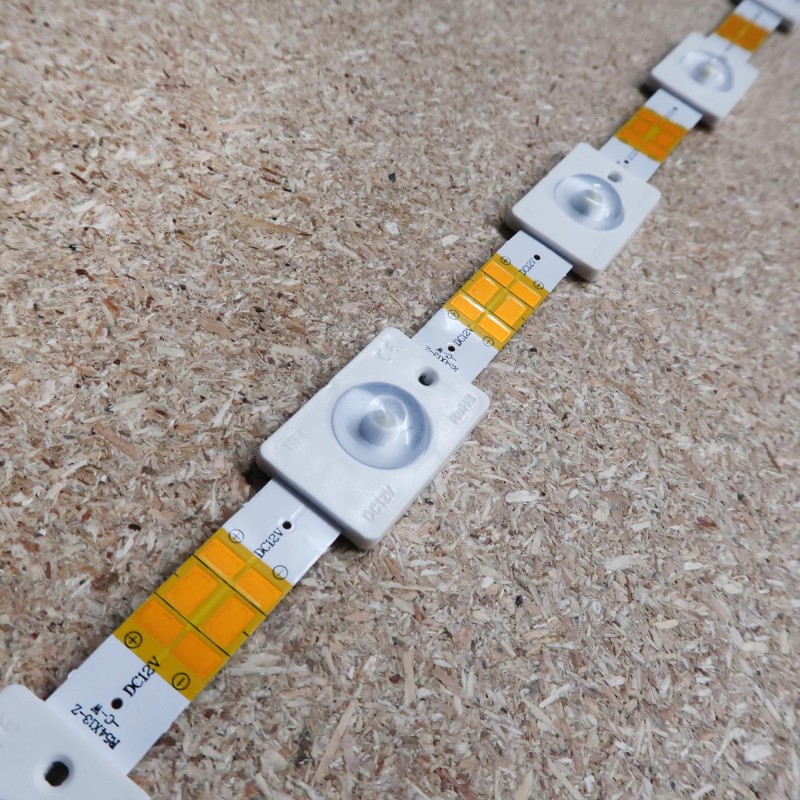

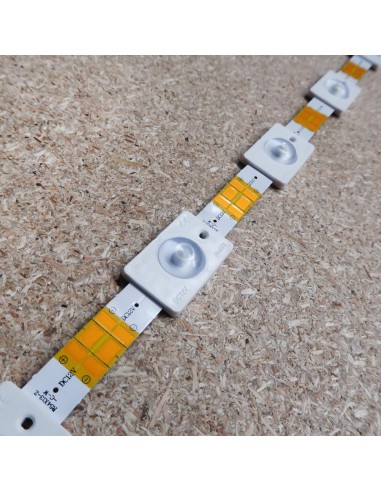

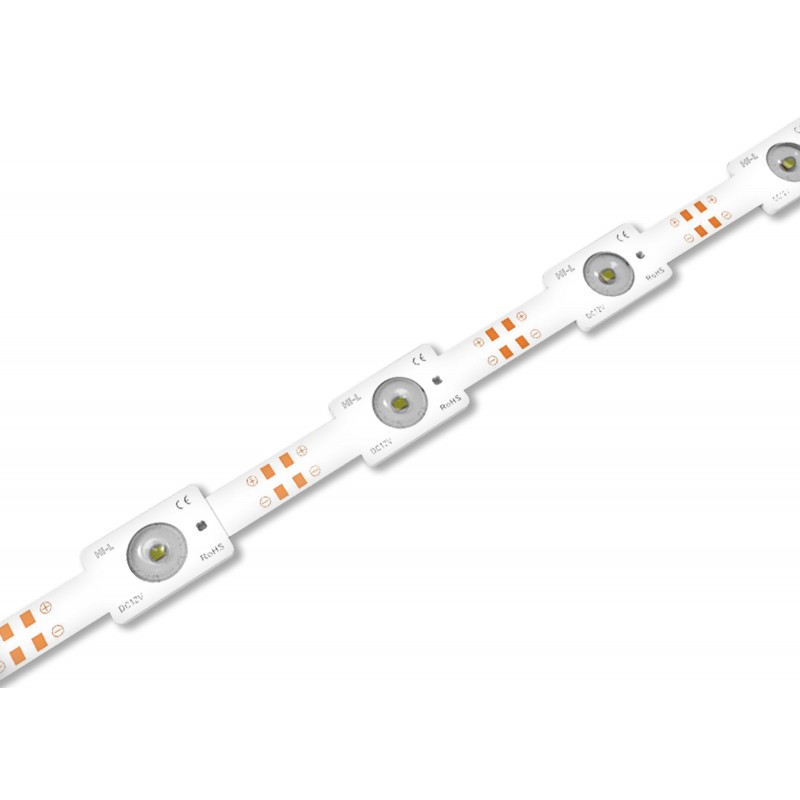

The system consists of modules arranged at 80mm intervals along a chain. Chains can be cut to size and can be easily linked together using special connectors (sold separately).
For creating uniform coverage chains of modules can be plugged into 7 output single or 14 output double "busbar" (sold separately) using plug and play connectors. A maximum of 280 modules can be plugged per busbar. Using the busbar plug-in connectors will result in 80mm spacing between chains of modules and the X / Y pitch will be 80 x 80mm.

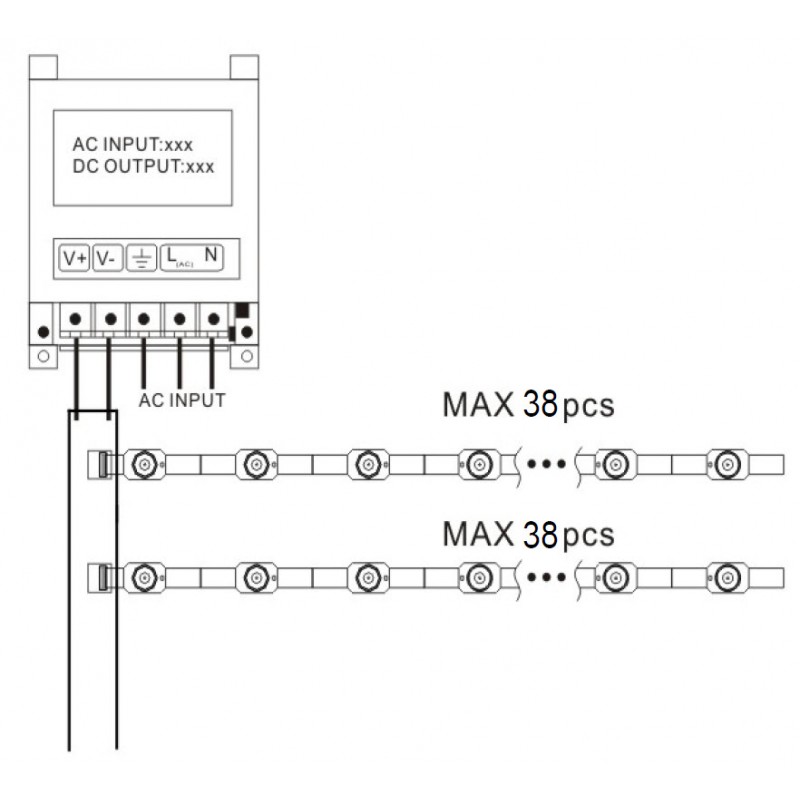

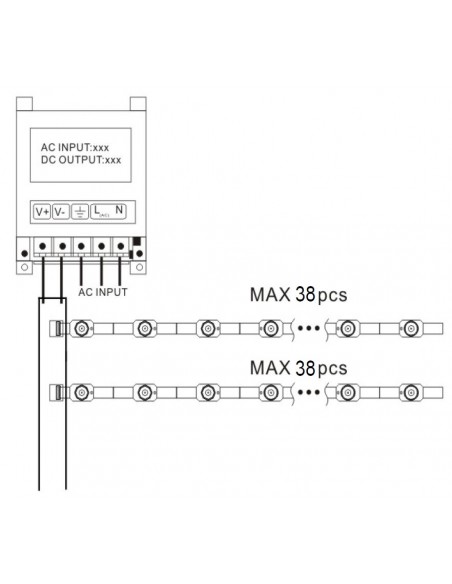

Maximum series connection for chain lighting system is 38 pieces (modules)
38 LED modules approximately measures 290cm in length
For reference one meter length consists of 13 LED modules
200 LED modules approximately measures 15 meters and 45cm but remember maximum series connection is 38 LED modules (290cm of tape light)

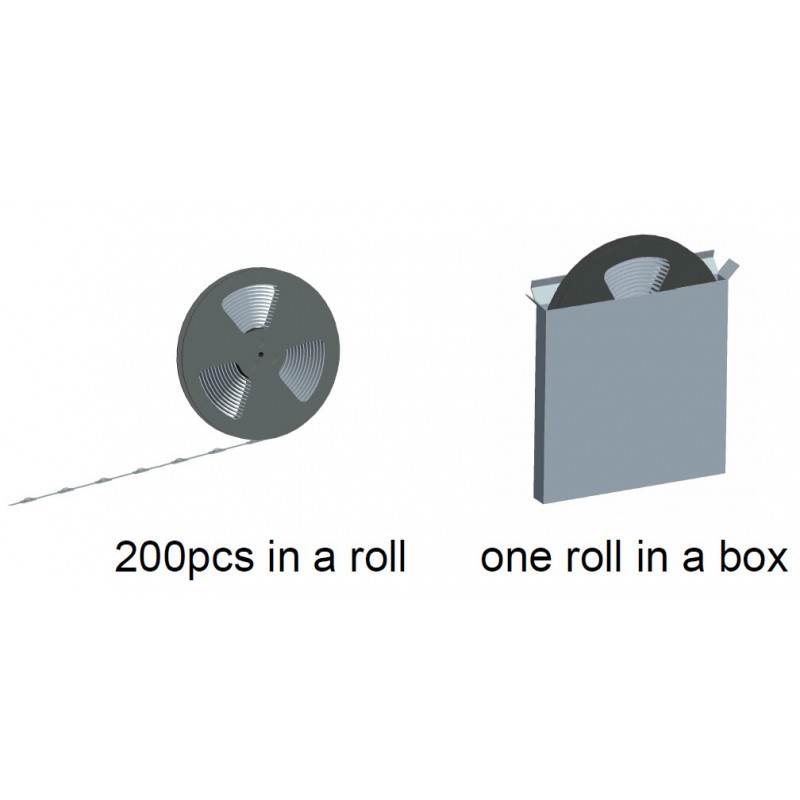

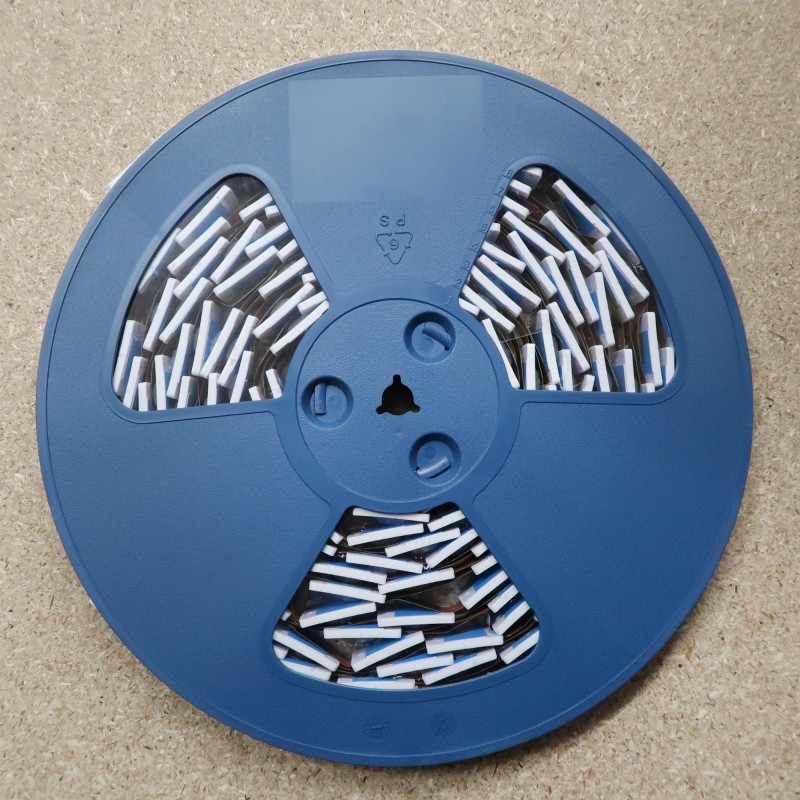

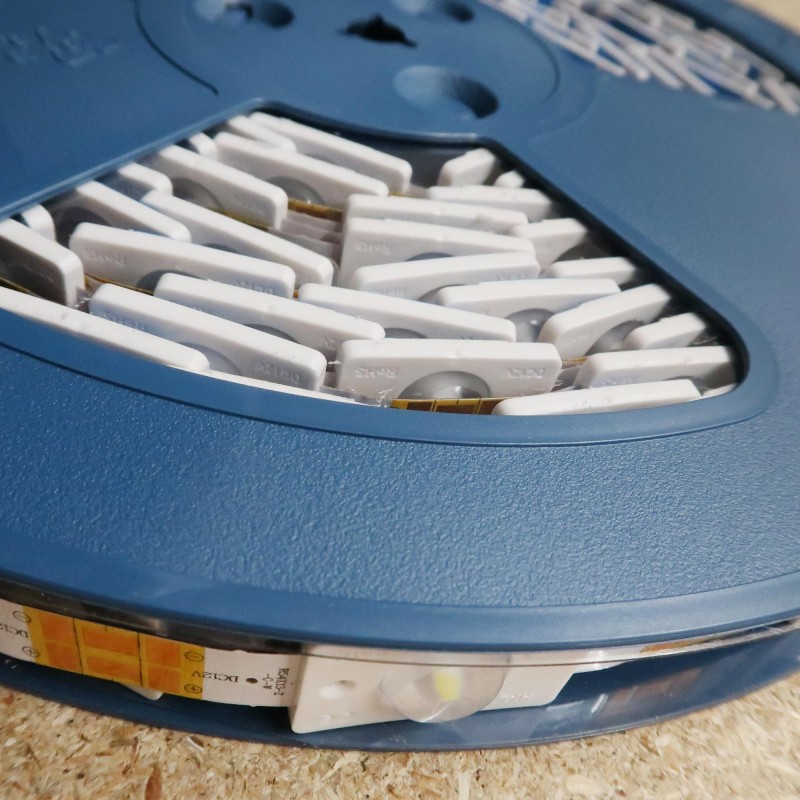

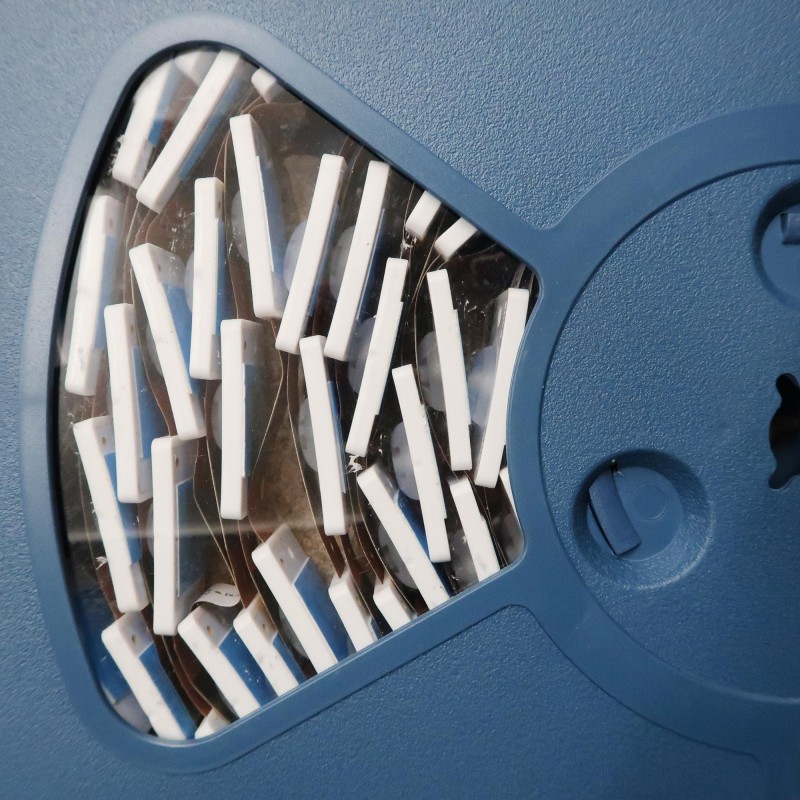

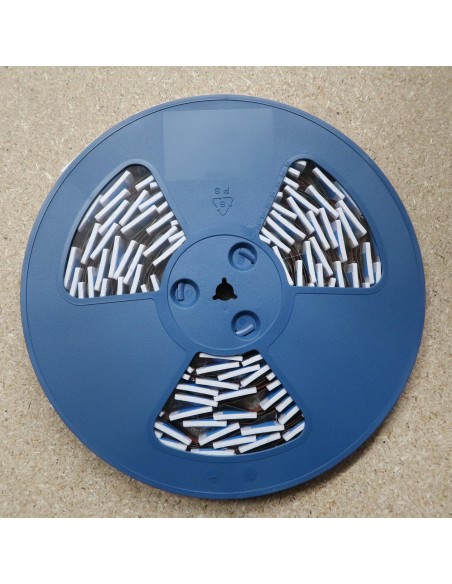

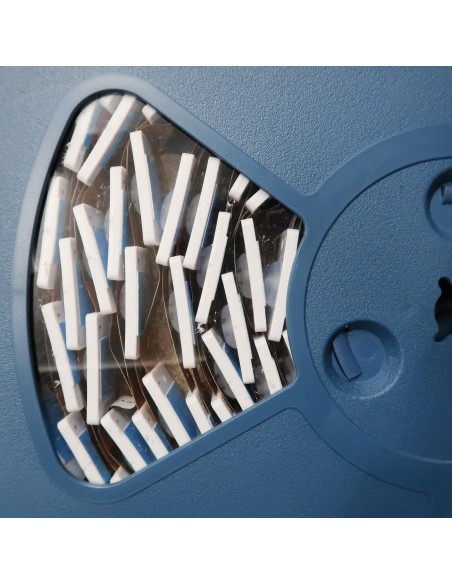

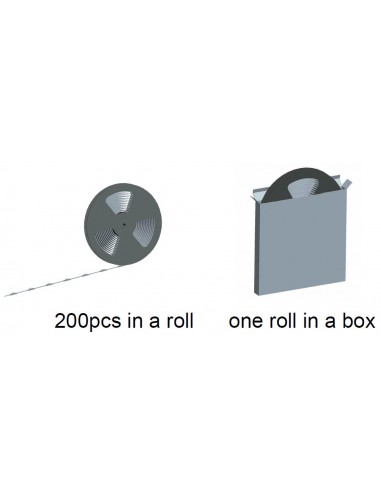

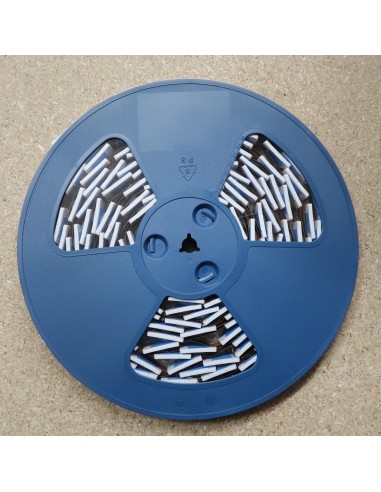

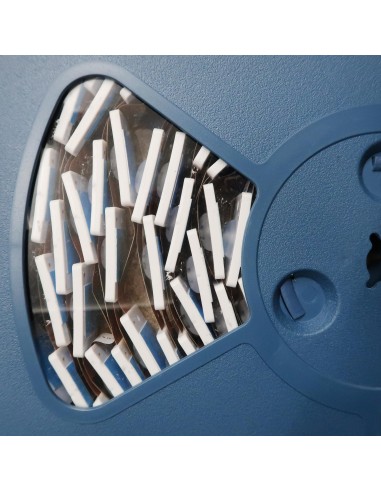

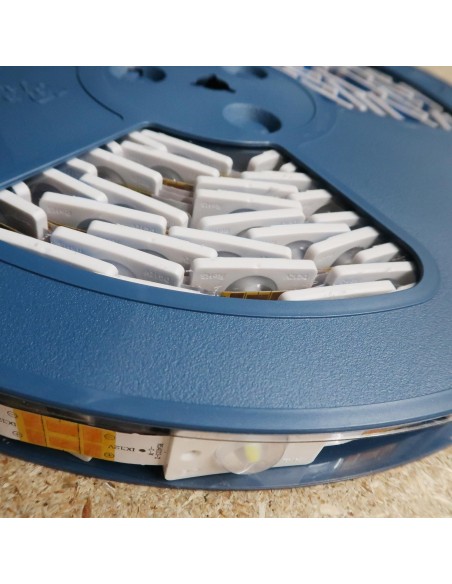

Packing: 200pcs per roll
Price is for 200 modules (0.72W each)
For more information on how to use this strip for signage, please see our Lightbox Case Study.

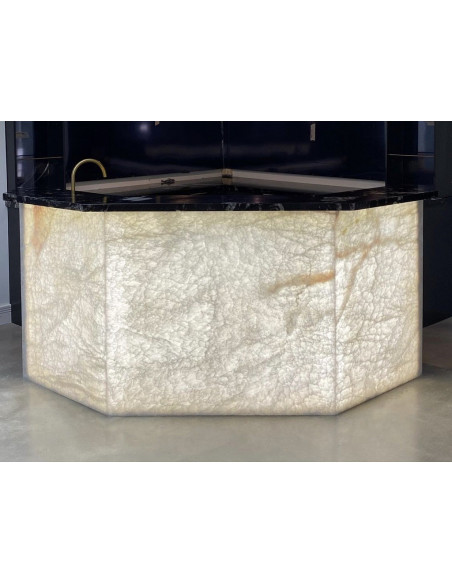

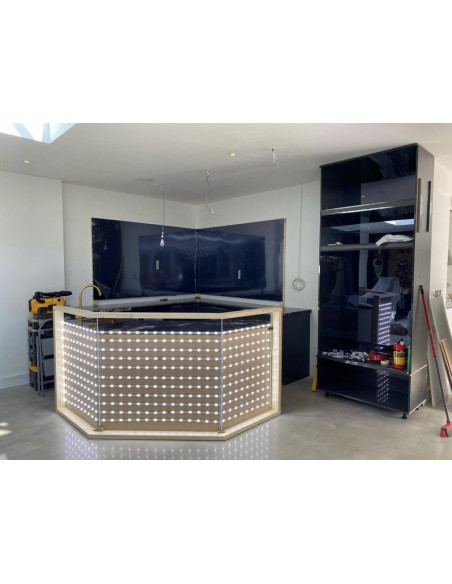

Sign Applications including internally illuminated sign boxes from 35 to 100mm

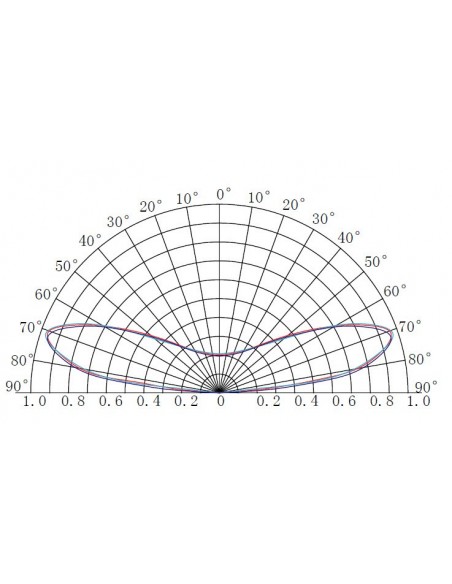

Special lens design for extra wide 170 degrees beam angle with even light distribution
Powered by high efficiency SMD2835 LED chip
Chips are 99.99% gold threaded, pure copper bracket coated with silver
SDCM less than 3 (BIN)
IP65 mould: anti-dust, anti-moisture, waterproof, anti-shock
Self-adhesive 3M backing for fast installation
Certification: CE, RoHS, UL
5 Years Warranty
