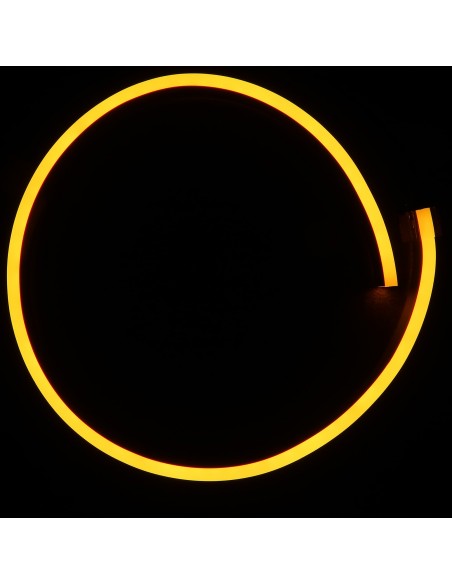

Yellow LED Neon Flex 24V
72 LEDs/m – 4.53 w/m
Flex width: 10mm
3 year warranty
26 Item Items
Same Day Dispatch
Warning: Last items in stock!
Availability date: 28/08/18
|LED Chip||SMD 2835|
|Power||4.53 Watt Per Meter|
|Number of LEDs per meter||72|
|Rating||IP65 / IP67|
|Width of strip||10mm|
|Height of strip||20mm|
|Cutting length||Every 8.33 cm|
|Minimum Bend Diameter (Horizontal)||40mm|
|LED Neon Flex Type||Flat Surface - Horizontal Bending|
|Voltage Type||Constant Voltage|
|LED Neon Flex Beam Angle||160 Degrees|

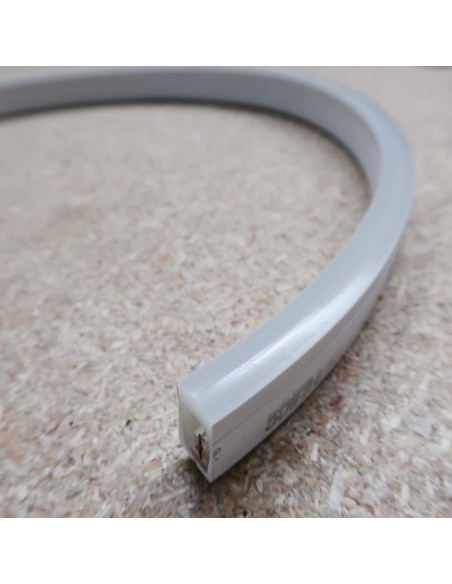

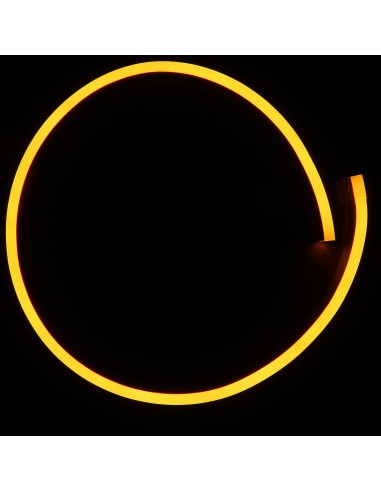

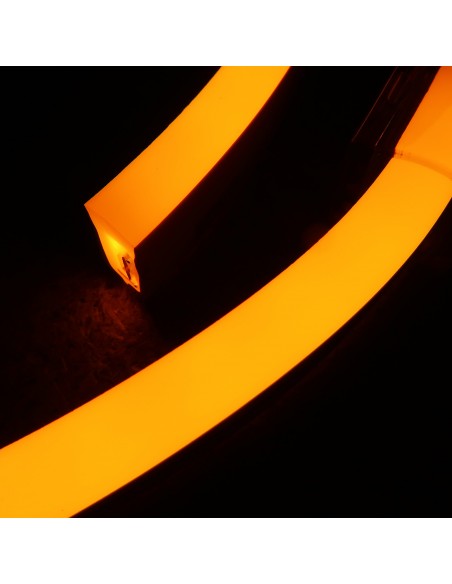

Yellow LED Neon Flex 24V IP65/IP67 horizontally bendable 10mm wide x 20mm height (Sold per meter)

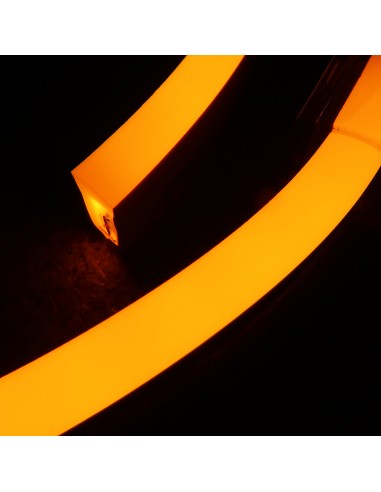

LED Neon flex powered by yellow colour SMD2835 LED chips
10mm wide x 20mm height

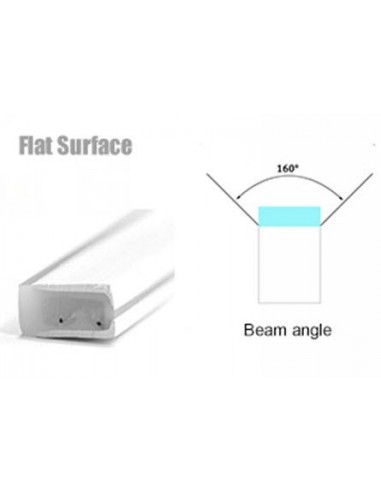

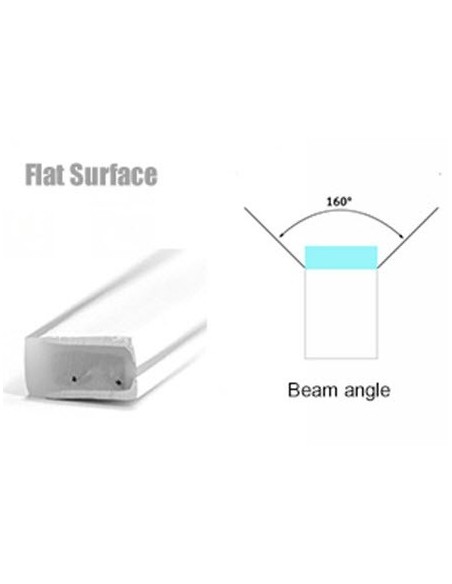

Flat design for architectural lighting. Sits flush along edges and provides a 160 degree beam angle.
4.53 W/m – 24V DC – 72 LEDs/m – IP65/IP67 – 2 wire
Light output 125 lm/m

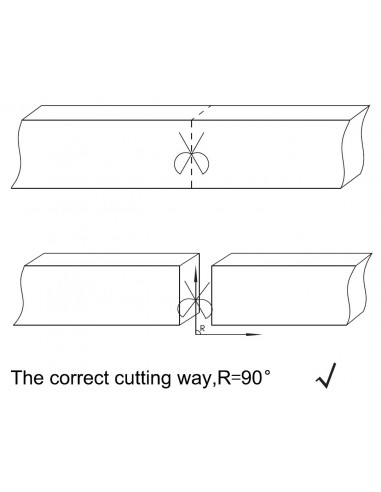

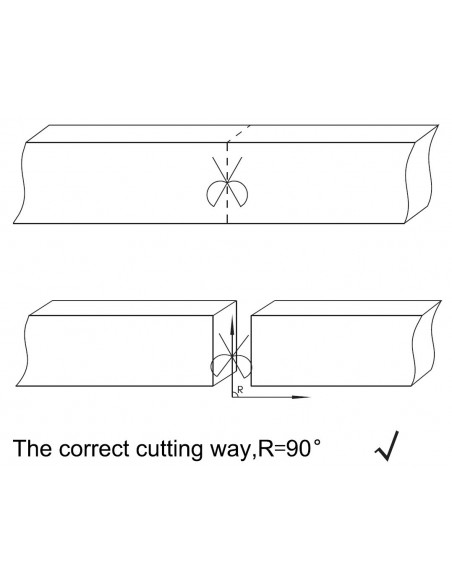

LED Neon flex can be cut at every 8.33cm
For more information on using Neon Flex for underwater usage, please see our FAQ page.
Also, if connectors are required, these need to be purchased separately. You will only receive tail ends when you purchase a 50m roll.
If purchasing a 50 metre roll, please avoid testing the entire length for long periods - you will risk burning out the chips.
3 year warranty
Saunas and Steam Rooms:
If you require LEDs for saunas and steam rooms, please refer to our range of IP68 LED strips, designed to withstand temperatures of up to 110 degrees Celsius.
The high quality of Hi-Line LED Neon flex products ensures low decay, which increases the LED's lifespan and assures that the level of the brightness is kept constant throughout the LED's estimated life.

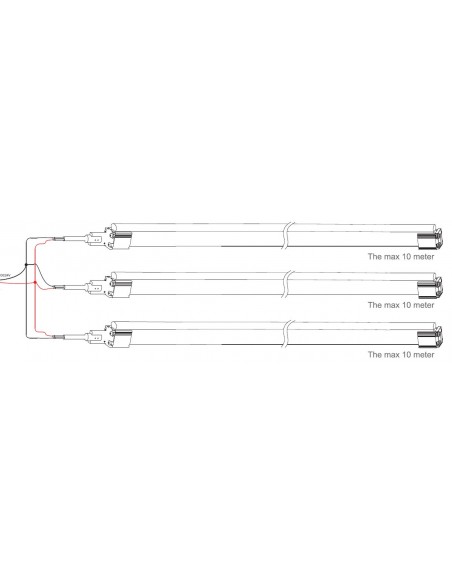

Please do NOT connect more than 10 meters of LED flex in series. A LED flex of more than 10 meters in length will overloaded, due to the increased amount of current passing through, resulting in the damage of the internal FCB and failure of the product.
Please note that 20m of this product can be installed in a single run only with 24V power fed from both sides in parallel. Alternatively you may power RGBW LED Neon flex (24V DC) in the middle of the run (leaving 10 meters LED flex to the left and 10 meters to the right).
All Hi-Line LED neon flex are PWM dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the product.
LED neon flex is fully compatible with Lutron, Fibaro, Rako or ANY conventional constant voltage LED controller available on the market. We do also offer a wide range of single colour LED controllers including wireless, DMX512, ZigBee, DALI and and 0/1-10V to choose from.
The stated price is for 1m LED Flex in yellow powered by 72 x SMD2835 LEDs – IP65/IP67, 24V DC.
To consider best power supply performance, we suggest using 20% higher capacity (Wattage) of what the rated power consumption of neon flex will be.
Note: for driving single colour LED neon flex, you just need the flex, power connector and LED driver. If dimming is required you will have to combine the LED-Driver with a single colour LED dimming controller. In such a case, the LED driver is not required to be dimmable. Brightness control (dimming) and colour adjustment is still possible through the controller.
For further assistance, please visit out support page or contact us.
