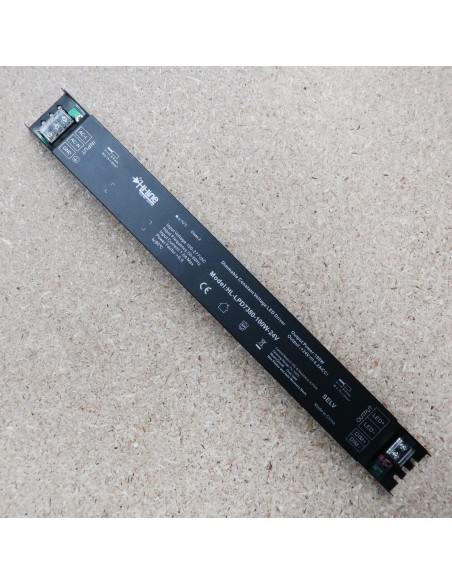

Slim LED DRIVER | 100W | 24V | control mode 0/1-10V

Key Features:

  • 0/1-10V Dimmable LED Profile Driver
  • Voltage: 24V DC
  • Power: 100 W
  • IP Rating: IP40
  • For 9086 Profile systems (built-in driver)
  • Slim thin LED driver
  • Voltage: 24V DC
HL-LPD9086-100W-24V
60 Items In stock
Next working day delivery
£32.50
(£
39.00
with VAT)
£65.00 -50%
VAT excluded

Tags:


0/1-10V dimmable LED Driver constant Voltage 24V 100W, Built-in 3 In 1 Dimming Function(PWM Signal, Resistance or 0/1-10V) for HL-9086 modular Profile systems series.

(Note: HL-9086 series profile are pre-order only. If you require a large quantity, please email us for details)

Can be used to DIM 24 Volts LED strips using 0-10V dimmer switches/signal.

Can also be used with smart home controllers as a part of a home automation to dim LED strip Lighting or other constant voltage LED products.

This is a dual function dimmable LED driver and can be controlled with both 0-10V & 1-10V dimming systems. If dimming control input signal is not applied, this driver will function as a non dimmable one (on/off)

Characteristics:

Super slim LED driver

Installation: Built-in (HL-9086 profile only)

Dimming control: 0/1-10V, resistance or PWM

Input Voltage: 100~277V AC

Output Voltage: 24 Volts DC (PWM), 100W 4.16Amps

Dimensions: L 39.1cm x W 4.1cm x H 3cm

IP Rating: IP40(non-waterproof)

Weight: 0.510 kg

Warranty: 3 Years

Brand
Hi-Line
Power
100 W
IP Rating
IP40 (Non-waterproof)
Type
0-10V dimmable
Voltage
24V DC
Voltage Type
Constant Voltage
Warranty
3 Years
