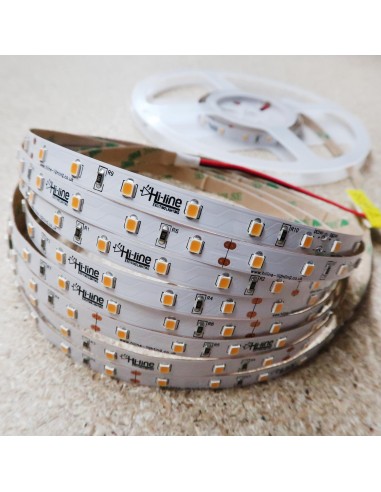

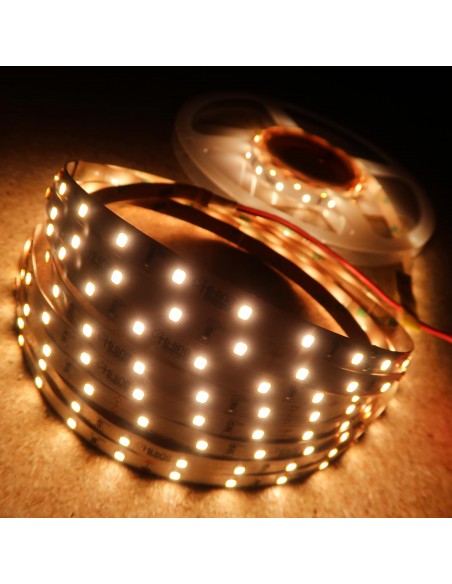

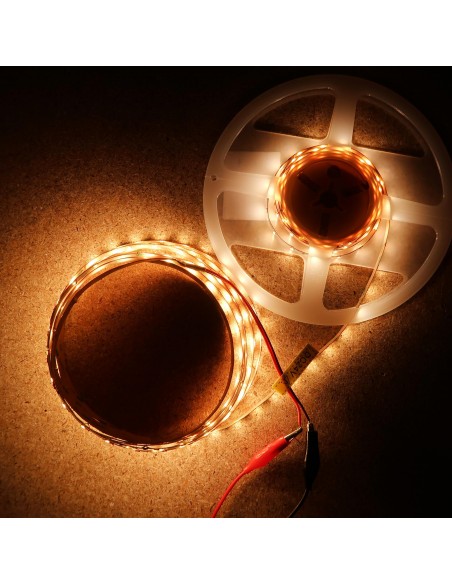

Warm White LED Strip 5m roll | 3000K | 24V | 14.4W/m | IP00 | CRI90 | SMD2835

  • Colour: Warm White
  • Colour Temperature (CCT): 3000K
  • Voltage: 24V DC
  • IP Rating: IP00 (Non-waterproof)
  • LEDs per meter: 60
  • Power: 14.4 Watts per Metre
  • Brightness: 1320-1440 Lm/m
  • LED Strip Length: 5-meter roll
  • Width of strip: 8mm
  • CRI: Excellent - Ra>90
  • Warranty: 5 Year Warranty

Important Product Details

  • optional 250 char. max
HL-LS2835HA-3K60WW-IP00-24V
56 Items In stock
Next working day delivery
£27.00
32.40
with VAT)

(£5.40 meter)



Commercial High-Grade Warm White LED Strip 3000K, CRI>90

14.4W/m – 24V DC – 5m roll – 60 LEDs/m – IP00 (Non-Waterproof) – 2-wire cable (15cm on each side of the strip roll)

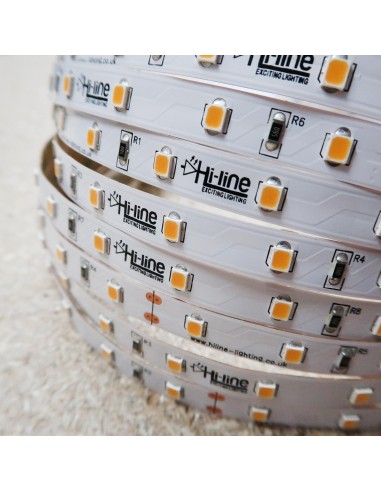

This LED strip is powered by high-quality Epistar SMD2835 LED chips which generate a brightness of 1320-1440Lm/m.

Note: Should a higher brightness and efficiency LED strip be required, please check Hi-Line's SMD2835 LED strip series.

Excellent colour rendering index (CRI) – all LED chips reach a value of Ra >90.

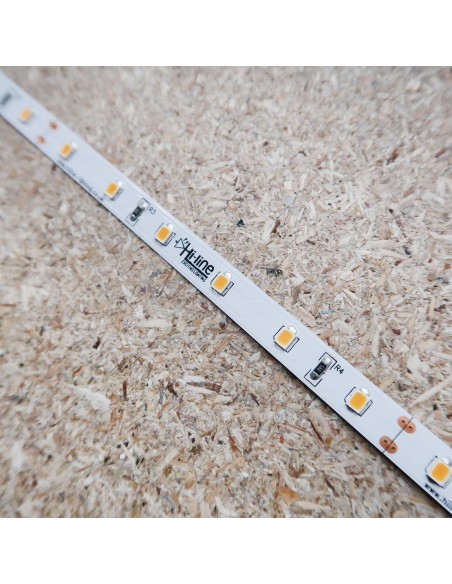

The strip can be cut every 6 LEDs (10cm). The width of the LED strip is 8mm.

Fitted with an easy to install original 3M adhesive tape with excellent adhesion.

*5-year warranty:

*This LED tape should be installed according to our installation instructions. For more information on installing, please see the installation manual in the attachments tab. To learn more about the 5 year warranty on offer, please refer to the following link:

LED Strip Warranty Guide


The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.

Please do NOT connect more than 10 meters of a LED strip in series. A LED strip of more than 10 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 10 meters of the LED strip is exceeded, it is suggested to connect the strip directly to the LED controller or driver using a 2-core cable.

Installation hints and tips for LED strips can be downloaded from the attachments tab.


The LED strip comes with a 15cm wire ending on each side of the strip roll. Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).

Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.


All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.

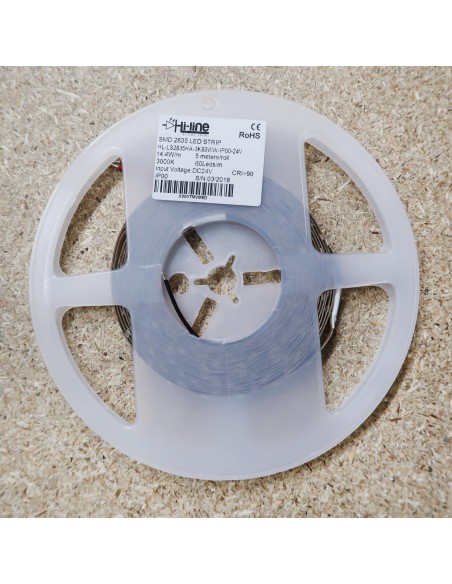

The stated price is for 1 x 5-meter roll LED strip (Warm White) with 300 SMD2835 LEDs – IP00 (Non-Waterproof), 24V DC.


Selection of the LED driver depending on the maximum LED strip length

The table below shows the maximum LED strip length, which can be operated with a given LED driver.

To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% was deducted from the maximum strip length in the table below.

LED Drivers and LED Strip 14.4 W/m

Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.

24V Driver Controller Circuit

Looking for Related Products or Accessories?

Discover compatible products and accessories by clicking the 'Related Products' tab at the top of this product description on desktop, or just after this section on mobile devices. For detailed specifications, the 'Product Specification' tab is also available at the top of this description, offering immediate access to important product details. If you need technical data or installation guides, the 'Attachments' tab is located in the same area. To refine your search within any product category, the "REFINE BY" filter system is positioned on the left side of the screen on desktops and at the top of the page on mobiles, ensuring a seamless browsing experience.

Brand
Hi-Line
Brightness
1320~1440 Lm/m
CIE Colour Space
3 SDCM
Colour
Warm White
Colour rendering (CRI in ra)
more than 90
Colour Temperature (CCT)
3000K
Cutting length
Every 6 LEDs (100mm)
LEDs per meter
60
LED Chip
SMD 2835
LED Strip Length
5 metres roll
Power
14.4 Watts per Metre
IP Rating
IP00 (Non-waterproof)
Voltage
24V DC
Voltage Type
Constant Voltage
Warranty
5 Years
Width of strip
8mm
