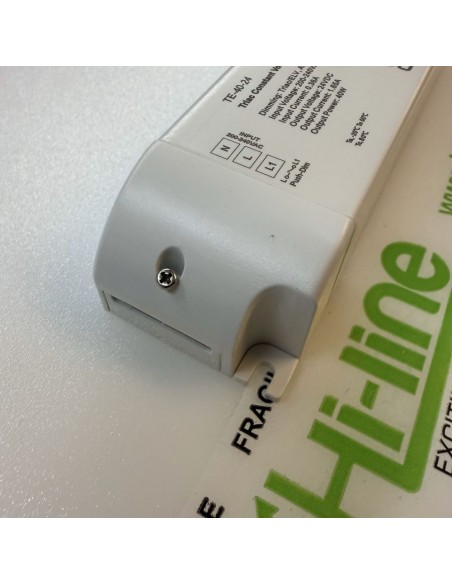

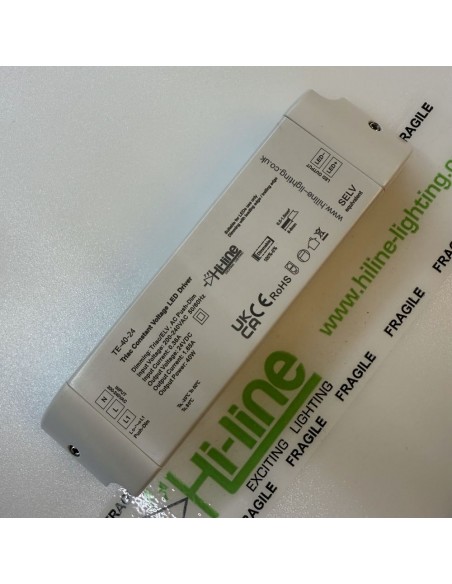

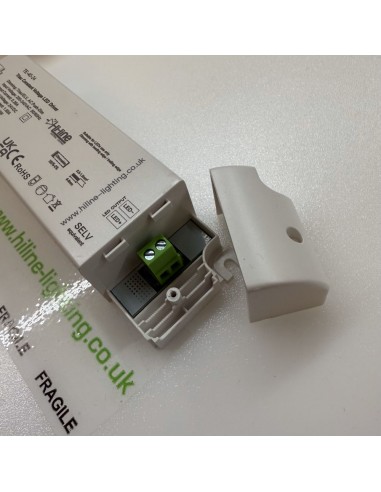

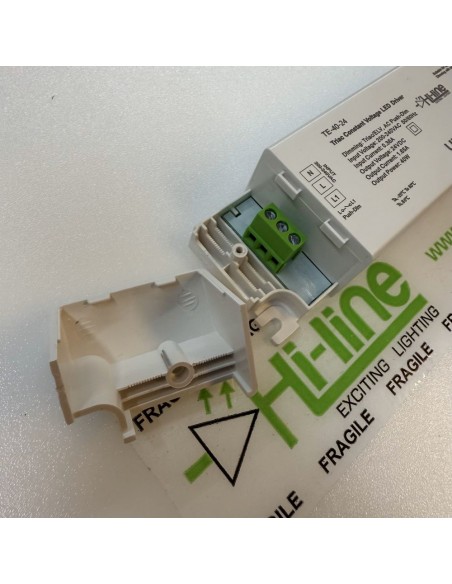

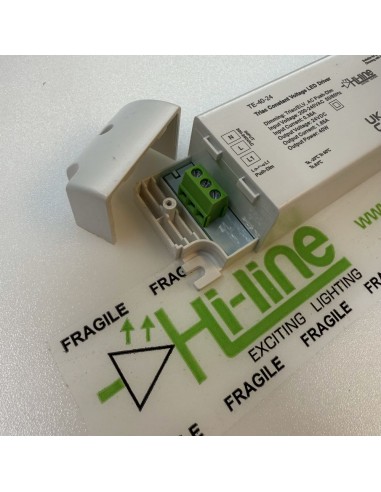

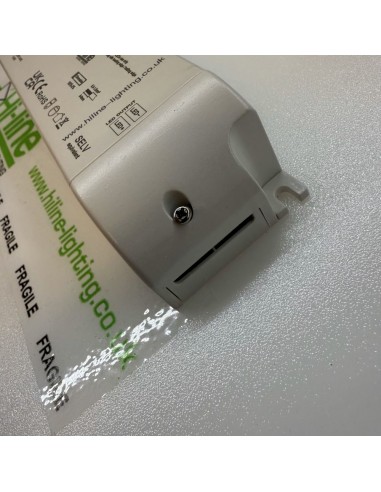

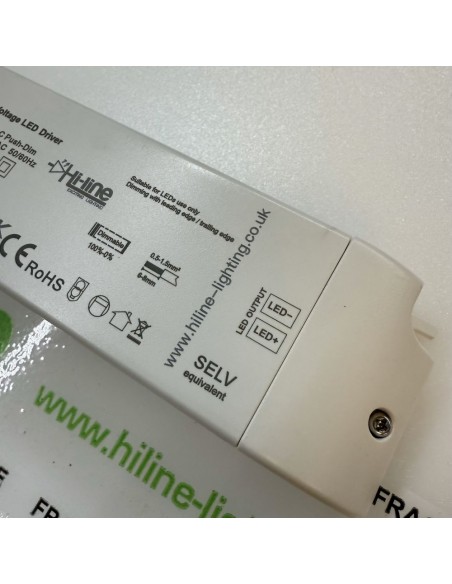

24V 40W Dimmable Power Supply for LED Strips (Constant Voltage)

This 24V 40W dimmable LED driver is designed for constant voltage LED strips and other single-colour 24V applications.
It offers smooth and flicker-free dimming from 0–100% using Triac dimmers (leading or trailing edge) or the Push-Dim function with a standard non-latching wall switch.

The driver features PWM digital dimming with no compromise to LED colour rendering, while integrated protections against overheat, overload, and short-circuit ensure reliable performance. Its slim plastic housing makes it ideal for retrofit upgrades and compact installations.

This model is part of Hi-Line’s premium dimmable driver range, fully tested with our 24V LED strips for stable and safe operation.

Technical Specifications

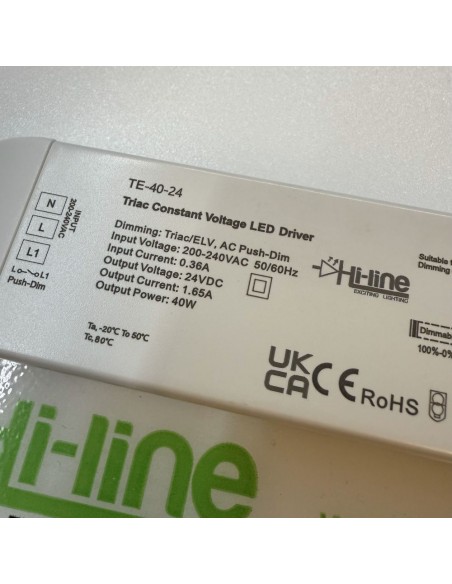

Model: HL-TE-40-24
Output Voltage: 24V DC (constant voltage)
Output Power: Max. 40W
Output Current: Max. 1.65A
Dimming Interface: Triac (leading or trailing edge) & Push-Dim (momentary switch)
Dimming Range: 0–100%
Input Voltage: 200–240V AC
Frequency Range: 50/60Hz
Efficiency: 85% @ 230V AC
Ripple & Noise: ≤132mV @ 230V AC
Inrush Current: Cold start 27.5A @ 230V AC
Leakage Current: <5mA
Standby Power: <1W
PWM Frequency: 2000Hz

Protections: Overheat / Overload / Short circuit (auto recovery)
Case Material: Plastic (fully protective housing)
IP Rating: IP20 (indoor use only)
Operating Temperature: -20°C to +50°C
Warranty: 5 Years
Certifications: UKCA, CE, RoHS
Dimensions: 168.5 × 44 × 30 mm

Applications

• Single-colour 24V LED strips and light bars

• Commercial and residential lighting (offices, hotels, retail, display)

• Retrofits and new luminaire designs
