DMX512 RGBW MR16 LED downlight module 12W Cree quad LED chip RGB+WW (3000K), 45 degrees beam angle, black Aluminium body.
Ceiling Mounting Information
This LED module uses a standard 50mm front diameter, the same size as MR16 and GU10 downlights. We don’t supply ceiling-mount bezels for this item, but they are very easy to source elsewhere. Searching for “downlight 50mm bezel” or “downlight replacement bezel” will bring up a wide range of compatible options in different colours and styles (fixed or tilt). As designs vary between manufacturers, a quick compatibility check is recommended before installation.
Dimensions and Fitting Requirements

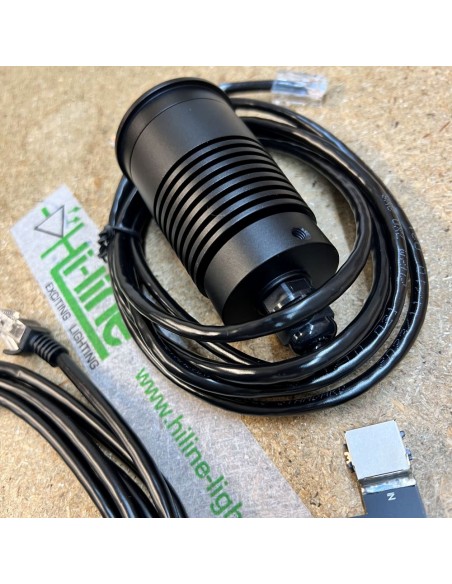

The module body measures Ø50mm x 81mm (diameter x height), machined from black anodised aluminium with integrated cooling fins. At the rear, a cable gland extends approximately 15mm, providing strain relief for the pre-attached CAT5 lead. To allow the cable to bend safely within the fitting or ceiling void, an additional 30mm clearance is recommended.
In total, installers should allow for around 110–115mm overall depth from the ceiling surface to accommodate both the module and the bend radius of the cable.
IP20 - designed for indoor use only.
RGBW (RGB+3000K) MR16 LED module 50mm diameter, powered by 12 Watt Cree LED "DMX512 ready".
DMX high brightness RGBW LED downlight module spot light powered by 12W CREE XML QUAD LED 4 in 1 integrated LED chip, beam angle 45 degrees, IP20 dimensions Ø50 x 80mm.

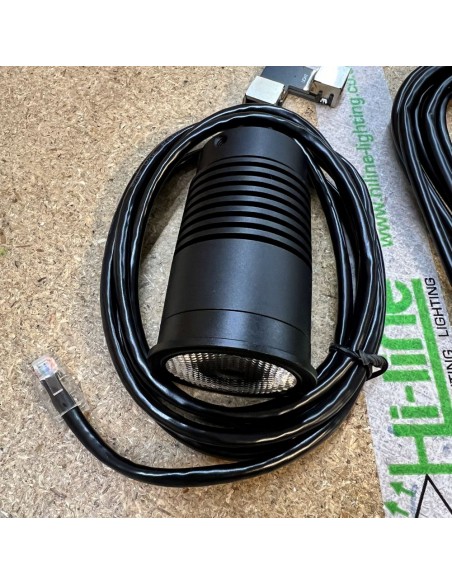

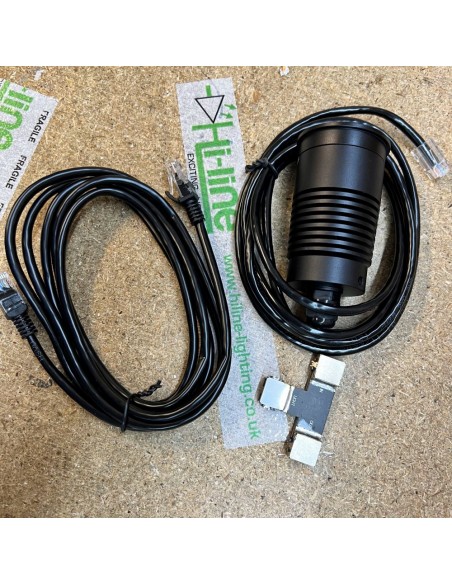

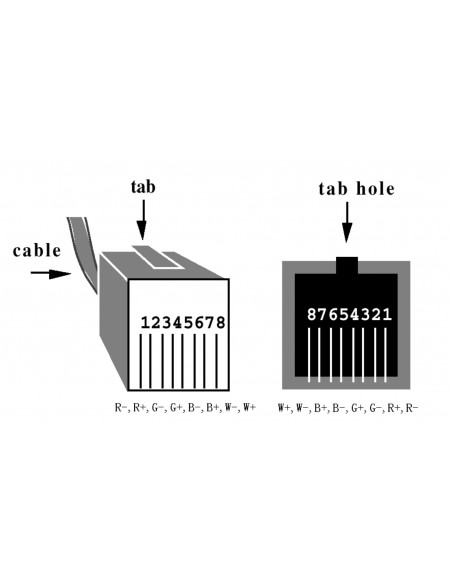

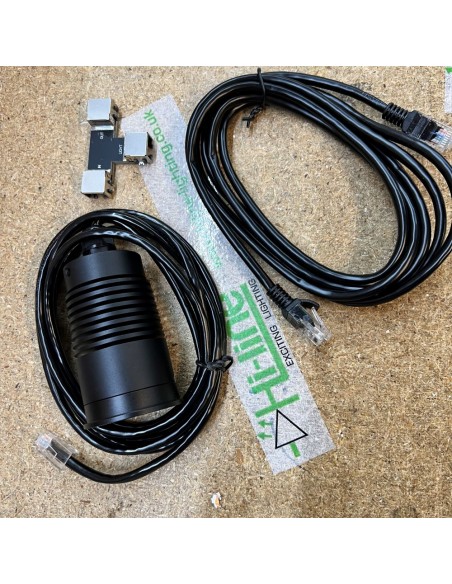

supplied with 1.5 meters of CAT 5 cable terminated with RJ45 plug, RJ45 T-BOX 3 way quick connector and 1 meter of network cable with plugs.

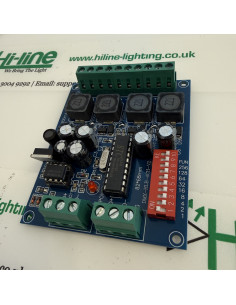

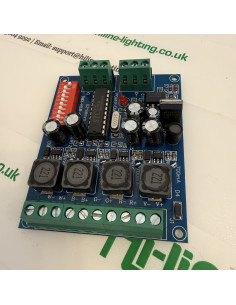

Requires additional external DMX512 LED controller, constant current 700mA sold separately
This LED module operates on constant current 700mA, comes ready with CAT5 cable and RJ45 plug for easy and fast retrofitting of existing MR16 or GU10 fixtures. Using the supplied T-BOX you may simply "plug and play" all your spots (daisy chain) to the DMX RGBW 4 channels, 1 zone LED controller and interface with any smart home controller through DMX512 gateway. This is not a stand alone downlight and requires DMX professional installer to setup.
Installation notes: The power consumption of each module is maximum 12 Watt when all colours are set to 100%

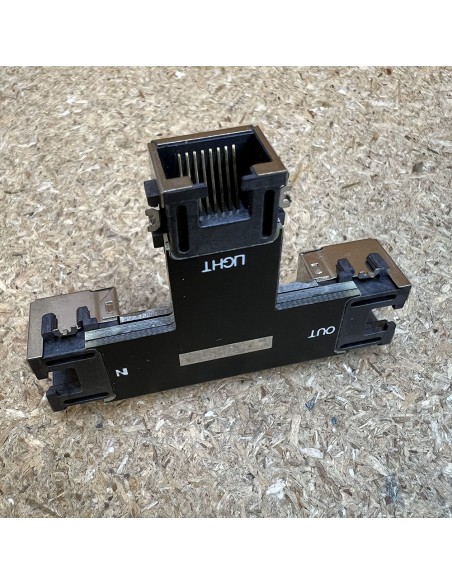

RGBW Module has the same diameter as the standard MR16 halogen lamp, so you may choose any design of a standard MR16 or GU10 lighting fitting and use the module as a light source. A test will be necessary to make sure the selected fitting can fit the specific module, some fittings might not be compatible. RGBW LED module operates on constant current mode and is supplied ready with a 2 meters CAT5/ cable with RJ45 plug and an extra 2 meters network cable with plugs. With every module we do also supply a plastic "T-BOX" for daisy chain connection of all modules with the LED controller output. A higher quality metal RJ45 "T-BOX" is also available at extra cost.
If you plan to use a longer network cable other than the supplied standard 2-meter length (2 meters between T-Boxes), it's important to estimate the voltage drop. This estimation will determine the number of RGBW modules that can be connected to each controller.
To learn more about estimating voltage drop, please refer to this article: Link to Voltage Drop Estimation Guide.
Please take note of the following:
When installing a single spot-light, it should be plugged directly into the DMX controller's RJ45 port.

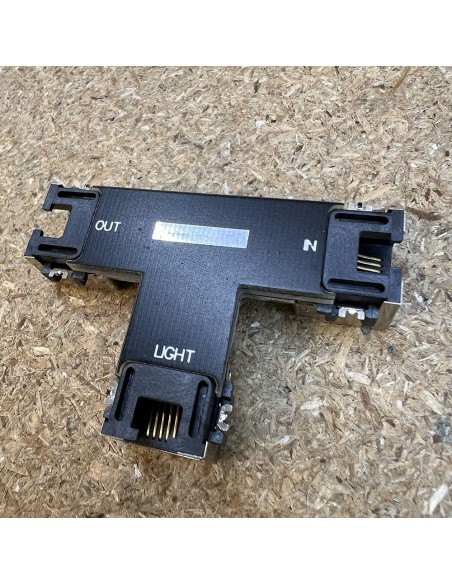

If you are daisy chaining multiple spot-lights using T-shape junction boxes, it is crucial to terminate the last connection point with a spot-light. Avoid adding another terminal link with a spot-light attached, as this configuration will not work.
For detailed information on connecting RGBW modules, including best practices and recommendations, visit this article: Link to RGBW Module Connection Guide.
Weight: 374g
Luminous Flux (after lens): Red/83 lm, Green/118 lm, Blue/22 lm, White/126 lm
Optional beam angles available: 8 or 45° (check related products tap or contact us)
This module is part of our high-end professional series, designed for demanding installations where long cable runs, stable output and precise individual control are essential. It uses constant-current LED technology, which delivers consistent brightness and colour accuracy across the entire run, even when fixtures are positioned many metres away from the controller.
Standard 5-wire PWM systems (like those used with RGBW LED strips) are ideal for shorter runs, but over longer distances the small voltage drop in each line can cause slight colour variation from one end to the other. That’s perfectly normal for PWM strip control, but it’s not desirable for applications such as theatres, architectural spot lighting or large venue installations where individual fixtures may be located tens of metres apart.
In these scenarios, constant-current modules like this one are the correct and professional solution.
This fixture integrates smoothly with constant current 700mA DMX512 and other professional control systems, providing robust long-distance signalling and full individual addressing.
For projects that do not require this level of infrastructure, we also offer versions designed for 5-wire PWM (RGBW) control and SPI pixel controllers. These alternatives can be found in the Related Products tab.
