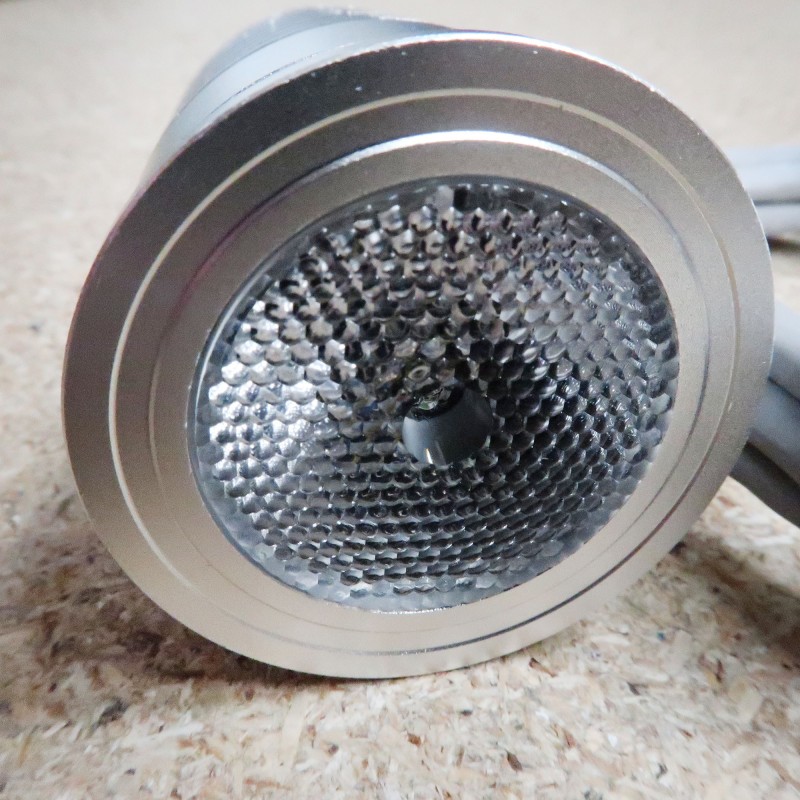

RGBW LED module 12W Cree quad LED chip RGB+NW 50mm
RGBW LED module 12W by Hi-Line

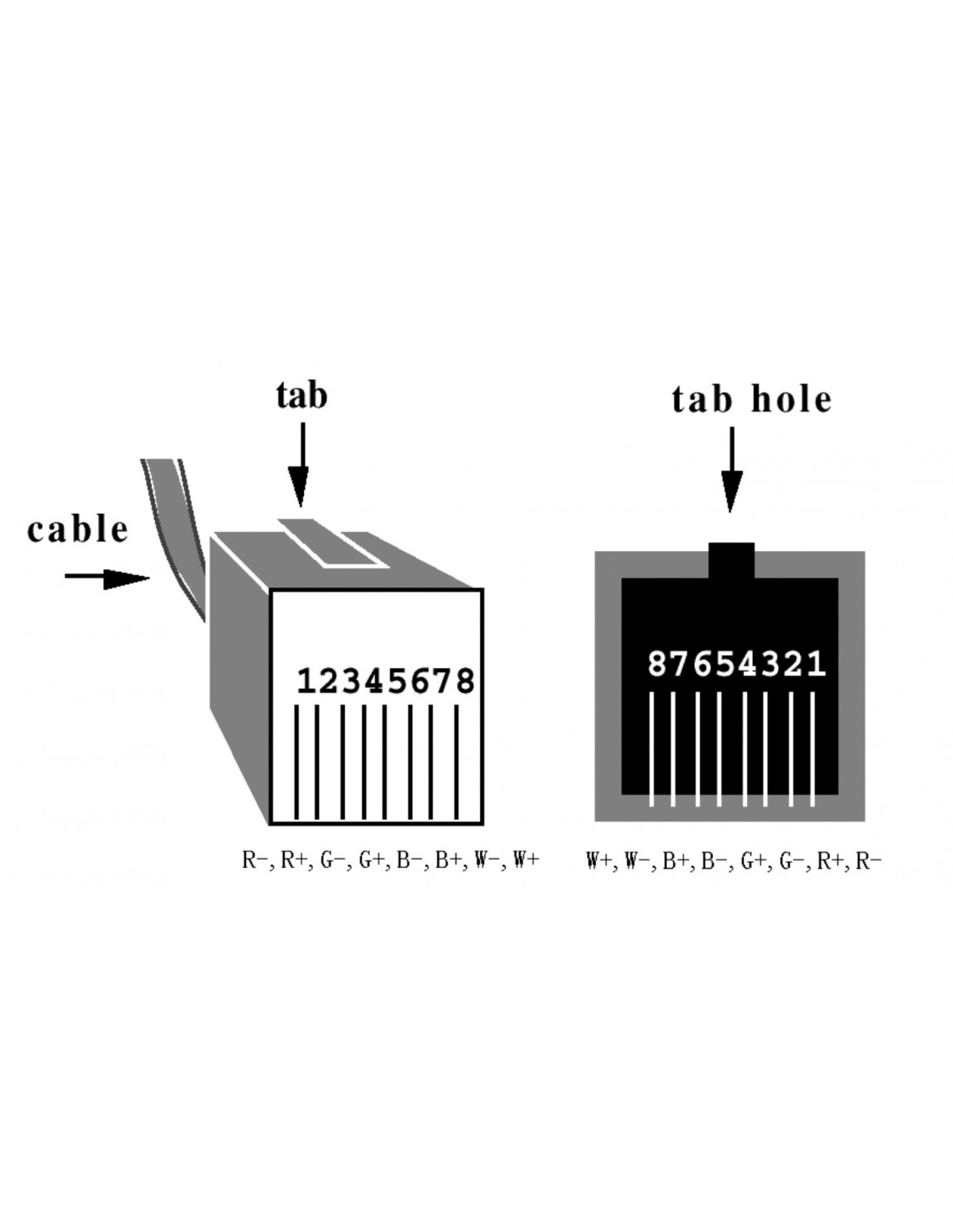

Cree RGBW LED module MR16 RJ45 pin assignment
RGBW LED module 12W Cree quad LED chip RGB+NW 50mm
Cree quad LED chip RGB+NW 12W

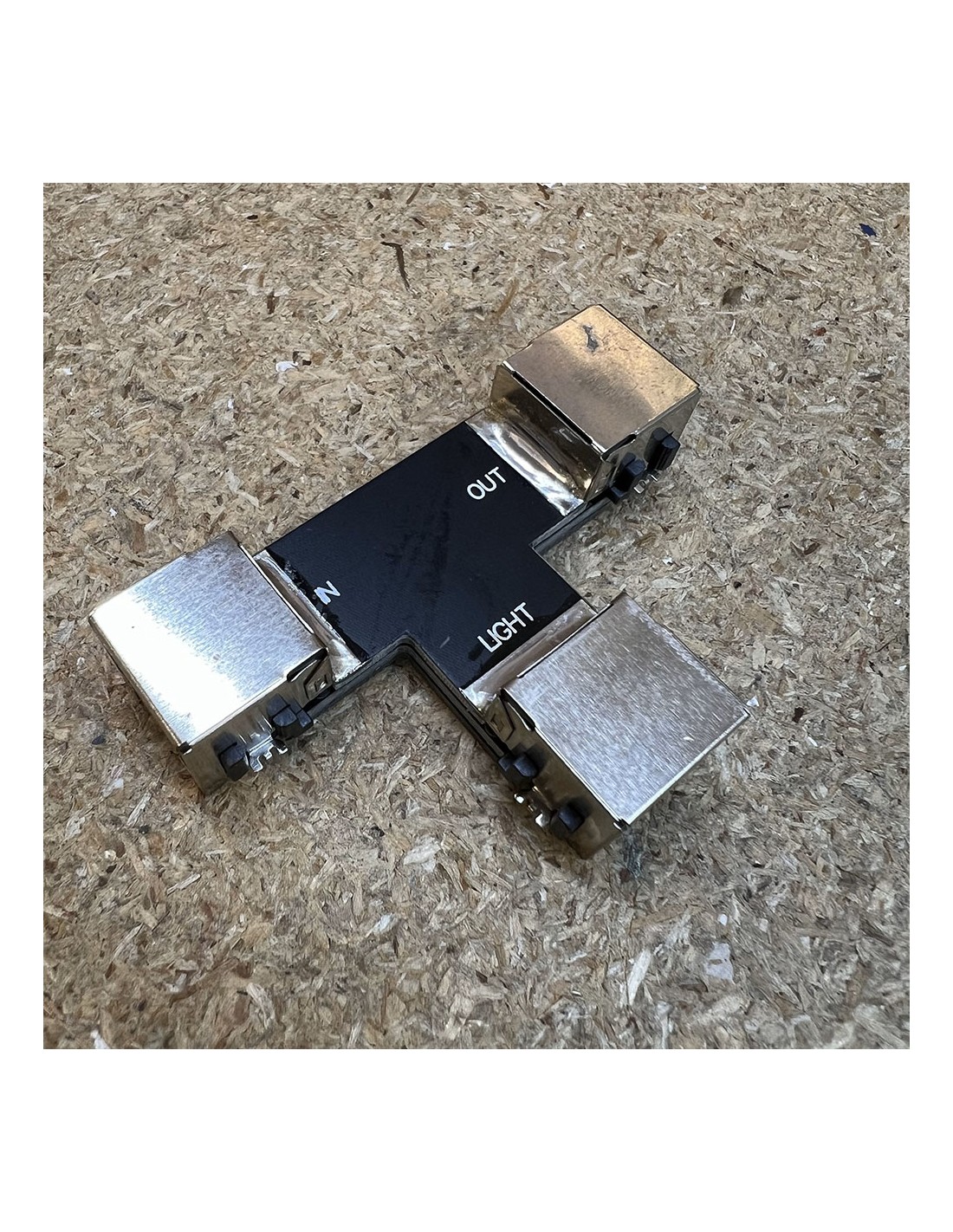

spotlight T connector RJ45

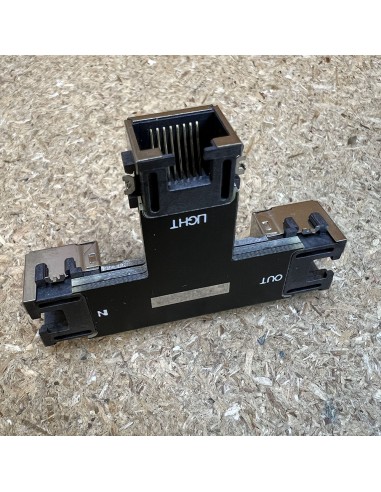

Hi-Line RGBW spotlight T connector RJ45
RGBW 3 way connector for Hi-Line lighting spotlight module
RGBW RJ45 cable for Hi-Line Cree MR16 module
Hi-Line Lighting RGBW optics for Cree LED module
RGBW LED module 12W Cree quad LED chip RGB+NW 50mm
RGBW LED module 12W by Hi-Line
Cree RGBW LED module MR16 RJ45 pin assignment
RGBW LED module 12W Cree quad LED chip RGB+NW 50mm
Cree quad LED chip RGB+NW 12W
spotlight T connector RJ45
Hi-Line RGBW spotlight T connector RJ45
RGBW 3 way connector for Hi-Line lighting spotlight module
RGBW RJ45 cable for Hi-Line Cree MR16 module
Hi-Line Lighting RGBW optics for Cree LED module

RGBW MR16 LED downlight module | 12W | Cree quad LED chip | RGB+NW

Key Features:

  • RGB+W MR16 LED downlight module 50mm
  • Fits most 50mm downlights
  • Beam angle 45 degrees
  • 12 Watt Constant current 700mA - 4 channels
  • Ready with RJ45 plus

Important Product Details

  • optional 250 char. max
HL-RGBNWRJ45-12W
3 Items In stock
Next working day delivery
£48.00
57.60
with VAT)

Quantity Unit price You Save
50 £45.60 £120.00
100 £43.20 £480.00


DMX512 RGBW MR16 LED downlight module 12W Cree quad LED chip RGB+NW (4000K), 45 degrees beam angle

Fits most 50mm downlights

IP20 - designed for indoor use only.

RGBW (RGB+4000K) MR16 LED module 50mm diameter, powered by 12 Watt Cree LED "DMX512 ready".

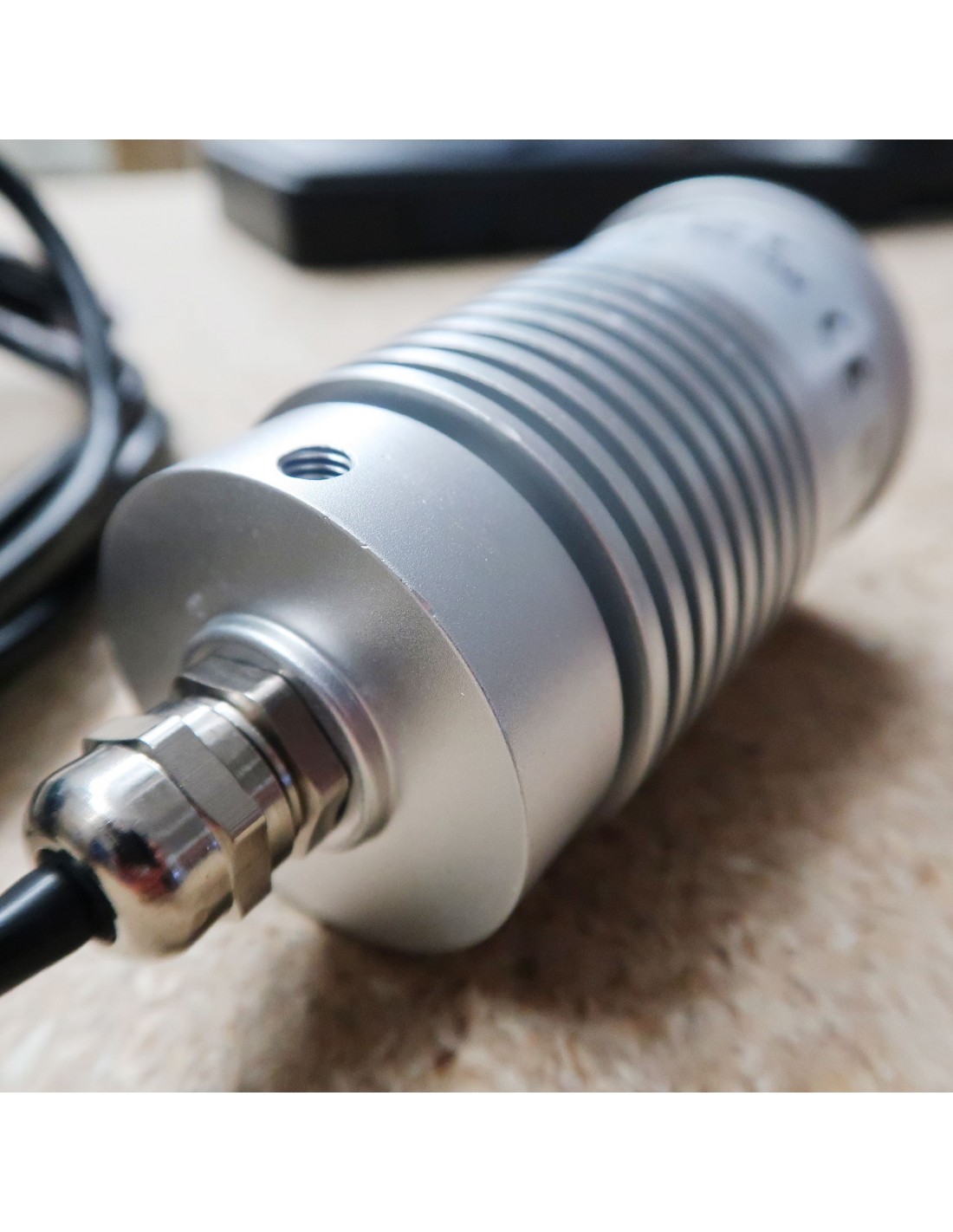

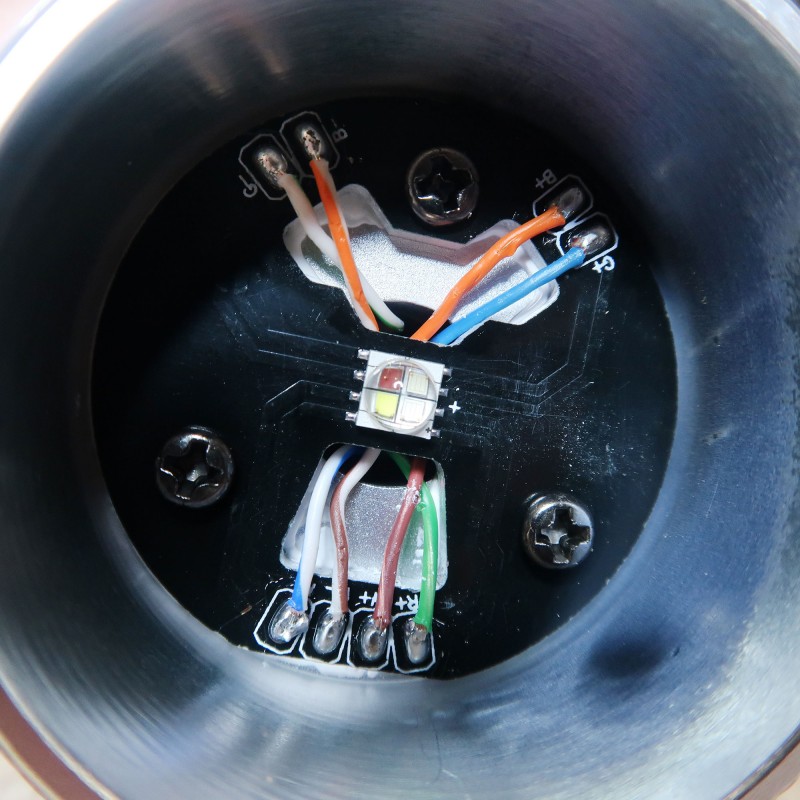

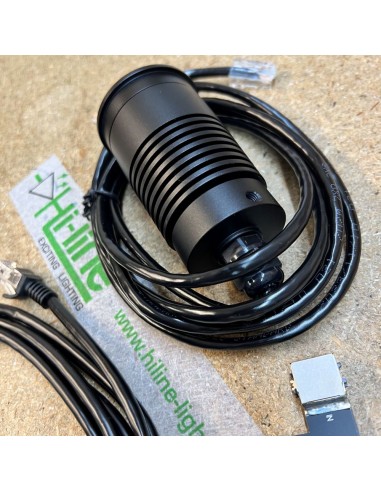

DMX high brightness RGBW LED downlight module spot light powered by 12W CREE XML QUAD LED 4 in 1 integrated LED chip, beam angle 45 degrees, IP20 dimensions Ø50 x 80mm.

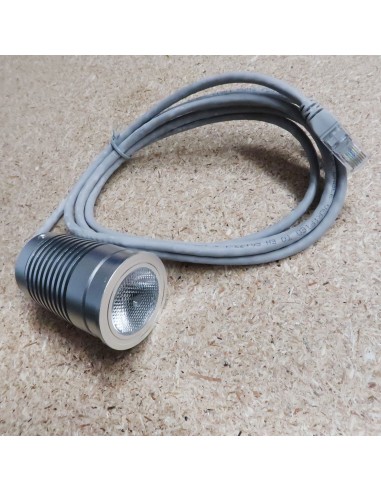

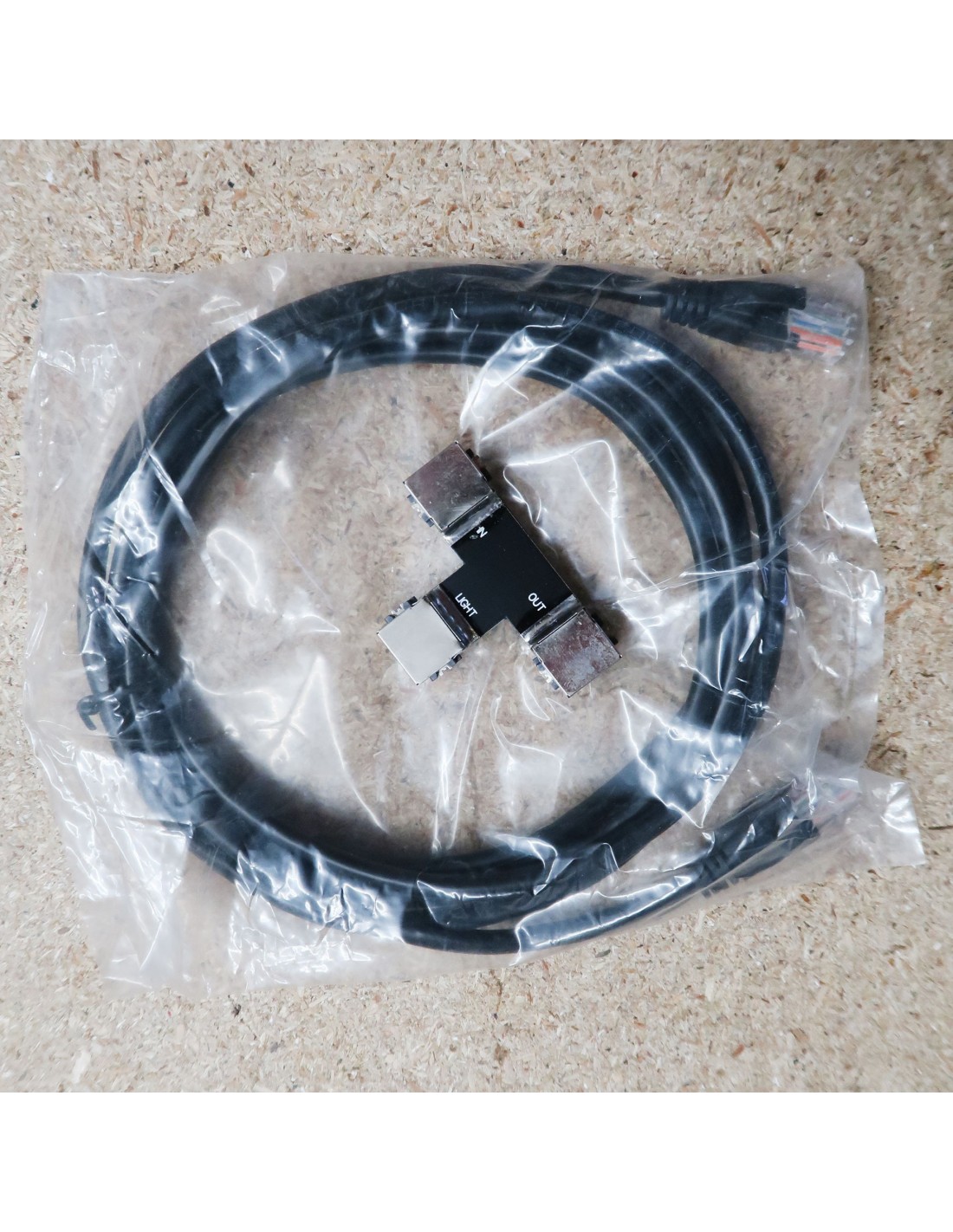

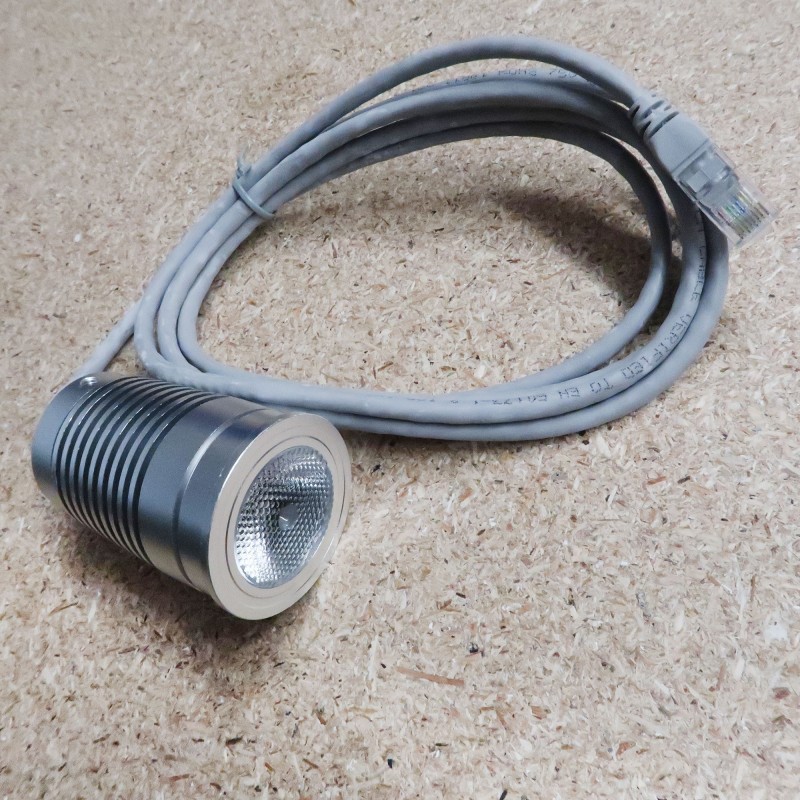

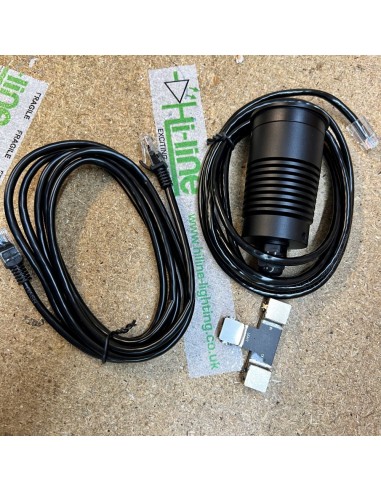

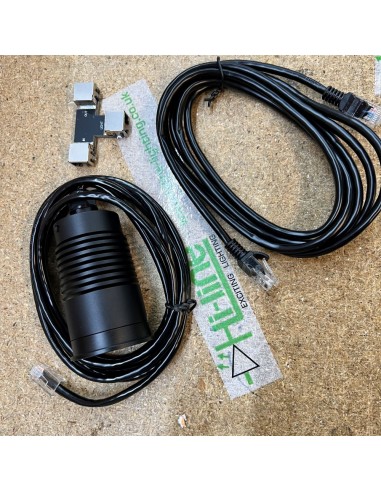

supplied with 1.5 meters of CAT 5 cable terminated with RJ45 plug, RJ45 T-BOX quick connector and 1 meter of network cable with plugs. Requires additional external DMX512 LED controller, constant current 700mA sold separately

This LED module operates on constant current 700mA, comes ready with CAT5 cable and RJ45 plug for easy and fast retrofitting of existing MR16 or GU10 fixtures. Using the supplied T-BOX you may simply "plug and play" all your spots (daisy chain) to the DMX RGBW 4 channels, 1 zone LED controller and interface with any smart home controller through DMX512 gateway. This is not a stand alone downlight and requires DMX professional installer to setup.

Installation notes: The power consumption of each module is maximum 12 Watt when all colours are set to 100%

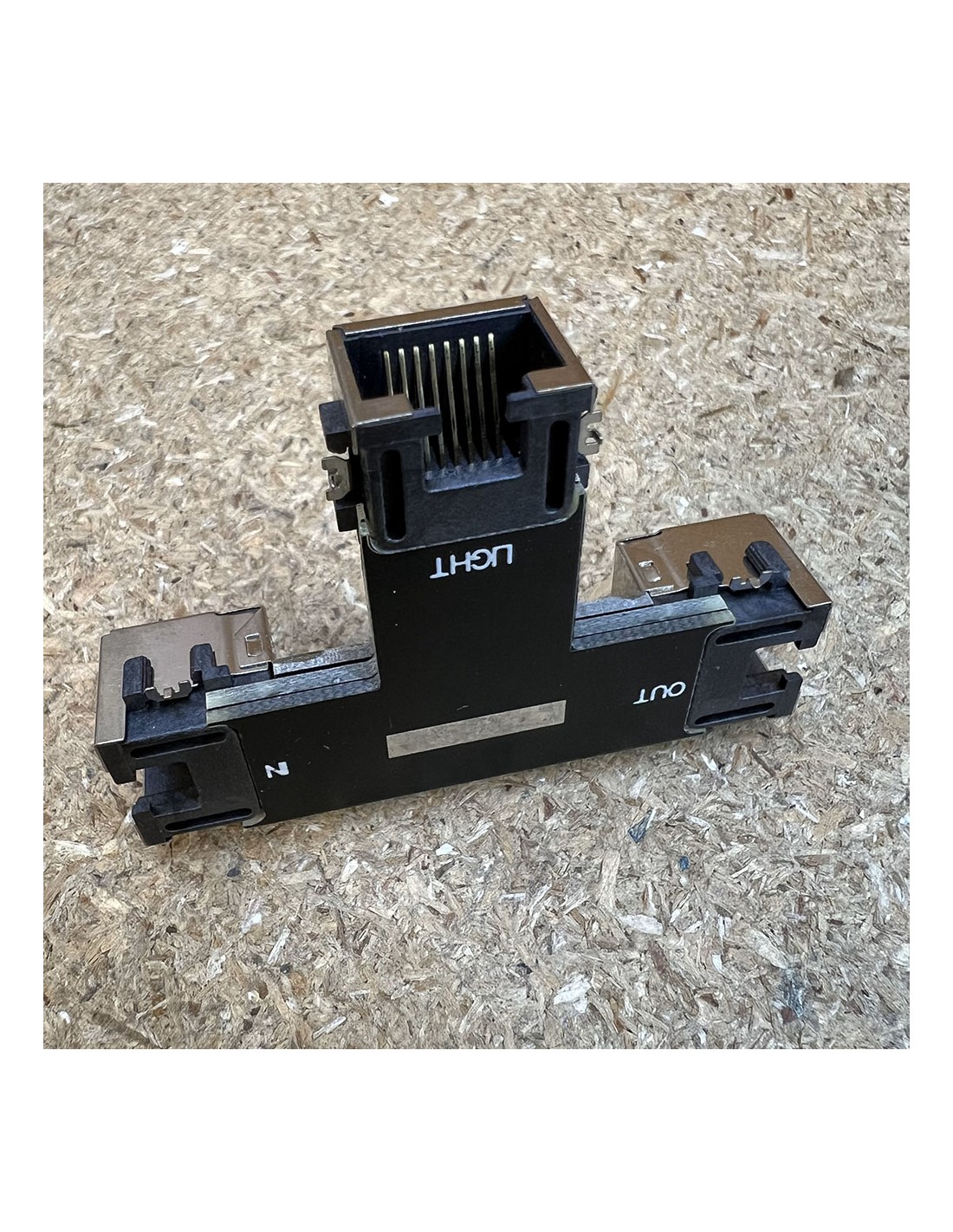

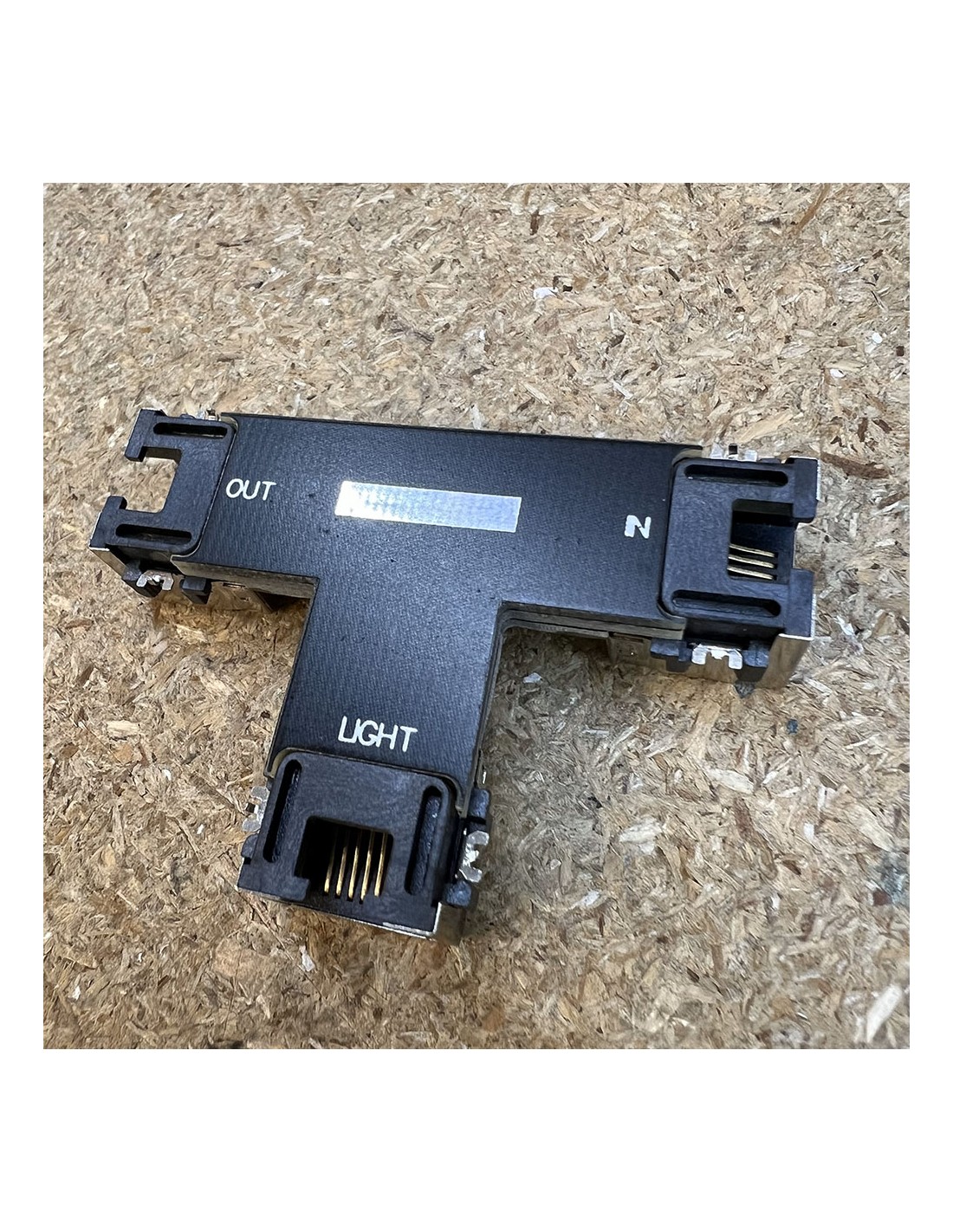

RGBW Module has the same diameter as the standard MR16 halogen lamp, so you may choose any design of a standard MR16 or GU10 lighting fitting and use the module as a light source. A test will be necessary to make sure the selected fitting can fit the specific module, some fittings might not be compatible. RGBW LED module operates on constant current mode and is supplied ready with a 2 meters CAT5/ cable with RJ45 plug and an extra 2 meters network cable with plugs. With every module we do also supply a plastic "T-BOX" for daisy chain connection of all modules with the LED controller output. A higher quality metal RJ45 "T-BOX" is also available at extra cost.

If you plan to use a longer network cable other than the supplied standard 2-meter length (2 meters between T-Boxes), it's important to estimate the voltage drop. This estimation will determine the number of RGBW modules that can be connected to each controller.

To learn more about estimating voltage drop, please refer to this article: Link to Voltage Drop Estimation Guide.

Please take note of the following:

When installing a single spot-light, it should be plugged directly into the DMX controller's RJ45 port.

If you are daisy chaining multiple spot-lights using T-shape junction boxes, it is crucial to terminate the last connection point with a spot-light. Avoid adding another terminal link with a spot-light attached, as this configuration will not work.

For detailed information on connecting RGBW modules, including best practices and recommendations, visit this article: Link to RGBW Module Connection Guide.

Weight: 374g

Luminous Flux (after lens): Red/83 lm, Green/118 lm, Blue/22 lm, White/126 lm

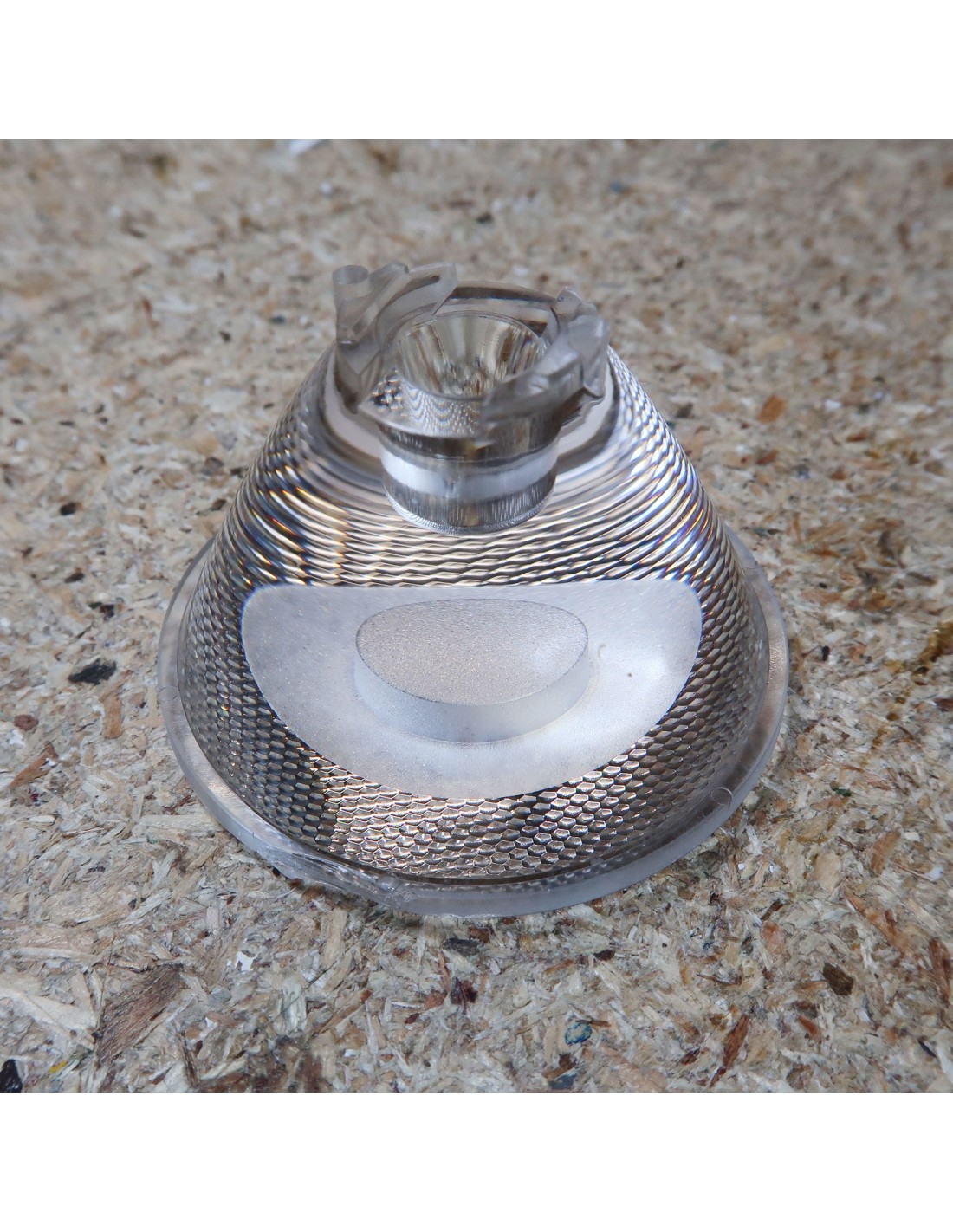

Optional beam angles available: 25° (pre-order only), 8 or 45° (ex-stock)

For further assistance or technical questions please contact us, we will be happy to assist.

Brand
Hi-Line
Colour
RGBW (RGB+NW)
Colour Temperature (CCT)
RGB+4000K
LED Chip
Cree RGBW
LED Module Beam Angle
45°
Voltage Type
Constant current
Warranty
3 Years
