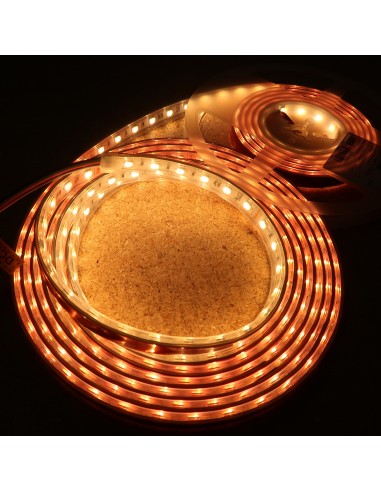

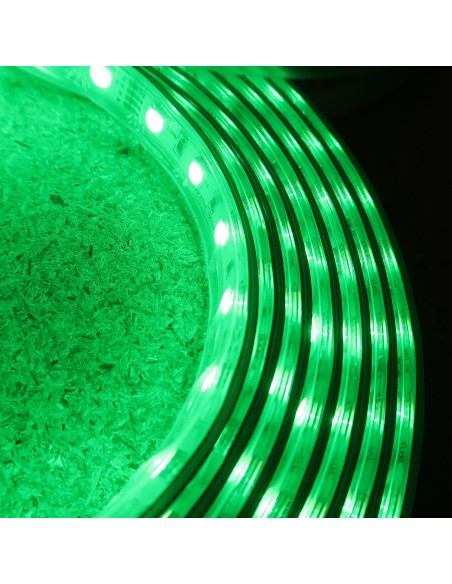

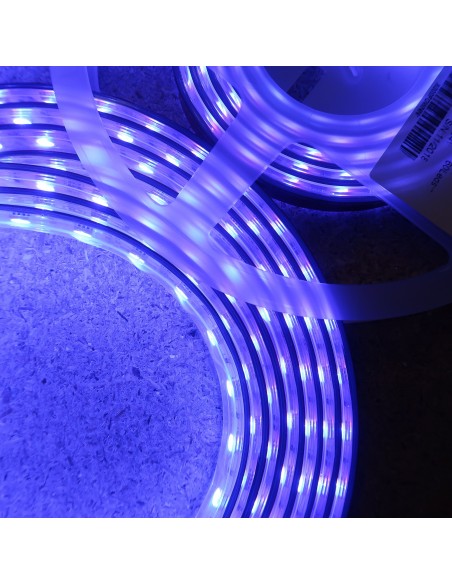

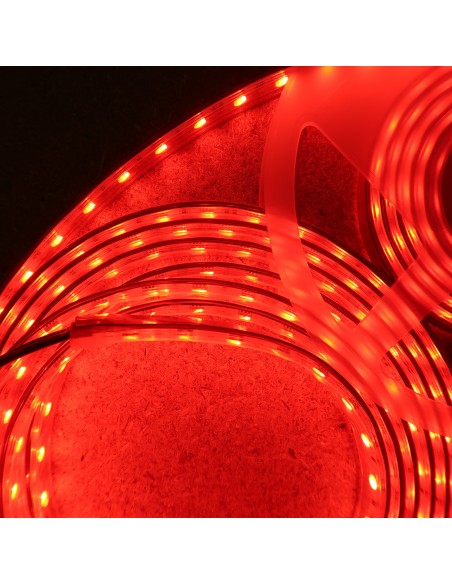

RGBW LED Strip 24V RGB+CW IP67 View larger

Online only

RGBW LED Strip (RGB+WW) 24V-14.4W/m- IP67-CRI80-SMD5050

HL-24VRGBWW-IP67

New product

RGB+Warm White LED strip (Quad/4 in 1 Chip), 2700K, 24V, IP67 (Waterproof)

60 LEDs/m–14.4W/m–1200Lm/m

5m roll–12mm width

3 year warranty

More details

1 Item

Same Day Dispatch

Warning: Last items in stock!

£ 60,00 excl. VAT

Add to wishlist

Data sheet

LED Chip Quad colour SMD5050
Voltage 24V DC
Colour RGB+Warm White
Power 14.4 W/m
Brightness 1200 Lm/m
Number of LEDs per meter 60
Rating IP67 (Waterproof)
Colour Temperature (CCT) 2700K
Colour rendering (CRI in ra) 80
Width of strip 12mm
Cutting length Every 6 LEDs (100mm)

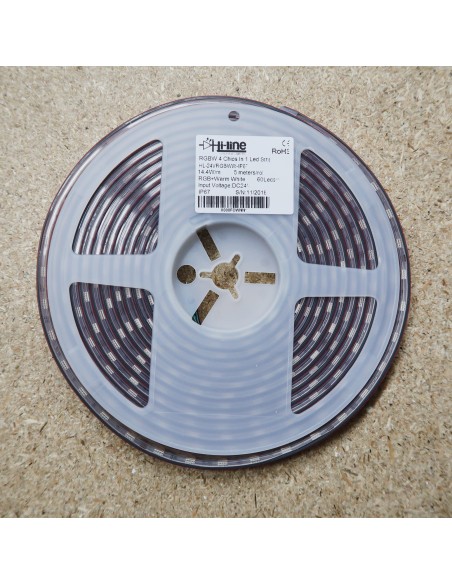

LED Strip Packing 5-meter roll
Voltage Type Constant Voltage
Warranty 3 Years
Brand Hi-Line

More info

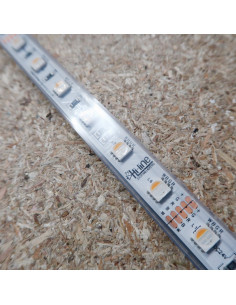

Commercial high grade RGB + Warm White LED strip with quad chip (4 colours in 1 chip)

14.4W/m – 24V DC – 5m roll – 60 LEDs/m – IP67 (Waterproof) – 5-wire cable (15cm on each side of the strip roll)

This new design of RGBW LED strip integrates all 3 primary colours (Red/Green/Blue) + Warm White in a single chip. Due to this innovative design (4 in 1 chip) the strip is brighter than the conventional RGB + W strips, which have one chip for RGB and another one for white.

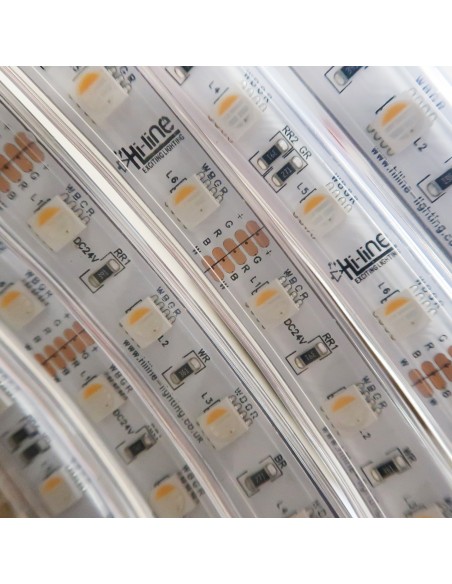

The RGBW LED strips are powered by high quality quad SMD5050 LED chips. The brightness of each chip is 20 lumens.

The power consumption is 14.4W per meter, which means an average of 3.6W per colour per meter.

Excellent colour rendering index (CRI) – all LED chips reach a value of Ra >80.

The strip can be cut every 6 LEDs (10cm). The final width of the LED strip is 12mm (including coating); RGBW LED strip printed circuit board (pcb) used is 10mm wide.

Fitted with an easy to install original 3M adhesive tape with excellent adhesion also under water (identified by a red protective strip on the adhesive side).

IP67 Waterproof Protection (IP67 = protected from dust and temporary immersion to a maximum depth of 100cm) is achieved by inserting the LED strip in a UV-resistant silicone sleeve.

3 year warranty

______________________________

The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.

Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of LED strip are exceeded, it is suggested to connect the strip directly to the LED controller using a 5-core cable.

Please note that this data is based on the average readings for a 5-meter long LED strip. If the length of the strip is 1 meter the power consumption will be higher as there is almost no voltage drop. For comparison, the test result for 1m RGBW LED strip with 14.4W and 60 LEDs showed a power consumption of 18.48W or 0.77A.

Installation hints and tips for LED strips can be downloaded at the bottom of this web page.

_____________________________

The RGBW LED strip comes with a 15cm wire ending on each side of the strip roll. Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).

Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.

______________________________

All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.

All Hi-Line RGB and RGBW LED strips are fully compatible with Fibaro RGBW LED Controller, Rako or ANY common anode LED controller available on the market.

______________________________

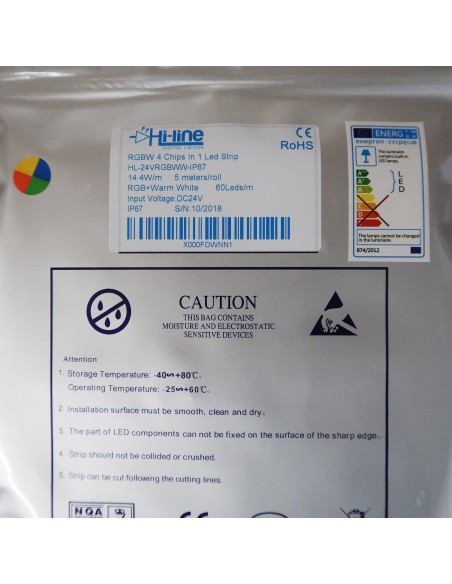

The stated price is for 1 x 5-meter roll RGBW LED strip (Warm White) with 300 SMD5050 RGBW LEDs – IP67 (Waterproof), 24V DC.

______________________________

Selection of the LED driver depending on the maximum LED strip length

The table below shows the maximum LED strip length, which can be operated with a given LED driver.

To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% were deducted from the maximum strip length in the table below.

Note that, for driving RGBW LED Strips, you will have to combine the LED-Driver with a RGB/RGBW LED Controller.

In such case, LED driver is not required to be dimmable. Brightness control (dimming) and colour adjustment is still possible through the LED controller.
