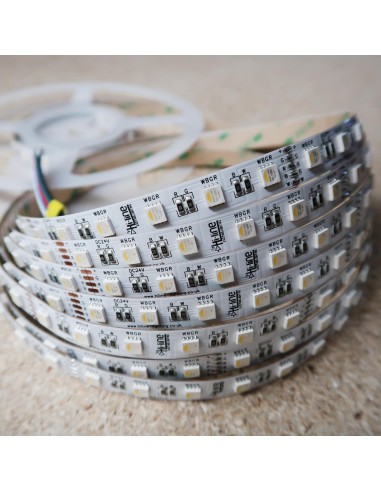

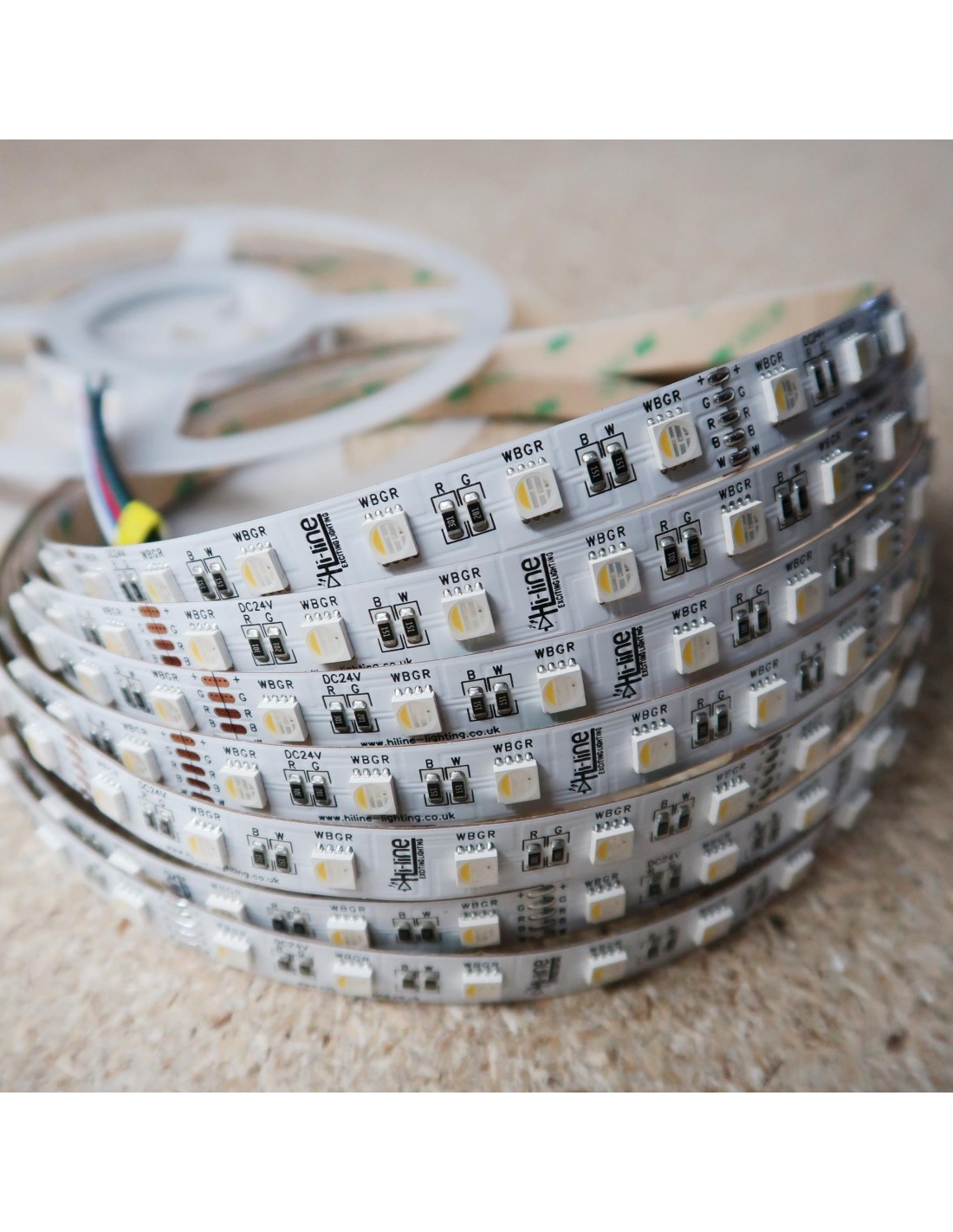

RGBW LED Strip (RGB+NW) 24V | 14.4W/m | IP00 | CRI80 | 12mm/3oz PCB | 5m Roll
RGB+Natural White LED strip (Quad/4 in 1 Chip), 4000K, 24V, IP00 (Non-Waterproof)
60 LEDs/m | 14.4W/m | 1200Lm/m
5m roll | 12mm width | 3oz PCB
5 year warranty
Commercial high grade RGB + Natural White LED strip with quad chip (4 colours in 1 chip)
This LED strip is based on a 12mm/3oz flexible PCB, which makes it possible to maintain a low operating temperature despite very high brightness. This results in a longer lifespan of the LED strip and a consistent performance.
14.4W/m – 24V DC – 5m roll – 60 LEDs/m – IP00 (Non-Waterproof) – 5-wire cable (15cm on each side of the strip roll)
This new design of RGBW LED strip integrates all 3 primary colours (Red/Green/Blue) + Natural White in a single chip. Due to this innovative design (4 in 1 chip) the strip is brighter than the conventional RGB + W strips, which have one chip for RGB and another one for white.
The RGBW LED strips are powered by high quality quad SMD5050 LED chips. The brightness of each chip is 20 lumens.
The power consumption is 14.4W per meter, which means an average of 3.6W per colour per meter.
Excellent colour rendering index (CRI) – all chips reach a value of Ra >80.
Red LED channel: wavelength 625nm
Green LED channel: wavelength 525nm
Blue LED channel: wavelength 470nm
For more information on RGB readings, please see our Wavelength Article.
The strip can be cut every 6 LEDs (10cm). The width of the LED strip is 10mm.
Fitted with an easy to install original 3M adhesive tape with excellent adhesion.
5 year warranty
*This LED tape should be installed according to our installation instructions. For more information on installing, please see the installation manual at the bottom of the page and to learn more about the 5 year warranty on offer, please refer to the following link:
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please do NOT connect more than 10 meters of a LED strip in series. A LED strip of more than 10 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 10 meters of LED strip are exceeded, it is suggested to connect the strip directly to the LED controller using a 5-core cable.
Please note that this data is based on the average readings for a 5-meter long LED strip. If the length of the strip is 1 meter the power consumption will be higher as there is almost no voltage drop. For comparison, the test result for 1m RGBW LED strip with 14.4W and 60 LEDs showed a power consumption of 18.48W or 0.77A.
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.
The RGBW LED strip comes with a 15cm wire ending on each side of the strip roll. Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 5 meters + 2 meters).
Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.
All Hi-Line RGB and RGBW LED strips are fully compatible with Fibaro RGBW LED Controller, Rako or ANY common anode LED controller available on the market.

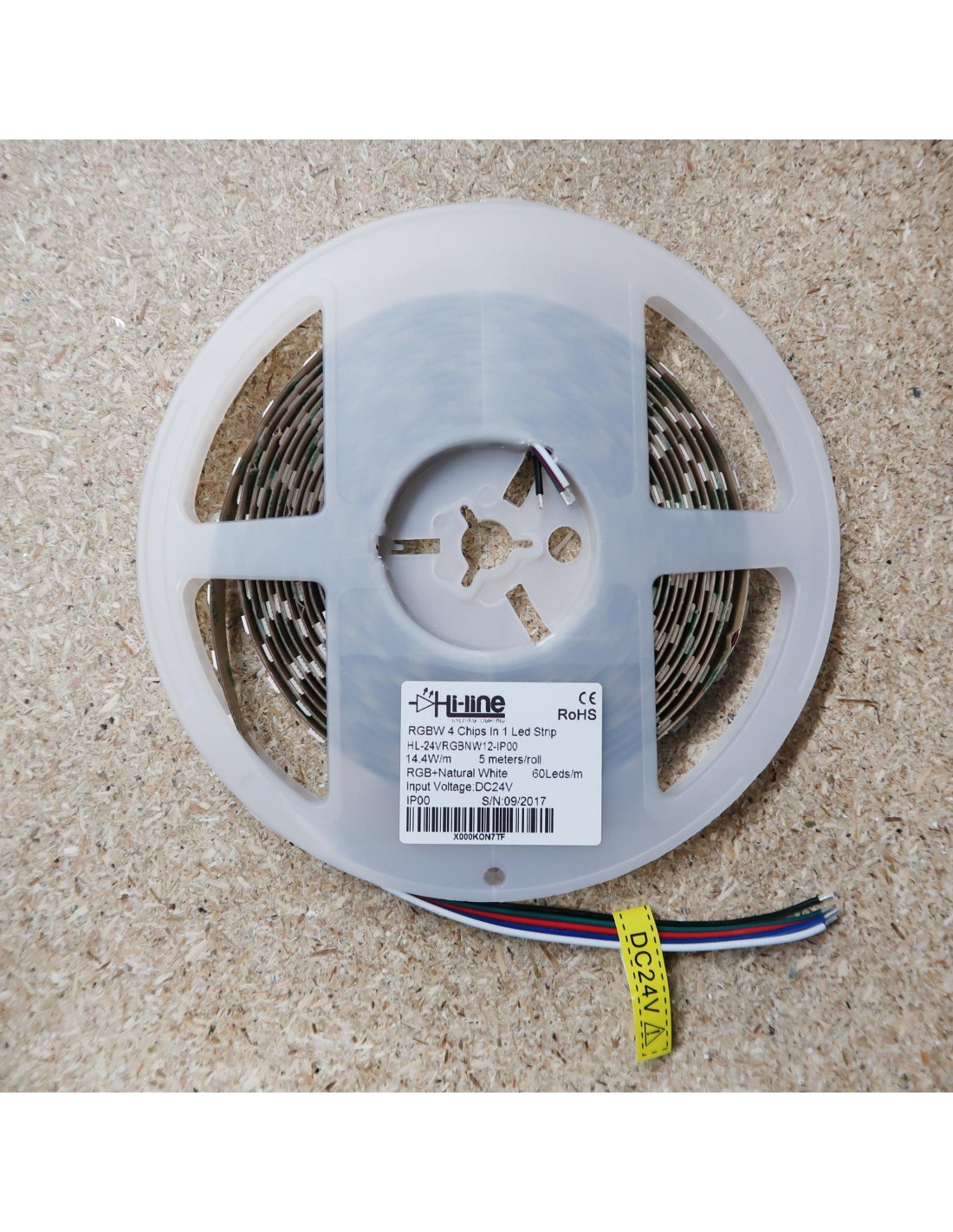

The stated price is for 1 x 5-meter roll RGBW LED strip (Natural White) with 300 SMD5050 RGBW LEDs – IP00 (Non-Waterproof), 24V DC.
Note: A longer, 10-meter version of this RGBW LED strip, IP00 is available in the Hi-Line online shop: 14.4W/m 24V RGB+NW IP00 CRI80 LED Strip 10m Roll 12mm/3 oz PCB
Selection of the LED driver depending on the maximum LED strip length
The table below shows the maximum LED strip length, which can be operated with a given LED driver.
To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% were deducted from the maximum strip length in the table below.
Note that, for driving RGBW LED Strips, you will have to combine the LED-Driver with a RGB/RGBW LED Controller.
In such case, LED driver is not required to be dimmable. Brightness control (dimming) and colour adjustment is still possible through the LED controller.
- CIE Colour Space
- 3 SDCM
- 24V DC
- RGBW (RGB+NW)
- 14.4 W/m
- 1200 Lm/m
- Number of LEDs per meter
- IP00 (Non-waterproof)
- Colour Temperature (CCT)
- Colour rendering (CRI in ra)
- Width of strip
- FCP copper content
- 3 ounce double layer
- Cutting length
- Every 6 LEDs (100mm)
- LED Strip Packing
- 5-meter roll
- Voltage Type
- Constant Voltage
- 5 Years
- LED Chip
- Quad colour SMD 5050
