60 LEDs per metre. HL-24VRGBWW12-IP00, the 60 LED/m roll, is no longer sold. This page is the SMD strip in its place: 120 4-in-1 LEDs per metre, RGB + 2700 K, 24 V, indoor. For a line with no separate LED dots, choose a strip from our COB LED strips.
The watts per metre on this page are the total for every channel together. The common positive, usually the black wire, carries that whole current. Each colour return carries only its own share. Connector length, and the cross-section of any long feed, are set by the common wire. The calculation for RGB, RGBW, tunable white and RGB+CCT is in our guide to common anode current on colour-changing LED strip.
HL-RGBWW-120L-IP00-24V — 5 m indoor RGBWW tape, 120 LEDs/m

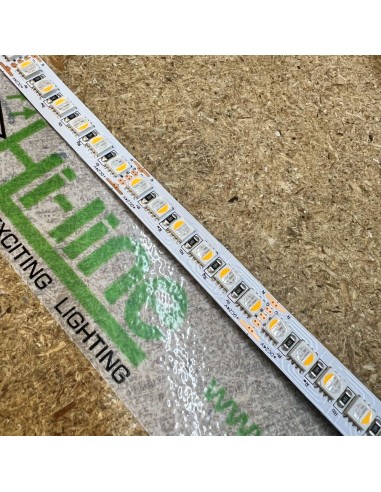

This is a dense 24 V RGBWW strip: RGB and 2700 K warm white in one 4-in-1 chip, 120 per metre on a 12 mm board. Colour mixes on the die, so you do not get the red/green split you see on cheap 60 LED/m tape. The white is a real warm white, not a washed RGB mix. Indoor (IP00), 5 m roll, 19.2 W/m.
Why it belongs on a job
- 120 SMD 5050 quad chips per metre — smooth colour along coving, joinery and retail runs
- RGB + 2700 K on the same pad — full colour and a usable warm white from one 5-wire feed
- 19.2 W/m — enough output for architectural accents, not a toy strip
- Cut every 62.5 mm. 12 mm wide. 24 V DC constant voltage

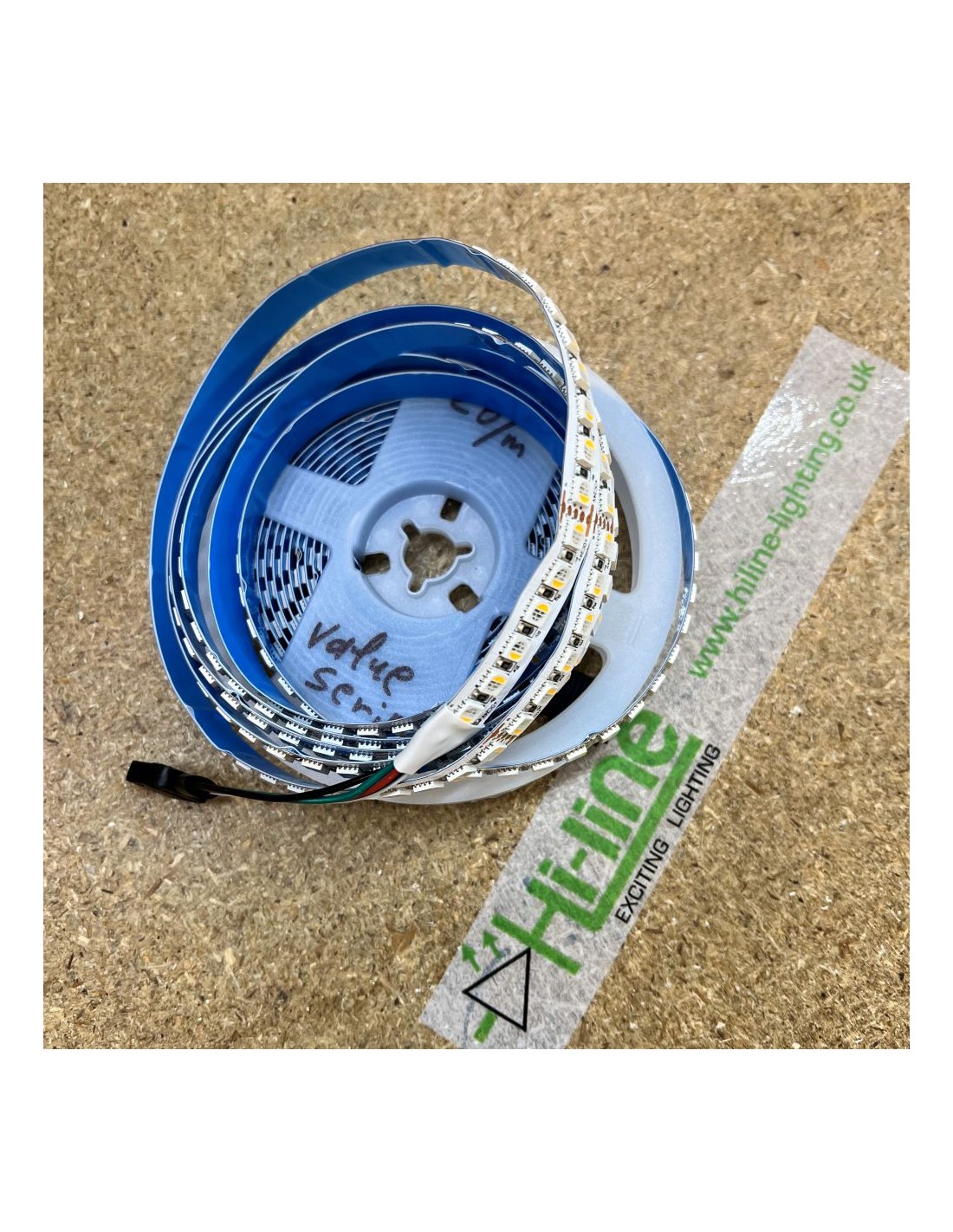

This listing is the 5 m roll (reference HL-RGBWW-120L-IP00-24V). Indoor only. It is not waterproof.
How to run it
It is analogue RGBW (five cores: 24 V and R, G, B, W). It is not a pixel / SPI strip. Pair it with a 4-channel RGBW PWM controller. Popular wireless boxes and remotes are listed in Related products below — typically HL-V5-L(WT) or HL-WT5, plus R8 / RS4 / T14. For a wet location controller use HL-V4-WPS.
For a wired DMX512 install, use a constant-voltage RGBW DMX decoder from our DMX512 LED controllers.
12 mm 5-pin strip-to-strip and strip-to-wire connectors, and 5-core RGBW cable, are in Related products below.
Driver sizing
Budget 19.2 W per metre with all channels on, then at least 20% spare. A 5 m roll is about 96 W nominal — use a 24 V driver of 120 W or more for one full roll. Do not run a 5 m roll from a 60 W pack.
Technical summary
- SKU: HL-RGBWW-120L-IP00-24V
- 24 V DC, 19.2 W/m, 5 m roll
- 120 × SMD 5050 4-in-1 per metre (RGB + 2700 K)
- 12 mm, IP00, cut every 62.5 mm
- 5-wire RGBW PWM (not SPI)
Must be installed by a qualified electrician. Confirm 24 V and RGBW wiring before first power-up. Indoor, dry location only. Fit in an aluminium profile where heat and a clean line matter.
