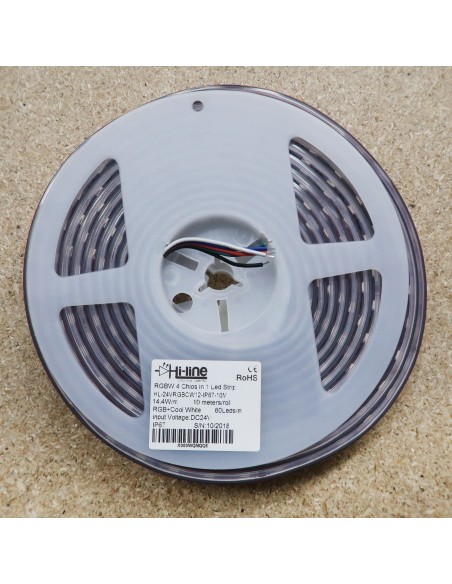

10M IP67 RGBW RGB+CW LED Strip 24V 14.4W/m - 12mm pcb 3oz

HL-24VRGBCW12-IP67-10M

New product

Cool White LED strip, 6000K, 24V, IP67 (Waterproof)

60 LEDs/m–14.4W/m–1200Lm/m

10m roll–14mm width (5mm height)

High CRI(W)- Ra>80

3 year warranty

More details

28 Items

Same Day Dispatch

£ 135,00

£ 13,50 per meter

Add to wishlist

Data sheet

LED Chip Quad colour SMD 5050
CIE Colour Space 3 SDCM
Colour RGBW (RGB+CW)
Voltage 24V DC
Power 14.4 W/m
Brightness 1200 Lm/m
Number of LEDs per meter 60
Rating IP67 (Waterproof)
Colour Temperature (CCT) RGB+6000K
Colour rendering (CRI in ra) 80
Width of strip 14mm
Width of PCB 12mm
FCP copper content 3 ounce double layer
Cutting length Every 6 LEDs (100mm)
LED Strip Packing 10-meter roll
Warranty 3 Years
Brand Hi-Line

More info

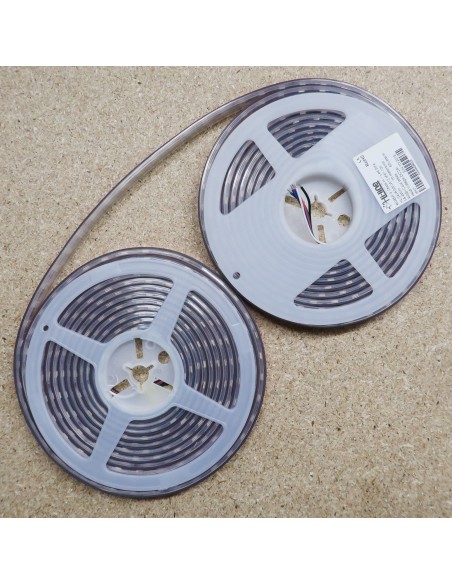

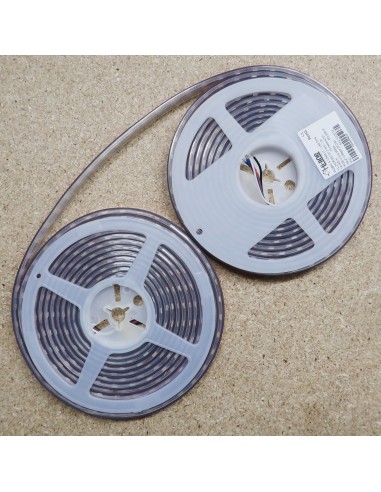

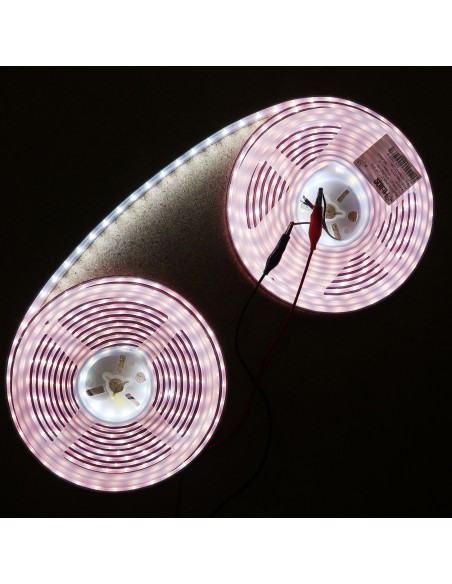

10 meters roll IP67 RGBW LED Strip (RGB+CW-6000K) 24V-14.4W/m 3oz 12mm FCP (14mm total width with coating)

Our 12mm (FCP width) LED strips are powered by 3oz high copper flexible PCB, which makes it possible to maintain a cooler operating temperature despite very high brightness. This also ensures less voltage drop, which is useful for installations which require longer runs; up to 10m can be powered from one end only, without causing a noticeable reduction in brightness. Overall, 12mm results in a longer lifespan of the LED strip, with a consistently strong performance throughout.

14.4W/m – 24V DC – 10m roll – 60 LEDs/m – IP67 (waterproof) – 5-wire cable (15cm on each side of the strip roll).

This new design of RGBW LED strip integrates all 3 primary colours (Red/Green/Blue) + Warm White in a single RGBW LED chip. Due to this innovative design (quad 4 in 1 chip), the strip is brighter than conventional RGB + W strips, which have one chip for RGB and another one for white.

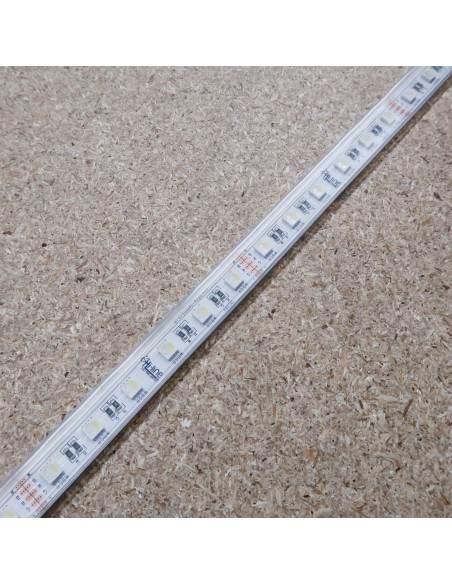

The RGBW LED strips are powered by high quality quad SMD5050 LED chips. The brightness of each chip is 20 lumens.

The power consumption is 14.4W per meter, which means an average of 3.6W per colour per meter.

Excellent colour rendering (CRI) – all white LED chips reach a value of Ra >80.

The strip can be cut every 6 LEDs (10cm). FCP width of LED strip is 12mm (14mm with sleeve)

Fitted with an easy to install original 3M adhesive tape with excellent adhesion.

3-year warranty

Please do NOT connect more than 10 meters of a LED strip in series. A LED strip of more than 10 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip.
