This listing is the 5 metre roll — reference HL-RGBNW-896COB-IP00-24V.
Also available as a 10 metre roll. The same RGB+Natural White 4000K COB strip is sold as a continuous 10 m reel — HL-RGBNW-896COB-IP00-24V-10M. Open that page, or scroll to Related Products below. The two lengths are separate products, so the size in your basket is always clear.
What you are buying

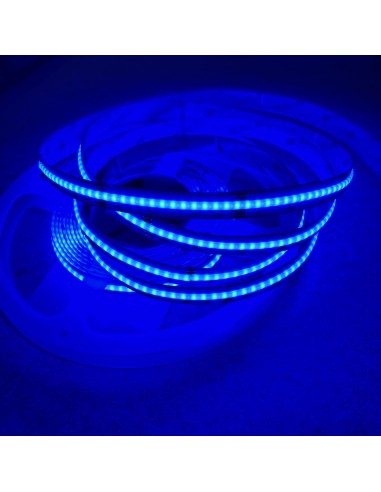

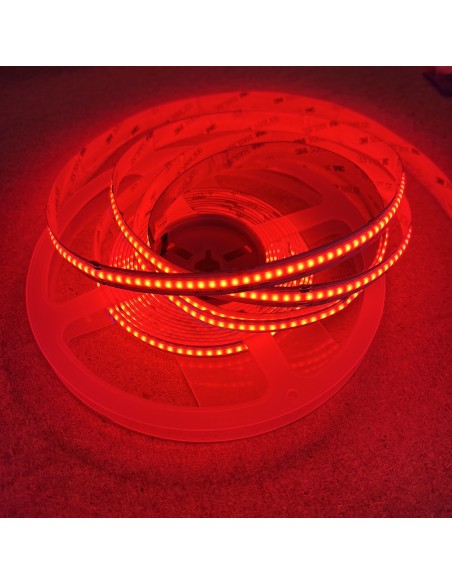

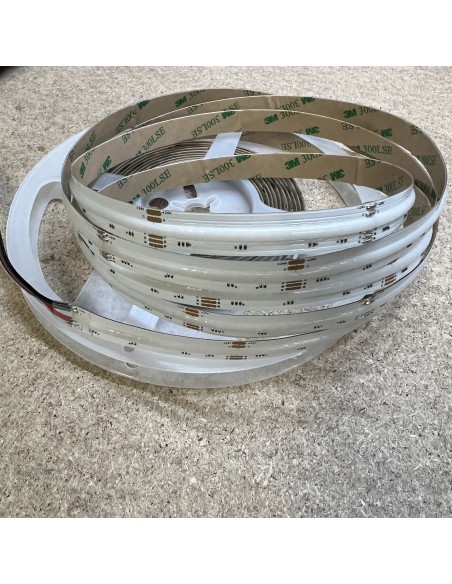

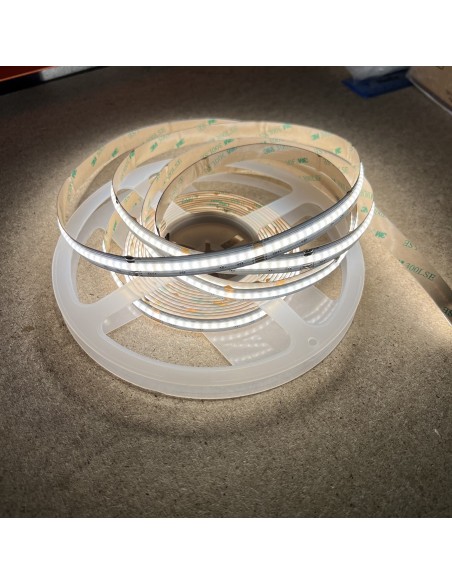

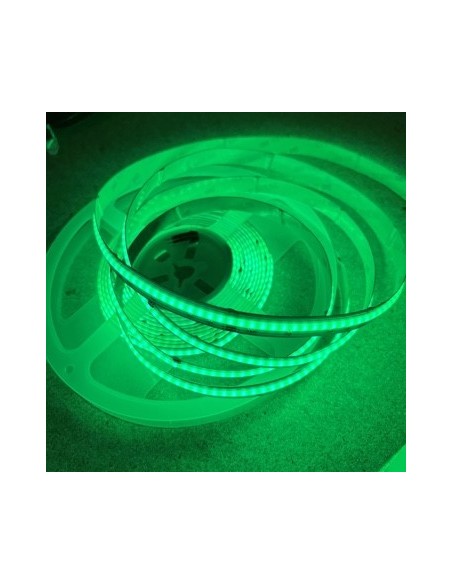

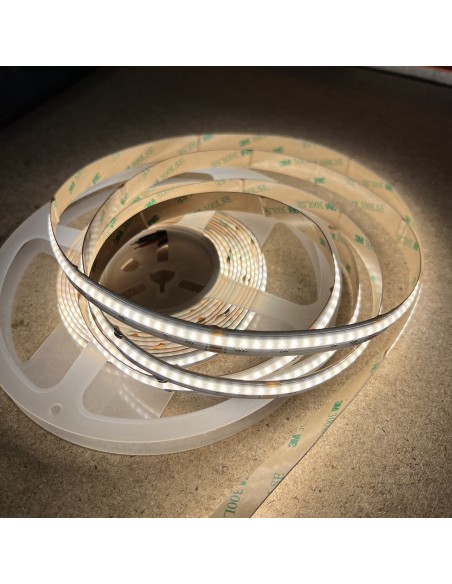

A premium Hi-Line COB (chip-on-board) RGBW LED strip for colour-changing and high-quality white light in one tape. The white channel is natural white 4000K (RGB+NW), not a weak mix of RGB alone - so installers get proper architectural white plus full RGB colour, and DIY users get smooth, dot-free light without the spotted look of older SMD tapes.
Key technical specifications (see also the Product Specifications tab)
- Type: COB / COF RGBW (RGB + Natural White)
- CCT / colour: RGB + 4000K NW
- Density: 896 LEDs per metre (dotless appearance)
- Power: 15 W per metre
- Voltage: 24V DC constant voltage
- Brightness: approx. 1500 lm/m
- CRI: more than 90 (accurate colours for retail, film, home and display)
- PCB width: 12 mm (use matching 5-pin / 4-channel COB RGBW connectors)
- IP rating: IP00 - indoor / dry locations (not waterproof)
- Cut points: about every 62.5-63 mm
- Roll length on this page: 5 metres
- Warranty: 3 years
For installers and engineers
- Load: budget about 15 W x metres (plus ~20% PSU headroom). Example: full 5 m roll ~75 W; size a 24V driver at ~90 W+ continuous for that run.
- Wiring: RGBW needs four channels + common (5-core). Keep cable runs sensible at 24V; inject power on longer multi-zone jobs to limit voltage drop and colour shift.
- Series run: do not exceed the recommended maximum series connection for this family (typically up to 5 m per feed without mid-injection - confirm on the datasheet/attachments for your layout).
- Profiles: 12 mm tape suits many Hi-Line aluminium profiles with a suitable diffuser for a clean architectural finish.
- Controllers: any quality constant-voltage RGBW (4-channel) controller at 24V. Pair with non-dimmable 24V drivers when the controller does the PWM, or follow your chosen control topology.
For DIY and simple projects
Stick the strip on a clean, dry surface (or in an aluminium profile), connect a suitable 24V power supply and an RGBW controller, then cut only on the marked cut lines. You get colour scenes for entertainment or mood lighting, and a proper white channel for everyday use.
How to control this strip
Wireless (most popular for homes, shops and multi-zone RF): scroll to Related Products below for matching Hi-Line wireless options - including popular 5-in-1 WiFi/RF controllers such as HL-WT5 and HL-V5-L(WT), waterproof RF receiver HL-V4-WPS, remotes such as HL-R8, HL-R8-1, HL-RS4 and HL-RS10-RGBCCT, wall panels such as HL-T14, and automation options like HL-EH-M(WZ). Choose the controller first, then the remote or app path that fits the job.
Pro wired DMX512: if you are integrating into a theatre, venue, fixed installation or existing DMX universe, we stock a large range of DMX512 controllers and interfaces here: DMX512 LED controllers collection.
Related products and accessories
Use Related Products below for the 10m sibling roll, COB RGBW connectors, and recommended controllers/remotes. Use Product Specifications for the full data sheet style list, and Attachments for downloadable guides where available.
