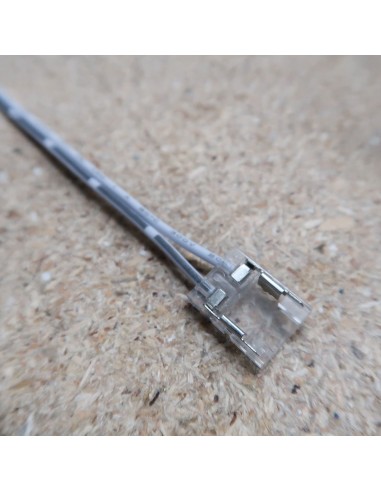

Strip to strip Extension connector Cable set for high density COB 10mm IP00 single colour LED strips

Key Features:

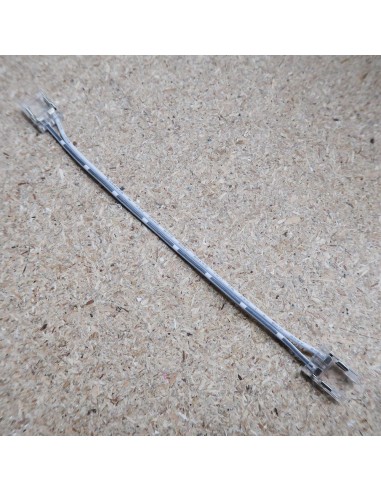

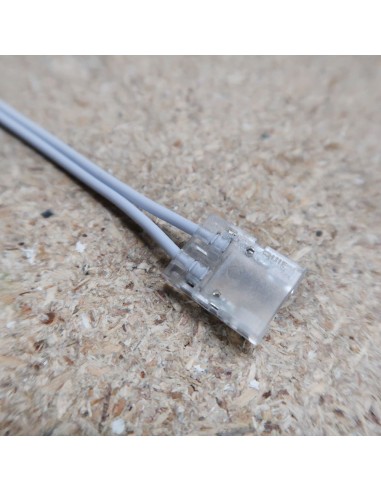

2 pin LED strip to strip connector set with 2 core wire bridge 150mm
To be used with COB LED strips , 180 LEDs/m and 240 LED p/m High Density Strips.
Supports high current LED strips
For COB 10mm IP00/IP20 single colour LED strips 528 LEDs/m, 180 LED/m and High Density 240 LEDs/m strips.

Reference HL-COB10-SSW-IP00

147 Items In stock

Next working day delivery

£4.00

(£

4.80

with VAT)

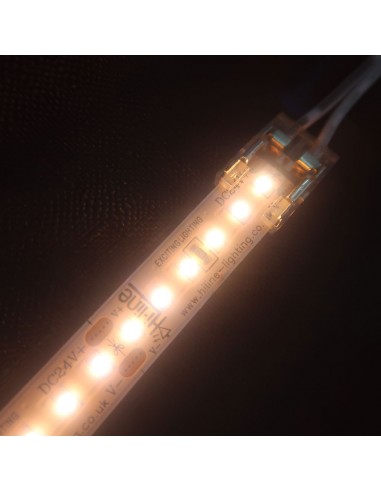

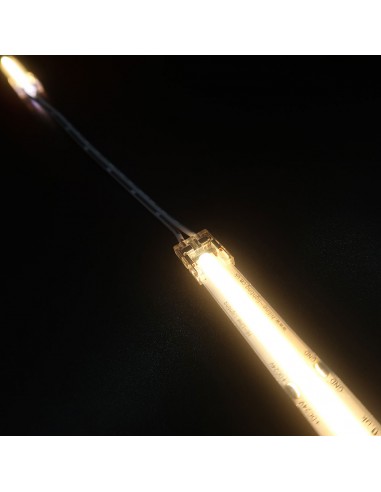

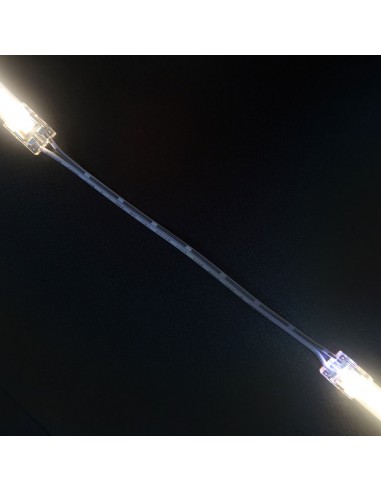

An LED strip extension cable set (strip to strip 150mm length) designed for 10mm wide IP00/IP20 non-waterproof high density COB single colour LED strips, 180 LEDs/m and 240 LED p/m High Density Strips.

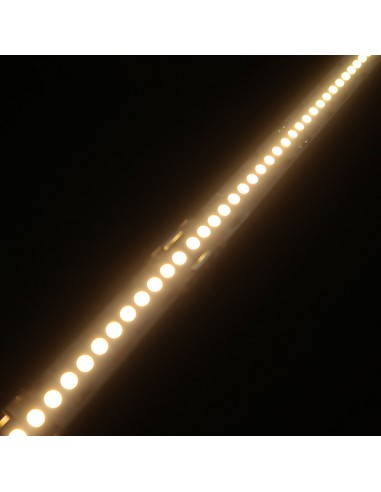

*Invisible (topless style) design for discreet installation.

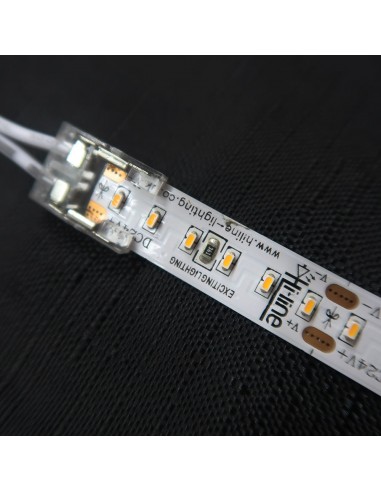

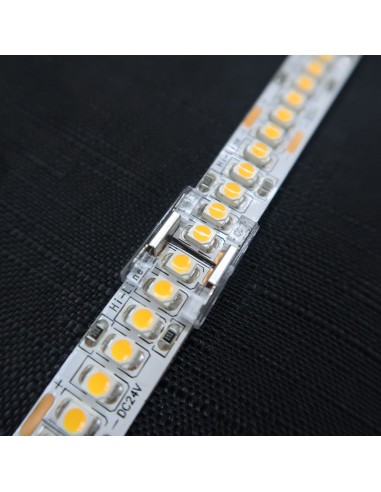

This is a very high quality strip to strip connector suitable only for IP00/IP20 single colour 10mm wide high density LED strips.

Compatible with 180, 240 and 528 LEDs/m LED strips (High Density and COB 10mm single colour). This connector is made of flame retardant material.

______________________________

Technical Data

Size: L170mm X W14mm X H4mm

Colour: Transparent

Number of Pin: 2

Connection hardware: High precision brass(Cu)

Voltage range: DC 3-24V

Maximum current: 3.5A

Min.LED Strip Thickness: >0.2mm

Workable wire gauge: 20 AWG / 0.54 mm²

Normal working temperature: ≦60°C

Working Temperature: -20°~+40°C

Rated Standard: IEC/EN 60664-1

Shell material: Polycarbonate

Flame Retardant: UL94v-0

Pin Surface Treatment: Tin-plating

Packaging: 1pcs

Brand: Hi-Line
Connector type: strip to strip extension
Connector width: For 10mm COB LED Strips
Number of terminals: 2 pin (for single colour strips)
IP Rating: IP00 (Non-waterproof)
Voltage: 12-24V DC
