ZigBee tunable white LED strip wall mount touch panel 4 zones
Compatible with HL-ZIGTW-RX (ZigBee tunable white LED Strip controller)
The HL-ZIGP-TW-4Z is a sophisticated dual colour ZigBee touch wall panel, designed to deliver seamless switching, dimming, and colour temperature adjustments for tunable white LED strips. By integrating with a ZigBee gateway or coordinator, this device becomes an integral part of your ZigBee network, providing intuitive control over ZigBee-compatible lighting devices. Its advanced interface allows for comprehensive management, enabling the user to directly oversee up to four groups of ZigBee lighting devices, each capable of binding up to 30 devices. With the capacity to store four unique scenes per group, this touch panel ensures personalised lighting experiences can be created and recalled at a touch.

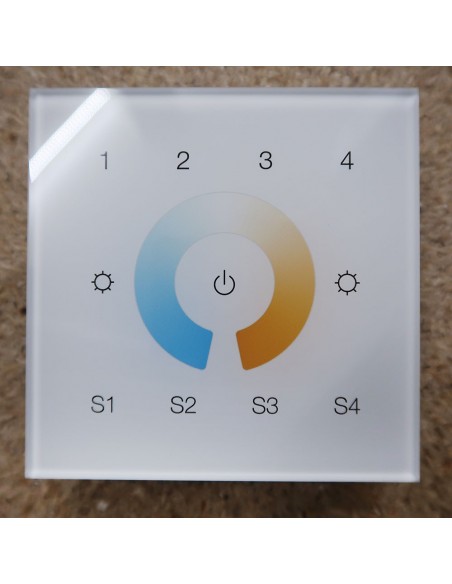

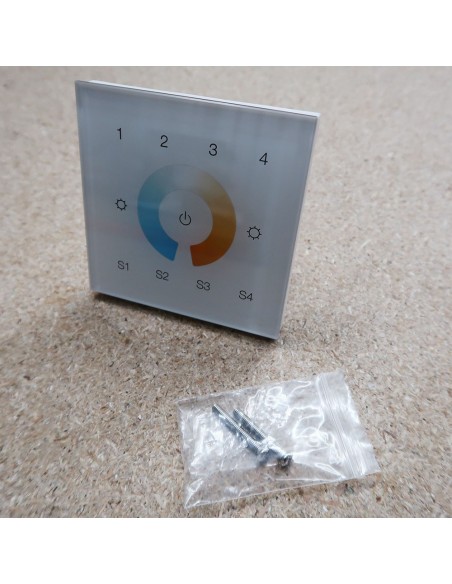

Crafted with a touch-sensitive glass panel, the wall controller offers full touch control for a fluid user experience in adjusting light settings. It operates flawlessly within a global 2.4 GHz ZigBee PRO network range and is compatible with universal ZigBee gateway/coordinator products, ensuring wide-ranging interoperability.

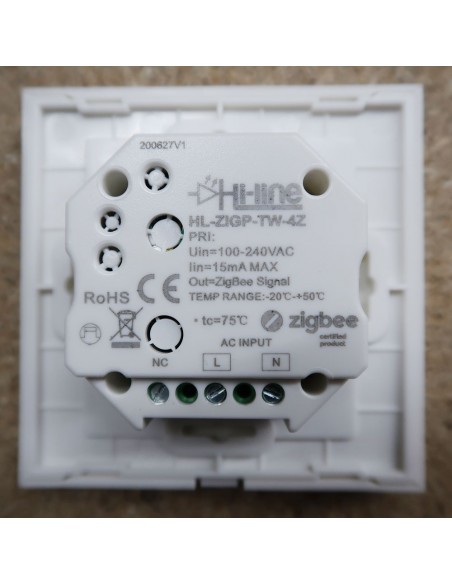

This wall touch panel is designed to effortlessly integrate into your space, matching standard UK and European wall box sizes for straightforward installation. It supports a voltage range from 100-240VAC and conforms to the ZigBee Wireless standard, making it an essential component for modern, smart lighting systems.
Important Pairing Instructions for ZigBee Devices
To ensure a seamless experience with our ZigBee tunable white products, please follow these critical steps during the pairing process:
Proximity is Key: During pairing, ensure that the devices intended for connection are within close proximity to each other, ideally less than 10cm apart. This closeness is crucial to avoid interference and ensure the pairing is focused between the devices you're connecting.
Pair Devices Sequentially: We recommend pairing your ZigBee devices one at a time. This approach significantly decreases the chance of any complications, allowing each device to integrate into your network correctly without disrupting any previously paired devices.
For additional clarity on this process, we suggest watching this helpful video: ZigBee Pairing Guide. The video, while showcasing a specific model within our range, serves as a universal guide to the pairing process. Its principles apply across our entire series of controllers and remotes, emphasizing the importance of device proximity. The segment starting at 4:53 is particularly insightful.
Experiencing difficulties or need further assistance? Our team is dedicated to supporting you through every step of the setup. Don't hesitate to reach out for any help or additional information.
