This listing is the 5 metre roll — reference HL-COB840RGBTW-R90-IP00-24V.
Also available as a 10 metre roll. The same RGB + tunable white COB strip is sold as a continuous 10 m reel — HL-COB840RGBTW-R90-IP00-24V-10M. Open that page, or scroll to Related Products below.
Use one roll length throughout a job. We grade the LEDs for colour and brightness (binning) and check every batch, but 5 m and 10 m reels can still come from different production lots. For the closest match from run to run, stay with either 5 m or 10 m — do not mix the two lengths on the same installation.
Matching 12 mm 6-pin RGB+CCT COB connectors are listed in Related Products below: strip-to-strip, strip-to-power with a factory tail, an extension lead, and our clip-only strip-to-wire connector HL-COBRGBTW6-STW-IP00 for your own 6-core cable.
16 W/m is the total for all five channels together. Red, green, blue, warm white and cool white share that 16 watts. At 24 V the common anode — the black positive — carries 0.67 A per metre (16 W ÷ 24 V). Each colour return carries its own share, about 3.2 W and 0.13 A per metre.
On this 5 metre roll, full load is 80 W, so the black wire carries about 3.3 A when the whole reel is on. A 3.5 A common pin is then about the whole reel, with nothing to spare. A 5 A common pin covers this reel.
Connector length is set by that common pin. Allowed metres are the contact rating divided by 0.67 A per metre. A contact rated 3.5 A feeds about 5 metres of this strip. A contact rated 5 A feeds about 7.5 metres. Dividing the same contact rating by the 0.13 A of one colour wire suggests a much longer run. That figure belongs to a colour contact. The black pin is the one that fills first. Use the rating printed on the connector you fit. Matching 12 mm 6-pin COB connectors are in Related Products below.
A long feed is sized on the same black wire. The conductor that continues the common anode has to carry the current of the length on that feed, over the whole cable run, with an acceptable voltage drop. The colour cores carry only their own share. The soldered tails on the reel are the joint at the strip. They are not a long home-run. The method for RGB, RGBW and tunable white is in our guide to common anode current on colour-changing LED strip. Cable cross-section is in connectors, the common core and voltage drop.
Embrace the ultimate lighting flexibility with our 5in1 COB RGB Plus Tunable White COB LED Strip, a premium lighting solution designed for sophisticated installations that demand the highest quality and versatility. This exceptional strip merges vibrant RGB lighting with the adjustable ambiance of tunable white light, providing full spectrum control and precise colour temperature adjustment from warm 2700K to cool 6500K.
Key Features:
Type: COB RGB + Tunable White COB LED Strip, featuring 5in1 COB LED technology for smooth, vibrant, and adjustable lighting.
Colour & Temperature: Enjoy the full colour spectrum with RGB, plus the ability to fine-tune white light from a cozy 2700K to a bright 6500K.
Power & Brightness: Operates at 24V DC, delivering 16 watts per metre in total, all five channels together with an impressive brightness of 1664 lm/m.

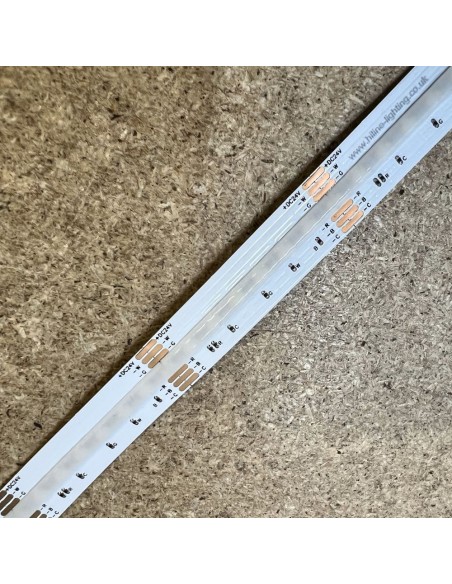

Build: 12mm wide LED strip with a flexible design, ensuring easy installation in a variety of settings.

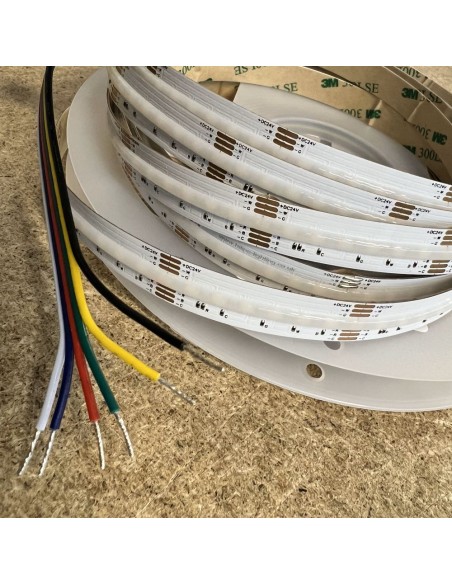

Channels: 6 wires, 5 channels (Black= +, Red= Red, Blue= Blue, Green= Green, Yellow = Warm White, White = Cool White) for comprehensive control.
Cooling Recommendations: For optimal performance and longevity, installation on an aluminium bar is advised to ensure proper cooling, particularly in well-ventilated areas.
Cutting Length: Flexible cutting options every 42mm, allowing for custom installation lengths.
Mounting: Equipped with 3M self-adhesive tape on the back for secure and straightforward mounting.
Warranty: Comes with a 5-year warranty, ensuring peace of mind and reliability.

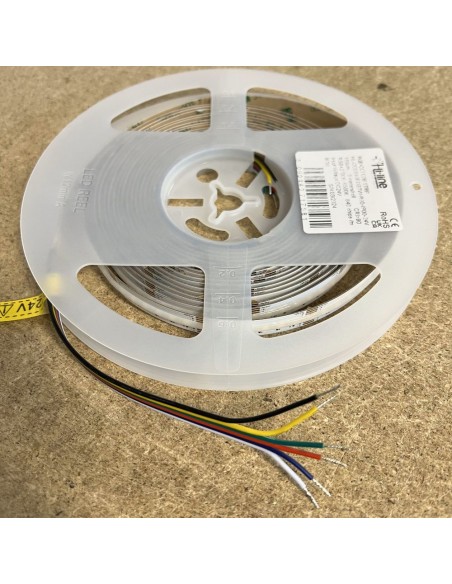

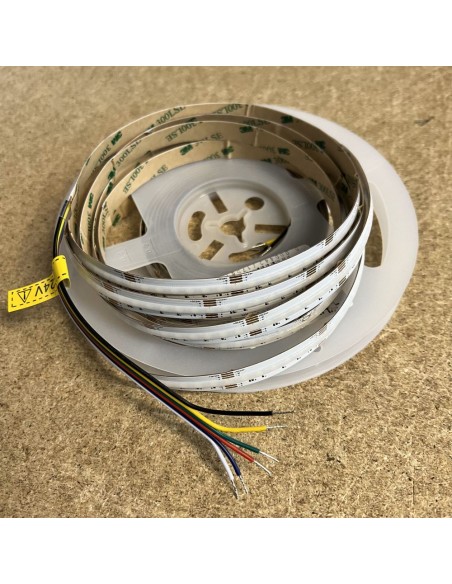

Additional Features: Includes pre-soldered 6 core wires at both ends of the 5m roll for easy connection.
Ideal for those seeking professional-grade lighting that offers both vibrant colours and adjustable white light, this LED strip is a game-changer for dynamic and atmospheric lighting installations.
