  • DMX 4 Zone touch wall mount master controller
  • DMX512 signal output
  • Wall Mount
  • 100-240V AC Input
RGBW-4Z-DMX
34 Items In stock
Next working day delivery
£66.25
79.50
with VAT)
VAT excluded

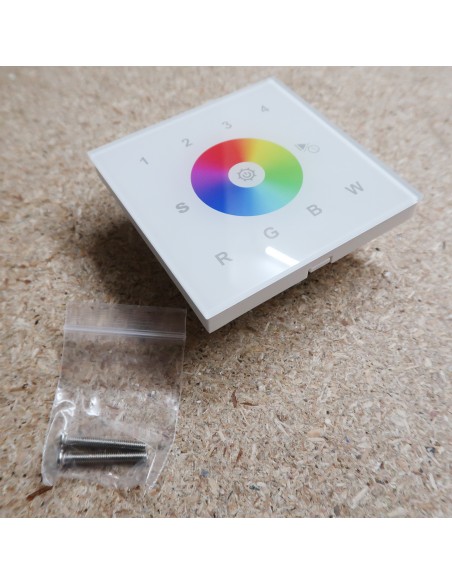

Touch sensitive wall mount 4 zones DMX512 LED master controller, Glass interface(White colour)

This is a DMX512 pre-programmed wall mounting RGBW LED controller that can be used with any RGBW LED strip or other constant voltage LED product in combination with a DMX-512 decoder module. We offer several DMX decoders.

LED strip lighting cannot be driven directly by the wall mount DMX touch controller, the output of the controller is DMX standard data signal, which can be decoded using additional DMX decoders. One or more RGBW DMX decoders can be used depending on the length of RGBW LED strip involved.

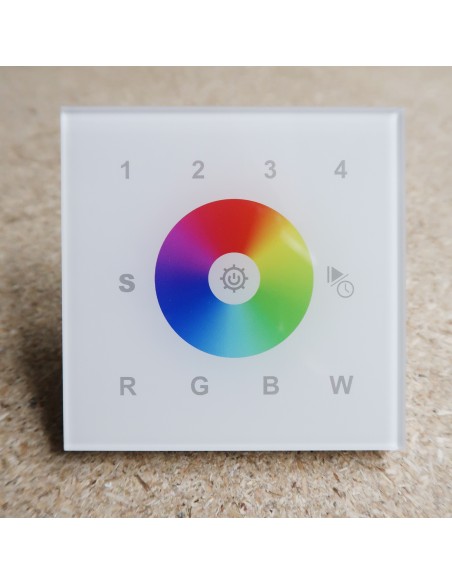

It is a touch controller with a glass interface in white colour and can be mounted on a standard UK back box, dimensions of the controller are 86x86mm and the depth is 29.1mm

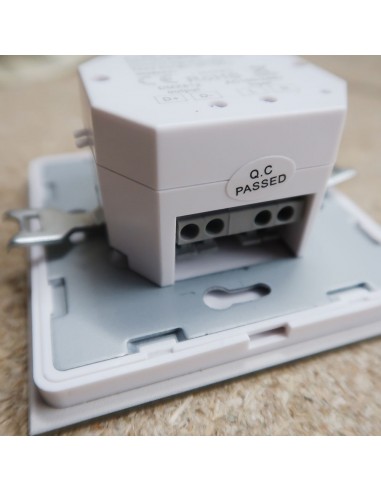

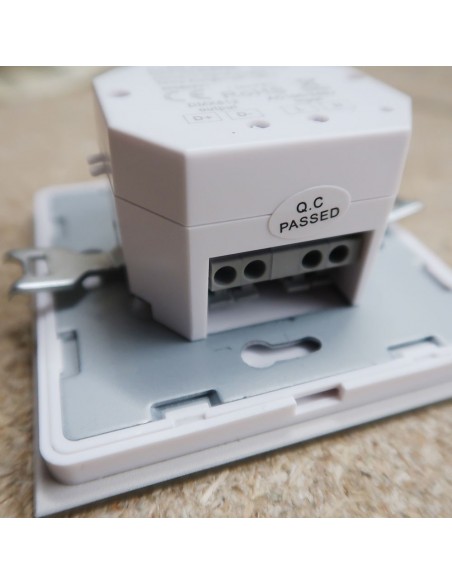

At the wall back box it is necessary to supply 100 or 240V AC from a switch mode power supply for the controller. Power consumption will be negligible (less than 5W) as the output of this controller is pure DMX512 signal and there is no real load involved. Power cables for this controller can be fed from the same power supply that provides the LED strips decoder with 24V DC power. Alternatively a separate power supply can be used and in such a case a 12V DC supply can also do the job even if the LED strips operate on 24V.

Output from the touch controller will be wired in daisy chain in case of using more than one DMX decoders.

This is a 4 zone DMX 512 RGBW LED master controller, DMX start address is pre-set and that will be 001 (for zone 1), 005 (for zone 2), 009 (for zone 3) and 013 (for zone 4).

A 5 year guarantee is included with every purchase of this product.

59 x59 x41 mm

Please download user manual located at the end of this page for more details.

Brand
Hi-Line
Type
RGB/RGBW controller
Voltage
240V AC
Type of control
DMX512
Warranty
5 Years
