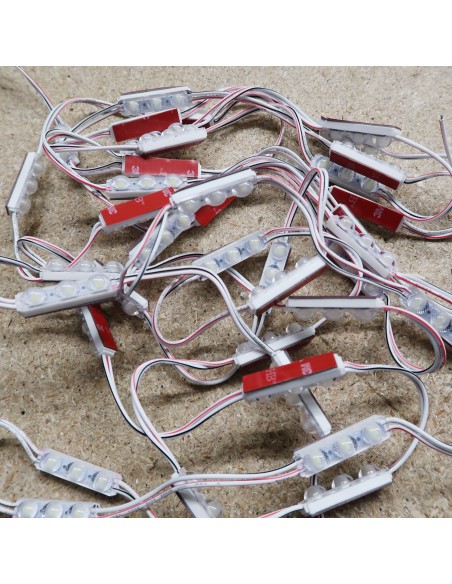

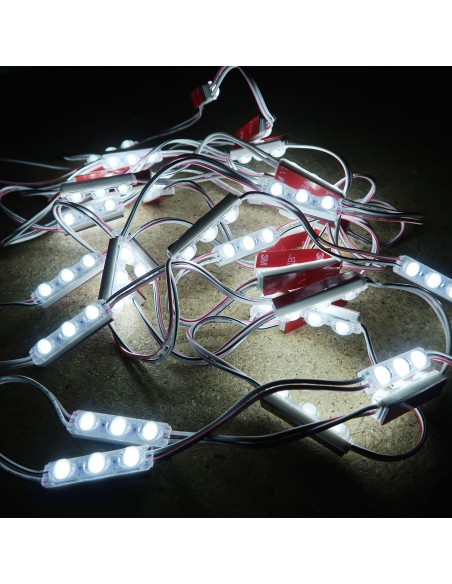

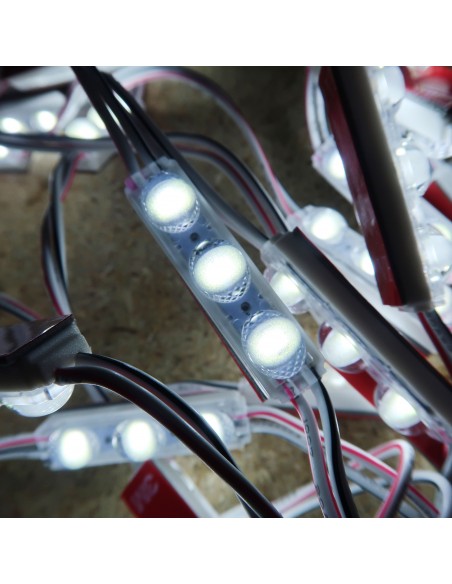

Triple Micro Sign LED module 0.72W 24V pure white 7000K IP67 (string of 40)

HL-MSL-03-PW

New product

Triple Micro sign LED module

For mini signs 2-6cm depth

0.72w / 24V / 7000K white

waterproof IP67

More details

23 Items

£ 37,20

£ 0,93 per module

Add to wishlist

Data sheet

LED Chip SMD 2835
CIE Colour Space 3 SDCM
Voltage 24V DC
Colour Pure White
Power 0.72 watt per module
Rating IP67 (Waterproof)
Colour Temperature (CCT) 7000K
Voltage Type Constant Voltage
Best for lightbox/letter Depth 2-6 cm
LED Module Beam Angle Elliptical 180*140° optic lens
LED Module Controllability Constant Voltage driver
Max. No. of Modules in series 40 modules
Warranty 5 Years
Brand Hi-Line

More info

Triple Micro sign LED module pure white 7000K 24V - 0.72W - IP67 (1 x string of 40)

Perfect for mini signs 2 to 6cm depth or any other lighting application that waterproof micro LEDs are needed.

Micro Sign LEDs can be employed in the creation of illuminated signage and lettering, available in white, red, and amber, one two or 3 LEDs per module (check separate listings for other versions).

Fully sealed mini LEDs are weather resistant with IP67 rating, making them suitable for interior and exterior applications. LED chain for highlighting lines and edges and for backlighting complex contours, letters and symbols in signage applications.

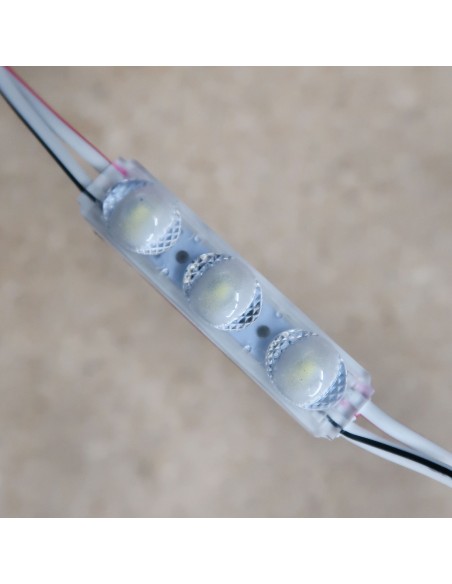

Each module is powered by 3 high output 2835 LED

24V - 0.72W - 100 lumens per watt

Ultrasonic soldering technology

Elliptical 180*140°optic lens for uniform illumination

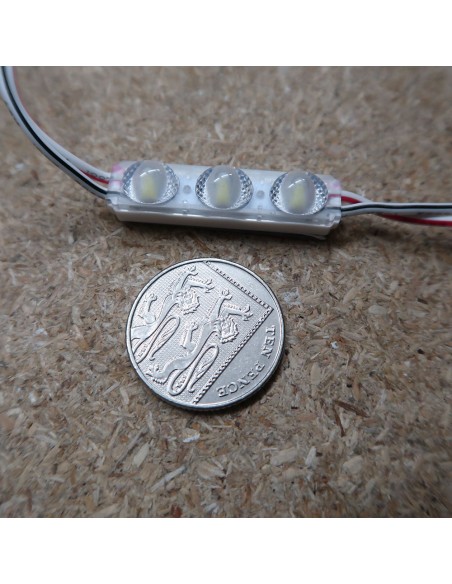

Dimension W/L/H 38x9x9mm

40 pcs per string - 4900mm total length.

Maximum series connection is 40 modules, for the LED driver it is suggested using 20% additional wattage than the power consumption of connected modules; it is not recommended to have the power supply run at 100% of its capacity for any LED application. The power wire cross sectional area (between power supply and first module) should be calculated accordingly to avoid voltage drop.

Please download datasheet at the bottom of this page for more details

Price includes 40 modules (1 x string of 40)

Nominal life-time up to 50,000 h (L70 at ta 60 °C)

5 Years Warranty
