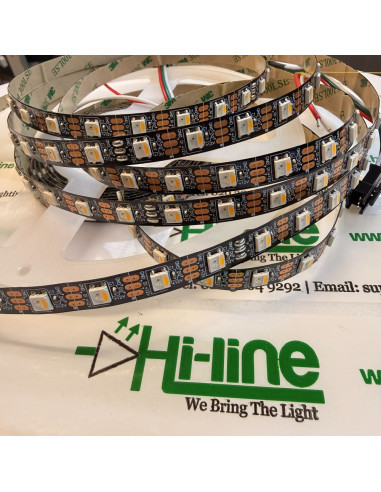

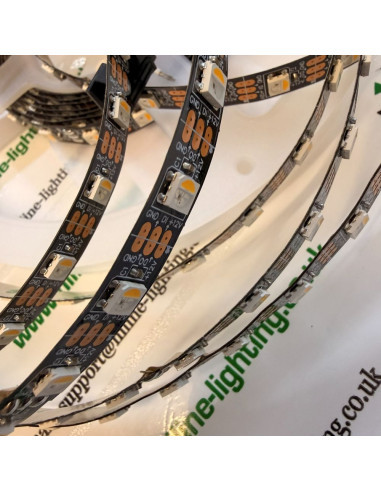

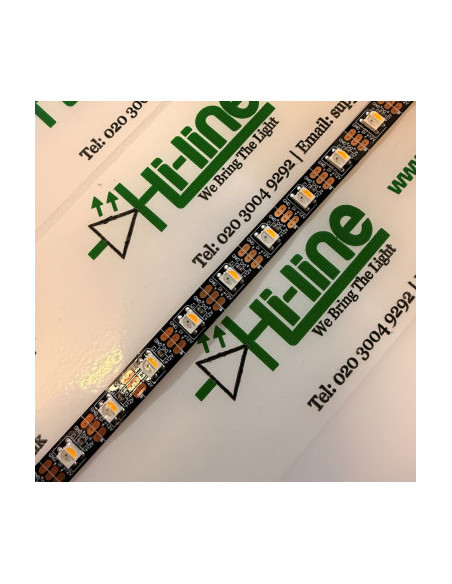

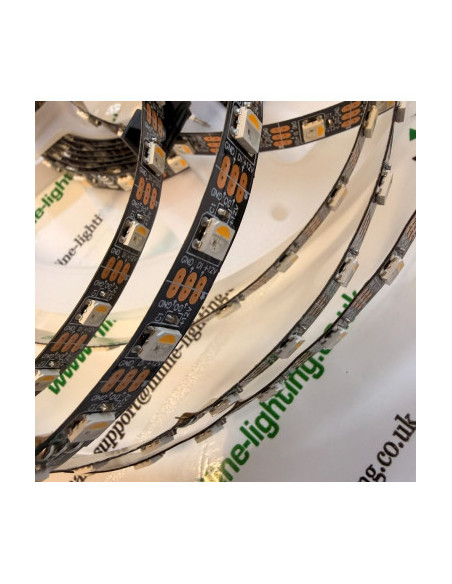

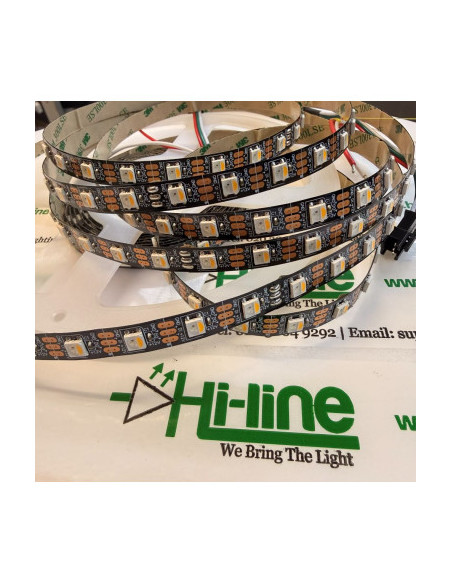

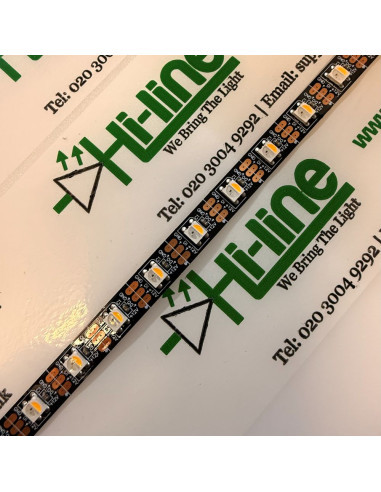

This is a 12V individually addressable RGBNW LED strip with 60 pixels per metre. Each pixel is an SK6812 4-in-1 LED with the control IC inside the diode (no extra ICs on the board), which keeps the tape more robust.

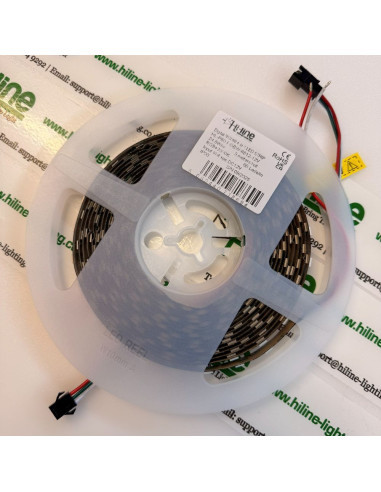

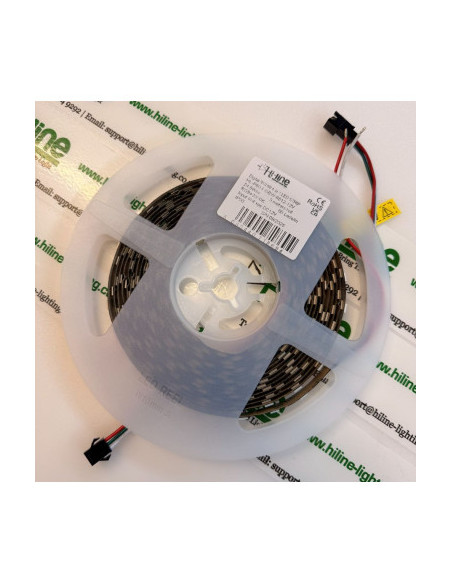

It gives full RGB colour plus a dedicated 4000K natural white channel. Every LED is a pixel, so effects stay smooth. Supplied as a 5 m roll with 3M adhesive and 15 cm leads at both ends.
This listing is the black PCB version. A white PCB is not held in stock, but we can order it. Email us with the quantity you need and we will confirm the lead time.
The RGB + 3000K warm-white sister is HL-P60-RGBW-6812-12V. Matching SPI controllers and 10 mm connectors are listed in Related Products below.
Series
Digital Pixel Series
What’s in the box

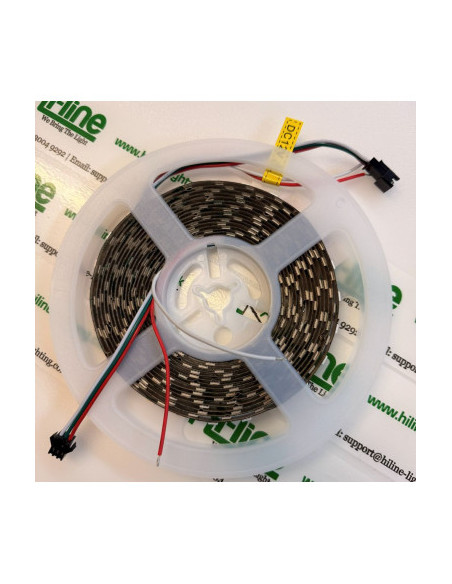

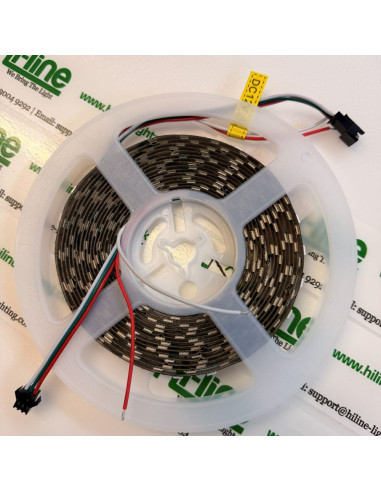

5 m LED strip with 15 cm leads on both ends
3M adhesive already applied
Typical uses
Pixel accent lighting, coving, cabinets, joinery, feature walls, retail, stage and events, signage, architectural detail
Notes on use
Each LED is one pixel — 60 pixels per metre. For a single 5 m run, power both ends in parallel. Longer runs need extra feed points. Cut every 1 LED. Use a controller that supports SK6812 RGBW data.
Technical specifications
Reference: HL-P60-RGBNW-6812-12V
LED type: SK6812 RGBW 4-in-1 with integrated IC
Input voltage: 12V DC
Power: 24.5 W/m with all RGB and white channels at full brightness
Pixels per metre: 60 (1 LED = 1 pixel)
Cut points: every 1 LED (17 mm)
White channel: 4000K (natural white)
Colour channels: Red, Green, Blue + White (RGBNW)
PCB: 10 mm black (white PCB to order — email us)
Roll length: 5 metres
Leads: 15 cm on both ends (power, data and ground)
Backing: 3M tape
Control: addressable SK6812-compatible controllers
Beam: about 120°
IP rating: IP00 (not waterproof)
Approvals: UKCA, CE
Warranty: 3 years as standard (5 years on request)
Control
Works with SK6812 / WS2812-style RGBW addressable protocols. Data is typically 5V logic — use a level shifter if the controller outputs 3.3V.
SPI pixel controllers are listed in Related Products below. If DMX512 is not needed, HL-DS-L can run from RF, and HL-WT-SPI works with the Tuya app. Both pair with the HL-R9 handheld remote for effects, brightness and speed without DMX programming.
Data direction: the arrow printed on the strip must point away from the controller. If it is reversed, the tape will not run.
Plan power feeds to limit voltage drop. Observe polarity. Use suitable cable and fusing. Mount on a clean, suitable surface and avoid sharp bends over the LEDs.
Related Products, specifications and files
Matching products are listed below. Specifications are on the Product Specifications tab. Datasheets are under Attachments.
Custom SPI programming (project work): for defined start-up, timing or effects we can supply a programmed controller. That is chargeable engineering, subject to review and lead time. Email the full requirement so we can say whether it is feasible.
