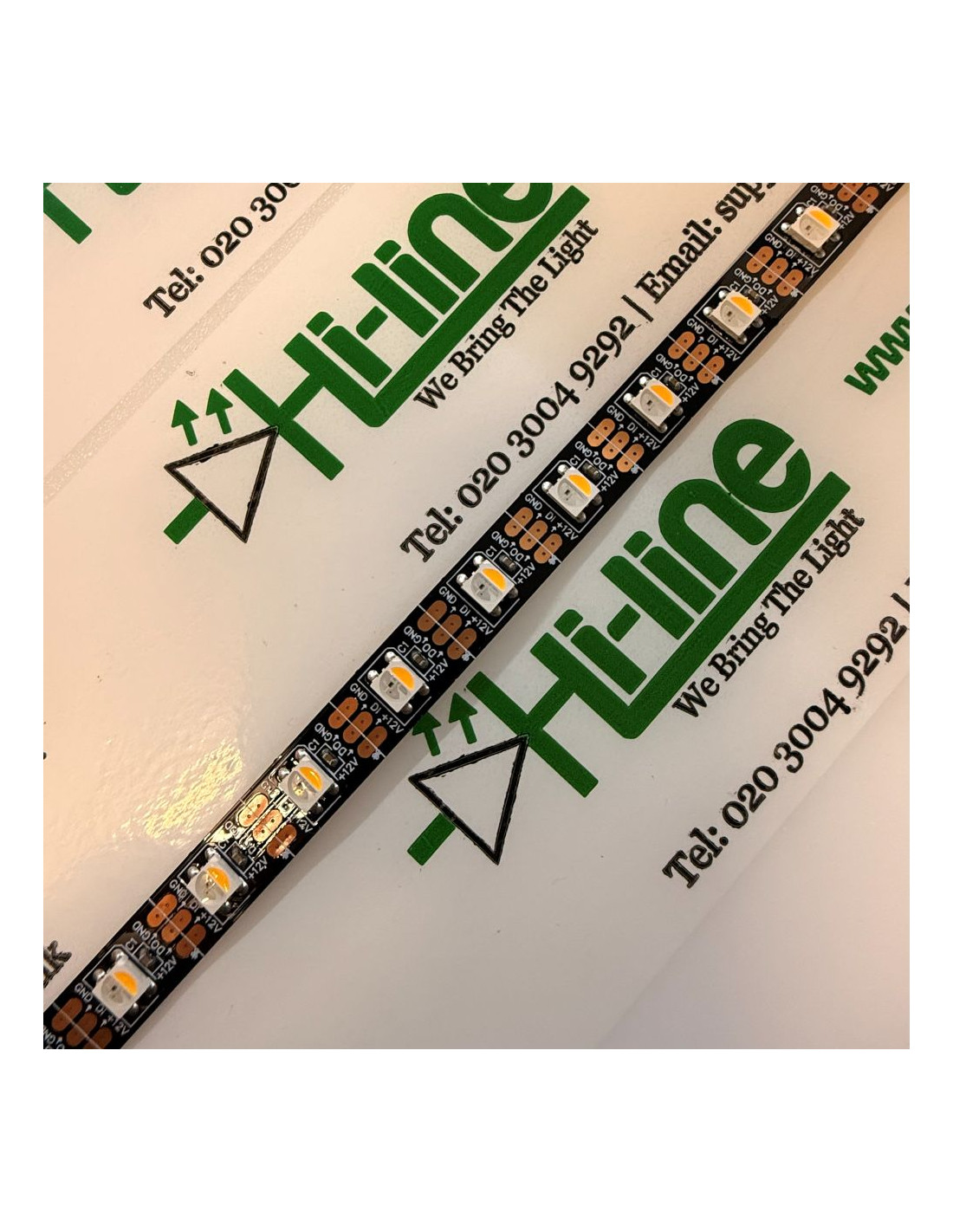

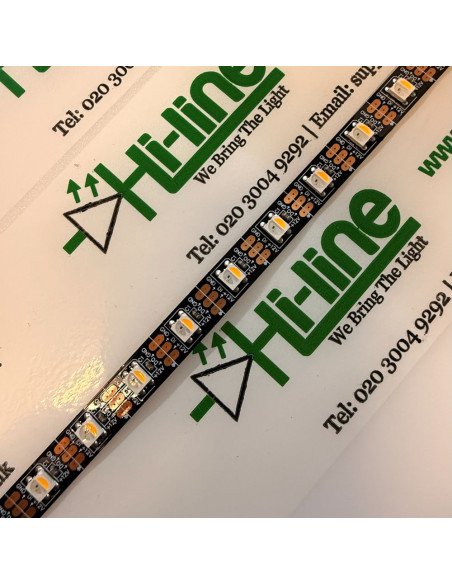

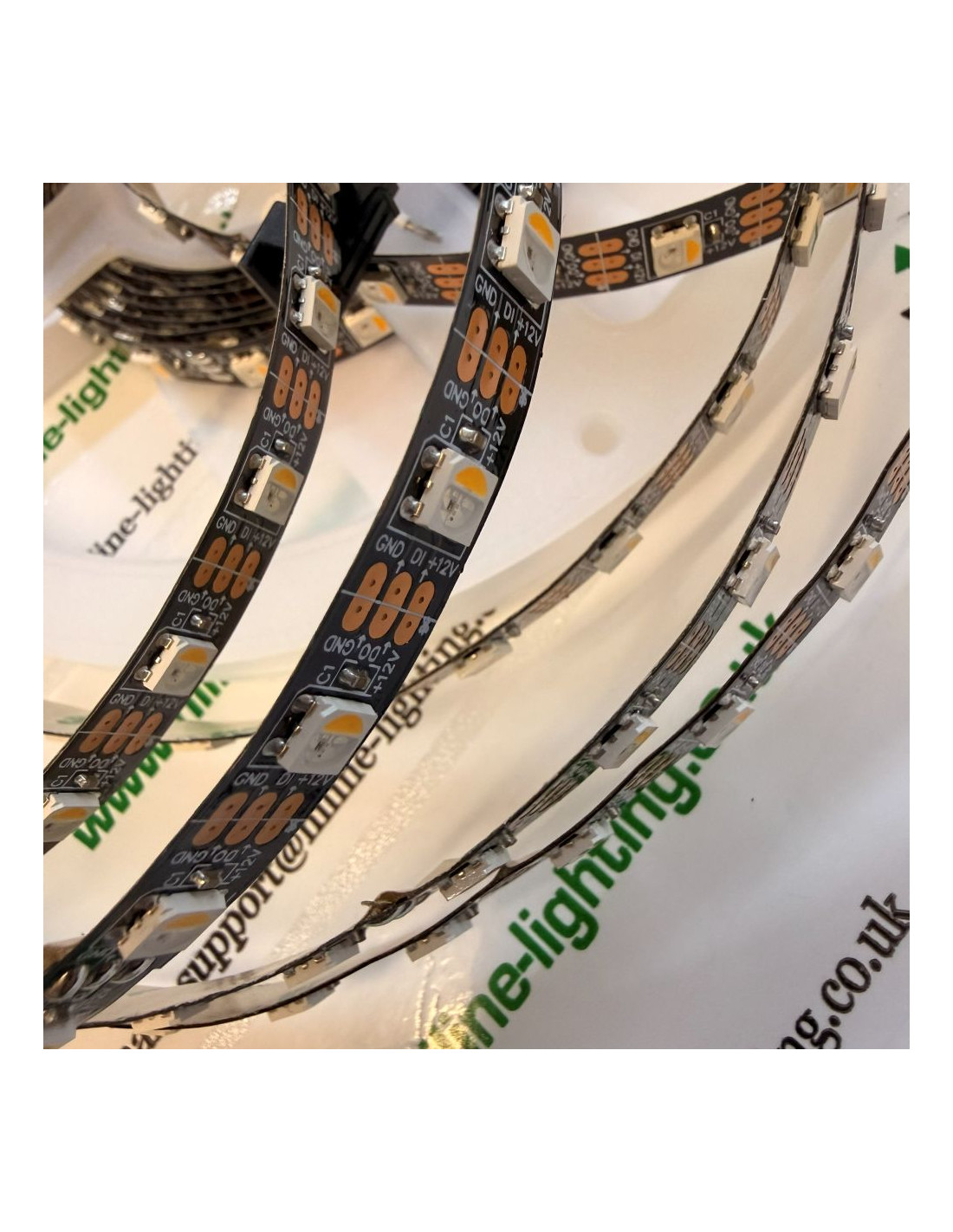

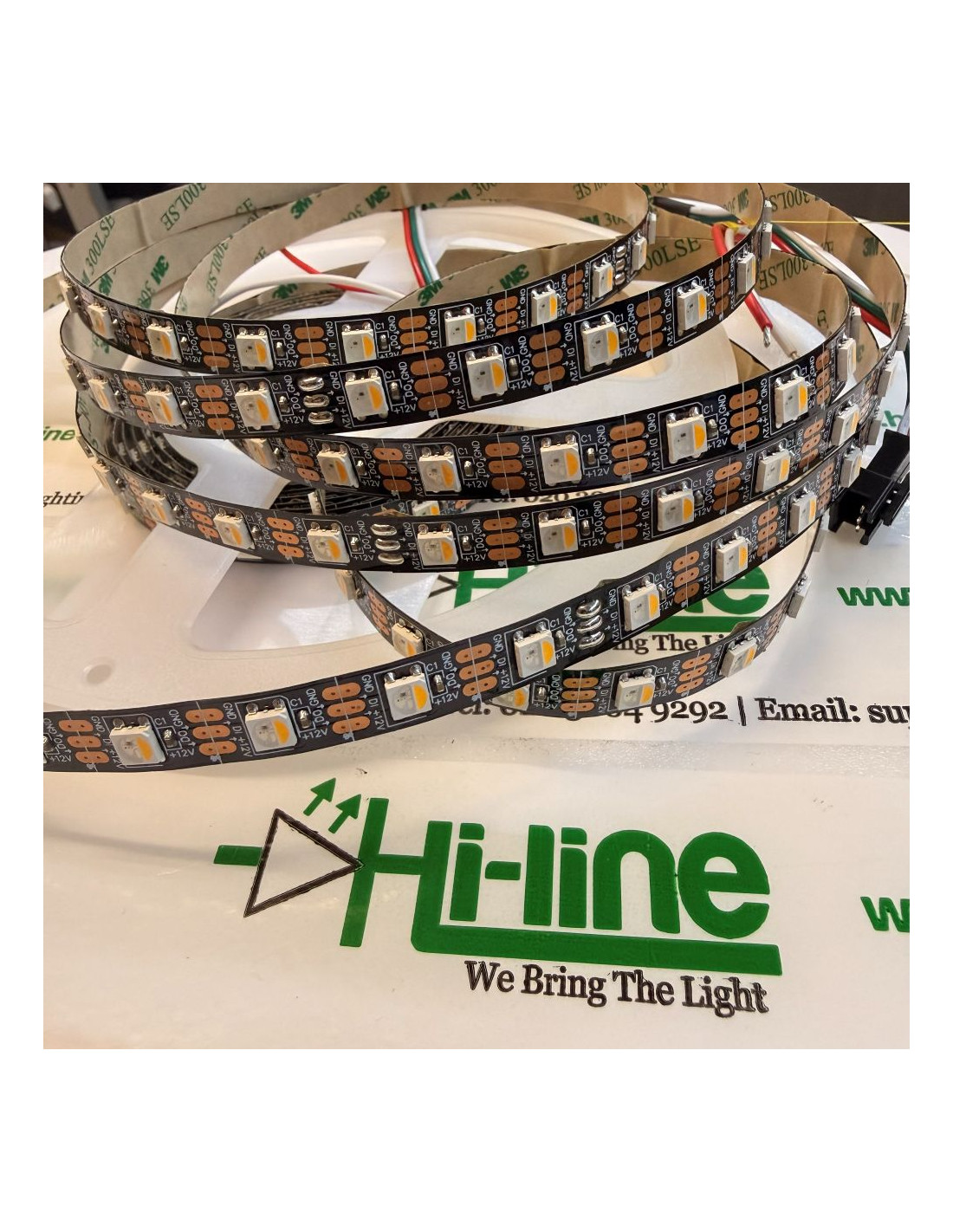

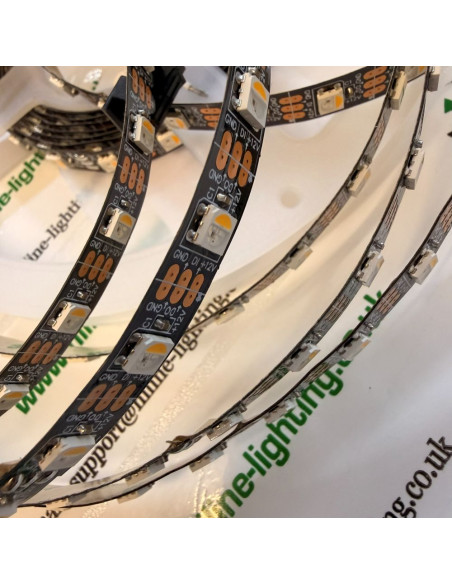

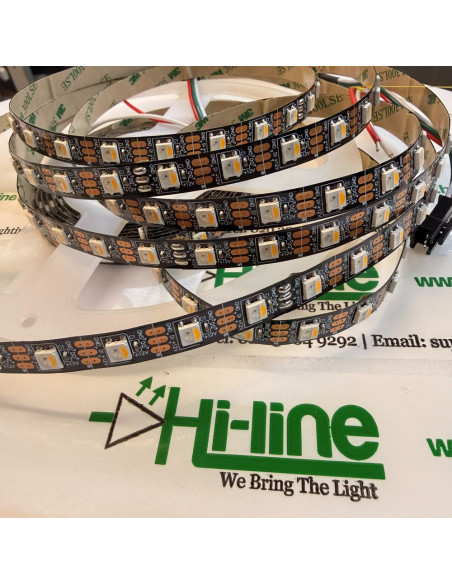

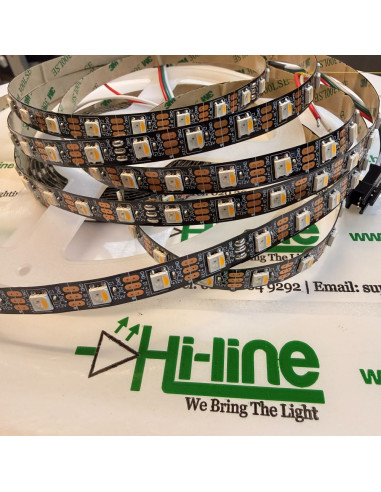

This is a 12V individually addressable RGBW LED strip with 60 pixels per metre. Each pixel is a SK6812 4-in-1 LED chip that integrates the control IC inside the LED (no external ICs on the PCB). This design makes the strip more durable and reduces potential points of failure.

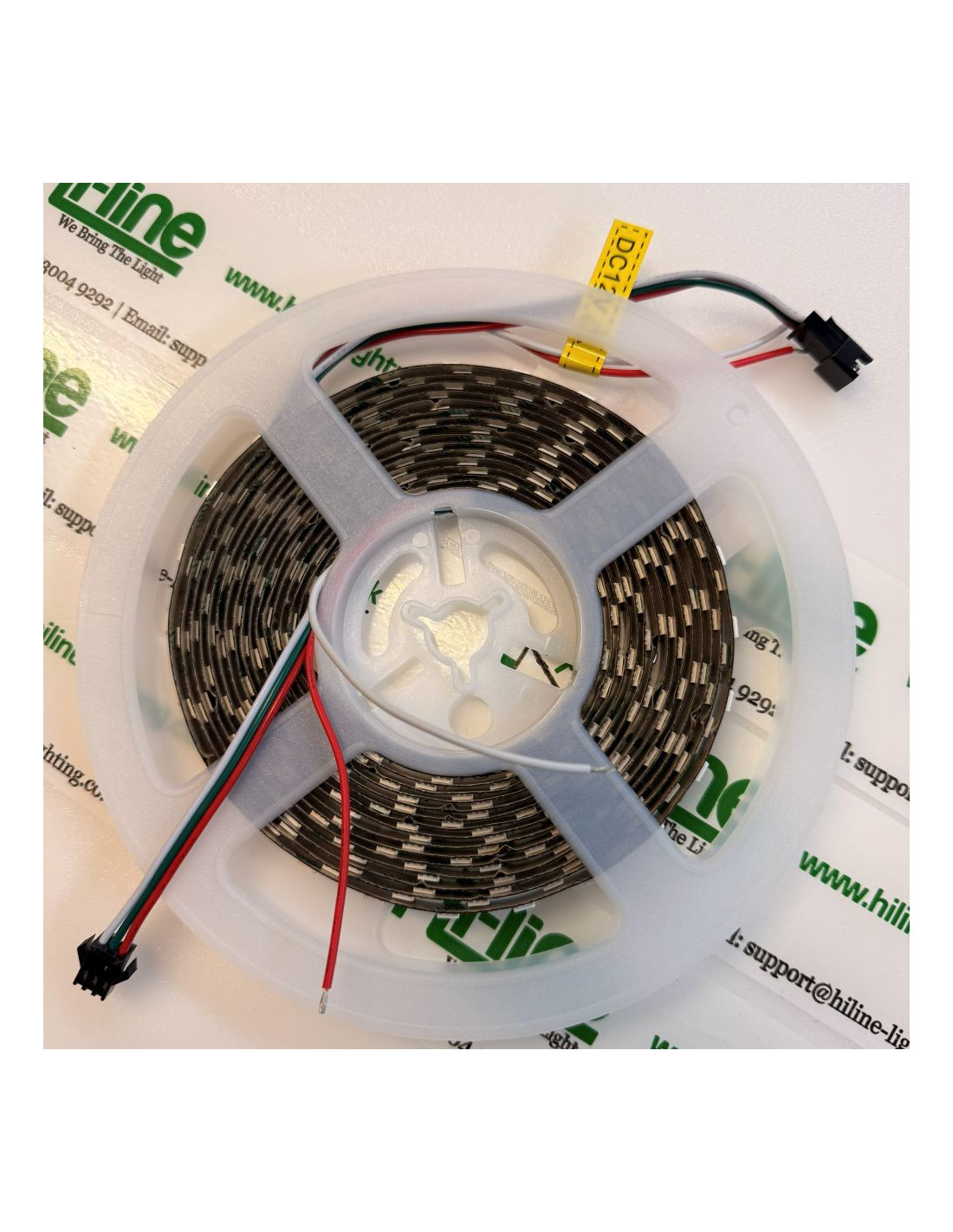

It provides full RGB colour plus a dedicated warm white (3000K) channel for natural white tones. With 60 RGBW pixels per metre, every LED is individually controllable, delivering highly dynamic and smooth effects. Supplied on a 5m roll with 3M adhesive backing and 15cm pre-soldered leads at both ends.
Series Information
Digital Pixel Series
What’s in the Box

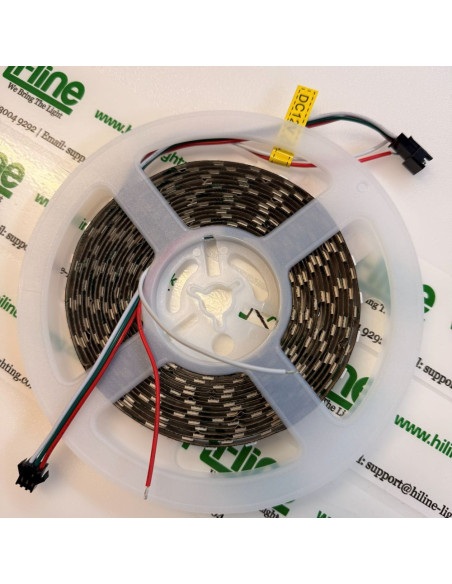

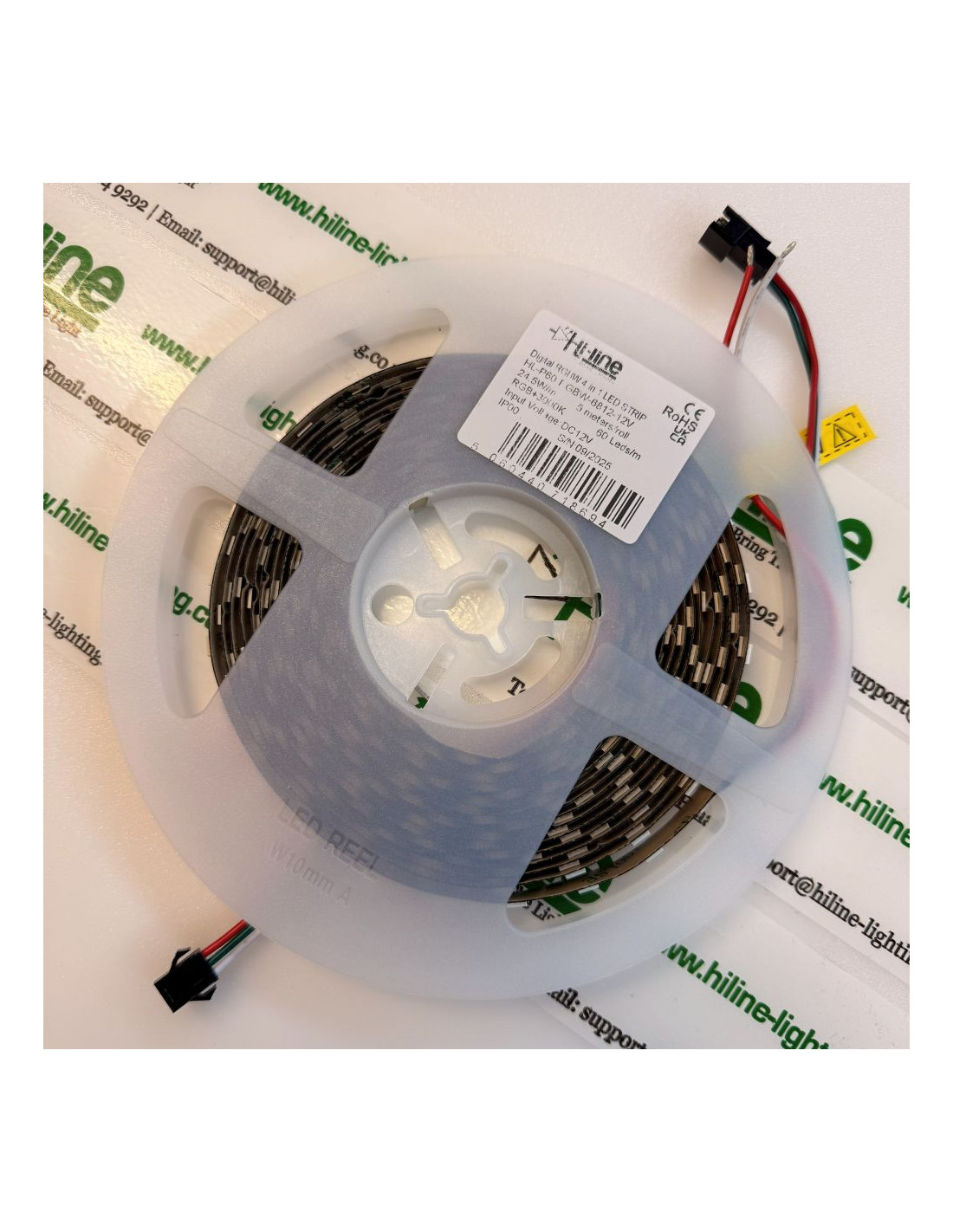

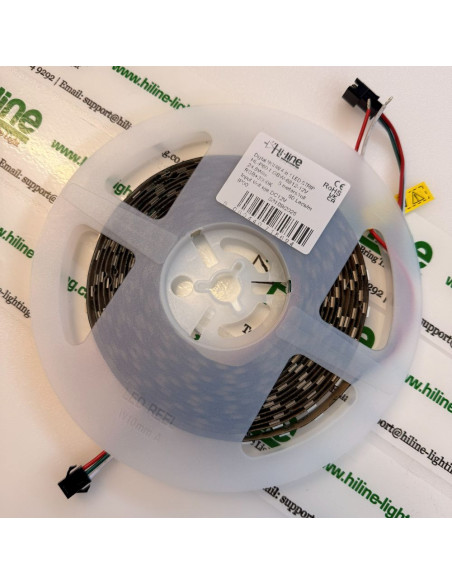

5m LED strip roll with 15cm leads on both ends
Pre-applied 3M adhesive backing
Applications
Pixel-based accent lighting, coving, cabinets, joinery, feature walls, retail displays, stage and event installations, signage, architectural details
Notes on Use
Each LED is one pixel, so there are 60 pixels per metre. For single runs up to 5 metres, power from both ends in parallel is recommended. For longer runs, always power from multiple points in parallel. Use controllers that support SK6812 RGBW data protocols. Cutting is possible per 1 LED to achieve exact lengths.
Technical Specifications
Model Reference: HL-P60-RGBW-6812-12V
LED Type: SK6812 RGBW 4-in-1 with integrated IC
Input Voltage: 12V DC
Power Consumption: 24.5 W/m (when all RGB and White channels are at full brightness)
Pixels per Metre: 60 (1 LED = 1 pixel)
LED Density: 60 LEDs per metre
Cut Points: Every 1 LED (per pixel)
White Channel: 3000K (Warm White)
Colour Channels: Red, Green, Blue + White (RGBW)
PCB Width: 10mm
Roll Length: 5 metres
Wiring Leads: 15cm on both ends (power + data + ground)
Back Adhesive: 3M tape pre-applied
Dimming/Control: Addressable via SK6812-compatible controllers
Beam Angle: ~120°
Power Consumption: TBC W/m (typ.), TBC W per 5m
Operating Temperature: TBC
Ingress Protection: IP00 (non-waterproof) unless stated otherwise
Certifications: UKCA, CE
Warranty: 3 years standard (extendable to 5 years on request)
Compatibility and Control
Compatible with SK6812/WS2812-style RGBW addressable protocols. Data typically requires 5V logic (use a level shifter if needed).

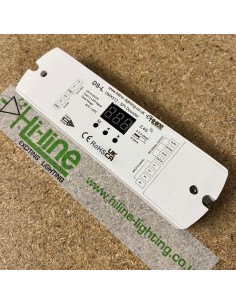

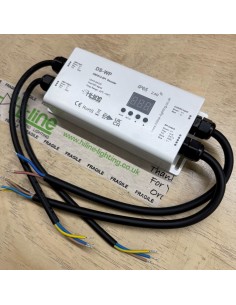

We stock a wide range of SPI controllers for all addressable LED strips. Check the Related Products tab to find them. If you have any questions, contact us for support.
Installation Guidance
Plan power feeds carefully to reduce voltage drop. Power both ends for 5m runs, and use multiple feeds for longer lengths. Observe correct polarity and data direction. Use correct cable sizing and fusing. Mount the strip on clean, suitable surfaces and avoid sharp bends over components.
