DC 12V Pixel COB RGB 2811 IC LED strip 24 pixels per metre , 864 LEDs/m, 5 meters roll

DC 12V Pixel COB RGB 2811 IC LED strip 24 pixels per metre , 864 LEDs/m, 5 meters roll

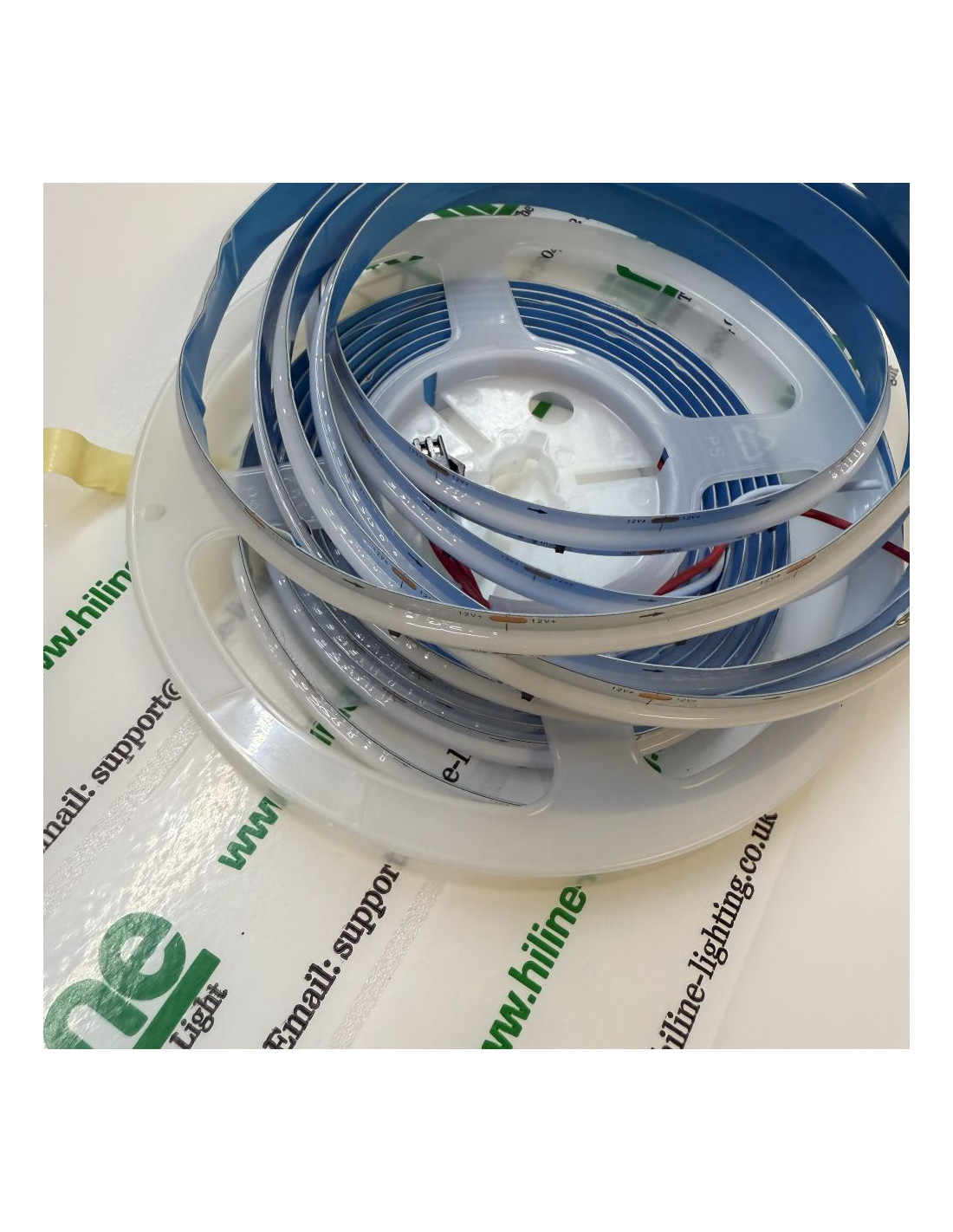

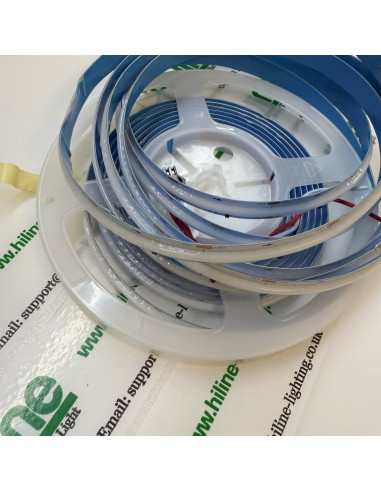

This high-density COB pixel LED strip offers smooth, dot-free illumination and advanced addressable control using WS2811 IC technology. Each WS2811 IC controls 36 LEDs, allowing every 41.5mm section to function as one individually controllable pixel. With 864 LEDs per metre (4320 LEDs per 5m roll), this strip delivers seamless and vibrant colour mixing.

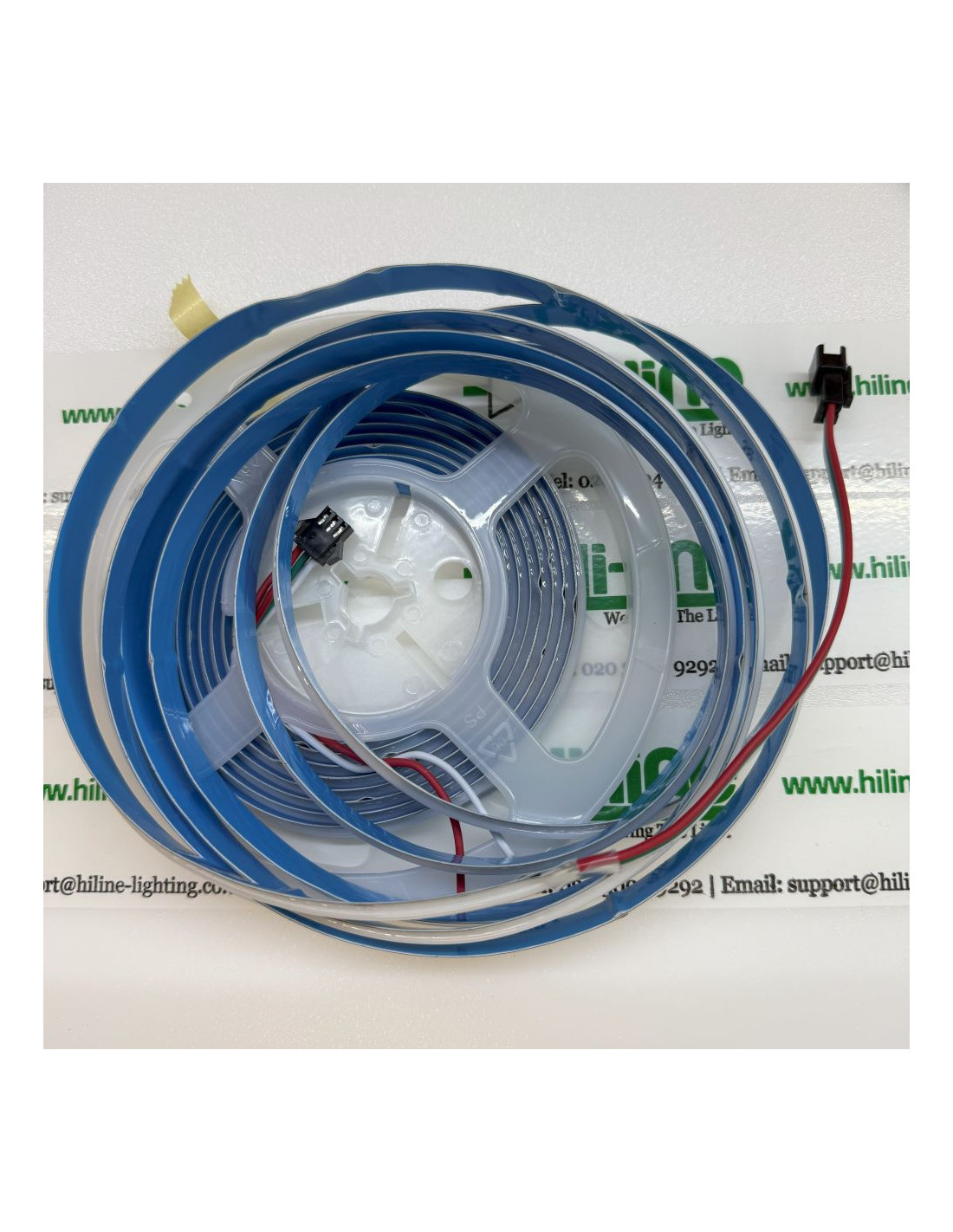

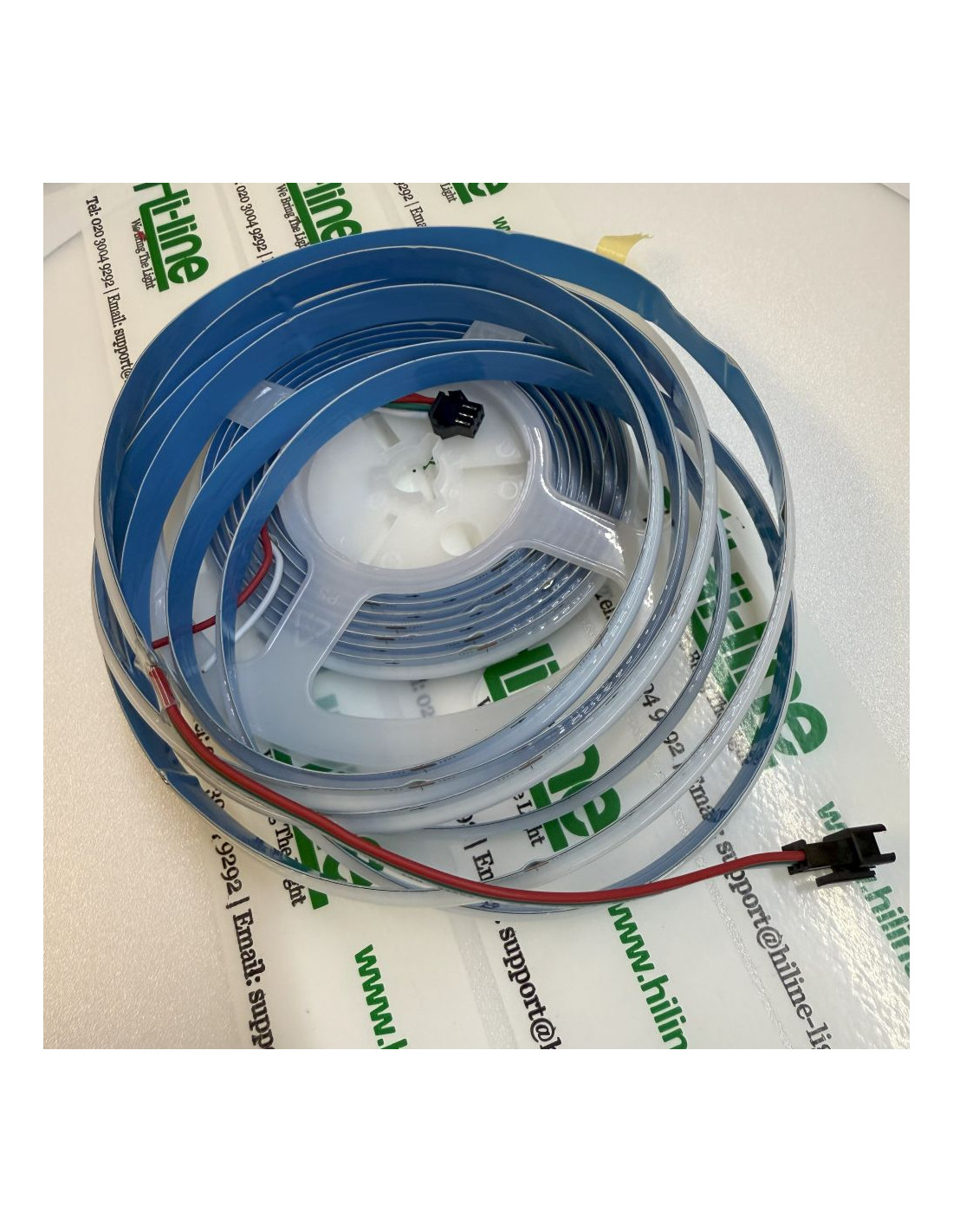

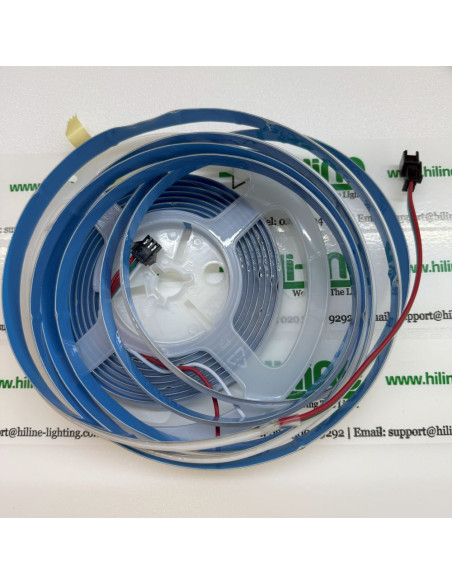

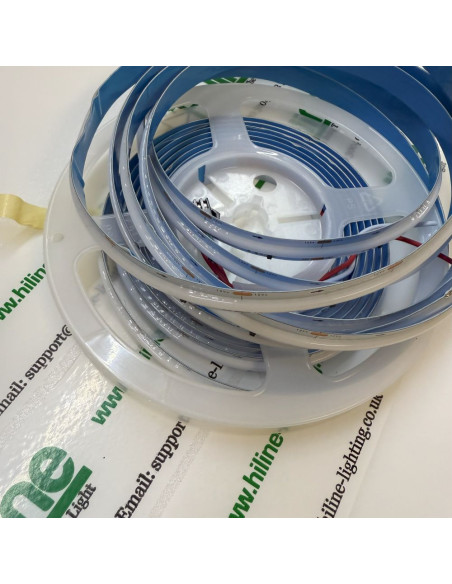

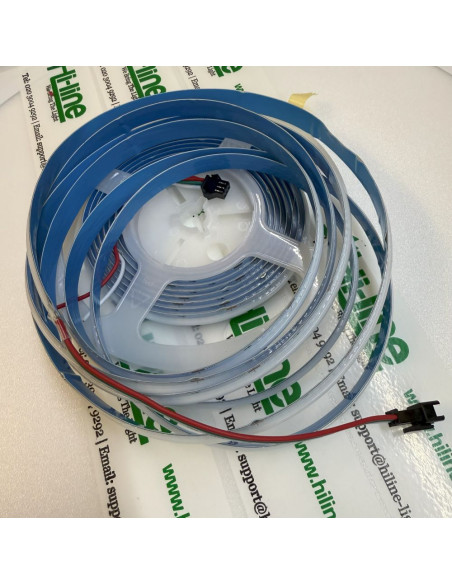

Supplied in 5m rolls, each strip includes both input and output tails pre-fitted with plugs for immediate connection. The strip operates on 12V DC and consumes approximately 13W per metre. For safe design, calculations should always be based on 13W per metre, although longer runs powered from a single end may draw slightly less due to voltage drop.

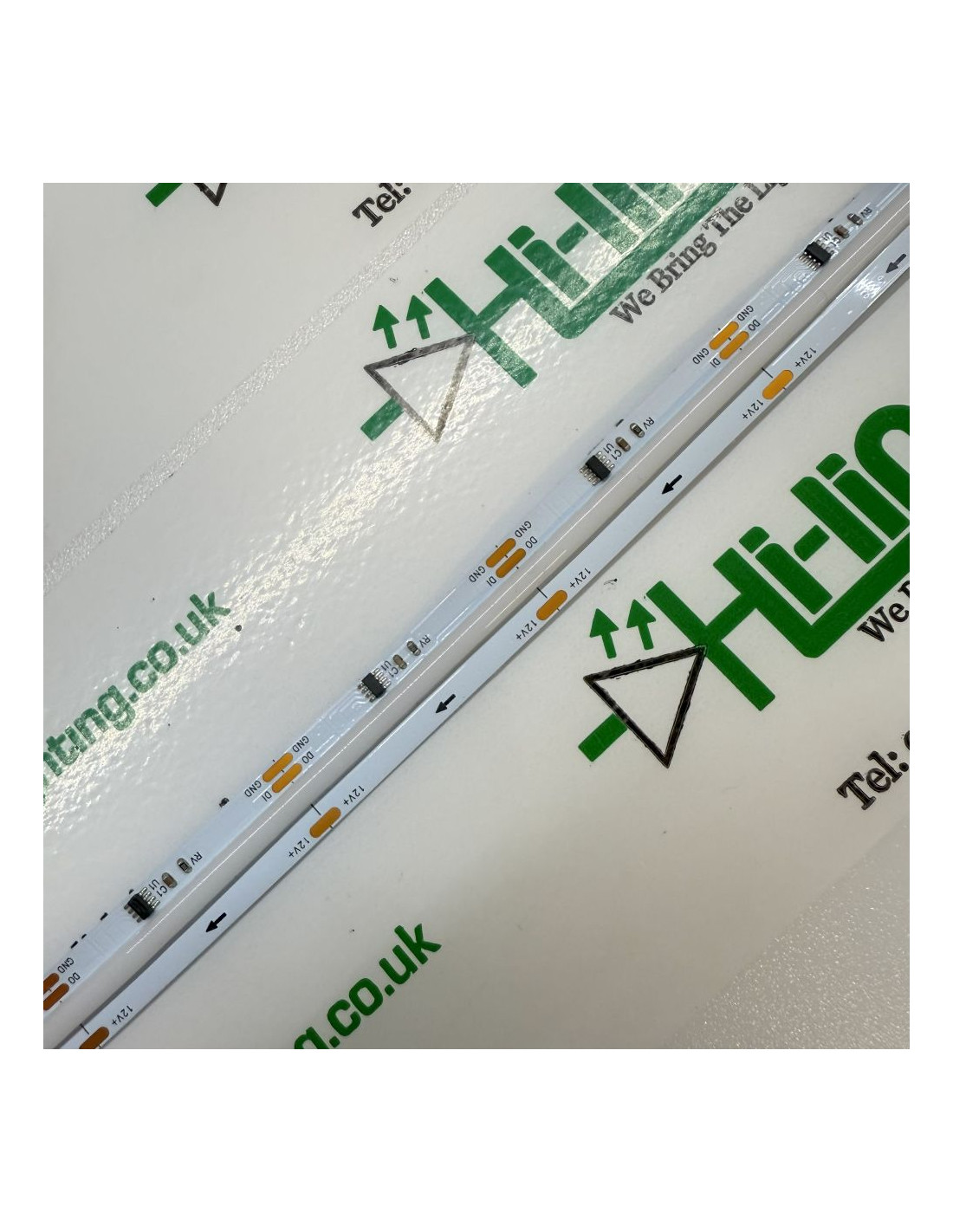

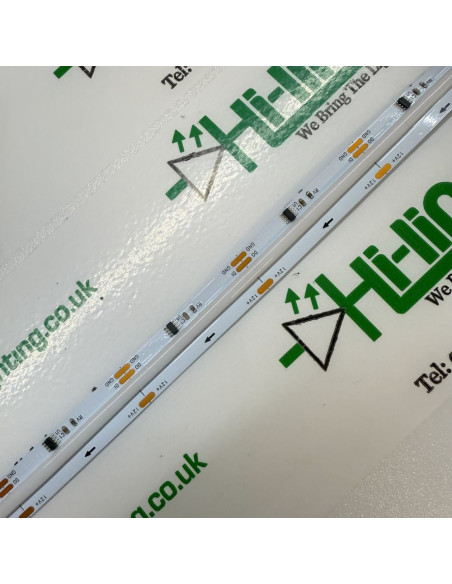

Each metre provides 288 LEDs per colour channel (red, green, and blue). The COB construction ensures uniform light output and a wide 180° viewing angle. The strip is cuttable every 41.5mm, with each cut segment representing one pixel of 36 LEDs (12 red, 12 green, 12 blue).

Wire colour coding: VCC (Red), GND (White), Data (Green).
Please ensure your controller supports WS2811 IC before installation. Power supply and controller are not included.

Simpler Installations – RF Remote Option
If DMX512 control is not required, the installation can be greatly simplified by using RF wireless control. The HL-DS-L controller supports RF control, allowing a quick and straightforward setup without any DMX programming. Alternatively, the HL-WT-SPI controller can be even easier to configure, as it requires no DMX setup and works with the Tuya app for convenient configuration from a smartphone.
Both controllers can be paired with the HL-R9 handheld remote, providing immediate access to pre-programmed effects, brightness control, and speed adjustments without any DMX knowledge.

Important Note – Follow the Direction Arrows

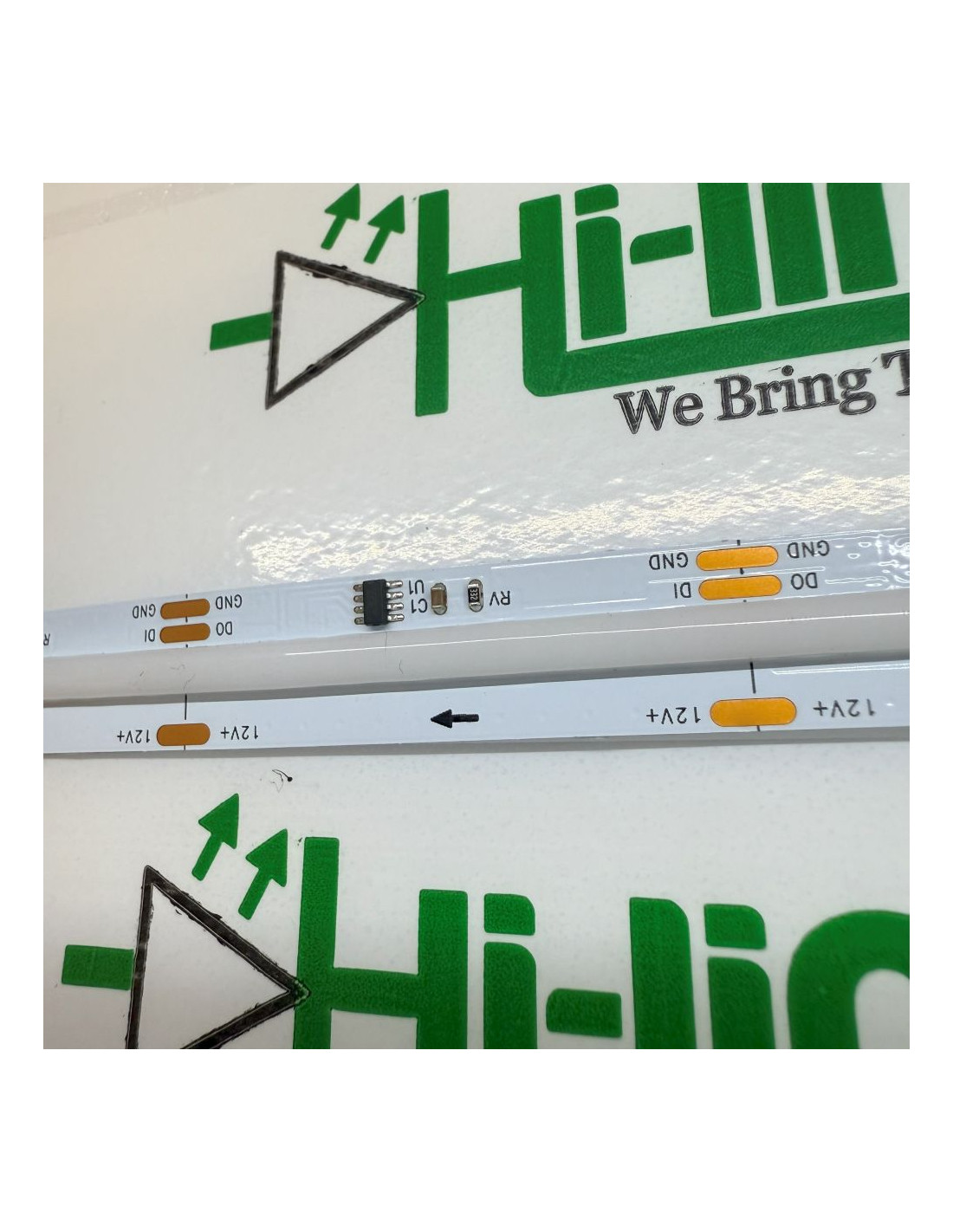

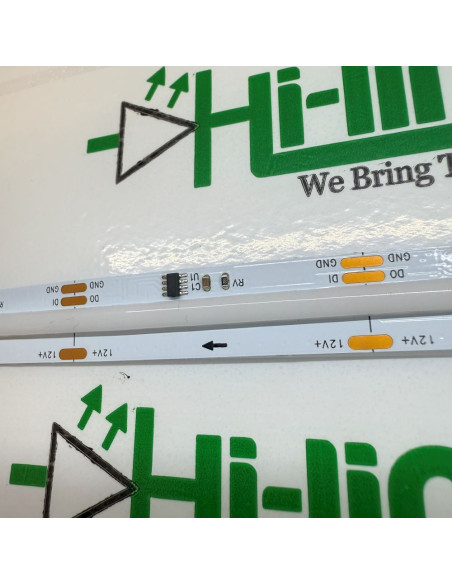

When connecting SPI LED strips, always make sure the arrow printed on the strip points away from the controller. The arrow indicates the data flow direction, and if it is reversed, the strip will not operate correctly. Ensure the wiring and the arrow direction match the controller’s data output to guarantee proper performance.

Looking for a pixel addressable COB strip with RGB plus White? Please check the Related Products tab for the RGBW version.

Technical Specifications

Input Voltage: DC12V
Power Consumption: Approx. 13W per metre
LED Density: 864 LEDs per metre (4320 LEDs per 5m roll)
Pixel Density: 24 pixels per metre (120 pixels per 5m roll)
Cutting Length: 41.5mm
IC Type: WS2811
CRI: >90
Width: 12mm
Viewing Angle: 180°
Operating Temperature: -20°C to +45°C
Storage Temperature: -20°C to +60°C

Series Information

This product is part of our Value Series range, offering excellent performance and good value for money. Premium Series products represent the highest standard of quality and durability available in the market. If you are unsure which series is best for your project, please contact us for guidance.
