|LED Chip||SMD 2835|
|Number of LEDs per meter||60|
|Colour Temperature (CCT)||6000K|
|Colour rendering (CRI in ra)||80|
|Type||Bendable LED strip|
|Width of strip||8mm|
|Cutting length||Every 6 LEDs (100mm)|
|LED Strip Packing||5-meter roll|
|Voltage Type||Constant Voltage|

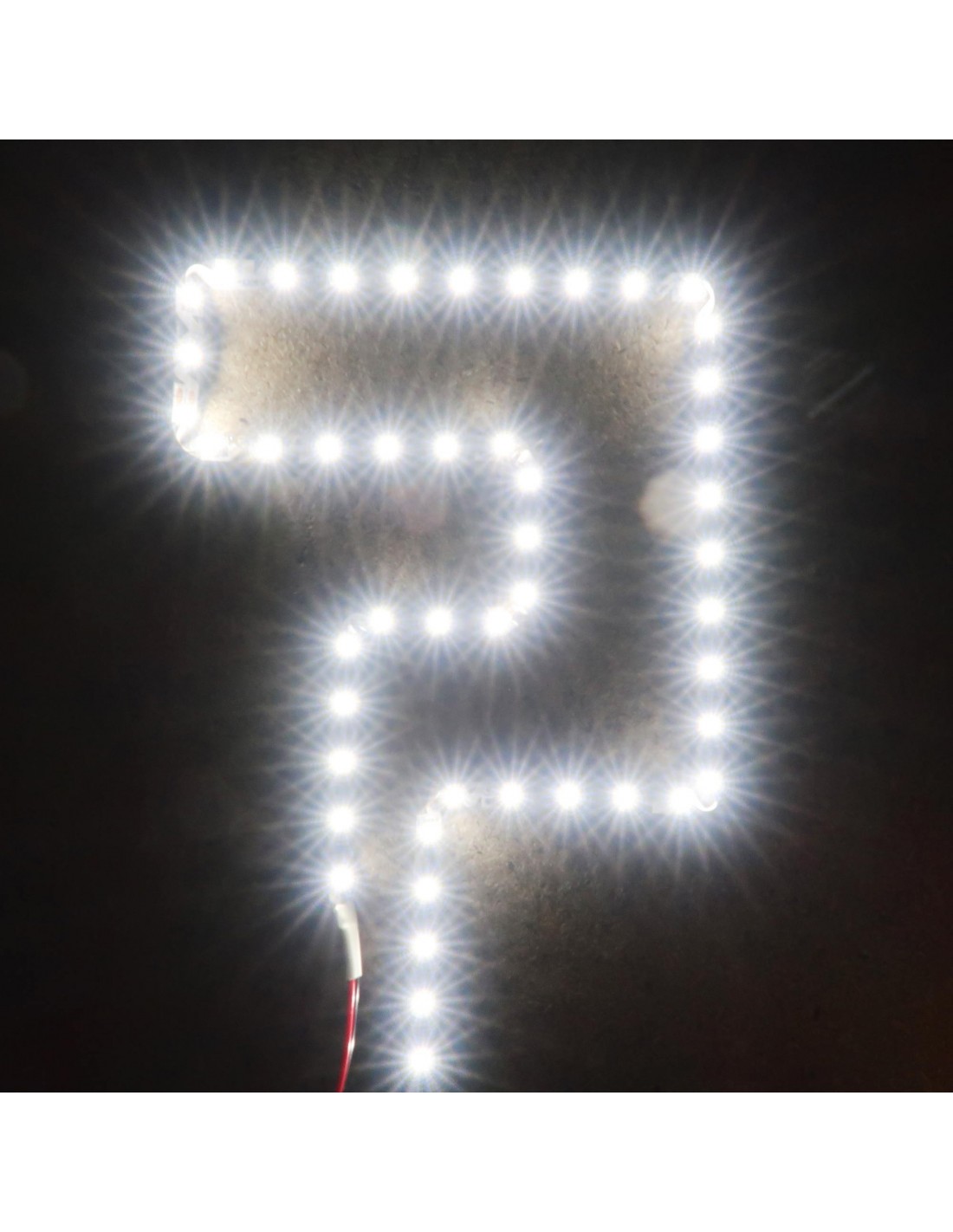

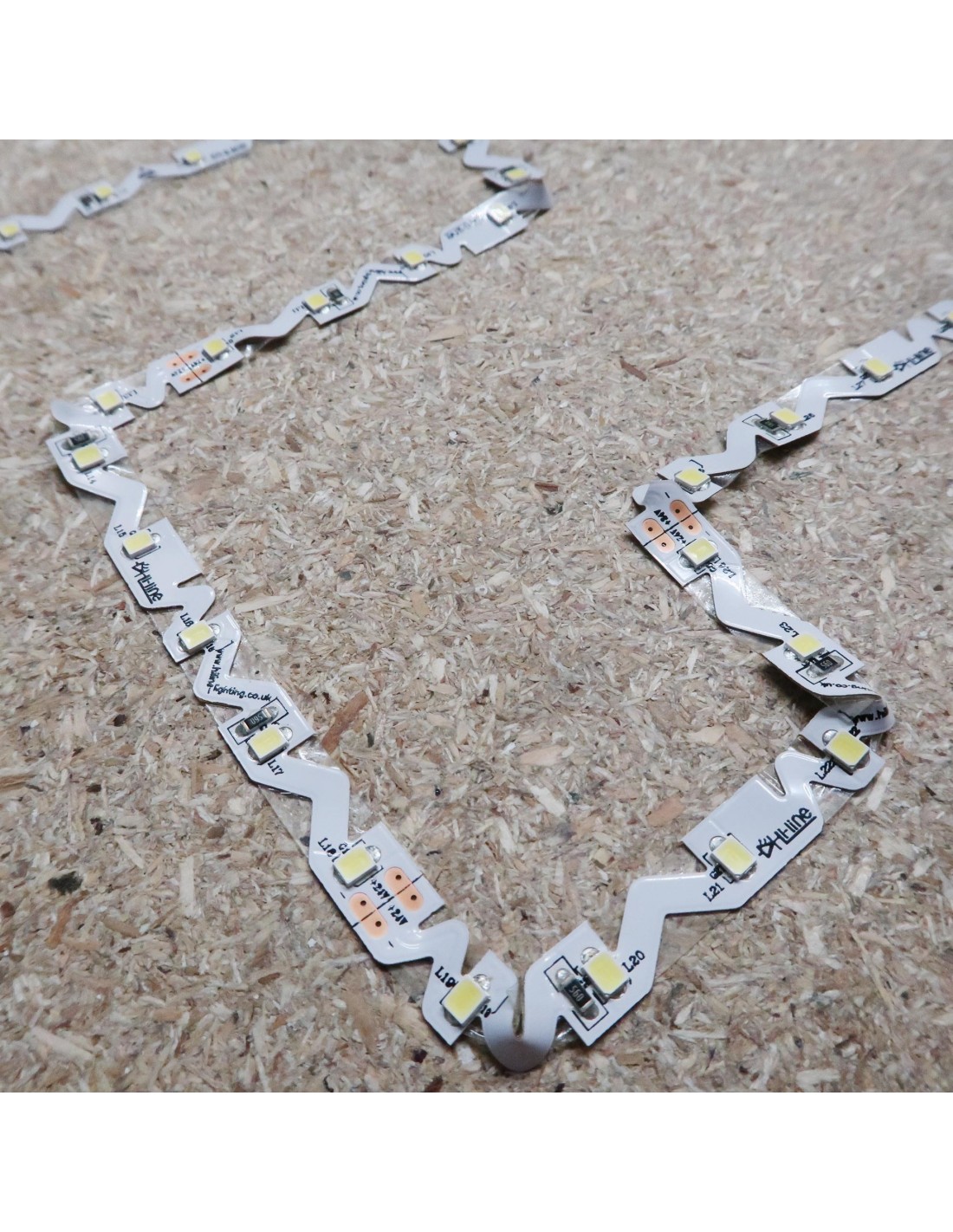

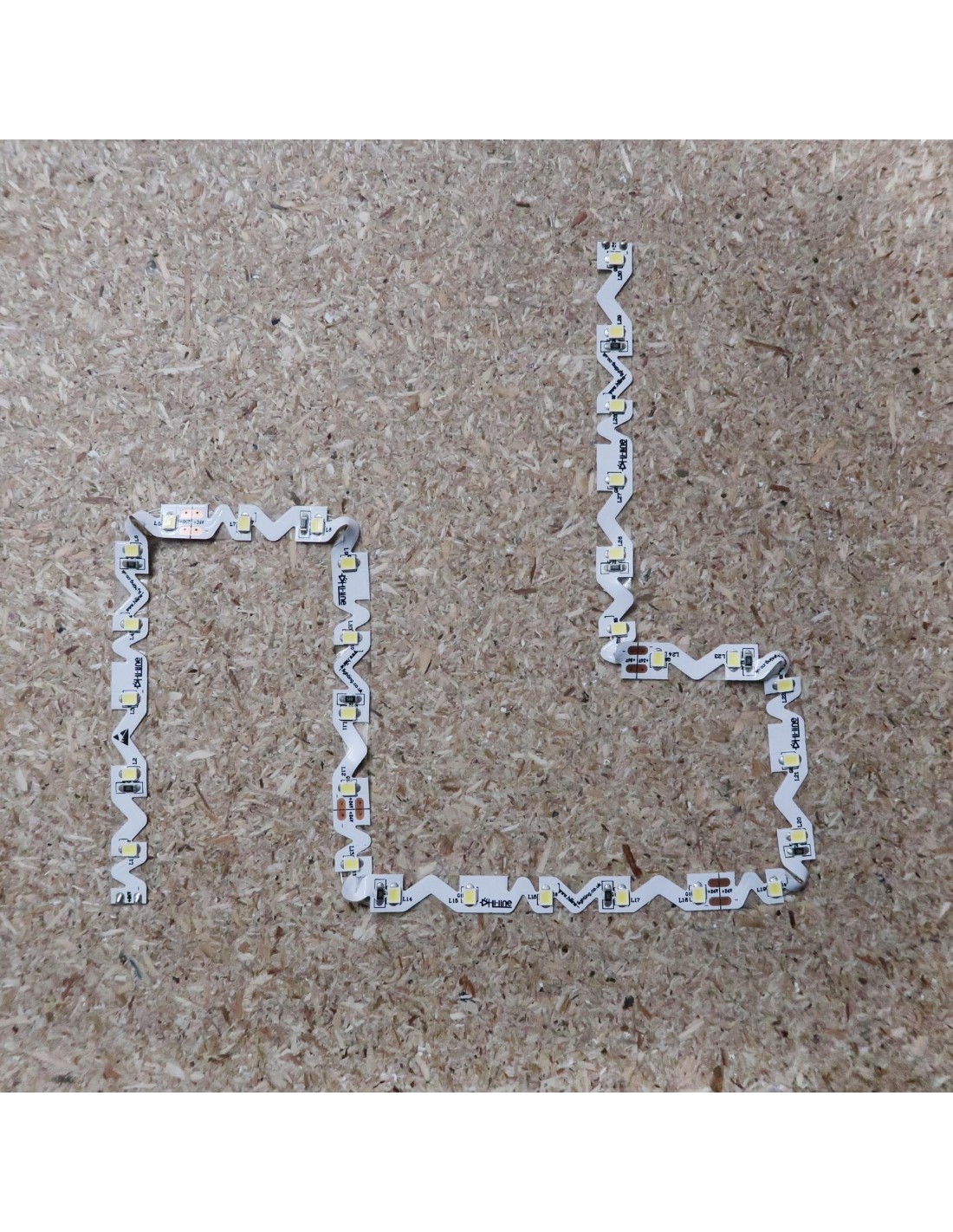

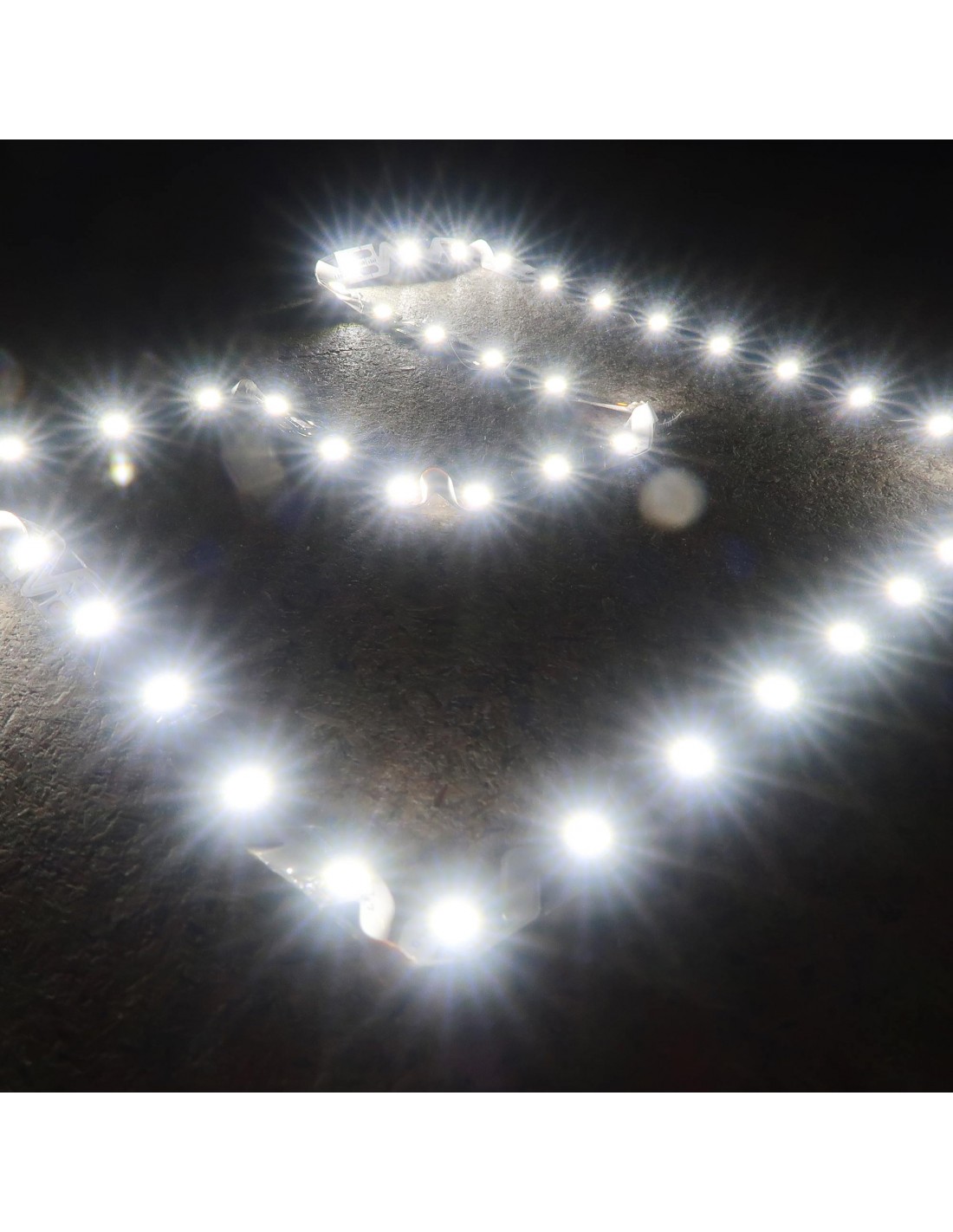

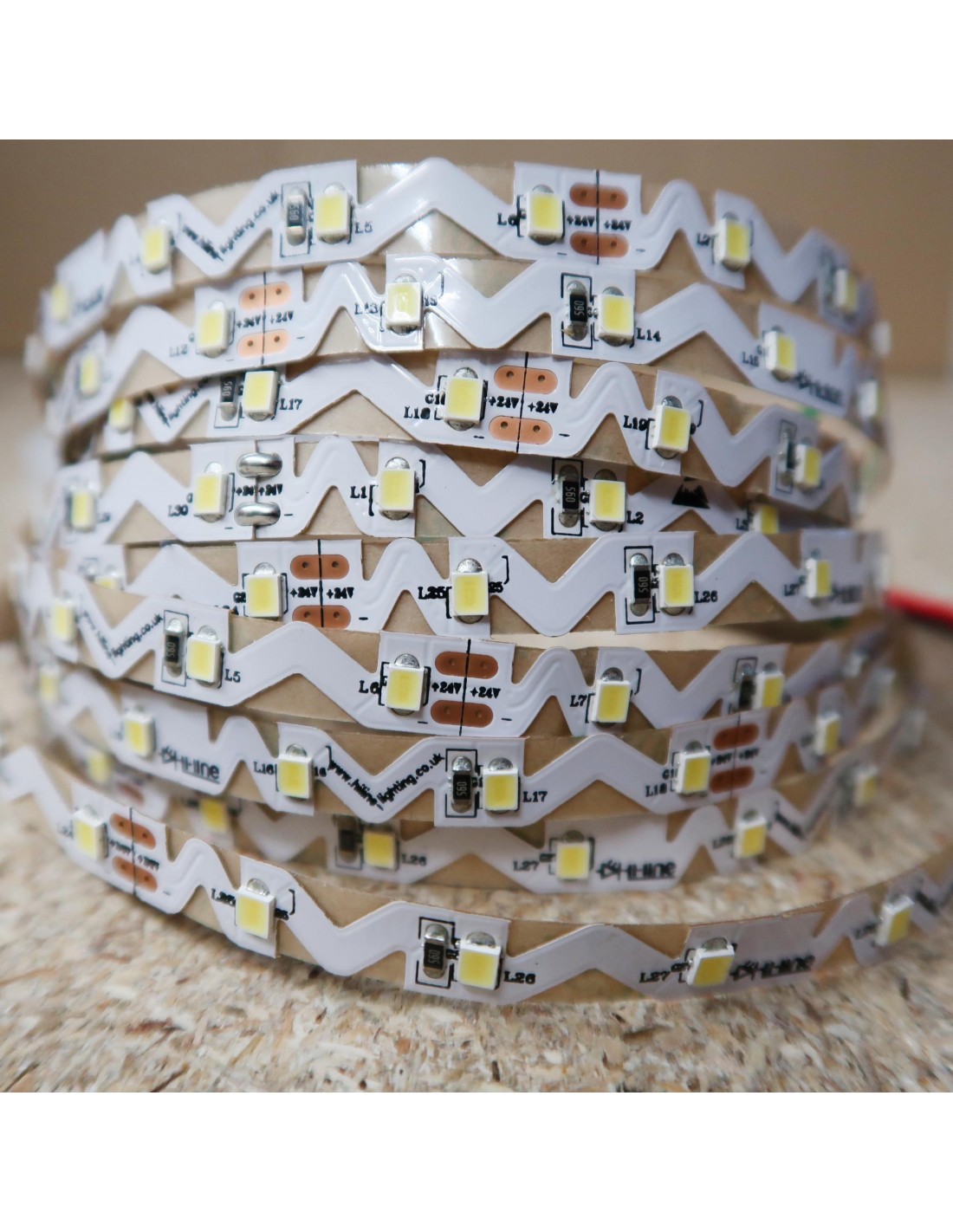

This LED strip is flexible and bendable, so that any shape or letters can be formed in minutes. With this strip, LED lighting can be also easily installed into panels or back trays just by bending and folding the strip without the need for connections or soldering.
14.4W/m – 24V DC – 5m roll – 60 LEDs/m – IP00 (Non-Waterproof) – 2-wire cable (15cm on each side of the strip roll)
This very high brightness LED strip is powered by high quality SMD2835 LED chips which generate a brightness of 22-23Lm per chip or 1320-1380Lm/m with an efficiency >90Lm/W.
Excellent colour rendering index (CRI) – all LED chips reach a value of Ra >80.
The strip can be cut every 6 LEDs (10cm). The width of the LED strip is 8mm.

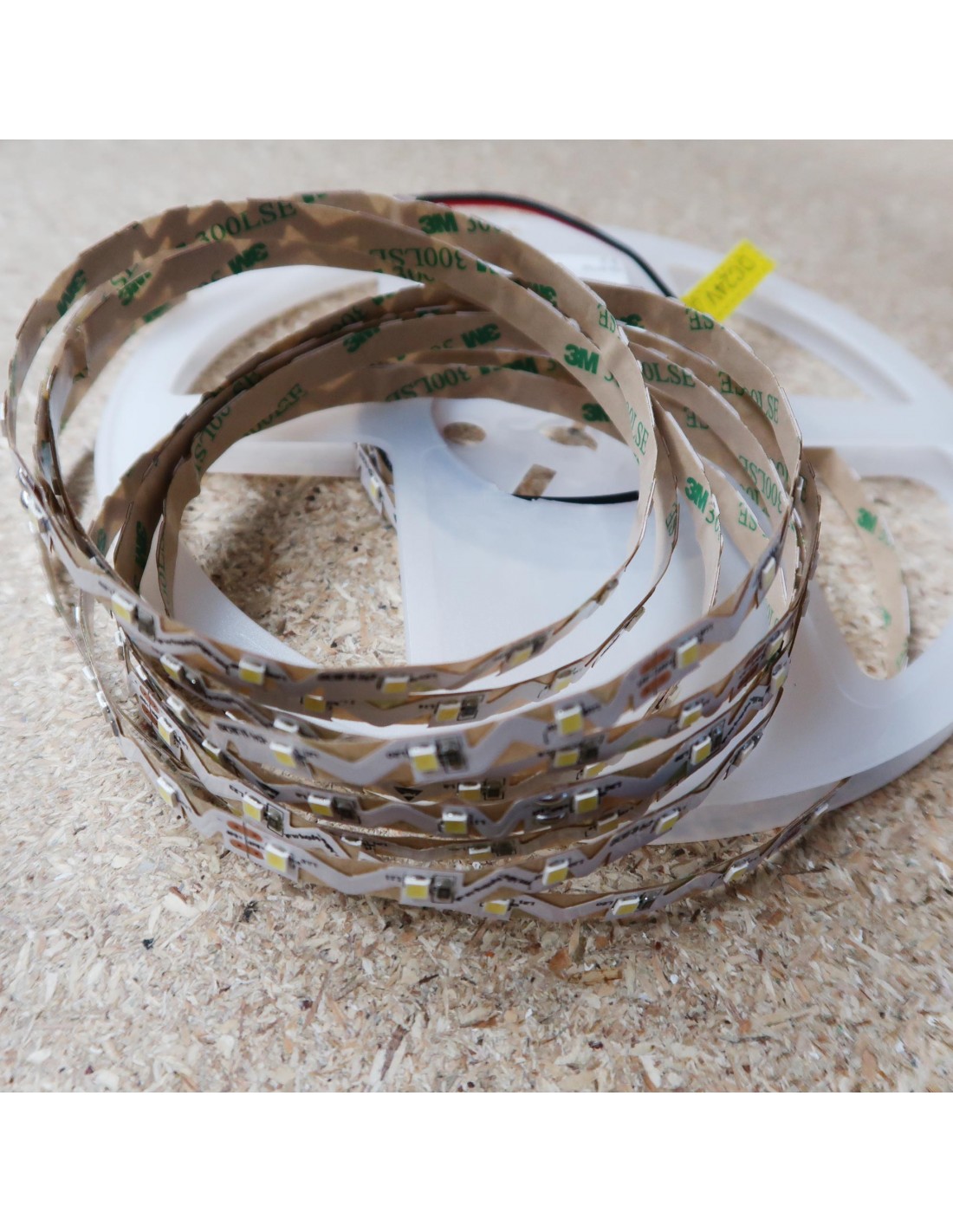

Fitted with an easy to install original 3M adhesive tape with excellent adhesion.
Note: This LED strip is also available with an IP65 Nano Waterproof Protection in the Hi-Line online shop: Bendable Cool White LED strip 24V-14.4W/m-IP65 Nano-CRI80-SMD2835
3 year warranty
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of LED strip are exceeded, it is suggested to connect the strip directly to the LED controller or driver using a 2-core cable.
Please note that this data is based on the average readings for a 5-meter long LED strip. If the length of the strip is 1 meter the power consumption will be higher as there is almost no voltage drop. For comparison, the test result for 1m RGBW LED strip with 14.4W and 60 LEDs showed a power consumption of 18.48W or 0.77A.
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.

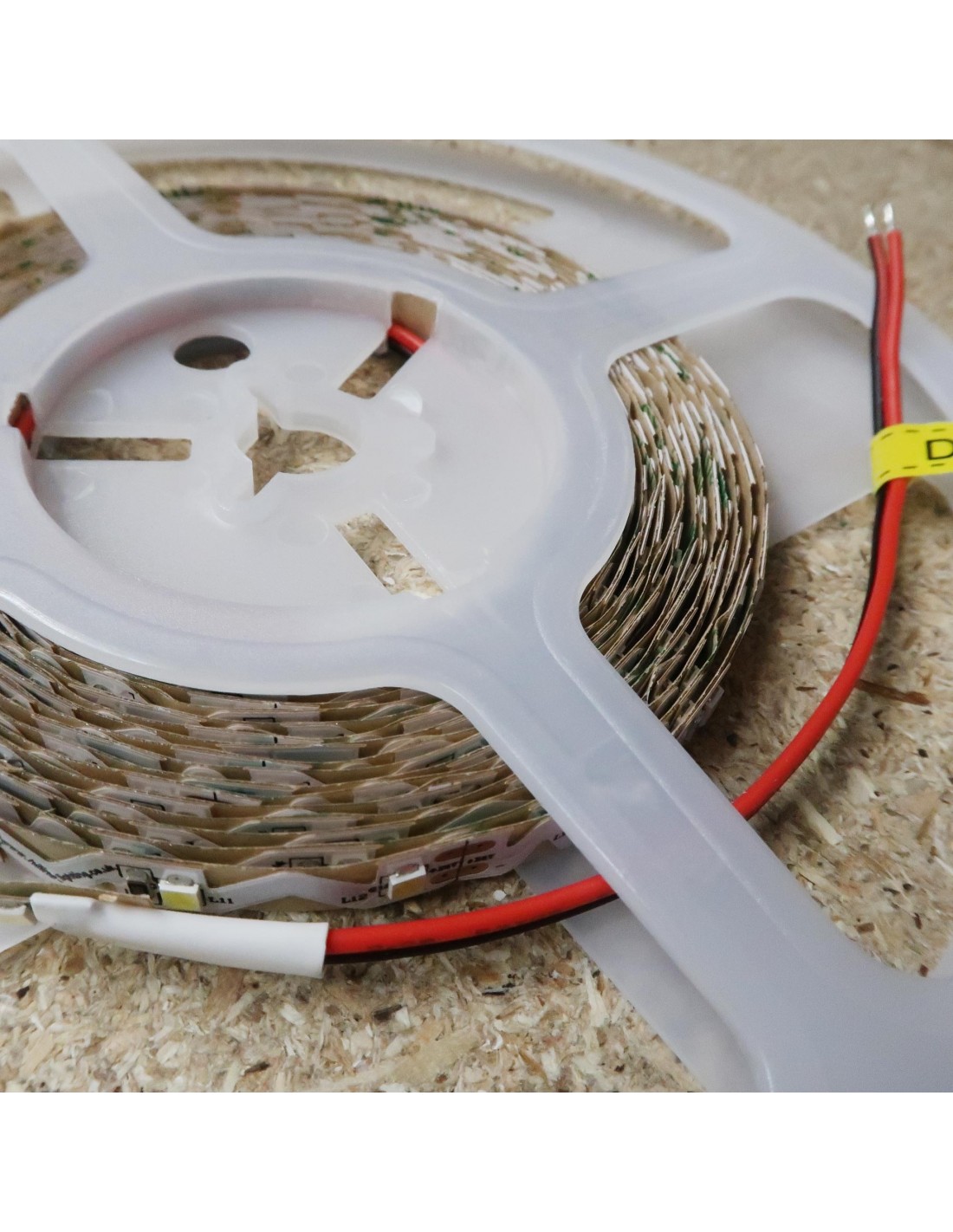

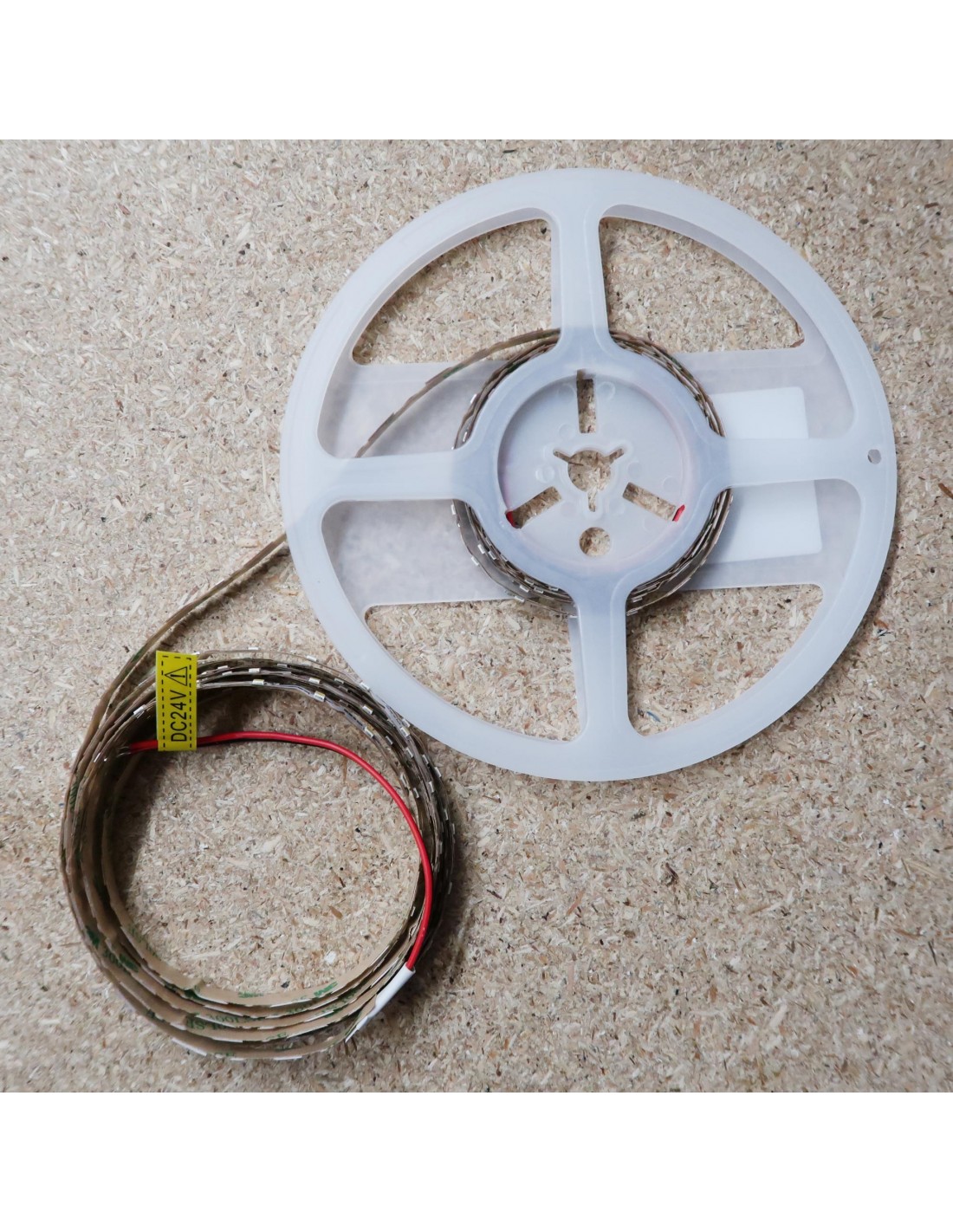

The LED strip comes with a 15cm wire ending on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.

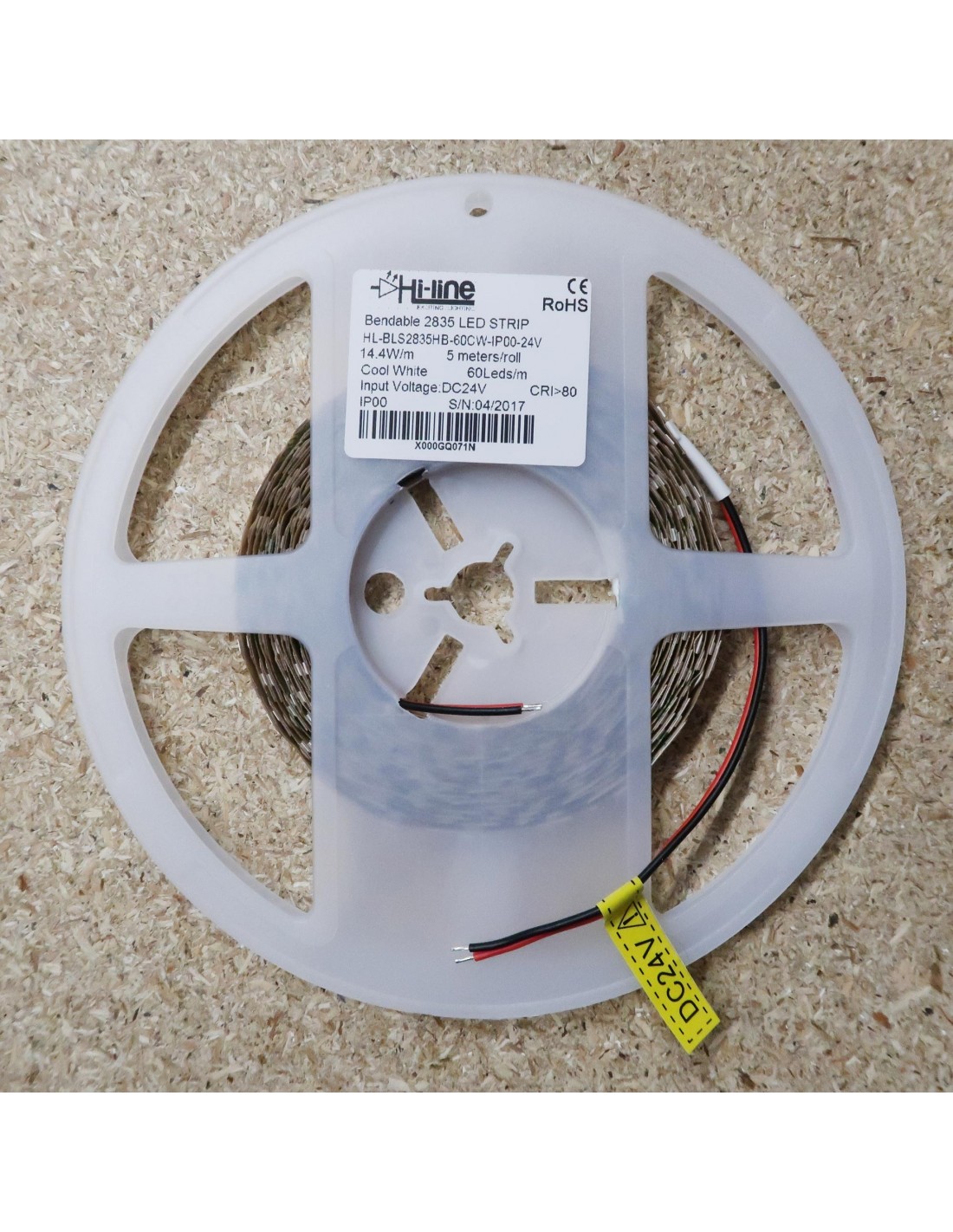

The stated price is for 1 x 5-meter roll bendable LED strip (Cool White) with 300 SMD2835 LEDs – IP00 (Non-Waterproof), 24V DC.
The table below shows the maximum LED strip length, which can be operated with a given LED driver.
To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% were deducted from the maximum strip length in the table below.
Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.
