Bendable Cool White LED Strip CRI 90 plus 24V 14.4W/m IP00 5m roll
Bendable Cooll White LED strip, 24V IP00 (Non-Waterproof)
60 LEDs/m–14.4W/m–1320 Lm/m
5m roll–8mm width
High CRI - Ra>90
Perfect for sign makers and cove lighting
5 year warranty
High CRI bendable Cool White LED Strip 6000K Ra>90, 14.4w/m, 5m roll 8mm width

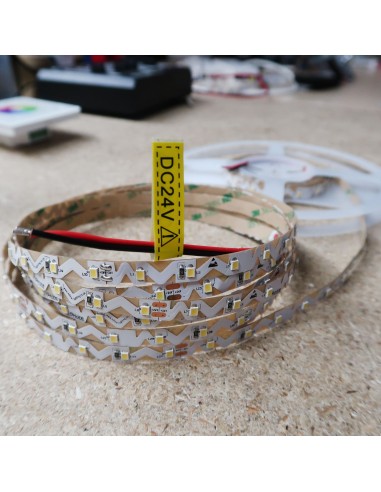

This LED strip is flexible and bendable so that any shape or letters can be formed in minutes. With this strip, LED lighting can be also easily installed into panels or back trays just by bending and folding the strip without the need for connections or soldering.
14.4W/m – 24V DC – 5m roll – 60 LEDs/m – IP00 (Non-Waterproof) – 2-wire cable (15cm on each side of the strip roll)

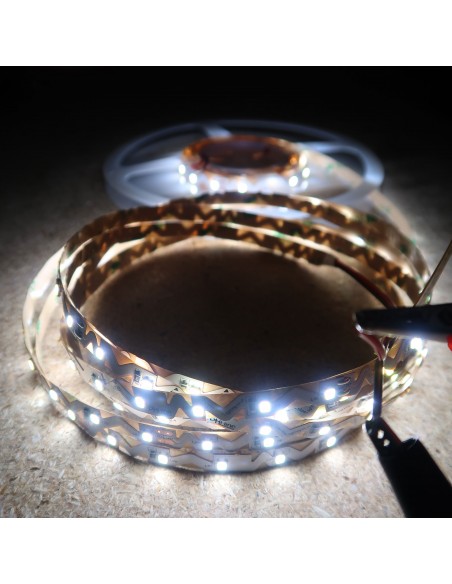

This is a very high brightness LED strip, is powered by high-quality SMD2835 LED chips which generate about 22 Lm per chip or 1320 Lm/m with an efficiency >90 Lm/W.
Very high Colour rendering index (CRI) – all LED chips reach a value of Ra >90.

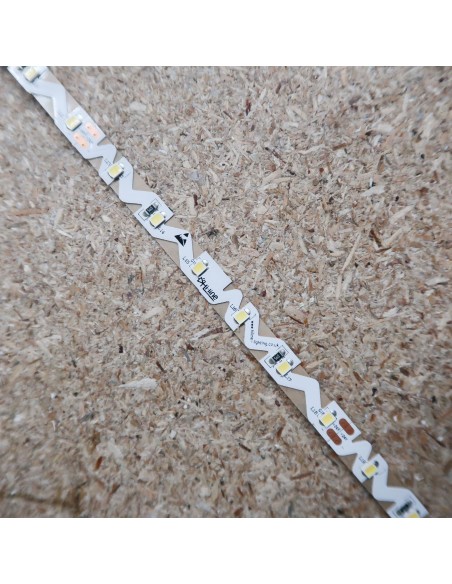

The strip can be cut every 6 LEDs (10cm). The width of the LED strip is 8mm.
Fitted with an easy to install original 3M adhesive tape with excellent adhesion.
*5-year warranty:
*This LED tape should be installed according to our installation instructions. For more information on installing, please see the installation manual at the bottom of the page and to learn more about the 5 year warranty on offer, please refer to the following link:
______________________________
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of the LED strip is exceeded, it is suggested to connect the strip directly to the LED controller or driver using a 2-core cable.
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.
_____________________________
The LED strip comes with a 15cm wire ending on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.
______________________________
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.
______________________________
The stated price is for 1 x 5-meter roll bendable LED strip (4000K) with 300 SMD2835 CRI>90 LEDs – IP00 (Non-Waterproof), 24V DC.
______________________________
Selection of the LED driver depending on the maximum LED strip length
The table below shows the maximum LED strip length, which can be operated with a given LED driver.
To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% was deducted from the maximum strip length in the table below.
Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.
- CIE Colour Space
- 3 SDCM
- Voltage
- 24V DC
- Colour
- Cool White
- Power
- 14.4 W/m
- Brightness
- 1320 lm/m
- Number of LEDs per meter
- 60
- LED Strip Efficiency
- 92 lm/w
- Rating
- IP00 (Non-waterproof)
- Colour Temperature (CCT)
- 6000K
- Colour rendering (CRI in ra)
- more than 90
- Type
- Bendable LED strip
- Width of strip
- 8mm
- FCP copper content
- 2 ounce double layer
- Cutting length
- Every 6 LEDs (100mm)
- LED Strip Packing
- 5-meter roll
- Voltage Type
- Constant Voltage
- Warranty
- 5 Years
- Brand
- Hi-Line
- LED Chip
- SMD 2835
