Natural White LED Strip 24V 4.8W/m IP54/65 CRI80 SMD3528

Natural White LED strip, 4000K, 24V, IP54/65 (Splashproof)

60 LEDs/m–4.8W/m–360-420Lm/m

5m roll–8mm width (3.5mm height)

Excellent CRI - Ra >80

3 year warranty

HL-LS3528B-60NW-IP65-24V
17 Items In stock
Same Day Dispatch
£30.00

(£6.00 meter)

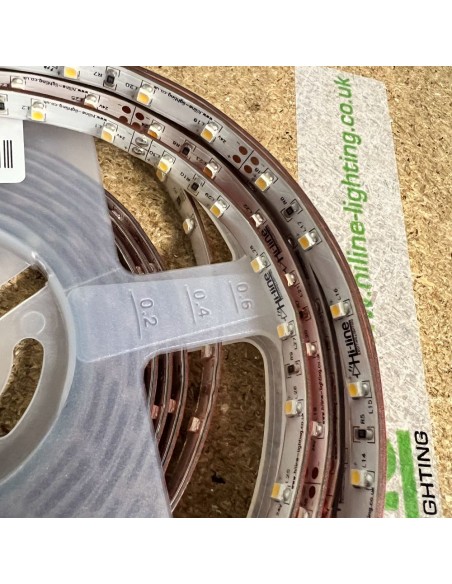

24V Commercial High-Grade Natural White LED Strip 4000K, powered by SMD3528 (5 meters roll)

4.8W/m – 24V DC – 5m roll – 60 LEDs/m – IP54/65 (Splashproof) – 2-wire cable (15cm on each side of the strip roll)

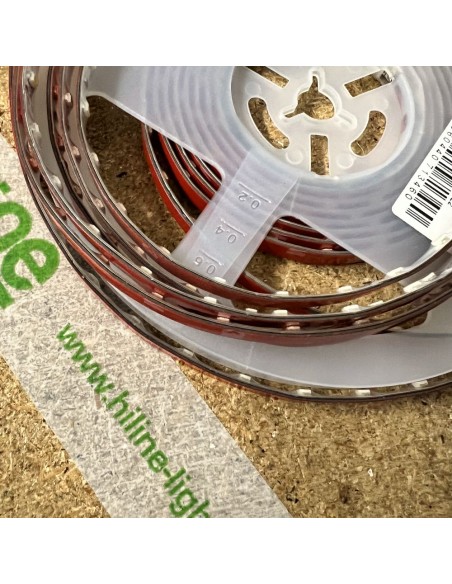

This LED strip is powered by high-quality Epistar SMD3528 LED chips which generate a brightness of 360-420Lm/m.

Great for cove lighting or any application that does not require high brightness.

Note: Should a higher brightness and efficiency LED strip be required, please check Hi-Line's SMD2835 LED strip series.

Excellent colour rendering index (CRI) – all LED chips reach a value of Ra >80.

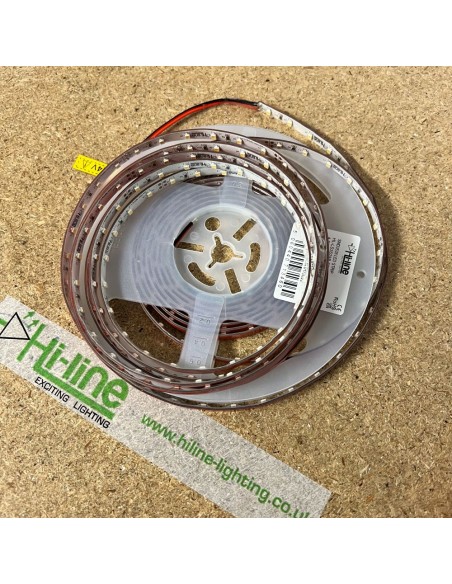

The strip can be cut every 6 LEDs (10cm). The width of the LED strip is 8mm.

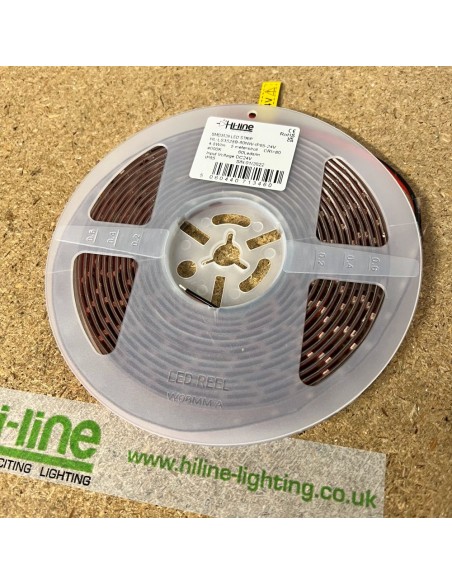

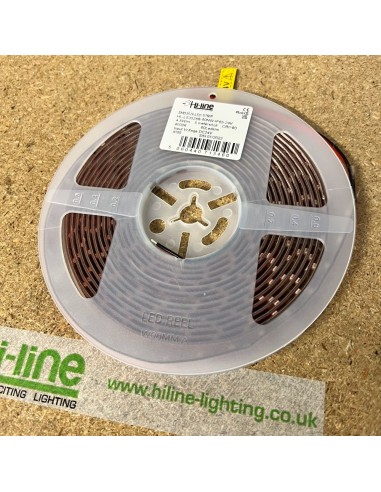

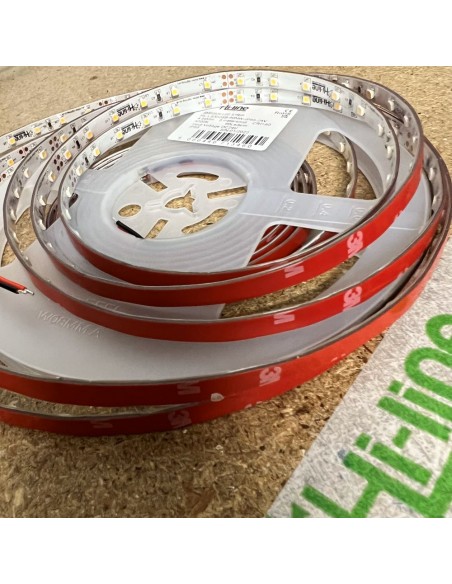

Fitted with an easy to install original 3M adhesive tape with excellent adhesion) identified by a red protective strip on the adhesive side).

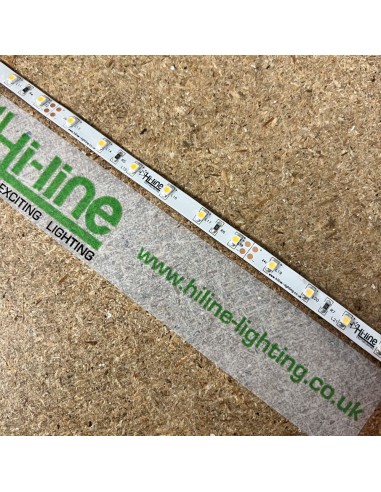

IP54/65 Waterproof Protection (IP65 = Splashproof) is achieved with polyurethane and silicon, which is the most expensive and best method that can be used on LED strips. This waterproof protection is very durable and does not become "yellowish" as it happens with most LED strips within 3 months of installation. Moreover, the LED strip remains extremely flexible, very clear, soft and well-protected throughout its lifetime and can keep its IP54/65 rating for more than 5 years if installed using an aluminium LED profile (to run at lower temperatures). Please note that IP00 rated LED strips are recommended wherever IP54/65 rating is not required (e.g. in indoor spaces) as these are easier to handle and install.

3-year warranty

____________________________

The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.

Please do NOT connect more than 10 meters of a LED strip in series. A LED strip of more than 10 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 10 meters of the LED strip is exceeded, it is suggested to connect the strip directly to the LED controller or driver using a 2-core cable.

Installation hints and tips for LED strips can be downloaded at the bottom of this web page.

_____________________________

The LED strip comes with a 15cm wire ending on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).

Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.

______________________________

All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.

______________________________

The stated price is for 1 x 5-meter roll LED strip (Warm White) with 300 SMD3528 LEDs – IP54/65 (Splashproof), 24V DC.

______________________________

Selection of the LED driver depending on the maximum LED strip length

The table below shows the maximum LED strip length, which can be operated with a given LED driver.

To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% was deducted from the maximum strip length in the table below.

Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.

Installation hints and tips for LED strips can be downloaded at the bottom of this web page.

CIE Colour Space
3 SDCM
Voltage
24V DC
Colour
Natural White
Power
4.8 W/m
Brightness
360~420 Lm/m
Number of LEDs per meter
60
Rating
IP65 (Splashproof)
Colour Temperature (CCT)
4000K
Colour rendering (CRI in ra)
80
Width of strip
8mm
Height of strip
3.5mm
Cutting length
Every 6 LEDs (100mm)
LED Strip Packing
5-meter roll
Voltage Type
Constant Voltage
Warranty
3 Years
Brand
Hi-Line
LED Chip
SMD 3528
