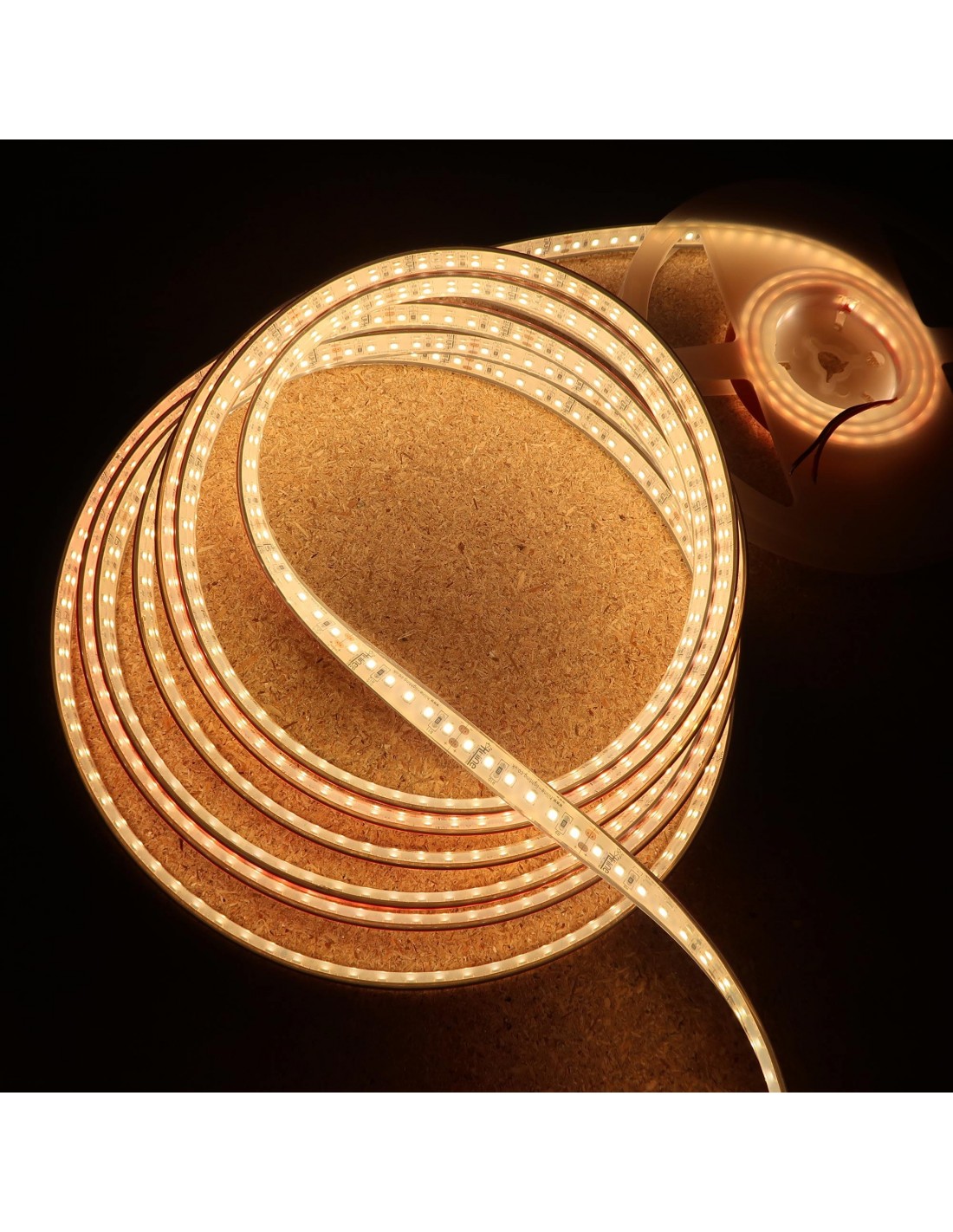

Warm White LED strip, 2800K, 24V, IP68 (Fully Waterproof)
5m roll–12mm width (5mm height)
High CRI - Ra>80
3 year warranty*
4 Item Items
Same Day Dispatch
Warning: Last items in stock!
|LED Chip||SMD 2835|
|CIE Colour Space||3 SDCM|
|Number of LEDs per meter||120|
|Rating||IP68 (Underwater waterproof)|
|Colour Temperature (CCT)||2800K|
|Colour rendering (CRI in ra)||80|
|Width of strip||12mm|
|Height of strip||5mm|
|Width of PCB||10mm|
|Cutting length||Every 6 LEDs (50mm)|

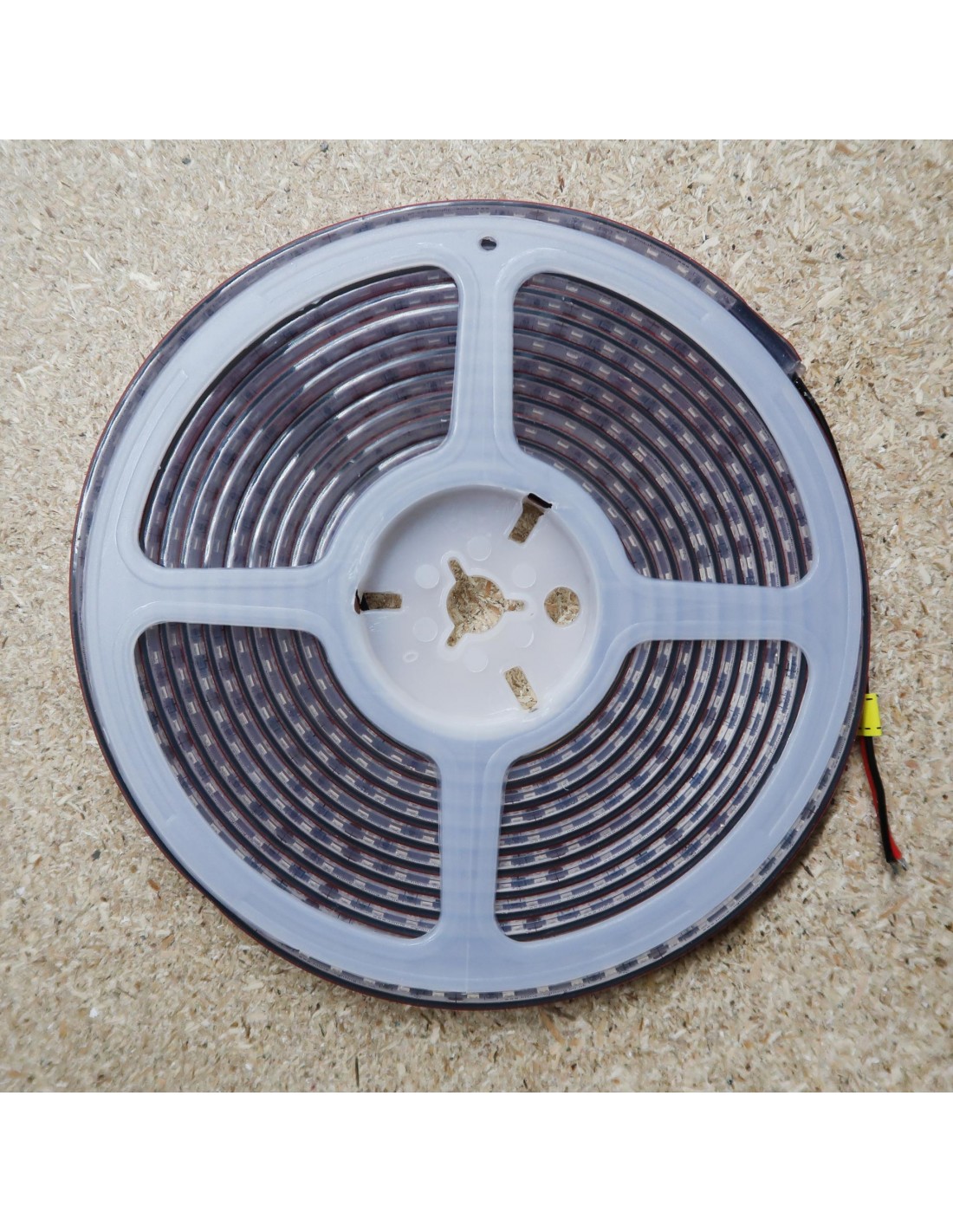

|LED Strip Packing||5-meter roll|
|Voltage Type||Constant Voltage|
IP68 Commercial High-Grade Warm White LED Strip 2800K 120 LEDs per meter
28.8W/m – 24V DC – 5m roll – 120 LEDs/m – IP68 (Fully-Waterproof) – 2-wire cable (15cm on each side of the strip roll)
This is an ultra-high brightness LED strip powered by high-quality SMD2835 LED chips which generate a brightness of 2640Lm/m. Please note that 1.2 meters of this LED strip has the same or even higher brightness than a 4ft fluorescent tube.
Excellent colour rendering index (CRI) – all LED chips reach a value of Ra >80.
The strip can be cut every 6 LEDs (5cm). The width of the LED strip is 12mm.
Note: While any type of LED strip will perform better when installed in a profile or on an aluminium flat bar, due to the nature of high-powered SMD2835 chips running warm at 19.2 watts per metre and above, we strongly suggest that you consider installing this LED strip on an aluminium bar at the very minimum, in order to ensure proper cooling and thus increasing its lifespan. Always consult with your installer, as it may come down to their discretion, depending on how cool and well-ventilated the area is. Don’t risk burning out any chips!

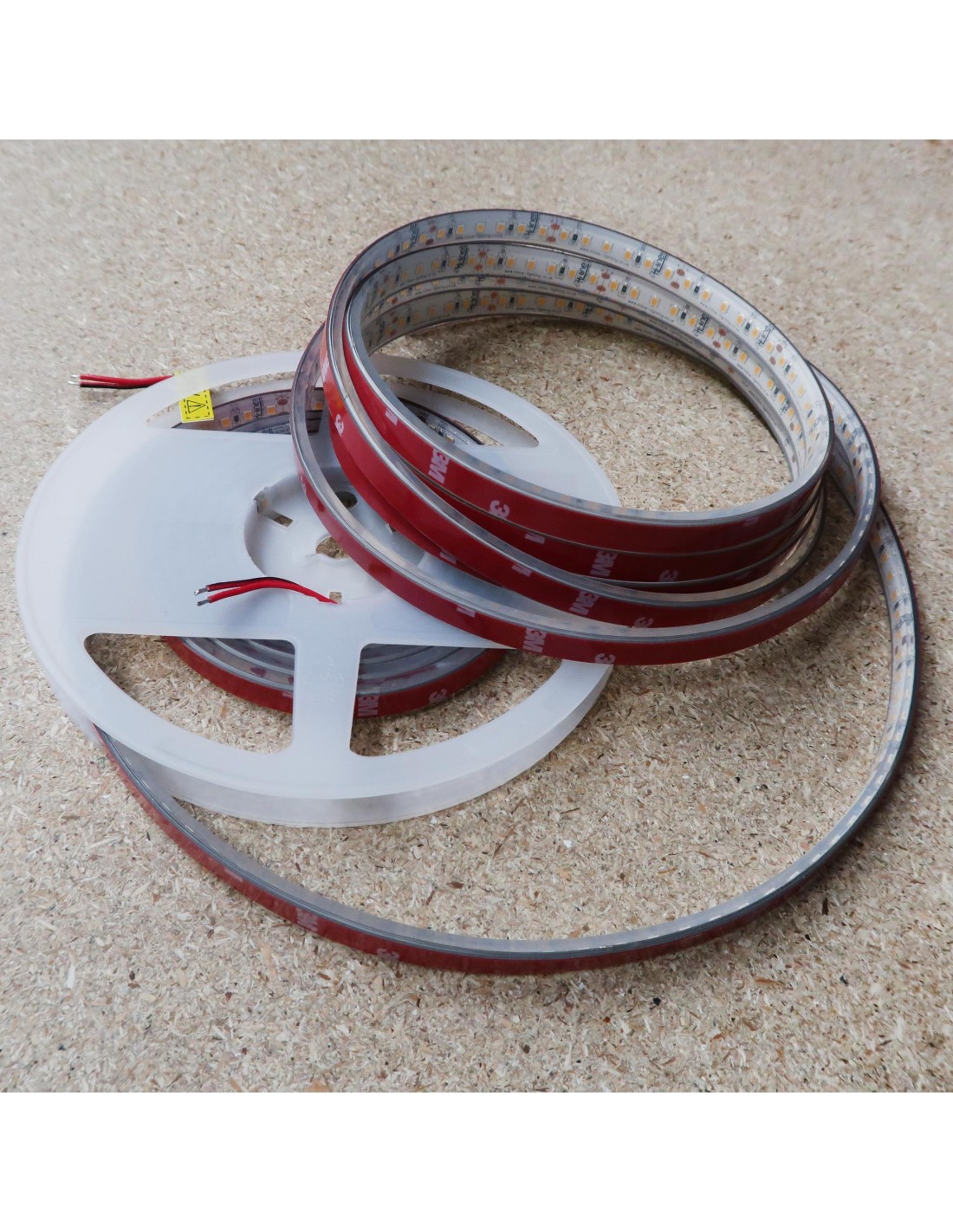

Fitted with an easy to install original 3M adhesive tape with excellent adhesion (identified by a red protective strip on the adhesive side)
IP68 Waterproof Protection is achieved with polyurethane and silicon, which is the most expensive and best method that can be used on LED strips. This waterproof protection is very durable and does not become "yellowish" as it happens with most LED strips within 3 months of installation. Moreover, the LED strip remains extremely flexible, very clear, soft and well-protected throughout its life time and can keep its IP68 rating for more than 5 years if installed properly. Please note that IP00 rated LED strips are recommended wherever rating is not required (e.g. in indoor spaces) as these are easier to handle and install.

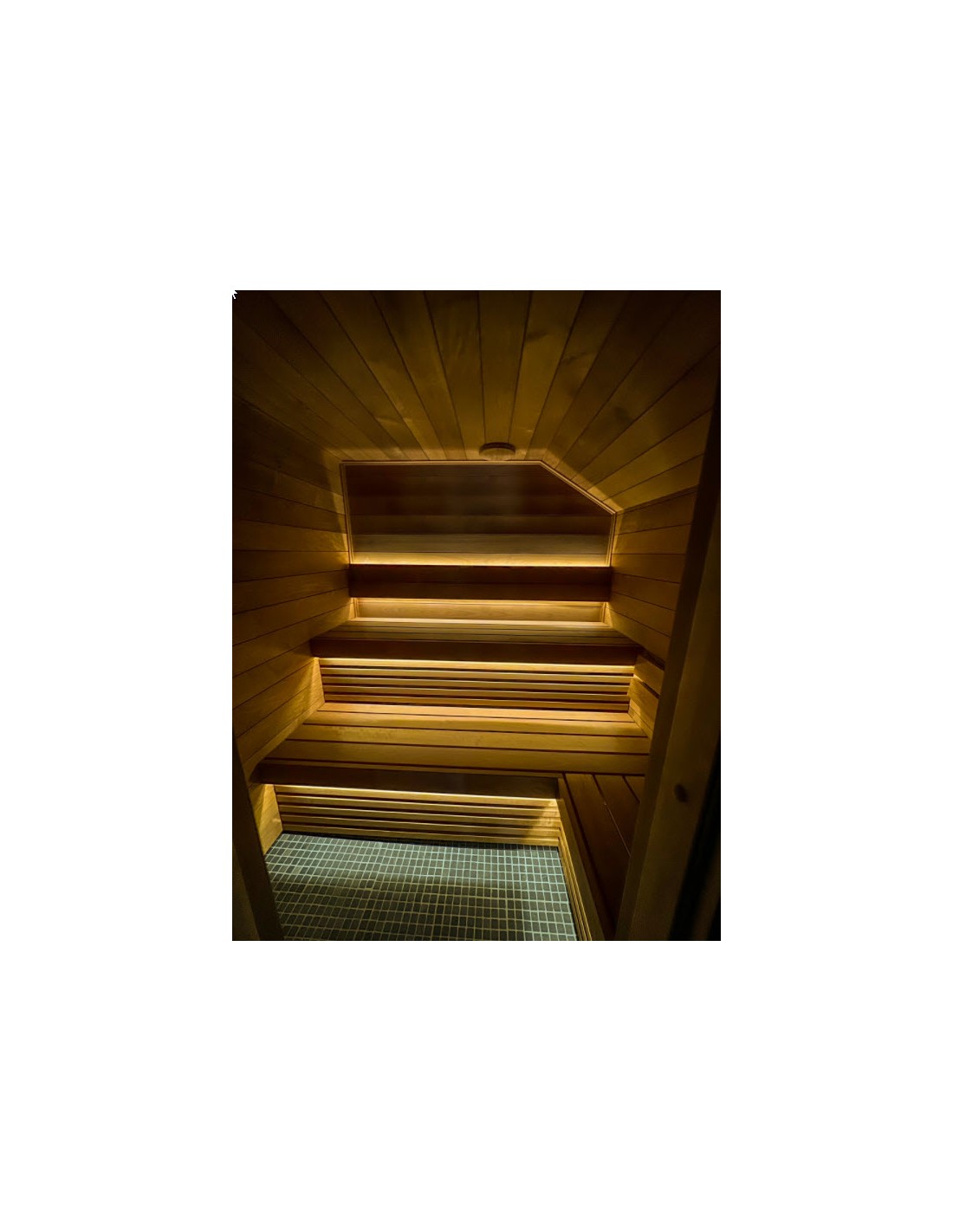

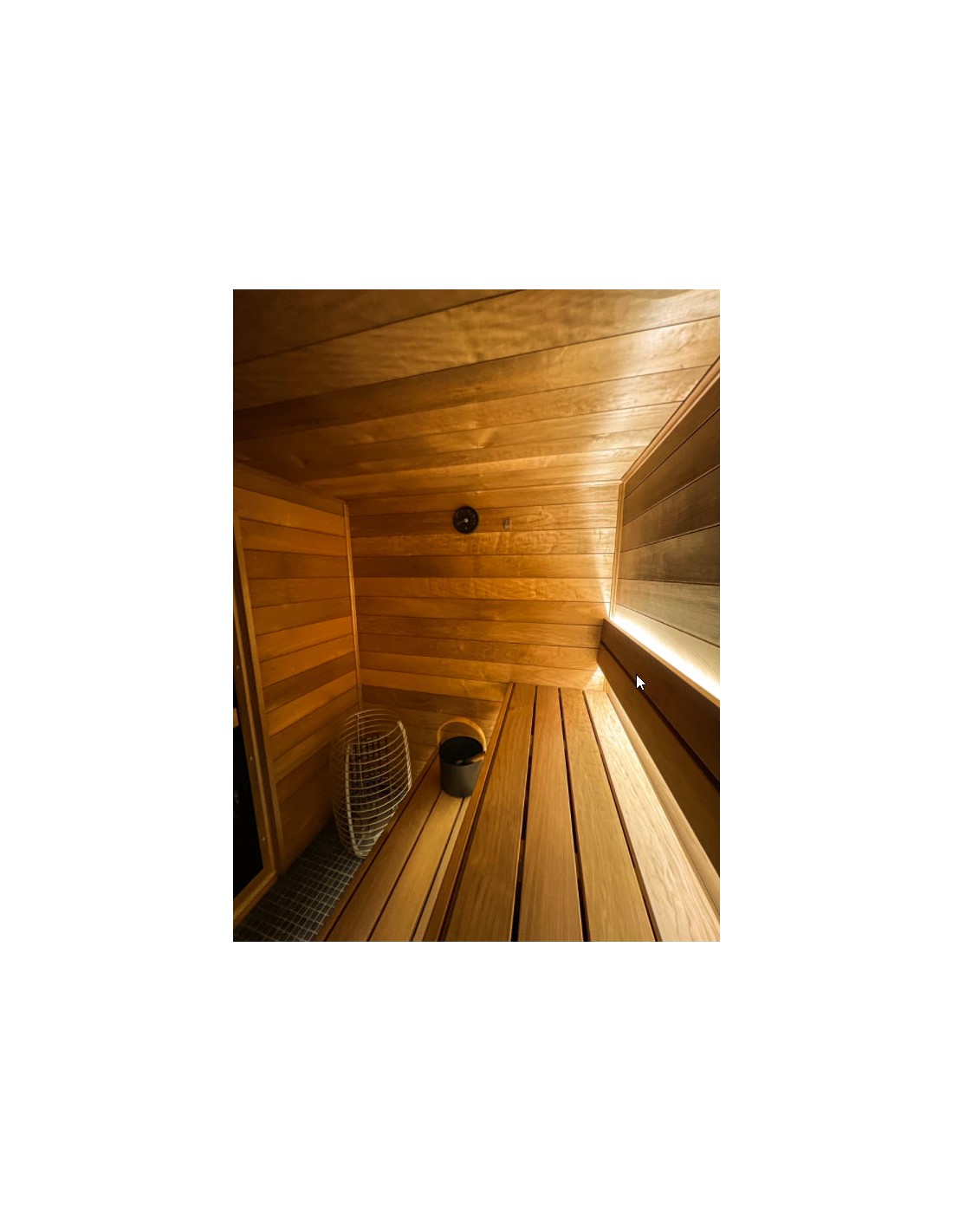

All Hi-Line's IP68 strips can be used in steam rooms and saunas (LED drivers and controllers should be installed remotely).
The LED chip without the IP68 coating can operate at temperatures between -25 to 60 degrees Celsius. Using Hi-Line's special coating which also acts as a coolant for the LED chips can make the final end product to stand temperatures of up to 110 Celsius. For Sauna and steam room applications it is suggested to install IP68 LED strips on aluminium flat bar, LED profile or directly on concrete walls for additional cooling, this will prolong LED chip operating time and lumen-maintenance.
*Please note that warranty offered for IP68 LED tape installed in Saunas, steam rooms or underwater is limited to one year.
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when installing 5 meters or more of this LED strip it is suggested to connect the strip directly to the LED controller or driver using a 2-core cable or to connect the strip to a power supply from both ends in parallel (ring) to avoid a voltage drop and a resulting slight brightness reduction from first to last LED.
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.
The LED strip comes with a 15cm wire ending on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
Please note that soldering is recommended for the connection of IP68 LED strips. When soldering, please remember to maintain a waterproof connection by using liquid electrical tape or waterproof heat shrink sleeving.
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.
The stated price is for 1 x 5-meter roll LED strip (Warm White 2800K) with 600 SMD2835 LEDs – IP68 (Waterproof), 24V DC.
Selection of the LED driver depending on the maximum LED strip length
The table below shows the maximum LED strip length, which can be operated with a given LED driver.
To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% was deducted from the maximum strip length in the table below.
Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.
