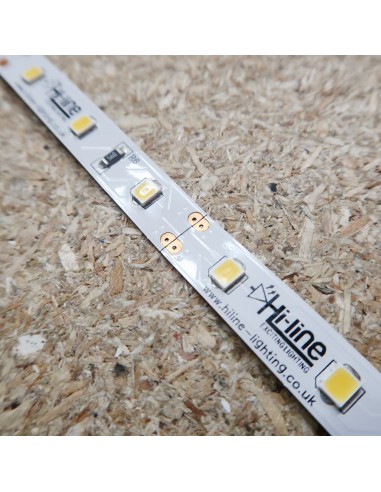

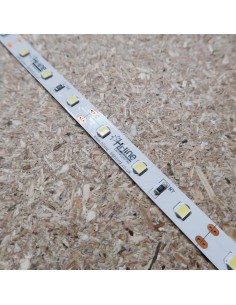

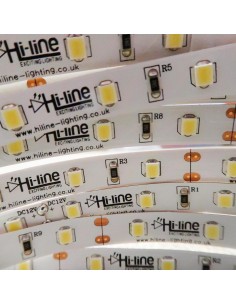

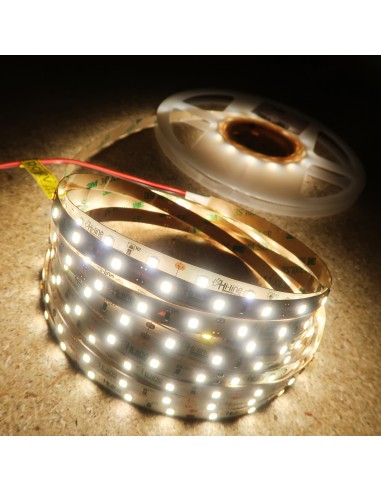

12V Natural White LED Strip 14.4W/m-IP00-CRI80-SMD2835
Natural White 4100k LED strip, 12V, IP00 (Non-Waterproof)

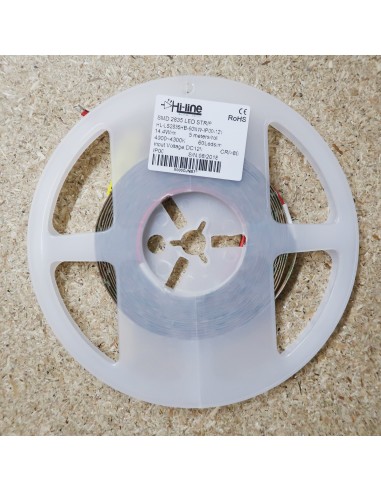

5m roll–8mm width
12 Volts Commercial high-grade Natural White 4100K LED strip.
14.4W/m – 12V DC – 5m roll – 60 LEDs/m – IP00 (Non-Waterproof) – 2-wire cable (15cm on each side of the strip roll)
Using 12V LED Strips is generally advised for smaller installations, such as in vehicles or other applications where a 12V battery is required. For home and office installations, please consider 24V LED Strips.
Excellent colour rendering index (CRI) of Ra >80.
This LED strip is powered by high quality Epistar SMD2835 LED chips which generate a brightness of 1380 Lm/m.
The strip can be cut every 3 LEDs (5cm). The width of the LED strip is 8mm.
Fitted with an easy to install original 3M adhesive tape with excellent adhesion.
*This LED tape should be installed according to our installation instructions. For more information on installing, please see the installation manual at the bottom of the page and to learn more about the 5 year warranty on offer, please refer to the following link:
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of LED strip are exceeded, it is suggested to connect the strip, on both ends, directly to the LED controller or driver using a 2-core cable.
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.
The LED strip comes with a 15cm wire ending on each side of the strip roll. Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.
Selection of the LED driver depending on the maximum LED strip length
The table below shows the maximum LED strip length, which can be operated with a given LED driver.
To consider best power supply performance 20% was deducted from the maximum strip length in the table below.
- CIE Colour Space
- 3 SDCM
- 12V DC
- Natural White
- 14.4 W/m
- 1380 Lm/m
- Number of LEDs per meter
- LED Strip Efficiency
- 96 lm/w
- IP00 (Non-waterproof)
- Colour Temperature (CCT)
- Colour rendering (CRI in ra)
- Width of strip
- Cutting length
- Every 3 LEDs (50mm)
- LED Strip Packing
- 5-meter roll
- Voltage Type
- Constant Voltage
- 5 Years
- LED Chip
- SMD 2835
