12V Warm White LED Strip 14.4W/m | IP54/65 | CRI80 | SMD2835
Warm White 3000k LED strip, 12V, IP54/65 (Splashproof)
60 LEDs/m | 14.4W/m | 1260 lm/m
5m roll | 8mm width (3.5mm)
IP54/65 12 Volts Commercial high-grade Warm White LED strip 3000K, 5m roll 14.4 w/m.
14.4W/m – 12V DC – 5m roll – 60 LEDs/m – IP54/65 (Splashproof) – 2-wire cable (15cm on each side of the strip roll).
Using 12V LED Strips is generally advised for smaller installations, such as in vehicles or other applications where a 12V battery is required. For home and office installations, please consider 24V LED Strips.
Excellent colour rendering index (CRI) of Ra >80.
This LED strip is powered by high quality Epistar SMD2835 LED chips which generate a brightness of 1260 lm/m.

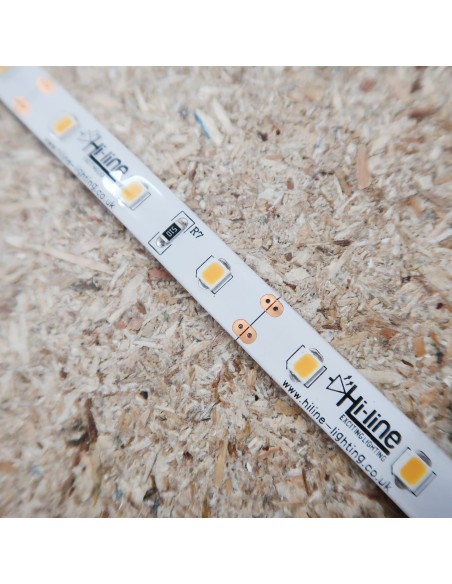

The strip can be cut every 3 LEDs (5cm). The width of the LED strip is 8mm.
Fitted with an easy to install original 3M adhesive tape with excellent adhesion.
IP54/65 Waterproof Protection (IP54/65 = Splashproof) is achieved with polyurethane and silicon, which is the most expensive and best method that can be used on LED strips. This waterproof protection is very durable and does not become "yellowish" as it happens with most LED strips within 3 months of installation. Moreover, the LED strip remains extremely flexible, very clear, soft and well-protected throughout its lifetime and can keep its IP65 rating for more than 5 years if installed using an aluminium LED profile (to run at lower temperatures). Please note that IP00 rated LED strips are recommended wherever IP54/65 rating is not required (e.g. in indoor spaces) as these are easier to handle and install.
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of LED strip are exceeded, it is suggested to connect the strip, on both ends, directly to the LED controller or driver using a 2-core cable.
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.
The LED strip comes with a 15cm wire ending on each side of the strip roll. Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters). The 2-wire cable maintains the strip's IP54/65 rating, due to being protected with heat-shrink tubing.
Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market. We advise using IP00 8mm connectors with this strip, due to its thinner protective coating.
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.
Selection of the LED driver depending on the maximum LED strip length
The table below shows the maximum LED strip length, which can be operated with a given LED driver.
To consider best power supply performance 20% was deducted from the maximum strip length in the table below.
- CIE Colour Space
- 3 SDCM
- 12V DC
- Warm White
- 14.4 W/m
- 1260 lm/m
- Number of LEDs per meter
- LED Strip Efficiency
- 88 Lm/w
- IP65 (Splashproof)
- Colour Temperature (CCT)
- Colour rendering (CRI in ra)
- Width of strip
- Height of strip
- Cutting length
- Every 3 LEDs (50mm)

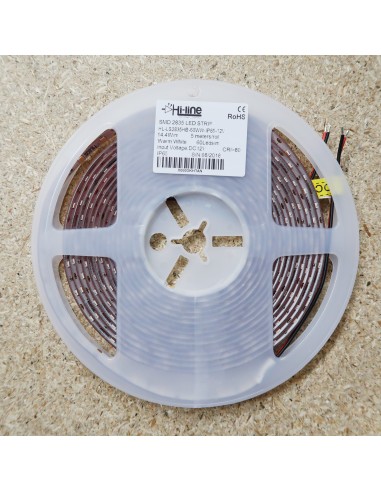

- LED Strip Packing
- 5-meter roll
- Voltage Type
- Constant Voltage
- 3 Years
- LED Chip
- SMD 2835
