IP65 3000K 24V 7.2W/m Warm White LED Strip CRI90 5m roll

HL-LS2835A-60WW3K-IP65-24V

New product

High CRI, Ra >90

3000K Warm White

24 Volts DC, 7.2W per meter

Waterproof IP65

5 meters roll (8.33mm)

3 Year Warranty

More details

23 Items

Same Day Dispatch

£ 39,50

£ 7,90 per meter

Add to wishlist

Data sheet

LED Chip SMD 2835
CIE Colour Space 3 SDCM
Voltage 24V DC
Colour Warm White
Power 7.2 W/m
Brightness 660 lm/m
Number of LEDs per meter 60
Rating IP65 (Splashproof)
Colour Temperature (CCT) 3000K
Colour rendering (CRI in ra) more than 90
Width of strip 8.5mm
Width of PCB 8mm
FCP copper content 2 ounce double layer
Cutting length Every 6 LEDs (100mm)

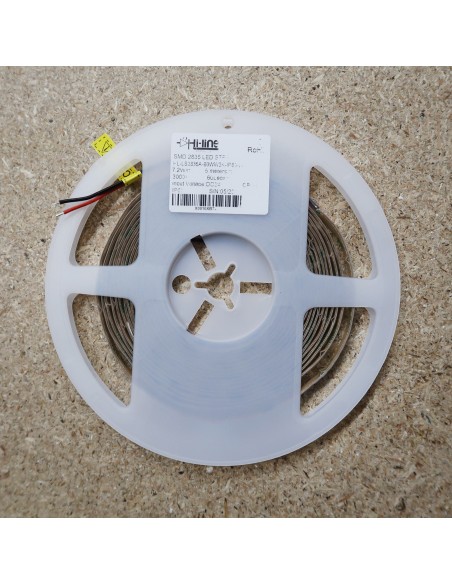

LED Strip Packing 5-meter roll
Voltage Type Constant Voltage
Warranty 3 Years
Brand Hi-Line

More info

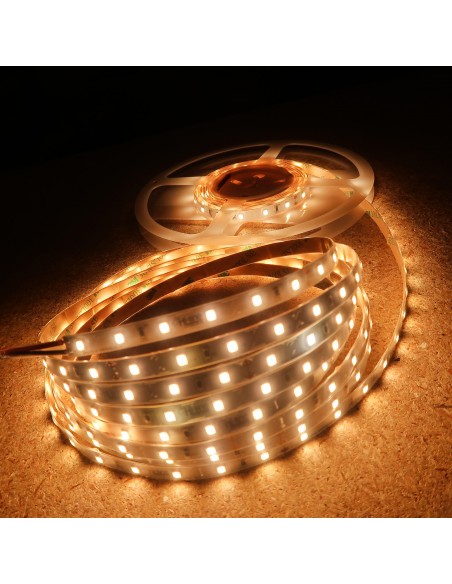

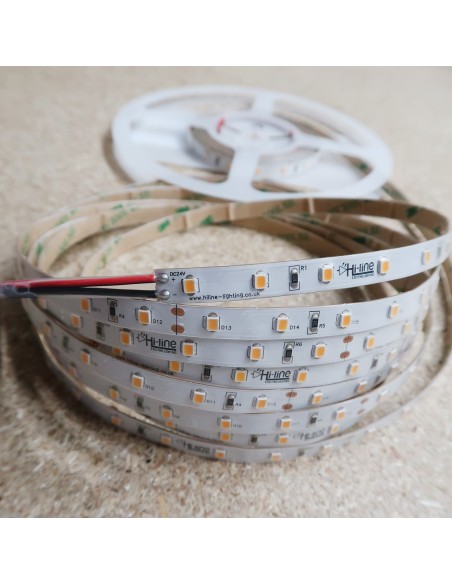

IP65 High CRI Ra >90 LED Strip Light - 60 LEDs/m - warm white - 7.2 Watt per meter - 5 meters roll

Waterproof IP65, 24 Volts constant voltage - warm white 3000K

High Bright LED Strip SMD2835 Chip, 60 LEDs/m, 7.2W per meter, 5 meters roll.

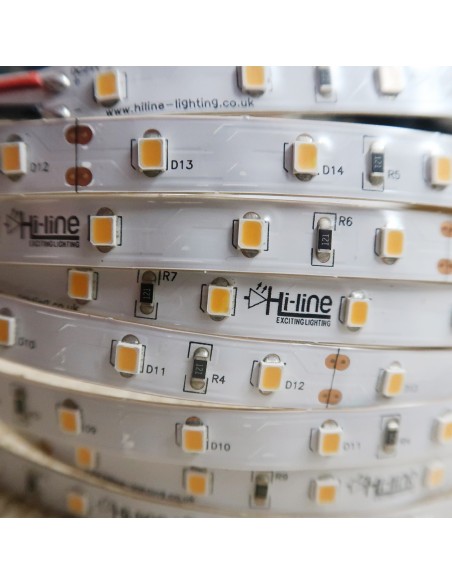

This is a high bright LED strip, powered by Epistar SMD2835 LED chips (660 lm per meter/7.2W/60 LEDs)

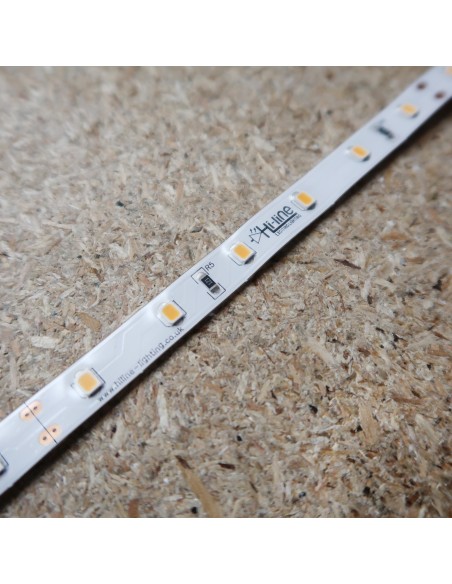

The width of this LED strip is 8.5mm, height 3mm and can be cut at every 6 LEDs (10cm)

3 Years Warranty

All our LED Strips are dimmable. Please select a suitable PWM LED dimmer/controller.

______________________________

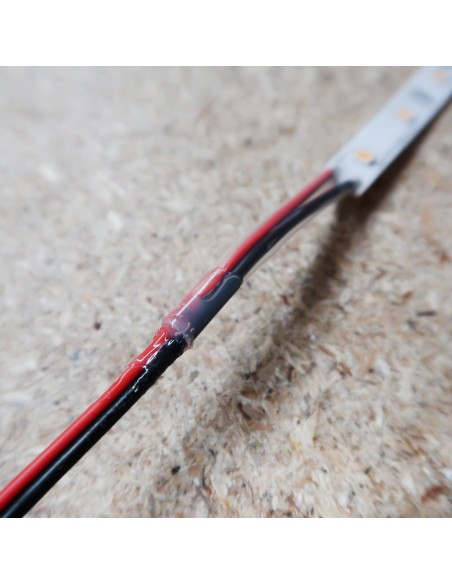

Please note that soldering is recommended for the connection of LED strips. However, if a solder free connection is preferred, Hi-Line’s solder free connectors offer the best solution currently available on the market.

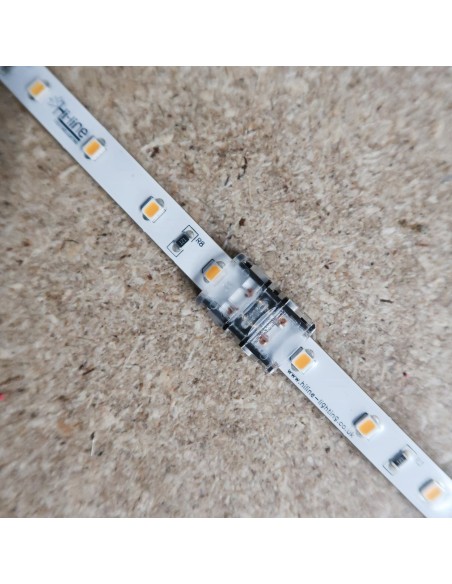

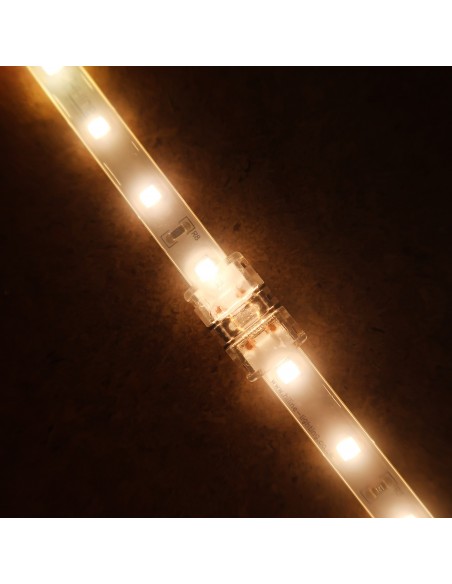

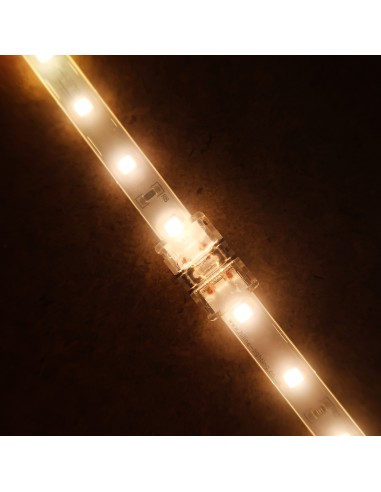

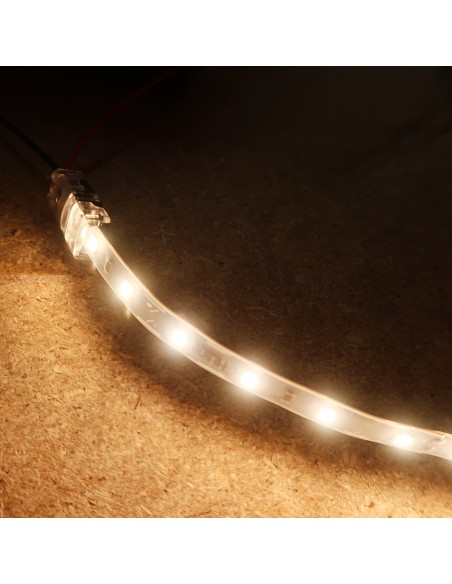

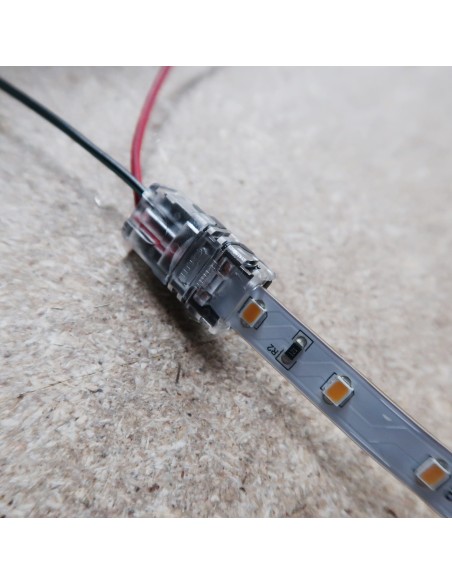

Note: IP00 8mm connectors are required for this strip. The fitting with these connectors may feel tight, but if you line up the contacts before closing the connectors, it should clamp down comfortably (please see additional photos).

______________________________

Price is for a 5 meters roll (300 LEDs), waterproof (IP65), 7.2W/m CRI Ra>90 LED strip warm white 3000K

______________________________

Selection of the LED driver depending on the maximum LED strip length

The table below shows the maximum LED strip length, which can be operated with a given LED driver.

To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% was deducted from the maximum strip length in the table below.

Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.

For more information about the installation of LED Strips, you can download below “Installation of LED Strips”.
