30m roll Pure White LED Strip 5000K - High CRI Ra>90 - 115 lm/w efficiency - 4.8 w/m
4.8 w/m – 24V DC – 20m roll – 60 LEDs/m – IP00 (Non-Waterproof) – 2-wire cable (15cm on each side of the strip roll)
This is a high efficiency single colour LED strip, it can produce high brightness at low drive currents. Therefore, it is possibly the brightest product available today with a consumption of only 4.8 Watt per meter.

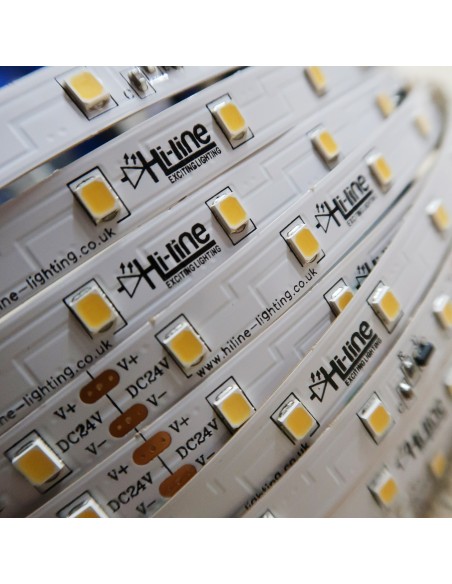

This high brightness LED strip is powered by high-quality Epistar SMD2835 LED chips, efficiency is 115 lm/w
Note: This LED strip can operate with 22V DC to 25V DC (due to ICs that keep the chip current constant). That way the voltage drop will not affect the brightness or operating life of the LED chips.
This strip must be connected to a constant voltage 24 Volts DC LED Driver.
This LED strip can also be connected to any 24V PWM controller (DMX Dimming or analogue), the same as any normal LED strip.
Excellent colour rendering index (CRI) – all LED chips reach a value of Ra >90.
The strip can be cut every 6 LEDs (10cm). The width of the LED strip is 8mm.
Fitted with an easy to install original 3M 300 LSE adhesive tape with excellent adhesion.
5-year warranty
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Up to 30m of this specific LED tape can be installed in series if power is fed from both ends (2 x 2 core wires (+/-) ).
Please do NOT connect more than 30 meters of LED strip in series without terminating both ends in parallel with an LED driver. This is in order to prevent the PCB from overloading.
Installation hints and tips for LED strips can be downloaded from the attachments tab.
The LED strip comes with a 15cm wire ending on each side of the strip roll. Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.
The stated price is for 1 x 30-meter roll LED strip (White 5000K) with 1800 SMD2835 LEDs – IP00 (Non-Waterproof), 24V DC with a power consumption of 4.8 w/m and efficiency 115 lm/w.
