56 Item Items
Same Day Dispatch
Warning: Last items in stock!
|LED Chip||SMD 2835|
|CIE Colour Space||3 SDCM|
|Number of LEDs per meter||60|
|Colour Temperature (CCT)||4000K|
|Colour rendering (CRI in ra)||80|
|Width of strip||8mm|
|Cutting length||Every 6 LEDs (100mm)|
|LED Strip Packing||5-meter roll|
|Voltage Type||Constant Voltage|
This product is also available with CRI>90, click here for details
14.4W/m – 24V DC – 5m roll – 60 LEDs/m – IP00 (Non-Waterproof) – 2-wire cable (15cm on each side of the strip roll)
This very high brightness LED strip is powered by high-quality SMD2835 LED chips which generate a brightness of 1320-1440Lm/m. Please note that 1.2 meters of this LED strip has the same or even higher brightness than a 4ft fluorescent tube.
Excellent colour rendering index (CRI) – all LED chips reach a value of Ra >80.
The strip can be cut every 6 LEDs (10cm). The width of the LED strip is 8mm.
Great for sign makers, cove lighting or any application that requires high brightness LEDs.
Note: Whenever possible, it is suggested to install this LED strip on an aluminium bar to ensure proper cooling and thus increasing the lifespan.
Fitted with an easy to install original 3M adhesive tape with excellent adhesion.
*This LED tape should be installed according to our installation instructions. For more information on installing, please see the installation manual at the bottom of the page and to learn more about the 5 year warranty on offer, please refer to the following link:
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of the LED strip is exceeded, it is suggested to connect the strip directly to the LED controller or driver using a 2-core cable.
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.
The LED strip comes with a 15cm wire ending on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.

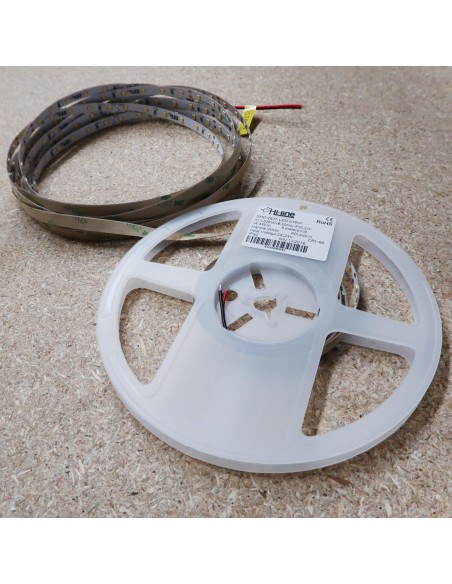

The stated price is for 1 x 5-meter roll LED strip (Natural White) with 300 SMD2835 LEDs – IP00 (Non-Waterproof), 24V DC.
The table below shows the maximum LED strip length, which can be operated with a given LED driver.
To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% was deducted from the maximum strip length in the table below.
Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.
