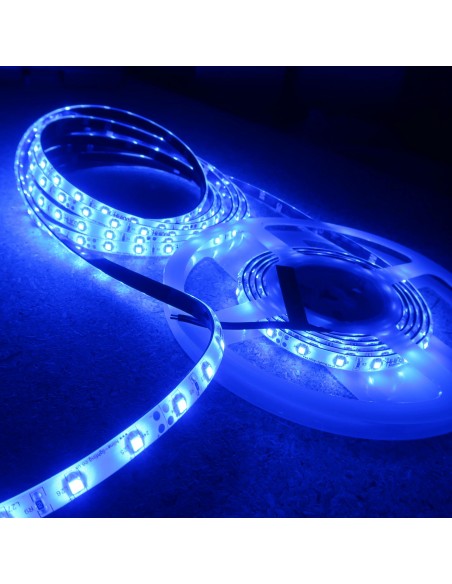

Blue LED Strip 5m roll | 24V | 4.8W/m | IP54/65 | 8mm wide | SMD3528

Key Features:

  • Colour: Blue
  • Voltage: 24V DC
  • Rating: IP54/65 (splash waterproof)
  • LEDs per meter: 60
  • Power: 4.8 Watts per Metre

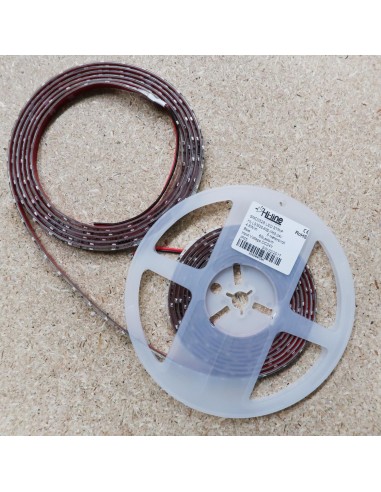

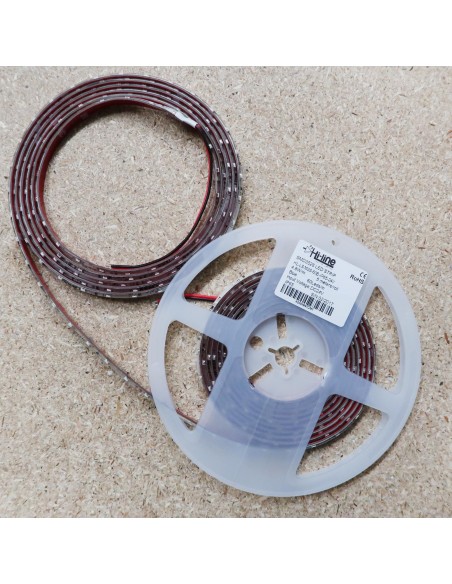

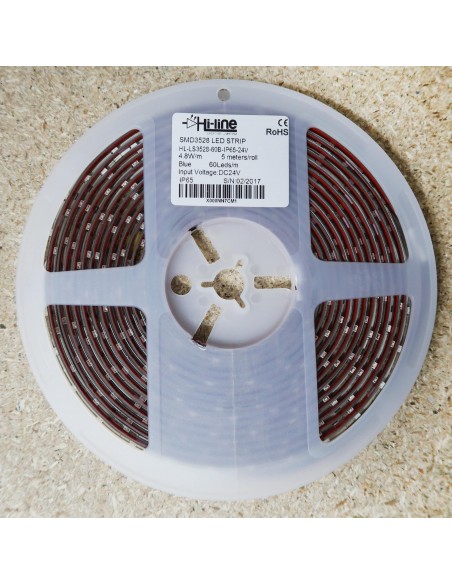

  • LED Strip Length: 5-meter roll
  • Width of strip: 8mm
  • Height of strip: 3.5mm
  • Warranty: 3 Year Warranty

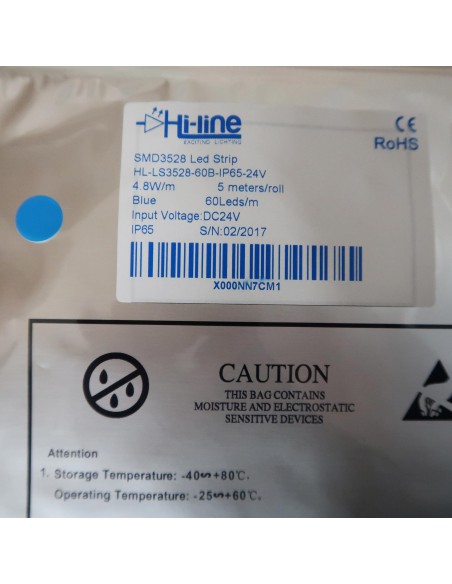

HL-LS3528-60B-IP65-24V
24 Items In stock
Next working day delivery
£30.00
36.00
with VAT)

(£6.00 meter)

VAT excluded

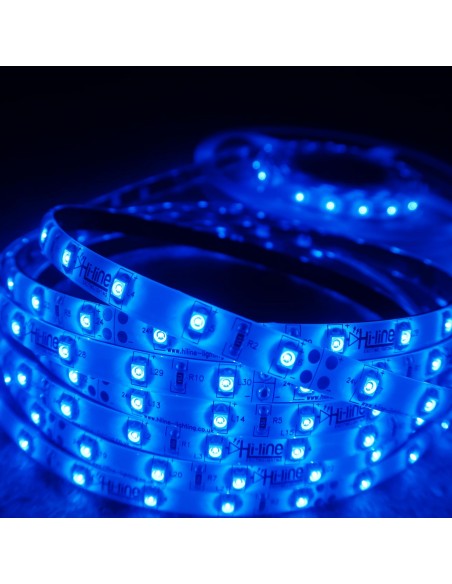

Commercial high-grade Blue LED Strip

4.8W/m – 24V DC – 5m roll – 60 LEDs/m – IP54/65 (splash-waterproof) – 2-wire cable (15cm on each side of the strip roll)

This LED strip is powered by high-quality Epistar SMD3528 LED chips

Great for cove lighting or any application that does not require high brightness.

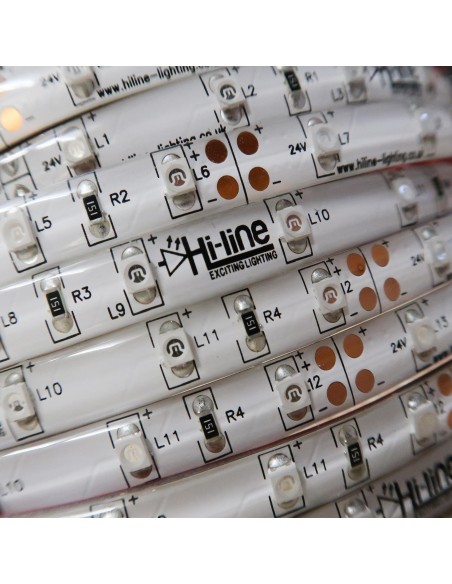

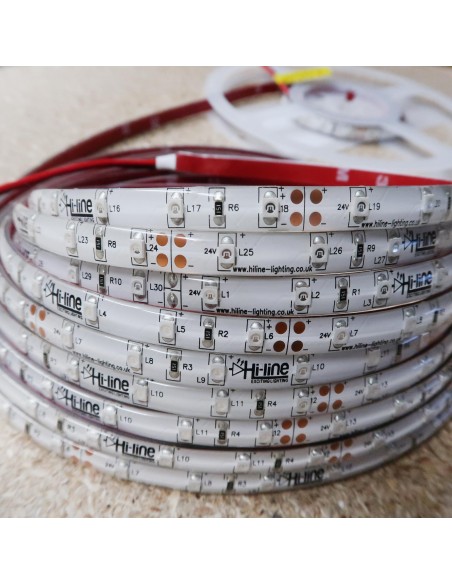

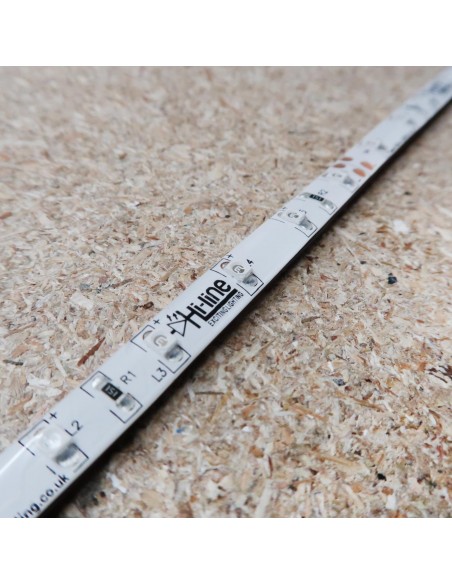

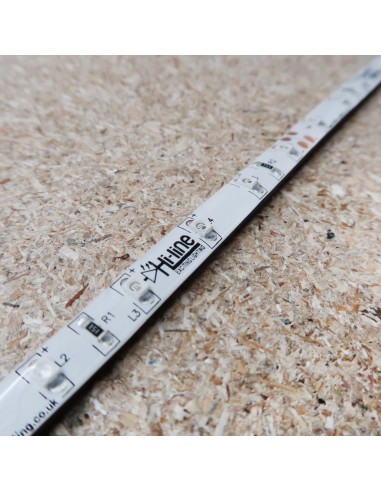

The strip can be cut every 6 LEDs (10cm). The width of the LED strip is 8mm.

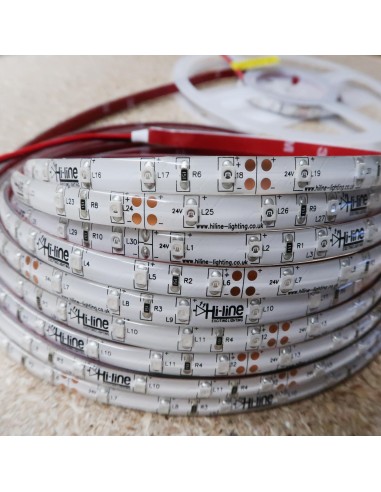

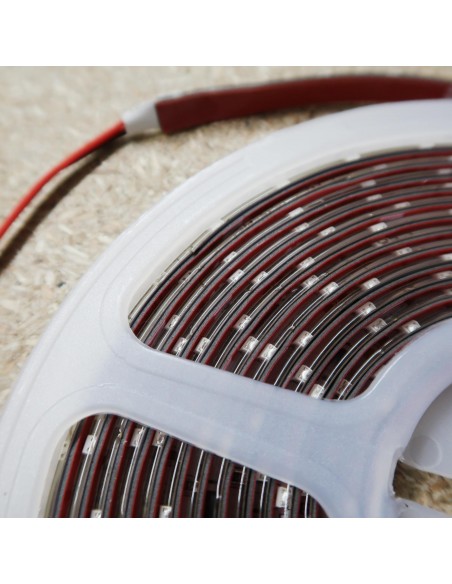

Fitted with an easy to install original 3M adhesive tape with excellent adhesion (identified by a red protective strip on the adhesive side).

IP54/65 Waterproof Protection (IP54/65 = Splashproof) is achieved with polyurethane and silicon, which is the most expensive and best method that can be used on LED strips. This waterproof protection is very durable and does not become "yellowish" as it happens with most LED strips within 3 months of installation. Moreover, the LED strip remains extremely flexible, very clear, soft and well-protected throughout its lifetime and can keep its IP65 rating for more than 5 years if installed using an aluminium LED profile (to run at lower temperatures). Please note that IP00 rated LED strips are recommended wherever IP54/65 rating is not required (e.g. in indoor spaces) as these are easier to handle and install.

3-year warranty


The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.

Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of the LED strip is exceeded, it is suggested to connect the strip directly to the LED controller using a 2-core cable.

Installation hints and tips for LED strips can be downloaded at the bottom of this web page.


The LED strip comes with a 15cm wire ending on each side of the strip roll. Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).

Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.


All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.


The stated price is for 1 x 5-meter roll LED strip (Blue) with 300 SMD3528 LEDs – IP54/65 (splash-waterproof) 24V DC


Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.

24V Driver Controller Circuit

Selection of the LED driver depending on the maximum LED strip length

The table below shows the maximum LED strip length, which can be operated with a given LED driver.

To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% was deducted from the maximum strip length in the table below.

LED Drivers and LED Strip 4.8W/m

Brand
Hi-Line
Cable length
15cm
CIE Colour Space
3 SDCM
Colour
Blue
Cutting length
Every 6 LEDs (100mm)
Height of strip
3.5mm
LEDs per meter
60
LED Chip
SMD 3528
LED Strip Length
5 metres roll
Power
4.8 Watts per Metre
IP Rating
IP65 (Splashproof)
Voltage
24V DC
Voltage Type
Constant Voltage
Warranty
3 Years
Wavelength
456nm
Width of strip
8mm
