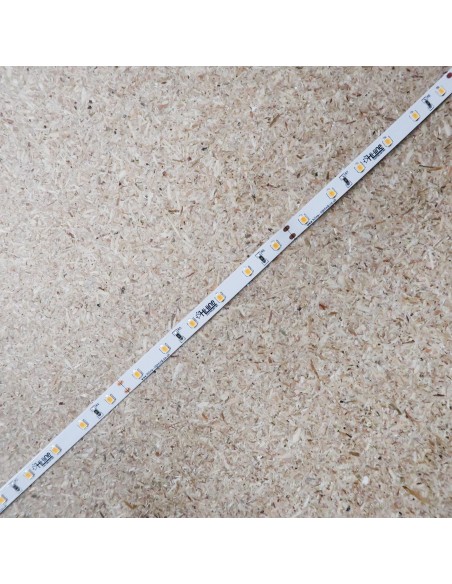

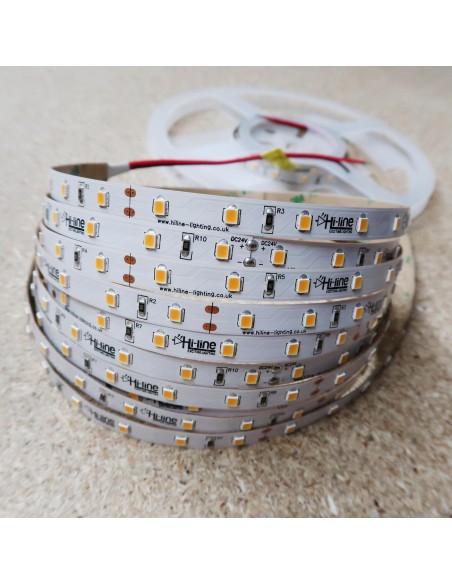

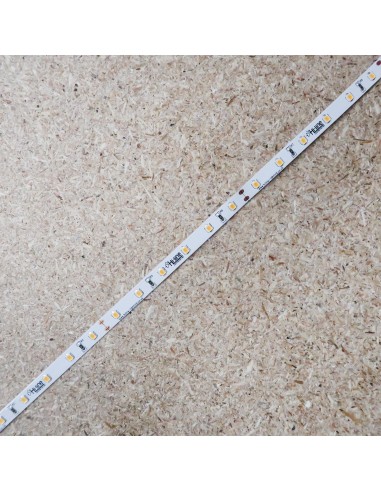

Warm White LED Strip 3000K 24V 14.4W/m IP00 CRI80 SMD2835
Warm White LED strip, 3000K, 24V, IP00 (Non-Waterproof)
60 LEDs/m | 14.4W/m | 1320-1440Lm/m
5m roll | 8mm width
Excellent CRI - Ra >80
3000K Warm White LED Strip powered by CRI>80 SMD 2835, 5m roll
14.4W/m – 24V DC – 5m roll – 60 LEDs/m – IP00 (Non-Waterproof) – 2-wire cable (15cm on each side of the strip roll)
This LED strip is powered by high-quality Epistar SMD2835 LED chips which generate a brightness of 1320-1440Lm/m.
Note: Should a lower brightness LED strip be required, please check Hi-Line's SMD2835 LED strip series.
Excellent colour rendering index (CRI) – all LED chips reach a value of Ra >80.
The strip can be cut every 6 LEDs (10cm). The width of the LED strip is 8mm.
Fitted with an easy to install original 3M adhesive tape with excellent adhesion.
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please do NOT connect more than 10 meters of a LED strip in series. A LED strip of more than 10 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 10 meters of the LED strip is exceeded, it is suggested to connect the strip directly to the LED controller or driver using a 2-core cable.
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.
The LED strip comes with a 15cm wire ending on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.
The stated price is for 1 x 5-meter roll LED strip (3000K Warm White) with 300 SM2835 LEDs – IP00 (Non-Waterproof), 24V DC.
Selection of the LED driver depending on the maximum LED strip length
The table below shows the maximum LED strip length, which can be operated with a given LED driver.
To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% were deducted from the maximum strip length in the table below.
Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.
- 1320~1440 Lm/m
- CIE Colour Space
- 3 SDCM
- Warm White
- Colour rendering (CRI in ra)
- Colour Temperature (CCT)
- Cutting length
- Every 6 LEDs (100mm)
- LEDs per meter
- LED Chip
- SMD 2835
- LED Strip Length
- 5 meter roll
- 14.4 Watts per Metre
- IP00 (Non-waterproof)
- 24V DC
- Voltage Type
- Constant Voltage
- 3 Years
- Width of strip
