Warm White LED Strip 5m Roll | 3000K | High Efficiency | 24V | 14.4W/m | IP00 | 160Lm/W

Key Features:

  • LED Strip Efficiency: 160 lm/w
  • Colour: Warm White
  • Colour Temperature (CCT): 3000K
  • Voltage: 24V DC
  • IP Rating: IP00 (Non-waterproof)
  • LEDs per meter: 96
  • Power: 14.4 Watts per Metre
  • Brightness: 2300 Lm/m
  • LED Strip Length: 5-meter roll
  • Width of strip: 10mm
  • CRI: High - Ra>80
  • Warranty: 5 Year Warranty
  • Energy Rating Energy Rating C
HL-LS2835HEB-3K96WW-IP00-24V
15 Items In stock
Next working day delivery
£40.00
48.00
with VAT)

(£8.00 meter)



High Efficiency Warm White LED Strip 3000K, Efficacy >160 Lumens per watt

Powered by high efficacy SMD2835 LED chips

Energy saving LED strip version: Will save more than 50% energy and offer much higher brightness than conventional LED strips.

14.4W/m – 24V DC – 5m roll – 96 LEDs/m – IP00 (Non-Waterproof) – 2-wire cable (15cm on each side of the strip roll)

This is a very high efficiency LED strip powered by high-quality SMD2835 LED chips which generate a brightness of 160 LM/W (equivalent to 2300 Lm/m). Please note that 1.2 meters of this LED strip has higher brightness than a 4ft fluorescent tube.

CRI – all LED chips reach a value of Ra >80.

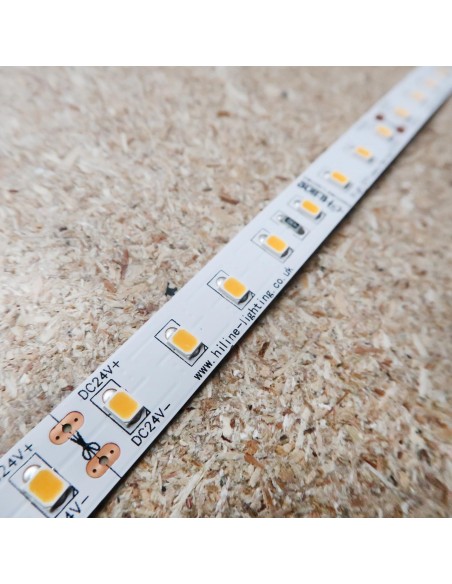

The strip can be cut every 8 LEDs (85mm). The width of the LED strip is 10mm.

Note: Whenever possible it is suggested to install this LED strip on an aluminium bar to ensure proper cooling and thus increasing the lifespan.

Fitted with an easy to install original 300 LSE 3M adhesive tape with excellent adhesion.

*5-year warranty:

*This LED tape should be installed according to our installation instructions. For more information on installing, please see the installation manual in the attachments tab. To learn more about the 5 year warranty on offer, please refer to the following link:

LED Strip Warranty Guide


The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.

Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of the LED strip is exceeded, it is suggested to connect the strip directly to the LED controller or driver using a 2-core cable.

Installation hints and tips for LED strips can be downloaded from the attachments tab.


The LED strip comes with a 15cm wire ending on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).

Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.


All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.


The stated price is for 1 x 5-meter roll LED strip (Warm White) with 480 SMD2835 high efficacy LEDs – IP00 (Non-Waterproof), 24V DC.


Selection of the LED driver depending on the maximum LED strip length

The table below shows the maximum LED strip length, which can be operated with a given LED driver.

To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% was deducted from the maximum strip length in the table below.

14.4 W/m LED Drivers and LED Strip

Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.

24V Driver Controller Circuit

Brand
Hi-Line
Brightness
2286 lm/m
CIE Colour Space
3 SDCM
Colour
Warm White
Colour rendering (CRI in ra)
80
Colour Temperature (CCT)
3000K
Cutting length
Every 8 LEDs (85mm)
Energy Rating
C
LEDs per meter
96 (SMD)
LED Chip
SMD 2835 (High Efficacy)
LED Strip Efficiency
160 lm/w
LED Strip Length
5 metres roll
Power
14.4 Watts per Metre
IP Rating
IP00 (Non-waterproof)
Voltage
24V DC
Voltage Type
Constant Voltage
Warranty
5 Years
Width of strip
10mm
