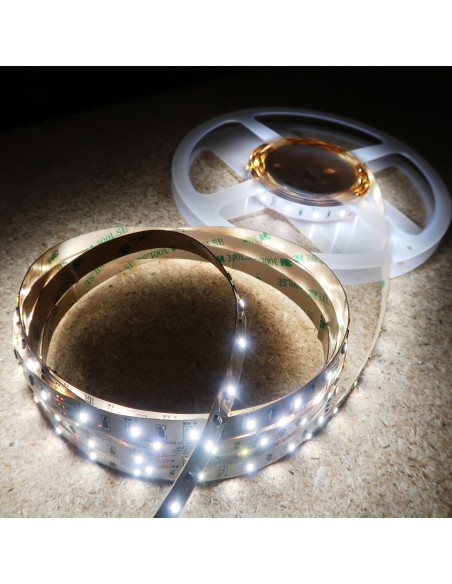

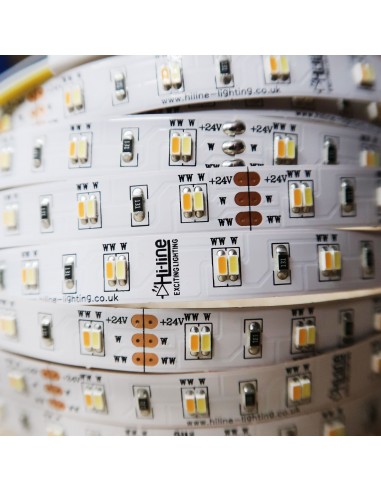

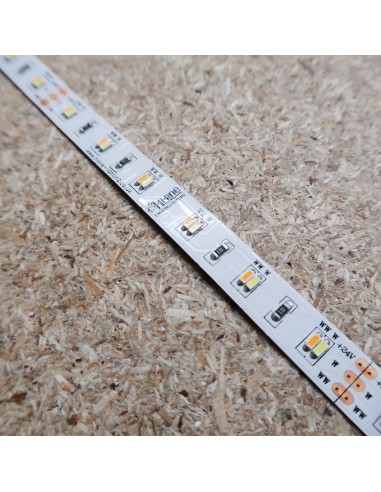

Tunable white LED strip 120 LEDs per meter 14.4W

HL-TW3014-120-IP00-24V

New product

Tunable CCT: 2700-6500K

24 Volts, 14.4W/m, IP00

120 SMD3014 per meter

More details

29 Items

Same Day Dispatch

£ 43,75 excl. VAT

£ 8,75 per meter

Add to wishlist

Data sheet

LED Chip SMD3014
Voltage 24V DC
Power 14.4 W/m
Brightness 1380 Lm/m
Number of LEDs per meter 120
LED Strip Efficiency 96 lm/w
Rating IP00 (Non-waterproof)
Colour rendering (CRI in ra) 80
Width of strip 10mm
Cutting length Every 6 LEDs (100mm)
Voltage Type Constant Voltage
Warranty 3 Years
Brand Hi-Line

More info

Dynamic white LED tape designed to high specifications for professional installations

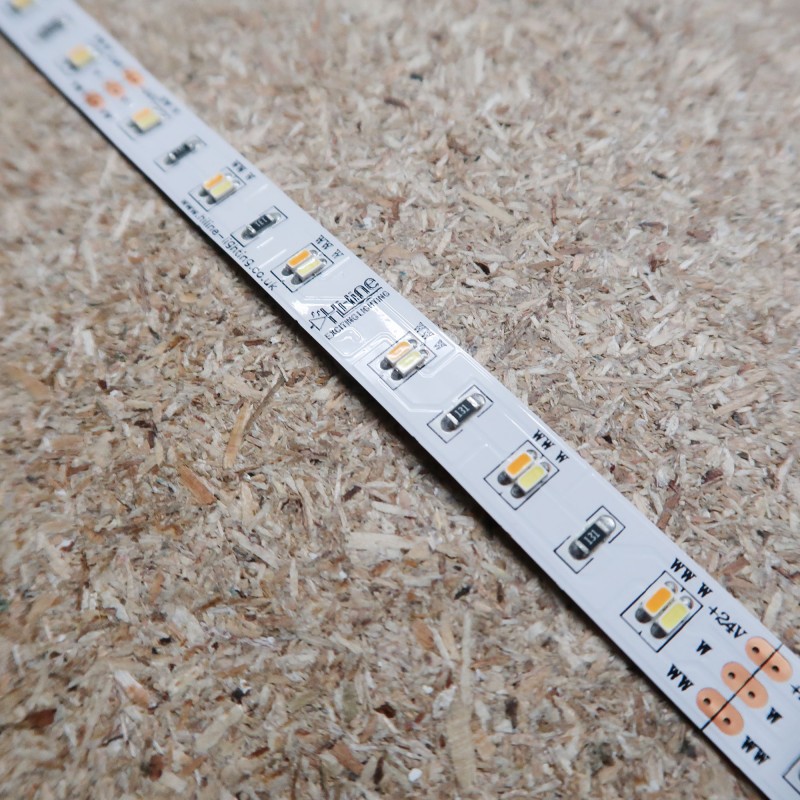

Flexible and cuttable tunable white LED strip powered by SMD3014

Adjustable colour temperature via tunable white from 2700 to 6500K

CRI Ra 80 LED chips, 120 LEDs per meter 24V 14.4W/m (60 warm and 60 cool white per meter)

Luminous flux: Up to 1380 lm/m (warm and cool white LED chips together)
Luminous flux for warm white LED chip: 11 lumens each
Luminous flux for cool white LED chip: 12 lumens each

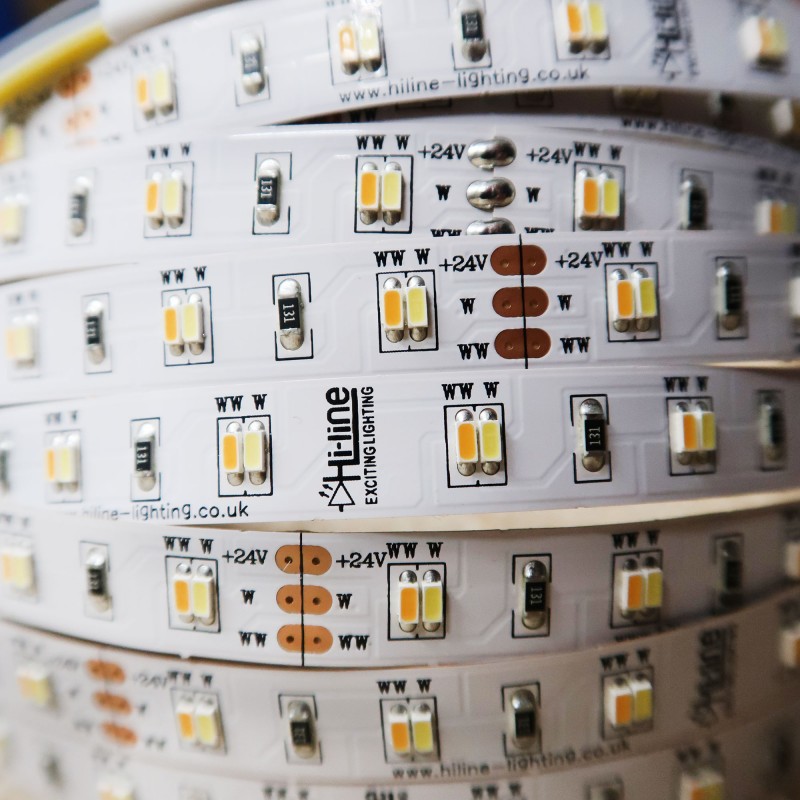

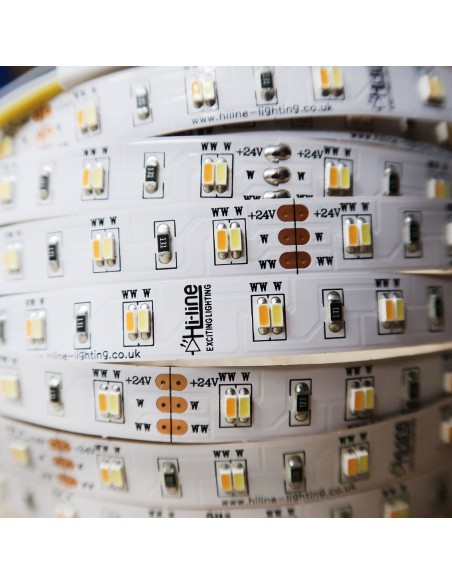

Grey = +, Yellow = Warm White, White = Cool White

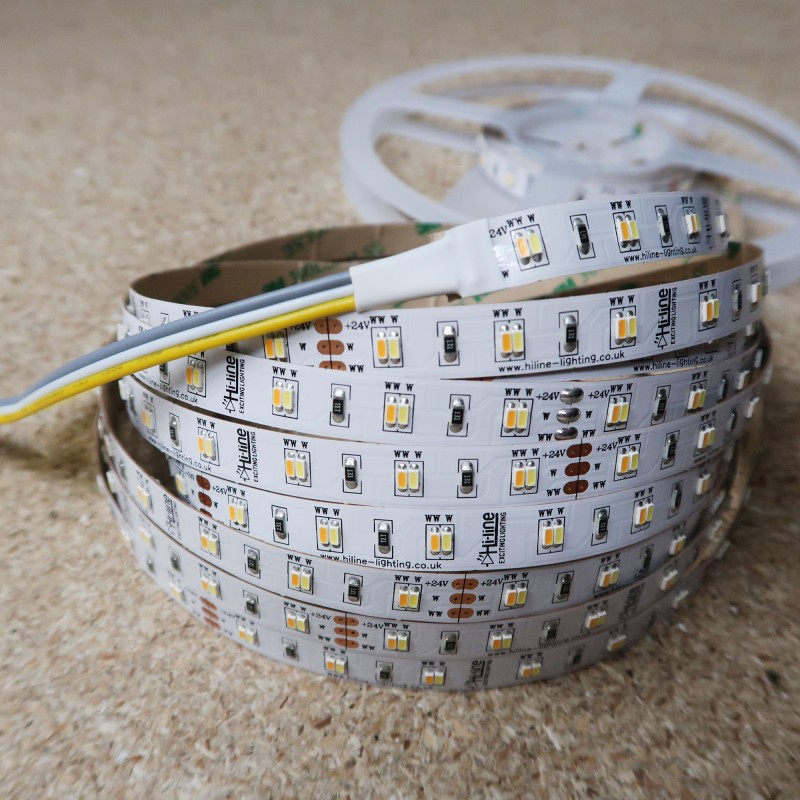

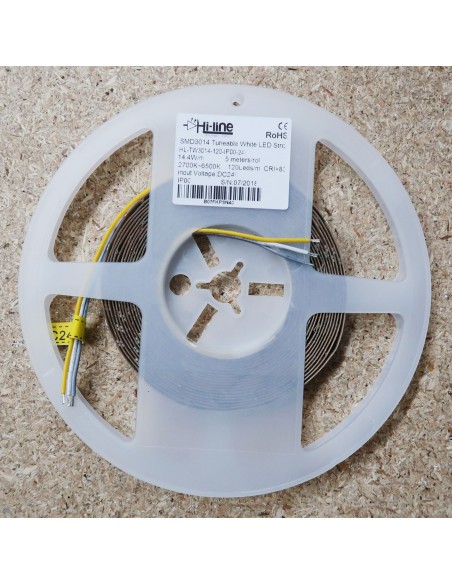

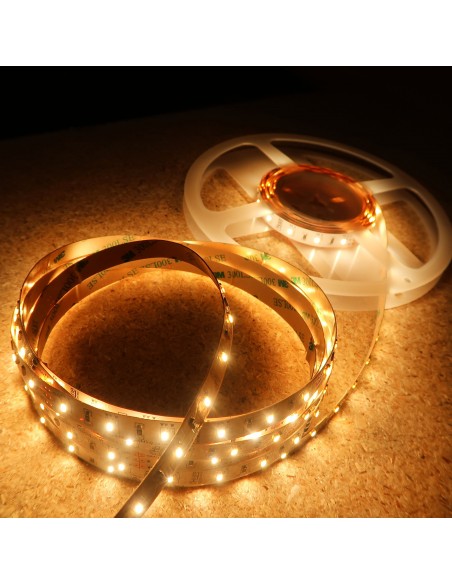

5m roll (10mm wide FPC - IP00)

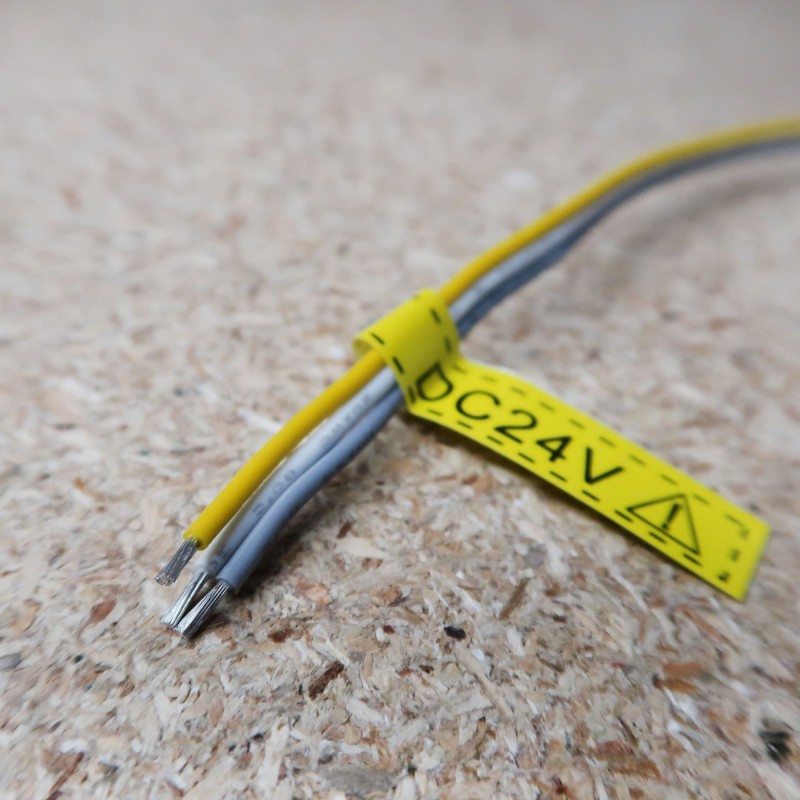

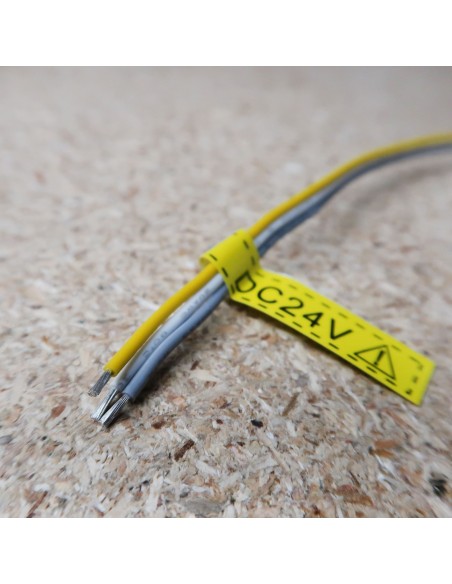

Pre-soldered wires 15cm (both ends of the 5m roll)

Cuttable every 6 LEDs (100mm)

Works with Hi-Line's 10mm Solderless Tunable Connectors

3M self-adhesive tape at the back for easy mounting

Applications: Cove lighting, office lighting, shop lighting

3 Years Warranty
