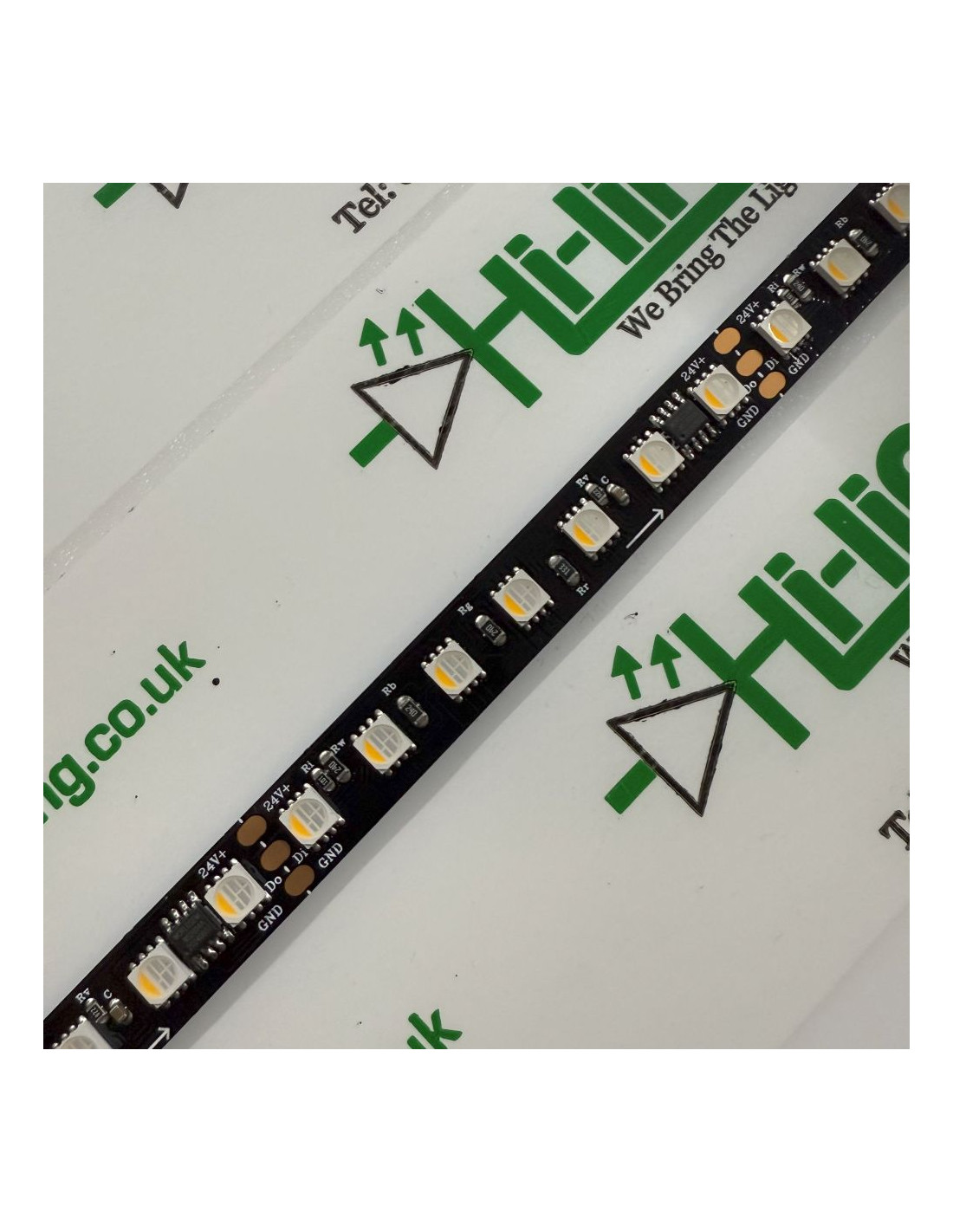

This 5m LED strip is powered by the WS2814 IC and runs at DC24V, designed as part of our Value Series. It features RGBW addressable pixels with a 4-in-1 SMD5050 chip, where the white channel is warm white. Built on a black PCB and classified as IP00 (non-waterproof), it is ideal for indoor installations or integration into aluminium profiles with covers.

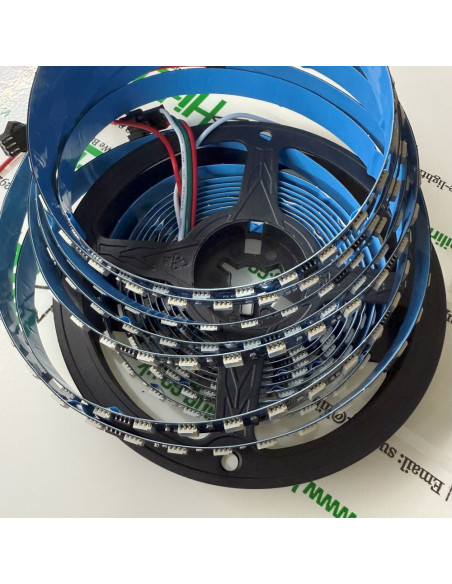

Each pixel is formed from 7 LEDs controlled by a single IC. With 84 LEDs per metre, the strip delivers 12 controllable pixels per metre, reducing the number of addresses compared to 1-LED-per-IC systems while maintaining vibrant colour mixing and smooth effects. In total, a 5m roll contains 420 LEDs and 60 ICs.
The strip uses a 3-pin SPI system (Data, +24V, GND). It requires both a 24V power supply and a dedicated addressable pixels controller. These are not included with the strip. To find compatible controllers, you can search for SPI controllers using the top search bar on our website or view the Related Products tab.
Key Technical Details
Input Voltage: DC24V

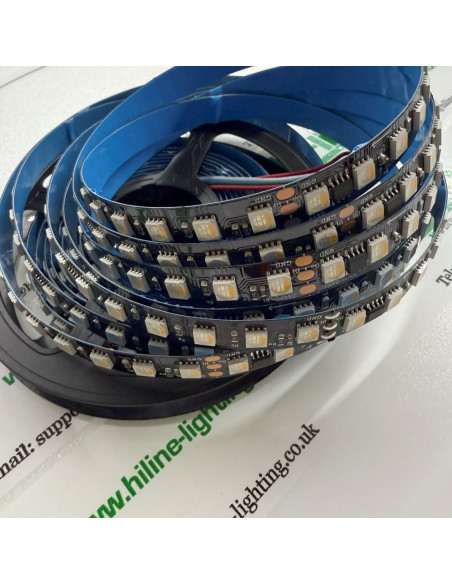

Chipset: WS2814
LED Type: SMD5050 (RGBW – Warm White)
Control: SPI, 3-pin (Data, +24V, GND)
LED Density: 84 LEDs per metre
Pixel Density: 12 pixels per metre (7 LEDs per pixel)
Beam Angle: 120°

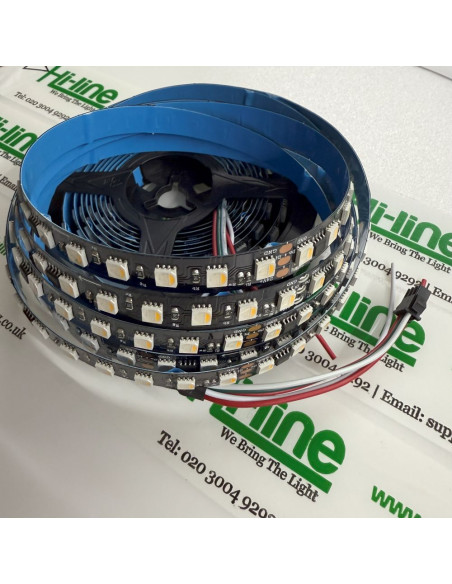

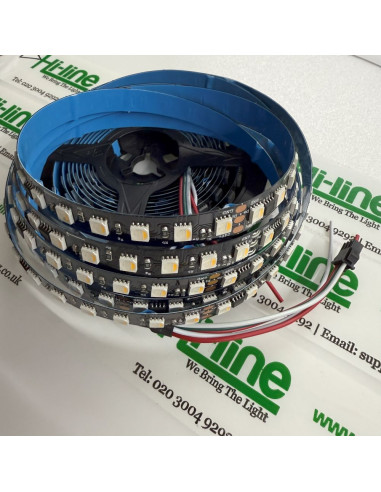

Cutting Point: Every 82.5mm (7 LEDs / 1 pixel)

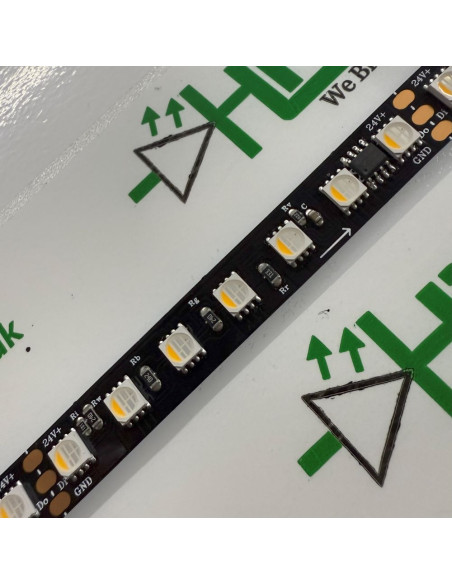

PCB: Black
Waterproof Rating: IP00 (non-waterproof)

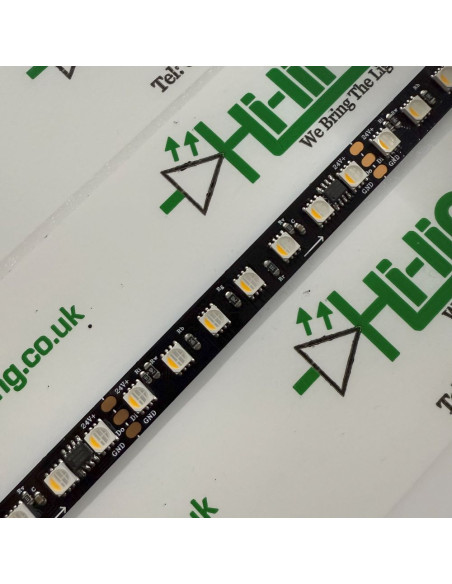

Roll Length: 5m (sold per roll, price per roll)
Important Information
The price is for the LED strip only. Power supplies and pixel controllers are sold separately.
Each roll is 5m in length and cannot be purchased in smaller units.
For stable operation, ensure correct parallel power feeding and use properly sized cabling to prevent voltage drop.
All addressable LED strip installations should be configured by a qualified installer.
Series Information
This product belongs to our Value Series – created for customers who want excellent value for money while still enjoying reliable quality and good performance. The Value Series was introduced following customer demand for more cost-effective options that are still high-spec enough for many projects, without the premium cost. It also includes Value Series COB pixel strips for customers seeking smoother, more diffused lighting effects at competitive pricing.
For demanding, high-end projects where every technical advantage is essential, we recommend our Premium Series. These include options such as 60 LEDs per metre SK6812 RGBW strip (12V, one-IC-per-LED, offering 60 pixels per metre), Premium COB pixel strips for ultra-smooth effects, and advanced SMD pixel strips with higher control resolution.
Please note that not all of our Premium Series products are labelled in the same way as Value Series. If you are unsure which is best suited for your project, our team can provide guidance and recommend the most suitable option.
