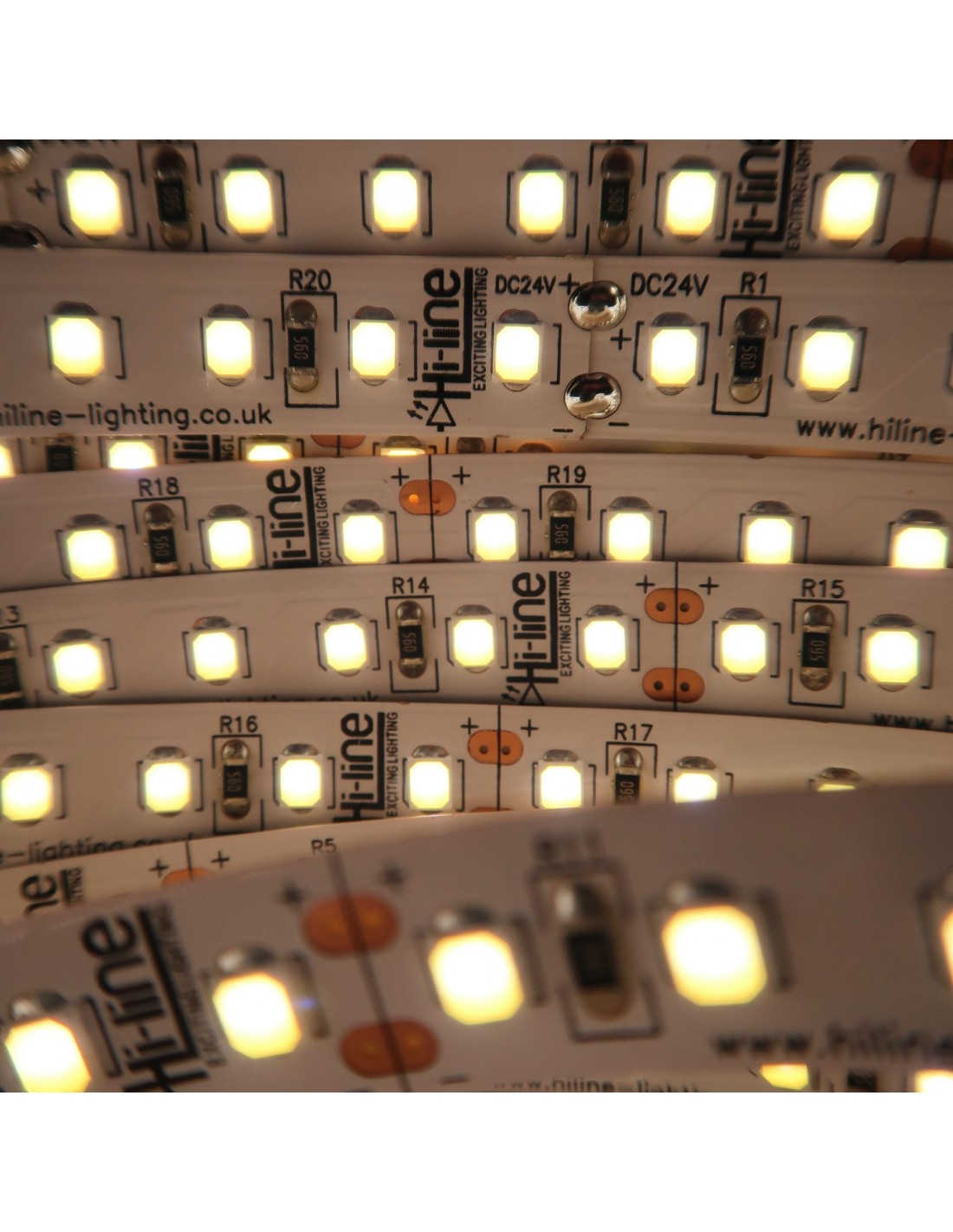

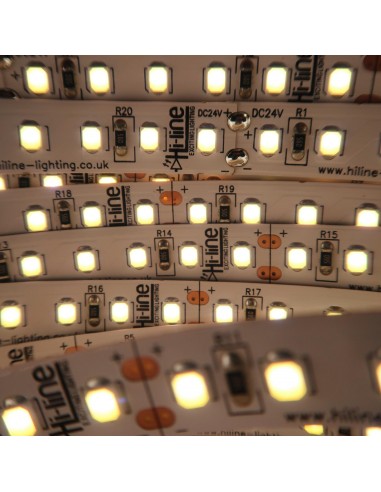

This 10-metre roll of commercial-grade LED strip delivers outstanding brightness at 2760 lumens per metre, using high-efficiency SMD2835 LED chips. With a high colour rendering index exceeding Ra 90, it offers premium light output suitable for demanding applications.
While COB strips such as our 528 LEDs/m variant offer a dotless effect, they are still not on par with this strip's luminous output. As of today, no COB solution matches the brightness and clarity of this high-power SMD product.
This strip operates at 28.8 watts per metre. For that reason, the maximum supported length when powered from one end is 5 metres. Even for 5 metre installations, it is strongly recommended to power both ends in parallel to minimise voltage drop and ensure even brightness across the entire length.
The 10m version is provided for installer convenience. It allows for flexible cutting and layout design without limiting you to 5m rolls. However, it must not be installed as a single 10 metre run powered from one end only. This would overload the internal PCB and cause serious voltage drop.
If a full 10 metre continuous installation is desired, the following advanced wiring method is required. Power must be fed from both ends of the strip in parallel. Additionally, a third power injection should be made at the midpoint. These three feeds must all return to a junction box and connect to the LED driver, controller, or PSU. This ensures stable voltage across the full length and avoids brightness falloff or thermal damage.

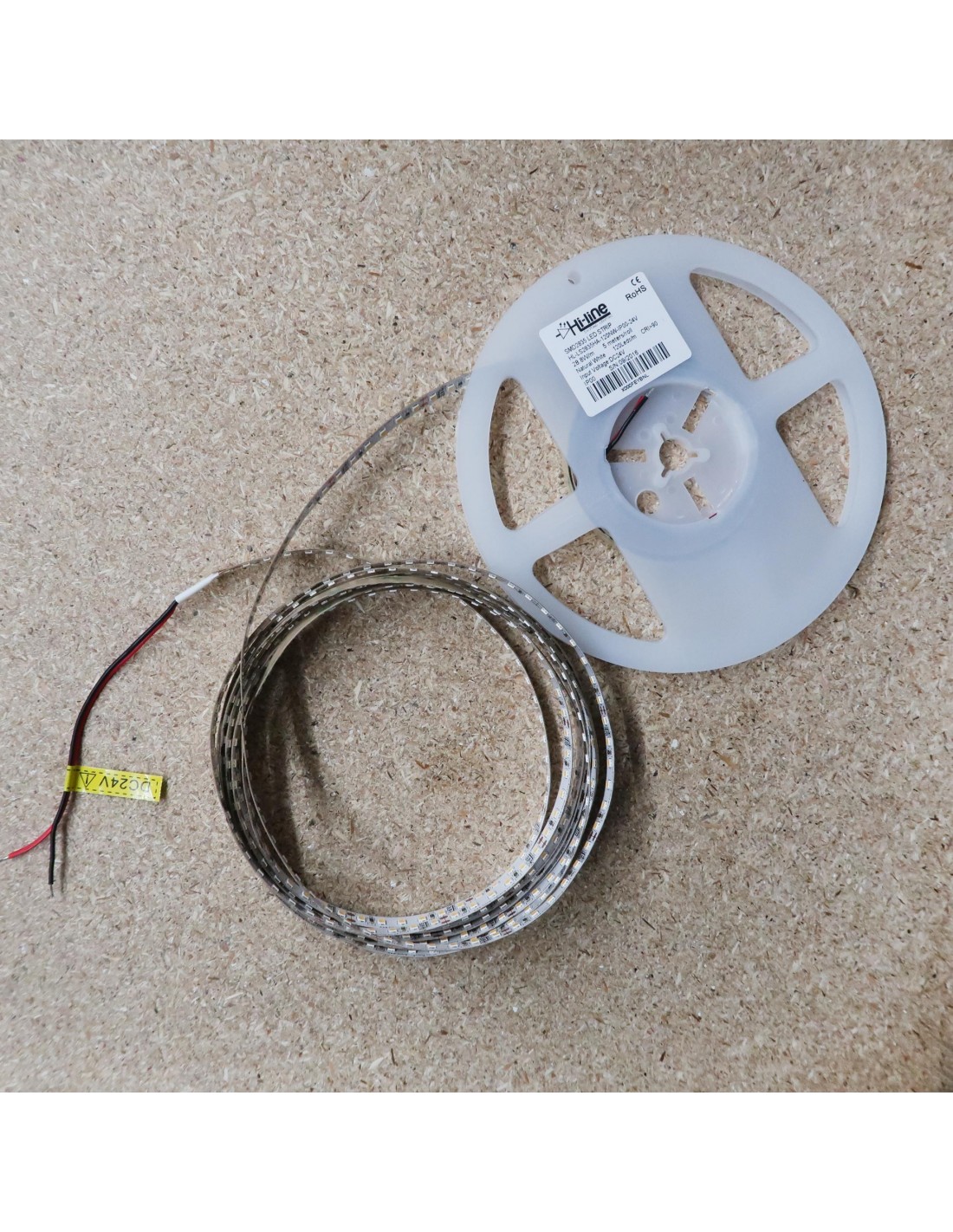

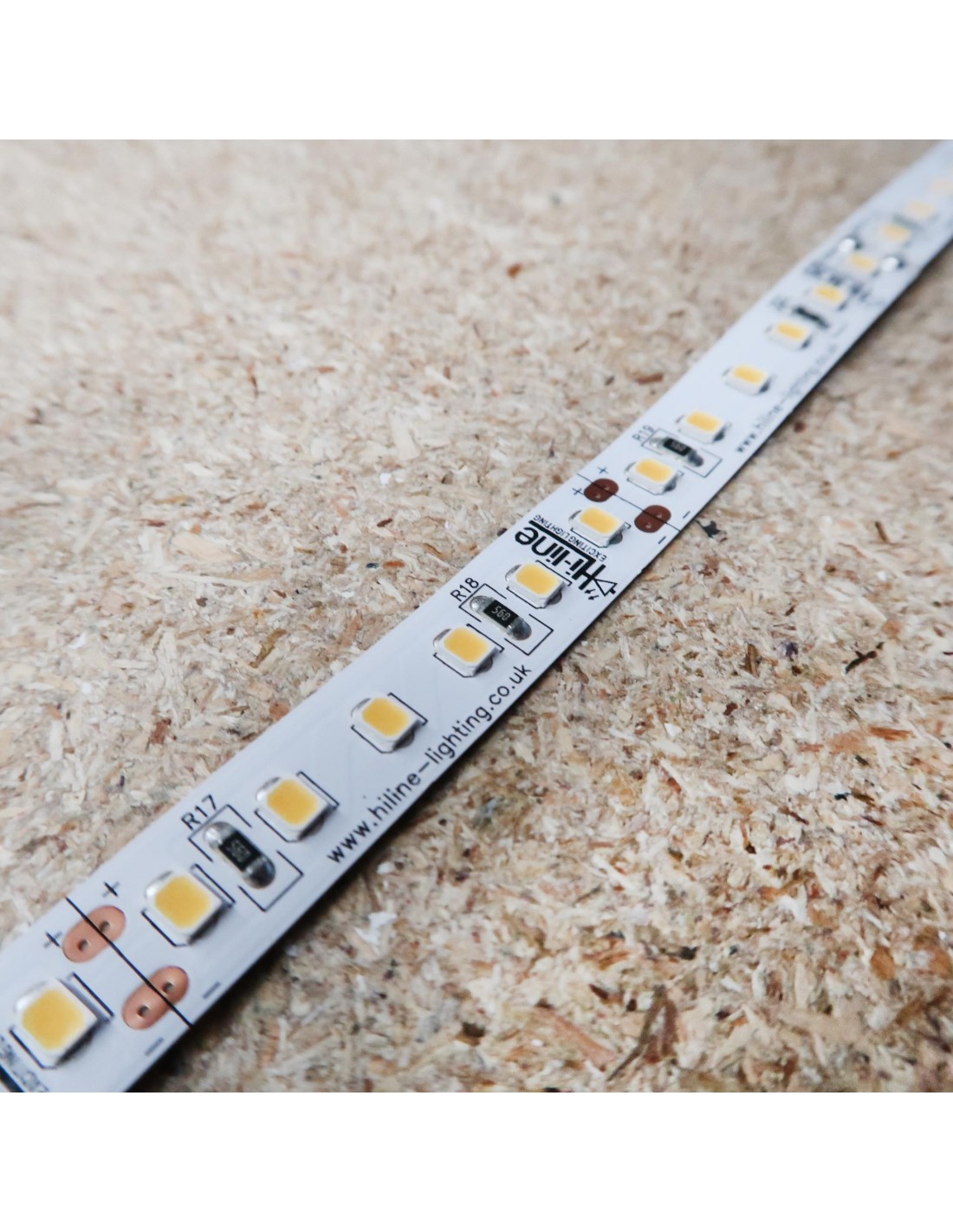

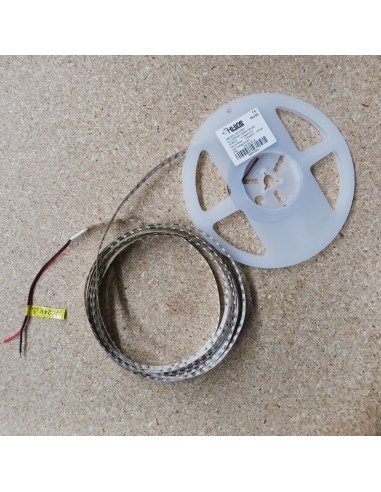

Each 10m strip is 10mm wide and can be cut every 5cm, with 6 LEDs between each cut point. The roll comes with 15cm of pre-soldered 2-core cable at both ends, allowing you to split the roll (for example into a 6m and 4m section) without needing to solder new tails.
Installation onto an aluminium profile or bar is essential. High-powered LED chips such as these generate significant heat. Using an aluminium mounting surface helps dissipate that heat and significantly extends the LED lifespan. Installers must assess ambient conditions and airflow to ensure safe thermal performance.
This strip is fully dimmable using a compatible PWM LED controller. It can be connected to non-dimmable drivers when used with such a controller, as dimming is handled by PWM regulation, not by the driver itself.
We recommend soldering for secure electrical connections, but high-quality solder-free connectors are also supported and available under the Related Products tab.
To select the correct driver size, calculate the total required power and allow a 20 percent safety margin. For example, 5 metres of this strip will require at least 180W, and a full 10 metre run with correct wiring should be paired with a 300W or 400W power supply. For shorter lengths, please refer to the table in the Attachments tab.
This product includes a 5-year warranty when installed according to our guidelines. Refer to the warranty link and download the LED strip installation tips from the Attachments section on this page.
Technical Specifications:
Input Voltage: 24V DC
Power Consumption: 28.8W per metre
LED Type: SMD2835
LED Density: 120 LEDs per metre
Strip Length: 10 metres
Colour Temperature: 4000K (Natural White)
Brightness: 2760Lm per metre
CRI: >90
Cut Points: Every 6 LEDs (5cm)
IP Rating: IP00 (Non-Waterproof)
Width: 10mm
Connections: 2-core cable, 15cm at both ends
Dimmable: Yes, via compatible PWM controller
Series Information: Premium Series
Warranty: 5 Years
