Extra Warm White LED Strip 24V | 14.4W/m | IP54/65 Nano | CRI90 | SMD2835
Extra Warm White LED strip, 2400K, 24V, IP54/65 (Nano-Waterproof)
60 LEDs/m | 14.4W/m | 1320~1440Lm/m
5m roll | 8mm width
High CRI - Ra>90
3 year warranty
This product has been superseded by HL-LS2835HA-60EWW-NPU-24V

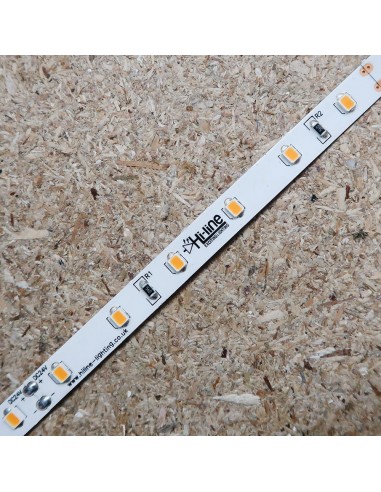

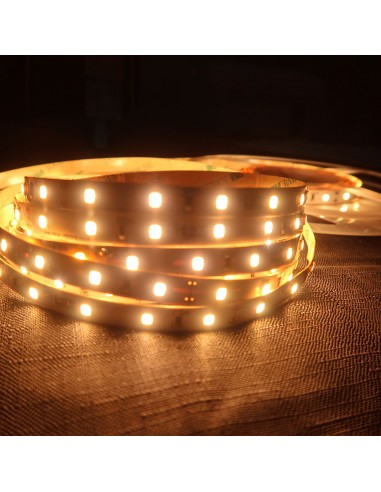

Commercial high grade ultra bright Extra Warm White LED strip CCT: 2200-2400K
14.4W/m – 24V DC – 5m roll – 60 LEDs/m – IP65 (Nano-Waterproof) – 2-wire cable (15cm on each side of the strip roll)
This is an ultra high brightness LED strip powered by high quality Epistar SMD2835 LED chips which generate a brightness of 1320~1440Lm/m.
Excellent colour rendering index (CRI) – all LED chips reach a value of Ra >90.
The strip can be cut every 6 LEDs (10cm). The width of the LED strip is 8mm and hight 3mm.
IP54/65 Nano Waterproof Protection is a relatively new technology whereby a very thin protective coating is applied to the LED strip. This type of LED strip can be easily cut and soldered. However, we do not recommend using it in installations that have limited air circulation (e.g. signs, light boxes or similar) as it is sensitive to high temperatures and failure rates will be higher than expected due to overheating.
Fitted with an easy to install original 3M adhesive tape.
3 year warranty
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of LED strip are exceeded, it is suggested to connect the strip directly to the LED controller using a 5-core cable.
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.
The LED strip comes with a 15cm wire ending on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.
The stated price is for 1 x 5-meter roll LED strip (Extra Warm White) with 300 SMD2835 LEDs – IP54/65 (Nano-Waterproof), 24V DC.
Selection of the LED driver depending on the maximum LED strip length
The table below shows the maximum LED strip length, which can be operated with a given LED driver.
To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% were deducted from the maximum strip length in the table below.
Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.
- CIE Colour Space
- 3 SDCM
- 24V DC
- Extra Warm White
- 14.4 W/m
- 1320~1440 Lm/m
- Number of LEDs per meter
- IP65 (Splashproof)
- Colour Temperature (CCT)
- Colour rendering (CRI in ra)
- more than 90
- Width of strip
- Cutting length
- Every 6 LEDs (100mm)
- LED Strip Packing
- 5-meter roll
- Voltage Type
- Constant Voltage
- 3 Years
- LED Chip
- SMD 2835
