Dimmable IP20 LED Driver 100W 24V Hybrid Series (Triac or 0/1-10V)

Hybrid Dimmable LED Driver IP20

Works with Triac dimmer switches, 0-10V or potentiometer

24V DC Output

100 Watt / 4.16A

Warranty: 3 Years

HL-10VT100W-24V-IP20
160 Items In stock
Same Day Dispatch
£35.00
VAT excluded



IP20 non waterproof Hybrid dimmable 100 Watt 24V LED driver operates perfectly with leading edge phase cut dimmers (referred also as Triac dimmers) and can be used to dimming 24 Volts LED strips, controlled by standard wall dimmer switch powered by 240V AC or 0/1-10 Volts dimming systems.

It can operate with load ranging from 5% to 100% and the dimming range will be from less then 3% to 100%.

Note: This is an economy series driver. If you prefer lower in-rush current and higher power factor products, then consider our premium series drivers instead. Installers should be aware of in-rush current and the type of MCB required in such cases.

To learn more about In-rush current, visit out support page HERE

______________________________

It is suggested to load this driver with at least 5 Watt (maximum 100W) and use standard leading edge (Triac) dimmer with wattage that can handle LED strip load requirements.

______________________________

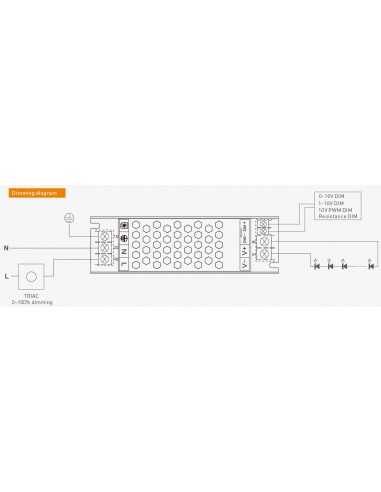

This dimmable driver can only operate with leading edge wall dimmer switches, 0/1-10V dimming systems or potentiometer.

The hybrid models work perfectly with any leading-edge dimmers.

If you have a dimmer switch in mind and are unsure about compatibility, please email us for assistance.

We also tested this dimmable driver with Lutron smart home products and it is compatible.



Input Voltage: 170~264V AC – (Dimmable)

Output Voltage: 24V DC (100W)

Loading range: 5% to 100%.

Dimming range: 3% to 100%.

Efficiency: >92%

IP Rating: IP20

Dimensions: (LxWxH): 161x50x30mm

Weight: 250g

3 Years Warranty

______________________________

IMPORTANT NOTICE!

This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.

Voltage
24V DC
Mains Dimming
Leading Edge Dimmers
Power
100 W
Rating
IP20 (Non-waterproof)
Type
Hybrid Dimmable (Mains or 0/1-10V)
Voltage Type
Constant Voltage
Warranty
3 Years
Brand
Hi-Line
