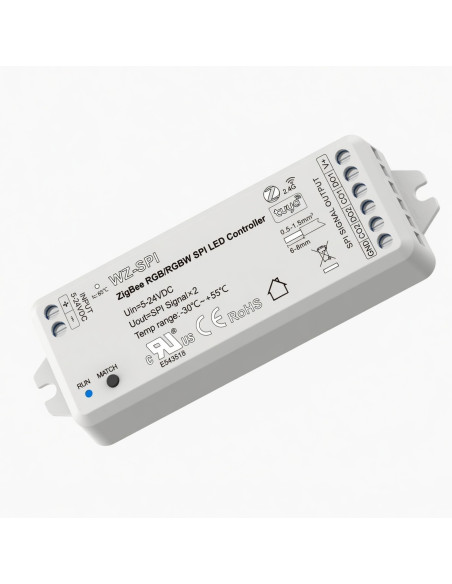

HL-WZ-SPI ZigBee RF SPI Pixel Controller 5-24V Front

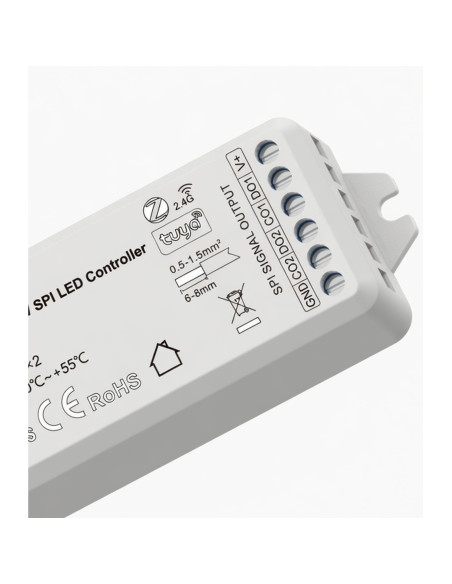

HL-WZ-SPI Dual SPI Terminals GND CLK DATA V+ Close Up
  • New
HL-WZ-SPI ZigBee RF SPI Pixel Controller 5-24V Front
HL-WZ-SPI Dual SPI Terminals GND CLK DATA V+ Close Up

WZ-SPI ZigBee RF SPI Pixel Controller 5-24V

HL-WZ-SPI is a 5–24 V SPI pixel controller for addressable RGB and RGBW tape. ZigBee app control through a Tuya ZigBee gateway, optional 2.4 GHz RF remotes, two SPI outputs, up to 1000 pixels. Not the WiFi HL-WT-SPI, and not a PWM RGBW dimmer.

HL-WZ-SPI

Need more than we have in stock?

We have 6 in stock, ready to dispatch. If you need more, increase the quantity and add it to the basket. Extra units go on back order: we will use incoming stock if any is still free, otherwise delivery is typically 30–45 days.
6 Items In stock
Next working day delivery
£35.00
(£
42.00
with VAT)
VAT excluded

Tags:


HL-WZ-SPI — ZigBee + RF SPI pixel controller, 5–24 V

Use this when the tape is addressable (pixel) RGB or RGBW with a data line (and clock if the chip needs it), not ordinary analogue RGBW. Two SPI outputs, 5–24 V, up to 1000 pixels. Control is ZigBee through a Tuya ZigBee gateway and the Tuya / Smart Life app, with Alexa and Google Assistant if the gateway is set up. Optional 2.4 GHz RGB remotes (for example R9) after you match them.

It is the ZigBee sister of HL-WT-SPI (that one is WiFi). It is not a 5-in-1 PWM controller for non-pixel tape.

Why installers buy it

  • Chip type and colour order are set in the app (WS2811 / WS2812 family and many others — the PDF lists about 49 types).
  • Two SPI ports so two runs can share the same show. 8 A class input, IP20, about 114 × 38 × 20 mm.
  • Scenes, segment painting and music modes live in the app. RF remotes are optional, not required.

What you are wiring

  • Power in + / −, 5–24 V DC, same voltage as the pixel tape
  • SPI: V+, GND, DATA, CLK (leave CLK unused on two-wire chips such as WS2812)
  • Match key for RF remotes and ZigBee join

The user manual PDF is on the Attachments tab (factory pages, Hi-Line website on each page). Open Related products for the WiFi sister and typical pixel tape.

Technical summary

  • SKU: HL-WZ-SPI
  • 5–24 V DC, two SPI (TTL) outputs, max 1000 pixels, 8 A class
  • ZigBee + RF 2.4 GHz, Tuya ZigBee gateway required for app and voice
  • IP20, about 114 × 38 × 20 mm, 66 g
  • Warranty: 5 years

Must be installed by a qualified electrician. Confirm strip voltage and chip type before first power-up. Indoor, dry location only.

Brand
Hi-Line
IP Rating
IP20 (Non-waterproof)
Type
Addressable/SPI/Pixel
Voltage
5-24V DC
Type of control
ZigBee
Warranty
5 Years
Operating Frequency (RF)
2.4GHz
Controller Type
Hybrid Zigbee
