LED wall washer RGBW - DMX512 - IP65 - 24V - 20W - Surface mount

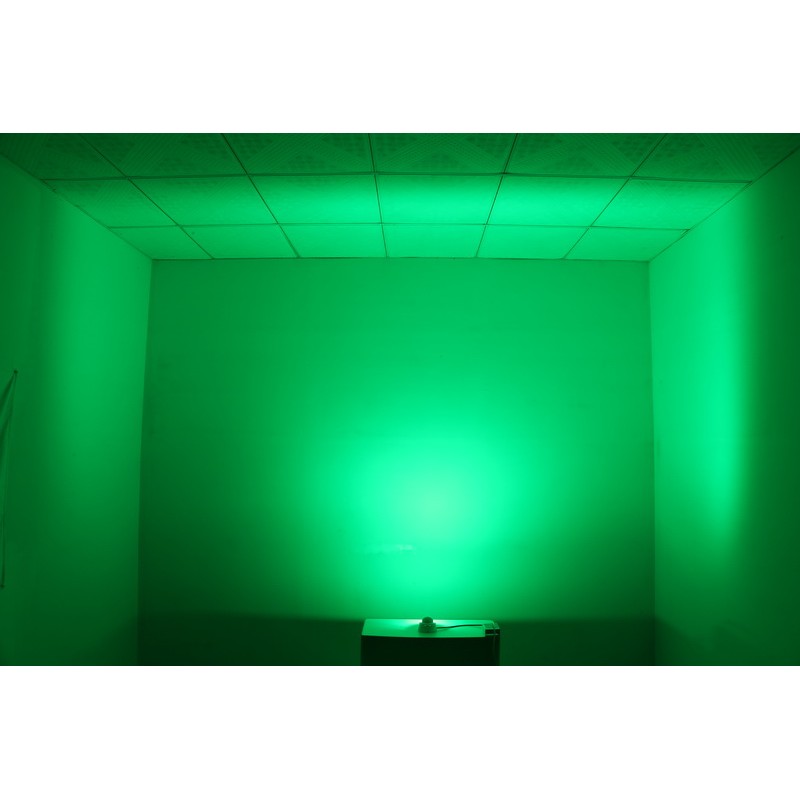

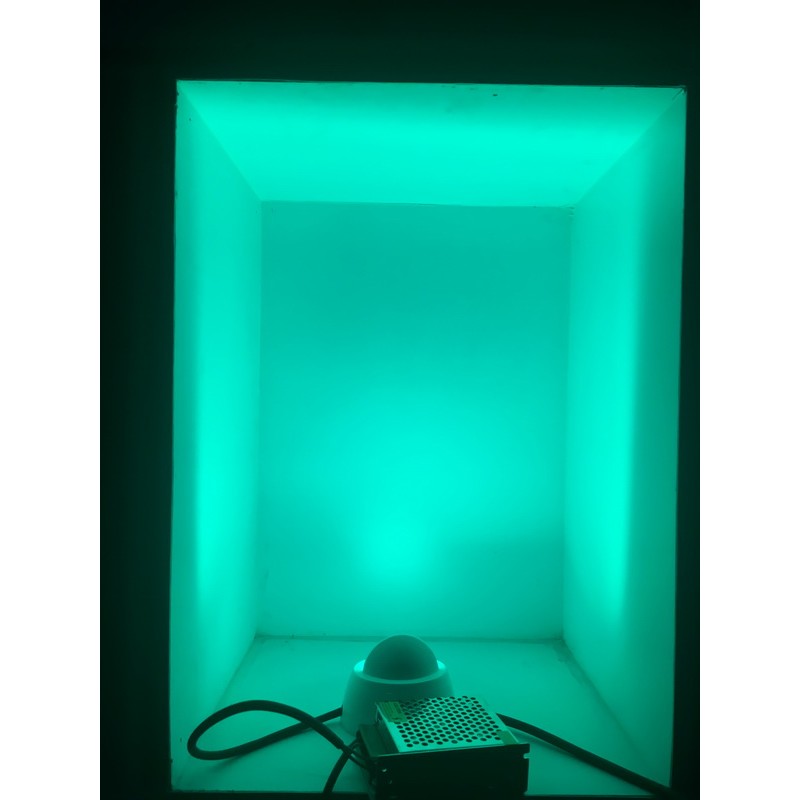

Mini wash LED effect light powered by Epistar RGBW LED chips,  comes with built-in DMX512 decoder and an amazing range of optics that allow you to wash surfaces or objects in any colour combination in ways that have not been possible before.

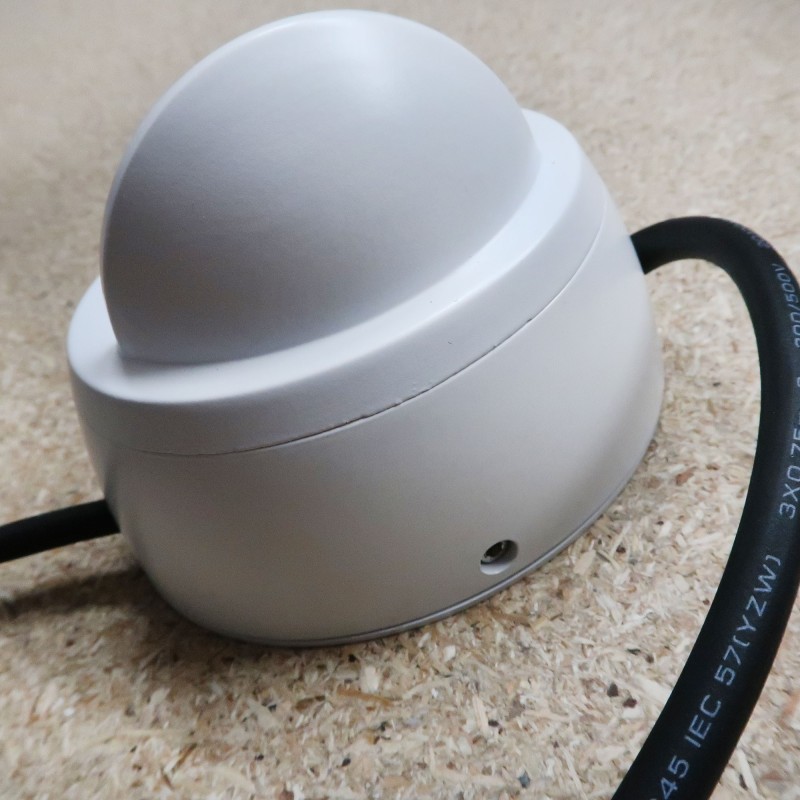

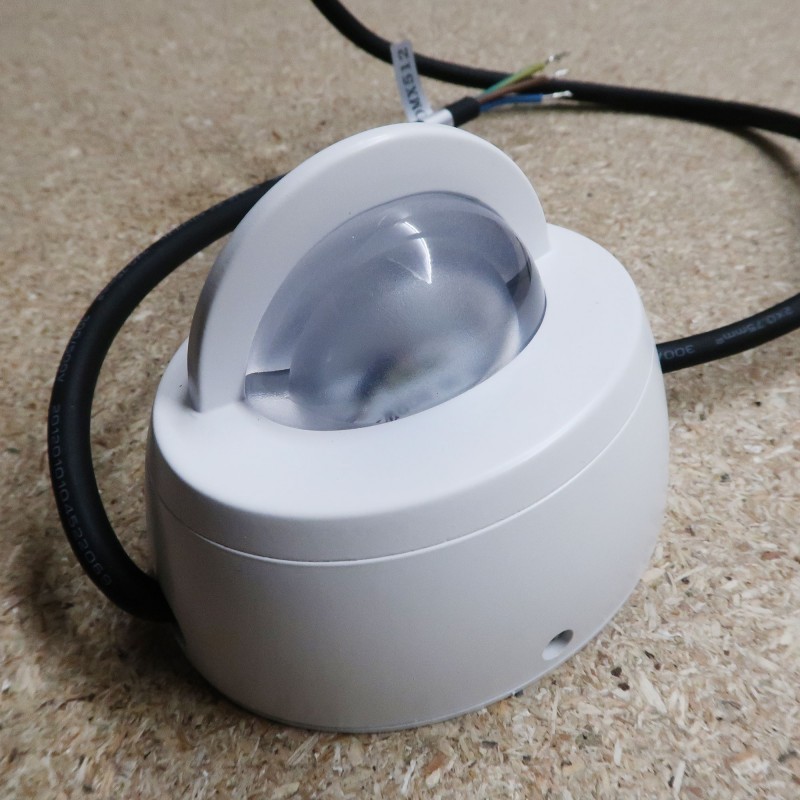

This version is for surface mount installation and is great for wall RGBW wash effects (asymmetrical optics 100*20°).
You may also find the recessed version of this model on our website.

If colour changing is not required or you would like to customize this product, please contact our support team for more details. We will be happy to customize this product to meet your project requirements.

Product Specification

Input Voltage: 24 Volts DC
Control protocol: DMX 512
LED chips: Epistar RGBW LED chips (SMD3535)
CCT for white colour (W): 6000K

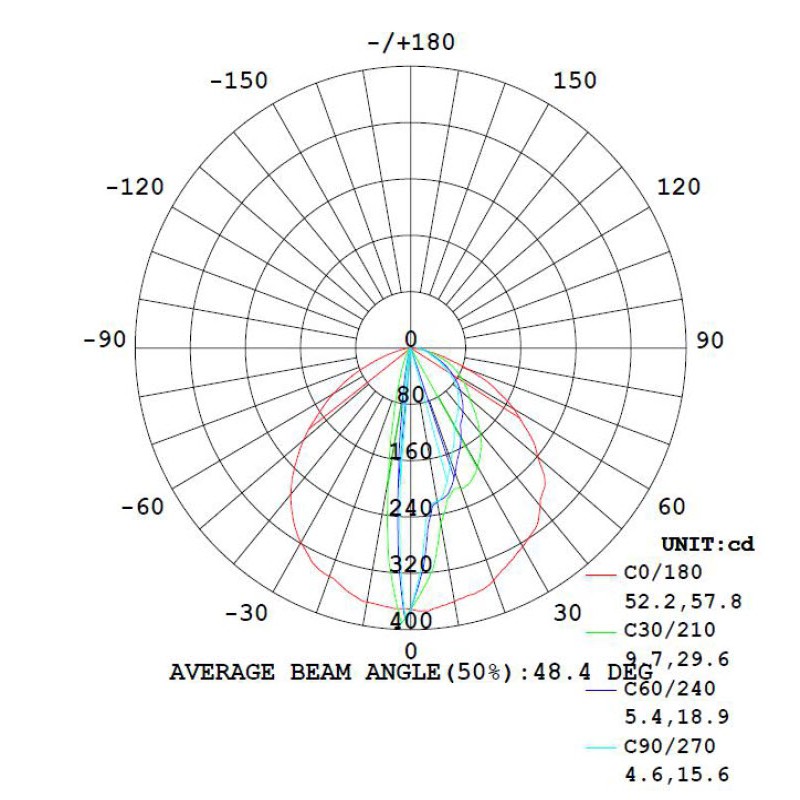

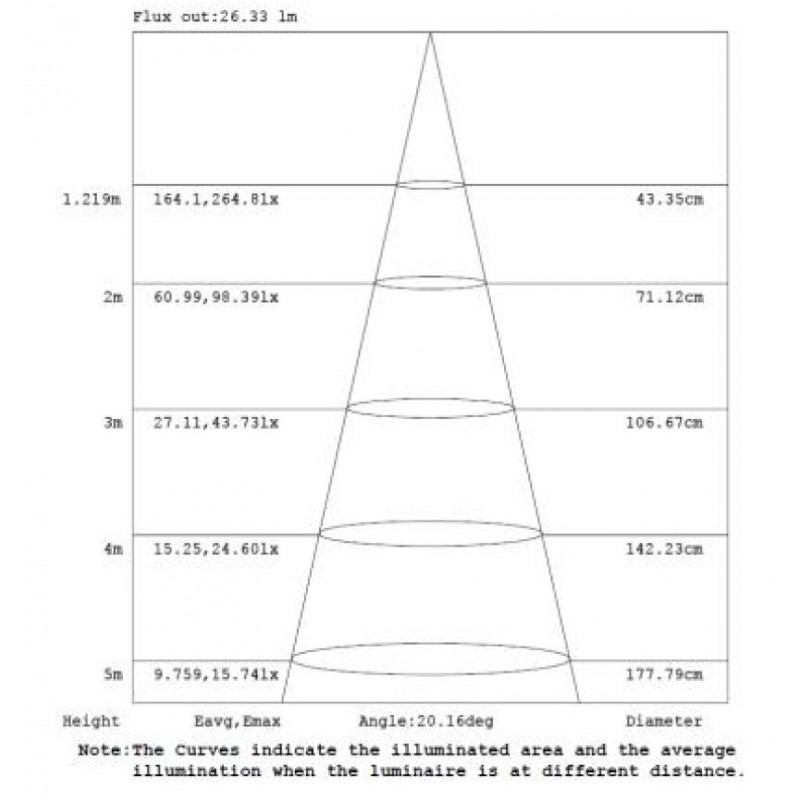

Beam angle: 100*20° (asymmetrical optics)
Power consumption: 5W per channel, total of 20 Watt
Operating Environmental Temperature range: -40C～+50C
Material: Aluminium + PC
IP Rating: IP65

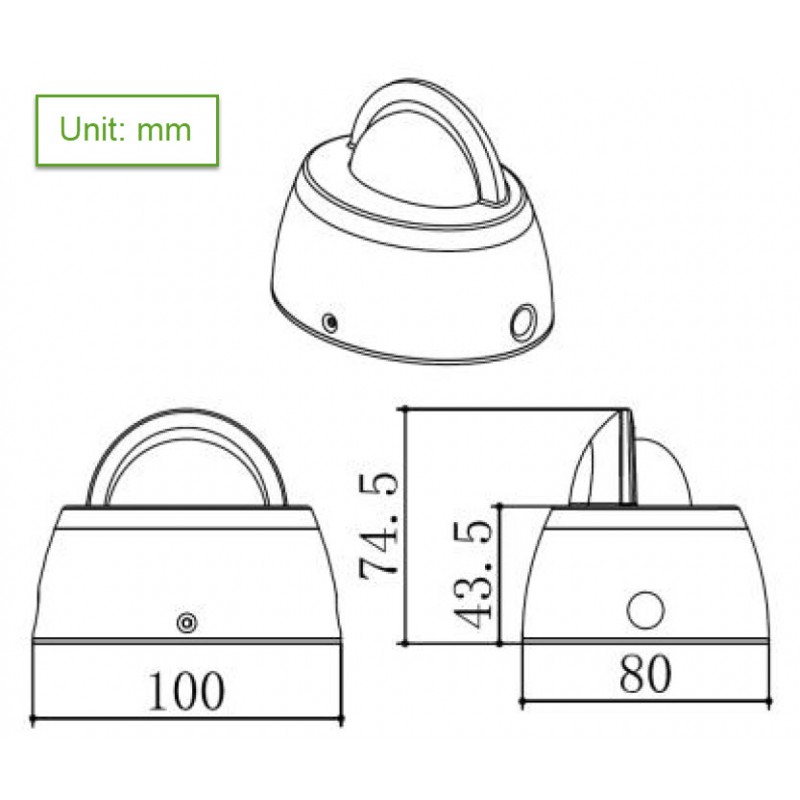

Product Size: 100x80x75mm
Packing dimensions: 193x121x144mm
Weight (including box): 706g
Warranty: 5 Years

Note: Factory Default DMX start address is 004, if you wish to change this please check our DMX address writer (sold separately).

This product has total of 4 DMX channels: Red=004, Green:005, Blue: 006, White: 007

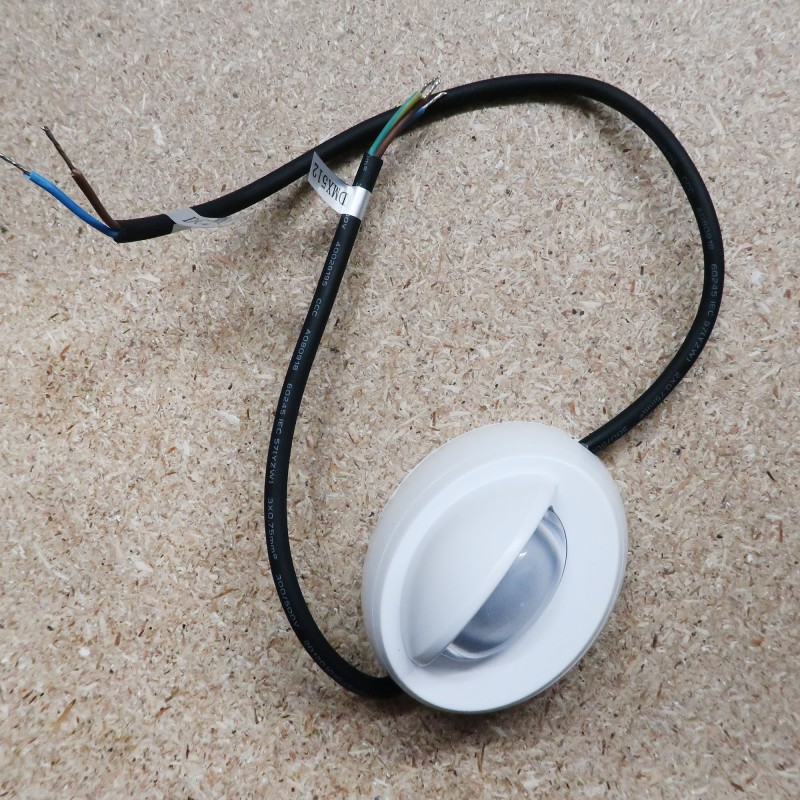

DMX512 wire:
red or brown = data +
blue or black = data -
yellow/green = GND

DC24V wire:
red or brown = +24V
blue or black = - 24V  (0V)

This very compact RGBW DMX LED wash light is ideal for professional use in theatre productions, stage set-ups, concerts, TV studios, discos, and much more.
