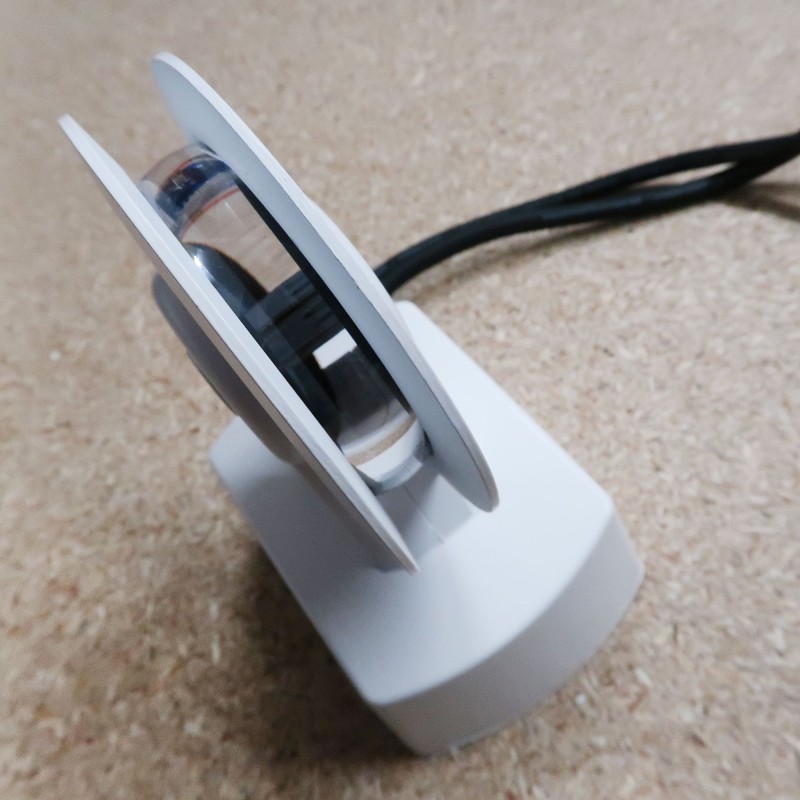

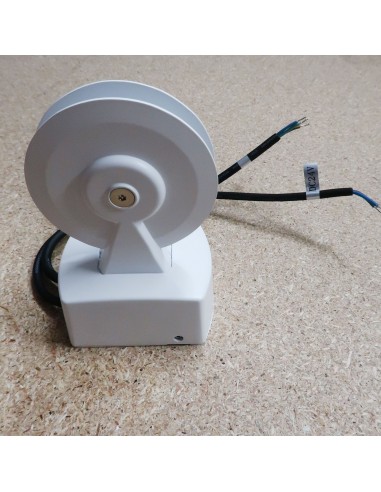

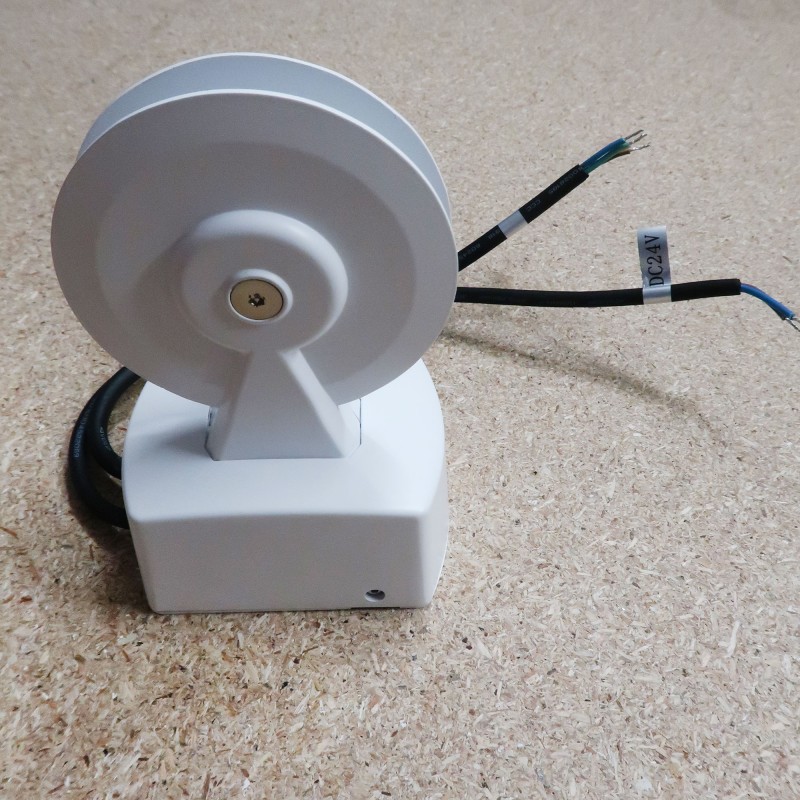

360° blade LED effect light - RGBW - DMX512 - IP65 - 20W - 24V - Surface mount

This new DMX RGBW fixture shows what can be done with LED lighting when you push the boundaries.

360° blade LED effect light powered by Cree RGBW LED chips,  comes with built-in DMX512 decoder and an amazing range of optics that allow you to light architectural features in ways that have not been possible before.

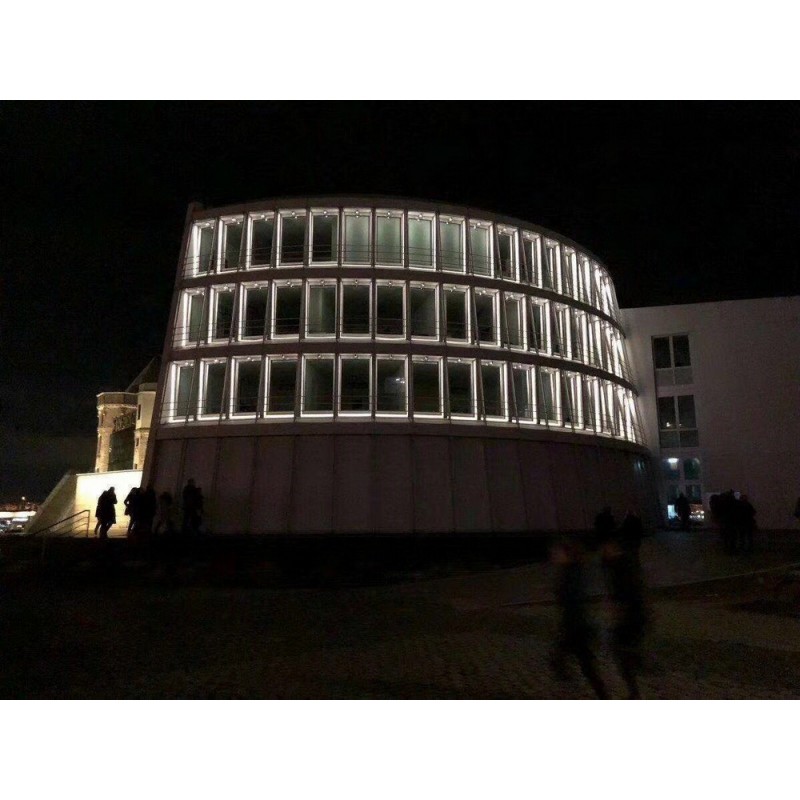

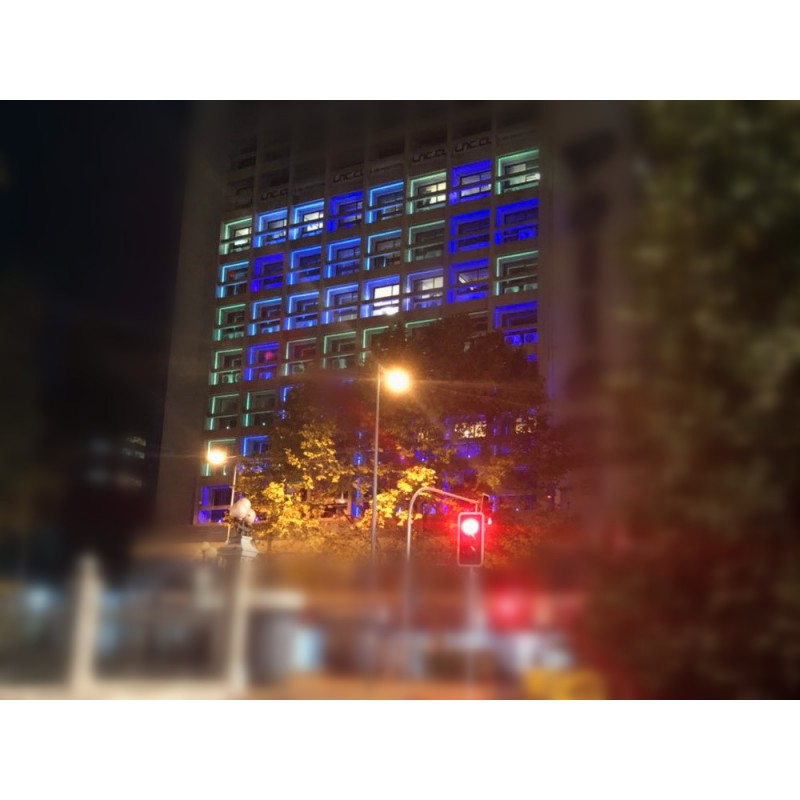

This version is for surface mount installation and is great for window trick lighting blade effects, plus more. You may also find the recessed version of this model on our website.

If colour changing is not required or you would like to customize this product, please contact our support team for more details. We will be happy to customize this product to meet your project requirements.

To get some idea about the effects you can create using this product please check out the video and the end of this description:

Note that fixtures used for the project shown in the video are iGuzzini's LED trick collection and are not supplied by Hi-Line.

Product Specification

Input Voltage: 24 Volts DC
Control protocol: DMX 512
LED chips: Cree RGBW LED chips (9pcs)
CCT for white colour (W): 5000K
Power consumption: 5W per channel, total of 20 Watt
Effect beam Angle: 360°
Operating Environmental Temperature range: -40C～+50C
Material: Aluminium + PC
IP Rating: IP65

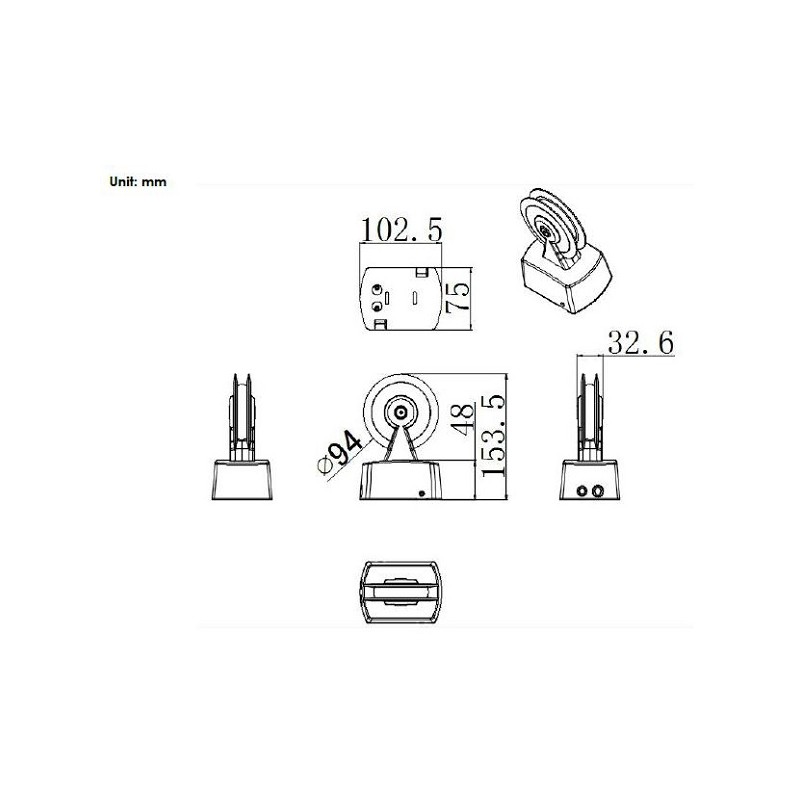

Product Size: 103x75x154mm
Warranty: 5 Years

Note: Factory Default DMX start address is 004, if you wish to change this please check our DMX address writer (sold separately).

This product has total of 4 DMX channels: Red=004, Green:005, Blue: 006, White: 007

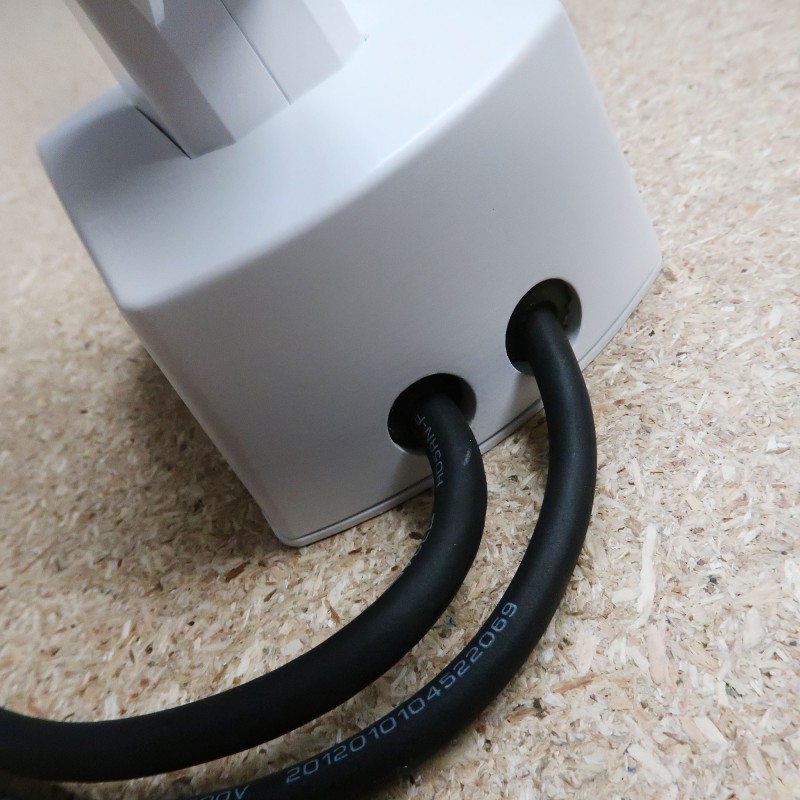

DMX512 wire:
red or brown = data +
blue or black = data -
yellow/green = GND

DC24V wire:
red or brown = +24V
blue or black = - 24V  (0V)
