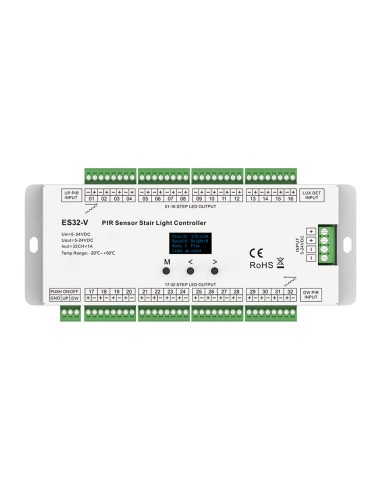

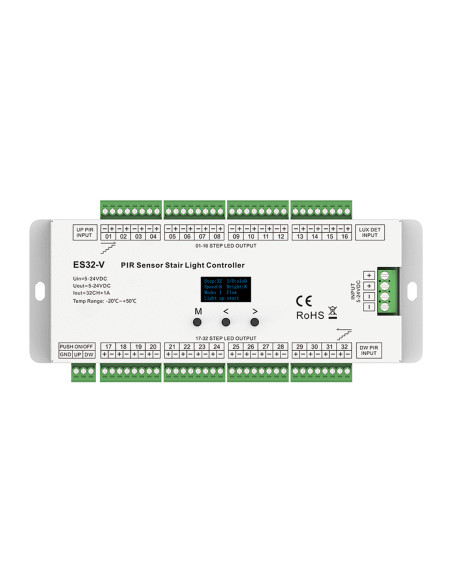

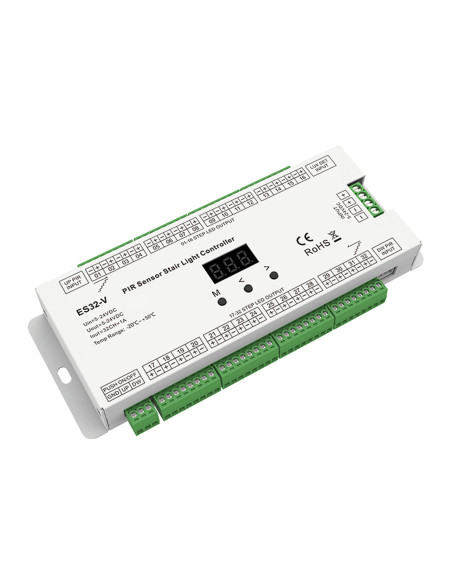

HL-ES32-V — 32-channel PIR stair-light controller
This is a stair sequencer, not a one-channel dimmer. Each tread gets its own 5–24 V constant-voltage output (max 1 A). Two PIR heads go at the top and bottom of the flight. Walk into range and the steps run on in sequence (or together — you choose). A daylight sensor can hold the stairs off when the landing is already bright.
It is the constant-voltage, single-colour version. It is not the SPI RGB ES32, and not a 12–48 V RF strip dimmer.
Why installers buy it
- Up to 32 treads, 1 A each. Set the step count from 4 to 32 on the OLED so unused channels stay off.
- Six run modes: flow, chase, trail, float, five-step, one-step. Speed and brightness 1–8.
- Sequential or synchronised on/off. Fade 0–3 s. Auto-off delay 5 s to 10 min (default 10 s).
- Two retractive pushes can stand in for the PIRs. Daylight threshold 10–200 lux, or off.
- Box includes two PIR heads and a daylight sensor. Laser heads (ER-C / EL-C) are optional if the PIR field is too wide.
- Self-test from the buttons. Any damaged channel can be disabled so the sequence skips it. Short-circuit protection.

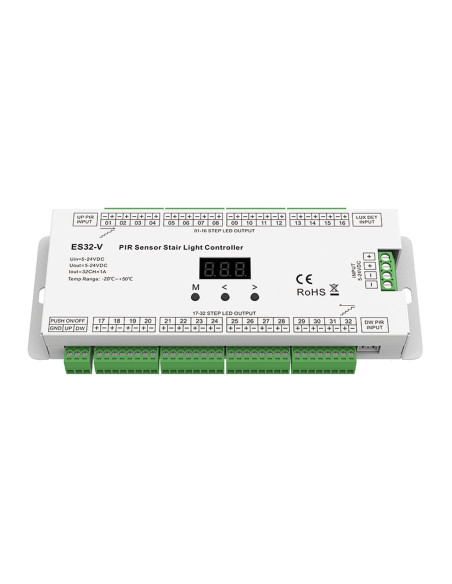

What you are wiring
- Power in + / −, 5–24 V DC constant voltage. Size the driver for all steps on at once (up to 32 A if every channel is at 1 A — in practice much less on typical stair tape).
- Outputs 01–32, each + / − to one tread. Label the looms 1–32 before first power-up.
- UP PIR and DW PIR. Optional UP / DW push. Optional lux sensor.
PIR field is about 3 m, 30° ±10°. Keep heads away from HVAC, windows and direct sun. Indoor dry location only.
What to put with it
Constant-voltage single-colour 12 V or 24 V strip on each tread, cut to the riser width. Open Related products for a typical 24 V COB. Do not feed this box from a 36/48 V driver.
The user manual PDF is on the Attachments tab (factory pages, Hi-Line website on each page). OLED key-presses and the six modes are in that file.
Technical summary
- 5–24 V DC constant voltage, 32 channels × 1 A
- Dual PIR + dual push + daylight input
- OLED, 3 keys, PWM 1 / 2 / 4 kHz
- About 186 × 86 × 25.5 mm, packing 0.66 kg, IP20
- Warranty: 5 years
Must be installed by a qualified electrician. Confirm strip voltage matches the driver before first power-up. Do not exceed 1 A per channel.
